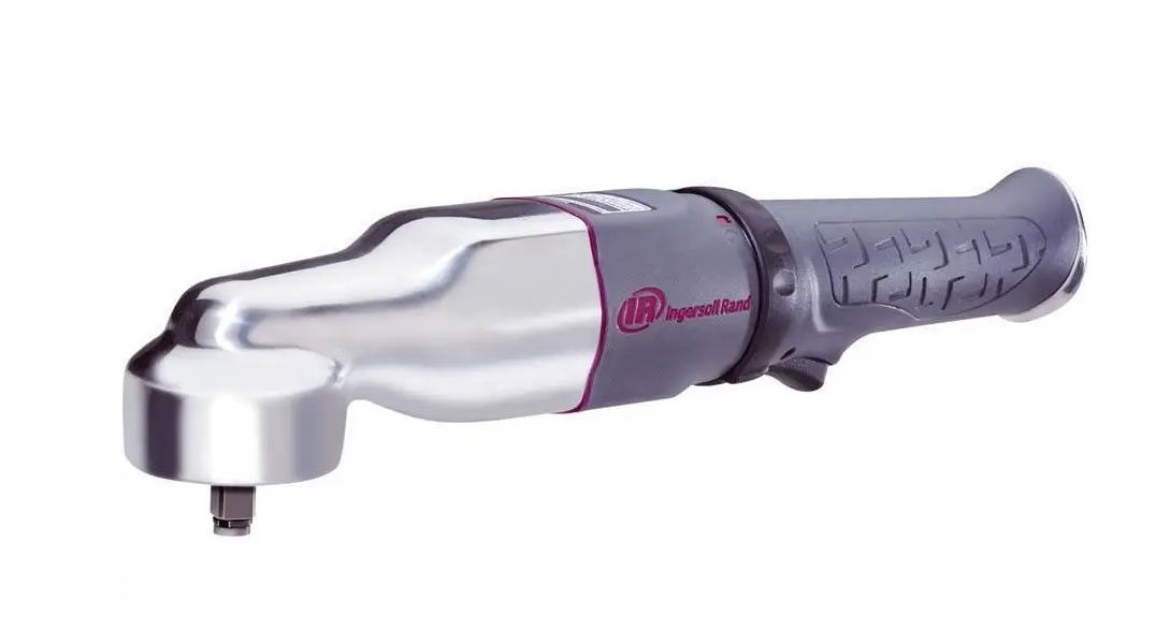

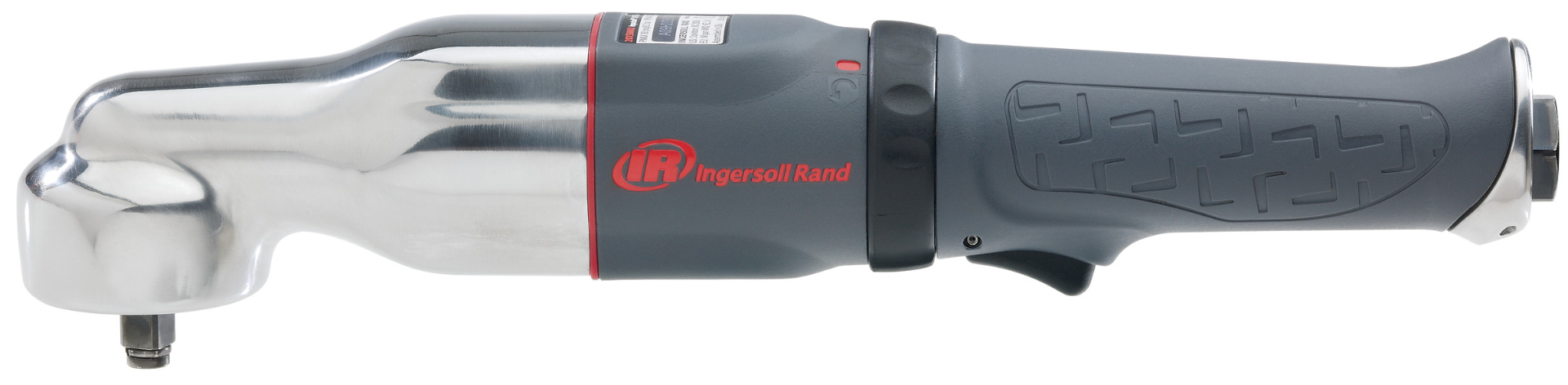

Air Ratchet, R/A, Low Profile, 3/8 SQ DR

IR 2015MAX

3/8" Air Impact Wrench, 180 ft-lb Torque, Friction Ring Retainer, Right Angle

Description: This revolutionary product is unlike any other on the market today. The Hammerhead Low Profile impact wrench offers the power and speed of an impact with the reach of a ratchet. The combination of MAX power, MAX control, and MAX access now allows you to use an Ingersoll Rand impact wrench for virtually any application. Say goodbye to awkward extensions and swivel sockets, and watch your productivity soar as you conquer tasks in minutes that once took you hours.

Features And Benefits:

• Max Power: With 180 ft-lbs of max torque and 9000 rpm, this tool offers more than twice the power of the leading competitor's ratchet.
• Max Control: A feather-touch trigger, two-position forward power regulator and conveniently located forward / reverse ring provide precise control.
• Max Access: A head height of under 2" and reactionless torque allow you to safely use this powerful tool in tight spaces.
• Feather touch trigger, 2-position forward power regulator, forward/reverse ring
• Compact design, with head height under 2 inches, makes operation and access easier in tight spots so you can perform even the most detailed work with this air impact wrench.
• Ergonomically sound rear exhaust system.
• Offers the same reach as a ratchet.
• Optimized for the vehicle repair industry, body shops, and MRO.
• 1-year warranty.

Product Application and Uses:

Designed to remove and install threaded fasteners. Optimized for the vehicle repair industry, body shops, and MRO

• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 19
• Air Consumption @ Load (l/min): 538
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard

• Blows per Min: 2100

• Color: Grey
• Configuration/Handle Type: Right Angle
• Drive Size (in): 3/8
• Drive Type: Square
• Duty Rating: Maintenance Duty

• End Plates: Aluminum with Hard-coating
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 94.1 / 105.1

• Hammer Case: Aluminum
• Handle Material: Composite
• Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
• Impact Mechanism: Single Hammer
• Impacting Sound Pressure/Power Db(A): 96.6 / 107.6

• Max Bolt Diameter (in): 0.4375
• Max Free Speed (rpm): 9000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 180
• Max Torque (in-lb): 2160
• Max Torque (nm): 244
• Min Hose Size (in): 3/8
• Motor: Reverse Bias

• Number of Power Settings: 2
• Power Source: Air Powered
• Product Length (in): 13.1

• Product Width (in): 2.2
• Product Height (in): 3.1
• Product Weight (lb): 3.4
• Recommended Forward Torque Range (ft-lb): 45-140
• Recommended Forward Torque Range (in-lb): 540-1682
• Recommended Forward Torque Range (nm): 61-190
• Recommended Reverse Torque (ft-lb): 45-160
• Recommended Reverse Torque (nm): 61-217
• Retainer Type: Friction Ring

• Side to Center Distance (in): 1.1
• Side to Center Distance (mm): 28

• Speed Setting: Variable Speed
• Standards/Certifications: CE

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 17.4
• Warranty: 2-year
