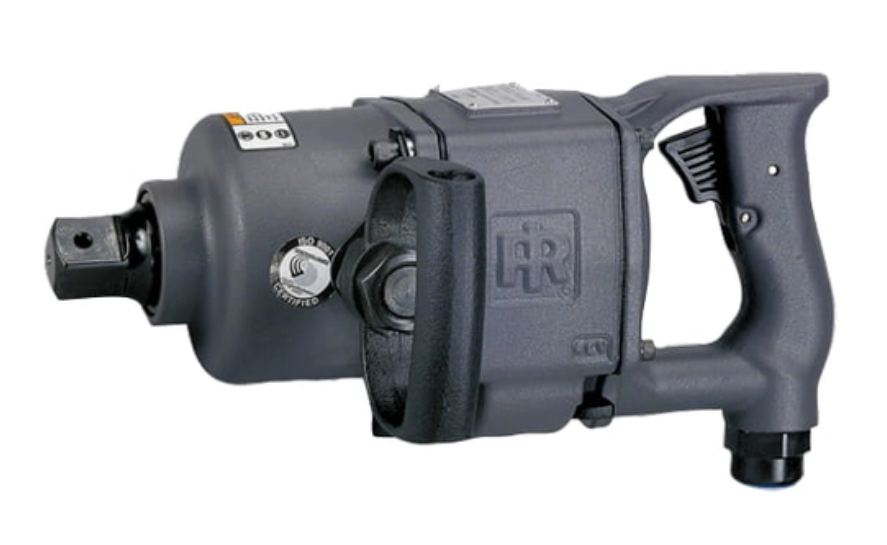

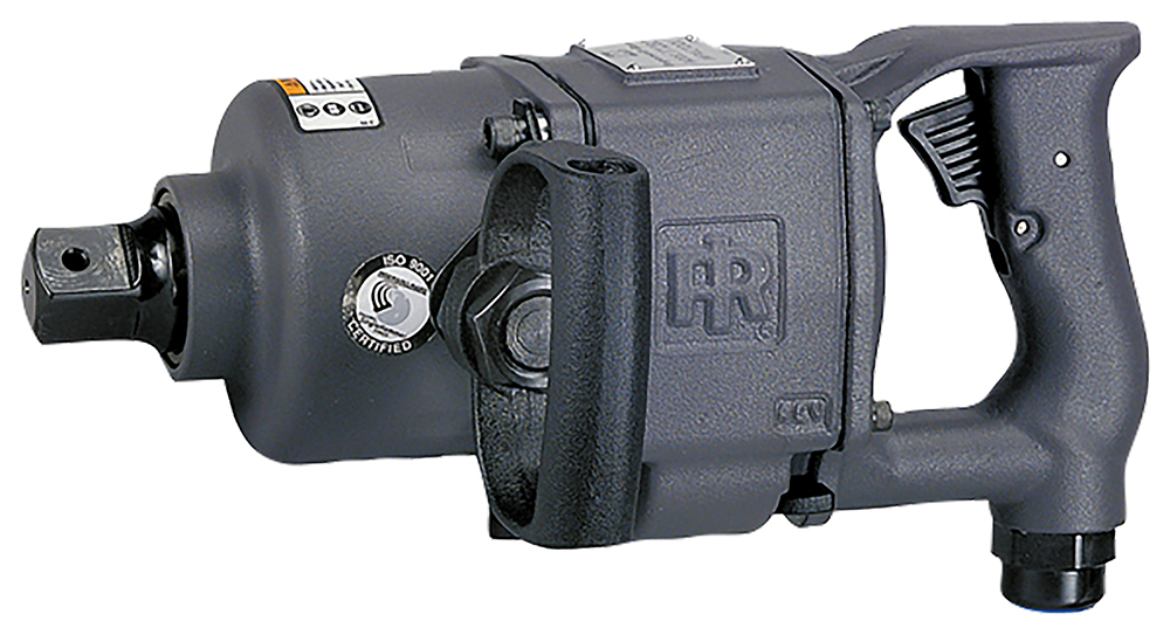

Heavy Duty Impactool

IR 1712B2

1" Air Impact Wrench, Heavy Duty, 1400 ft-lb Torque, Thru-hole Retainer, D-handle Inside Trigger

Description: The 1712B2 Impact Wrench features a jumbo hammer impact mechanism and a square thru hole anvil. Paired with its steel hammer case and metal housing, this tool is ready for even the toughest jobs.

Features And Benefits:

• Power: Vane motor and jumbo hammer
• Durability: Steel hammercase
• Productivity: Thru-hole 1" square drive and D-handle with auxiliary handle

Product Application and Uses:

General Industrial, Facility Maintenance

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Inside Trigger
• Air Consumption @ Load (cfm): 47
• Air Consumption @ Load (l/min): 1331
• Air Inlet: 1/2" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard

• Blows per Min: 800

• Color: Black
• Configuration/Handle Type: D-Handle
• Drive Size (in): 1
• Drive Type: Square
• Duty Rating: Heavy Duty

• End Plates: Bronze
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 107.7 / 118.7

• Hammer Case: Steel
• Housing Material: Aluminum
• Impact Mechanism: Jumbo Hammer
• Impacting Sound Pressure/Power Db(A): 103.0 / 114.0

• Max Bolt Diameter (in): 1-1/4
• Max Free Speed (rpm): 6000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 1400
• Max Torque (in-lb): 16800
• Max Torque (nm): 1898
• Min Hose Size (in): 3/4
• Motor: Non-Biased

• Number of Power Settings: Continuous
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 73.7
• Product Length (in): 11.25

• Product Width (in): 10.24
• Product Height (in): 6.3
• Product Weight (lb): 18.25
• Recommended Forward Torque Range (ft-lb): 451-1003
• Recommended Forward Torque Range (in-lb): 5417-12037
• Recommended Forward Torque Range (nm): 612-1360
• Retainer Type: Thru-hole

• Side to Center Distance (in): 5.1
• Side to Center Distance (mm): 130

• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 19.7
• Warranty: 1-year

• Accessories: SK8H9TN

• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
