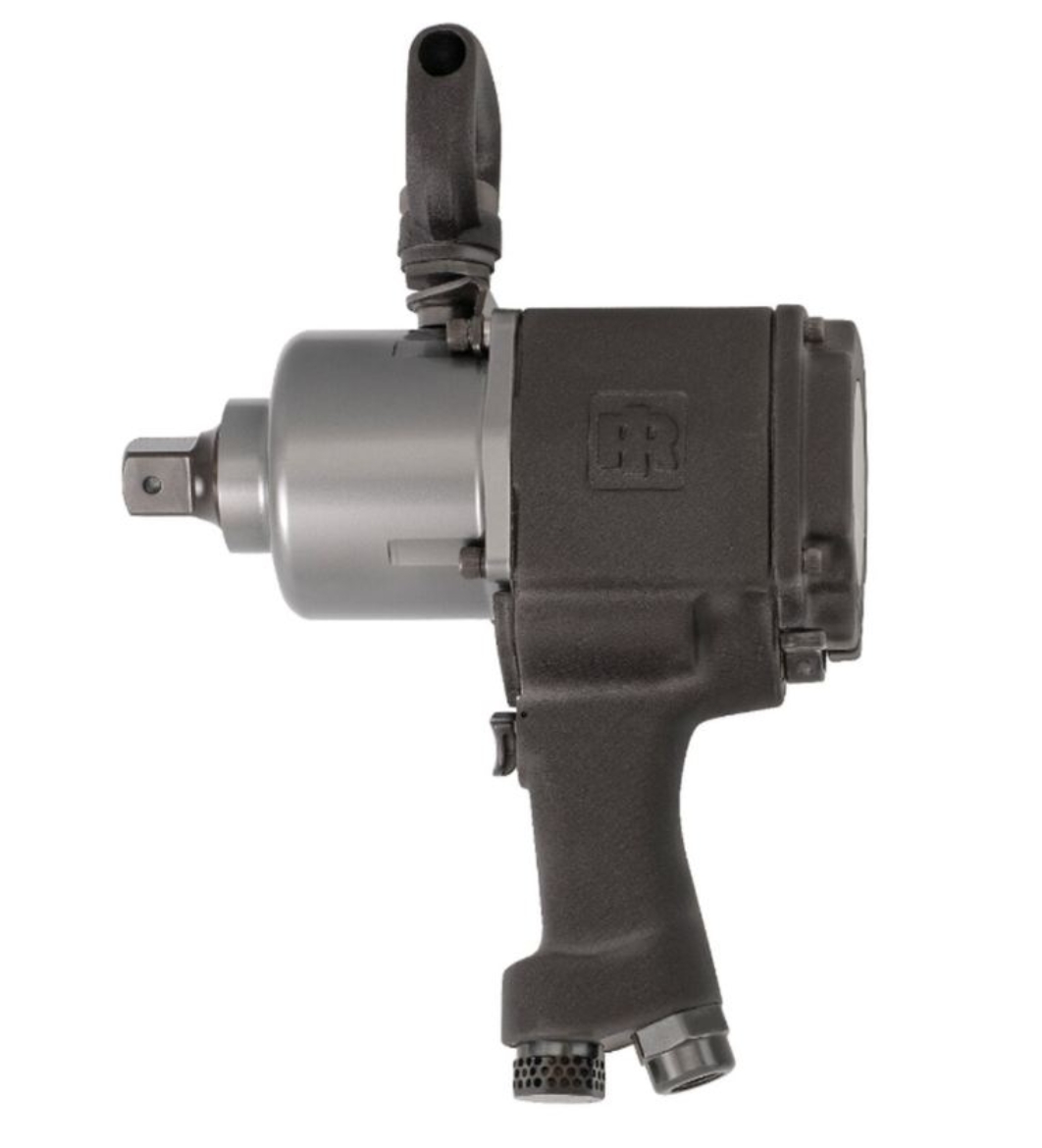

Super Duty Impactool

IR 2940P2

1" Air Impact Wrench, 1600 ft-lb Torque, 810 BPM, Pistol

• Actuation/Throttle Type/Switch Type: Trigger
• Air Inlet: 1/2" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard

• Blows per Min: 810

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 1
• Drive Type: Square
• Duty Rating: Industrial Duty

• Exhaust Location: Bottom

• Housing Material: Aluminum
• Impact Mechanism: Twin Hammer

• Max Bolt Diameter (in): 1-3/8
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 1601
• Max Torque (in-lb): 19206
• Max Torque (nm): 2170
• Min Hose Size (in): 3/4
• Motor: Non-Biased

• Power Source: Air Powered

• Recommended Forward Torque Range (ft-lb): 1003-1601
• Recommended Forward Torque Range (in-lb): 12037-19206
• Recommended Forward Torque Range (nm): 1360 - 2170
• Recommended Reverse Torque (ft-lb): 1003-1601
• Recommended Reverse Torque (nm): 1360-2170

• Sound Pressure/Power Db(A): 94.2 / 105.2

• Tool Type: Full-size
• Vibration Level (m/s2): 18.1
• Vibration Uncertainy K* (m/s2): 5.6
• Warranty: 1-year

• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 2940-TK3
