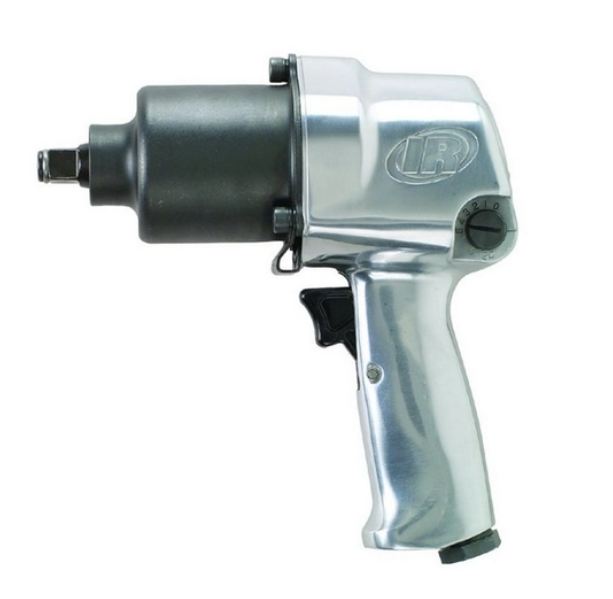

Impact, 1/2in Heavy Duty

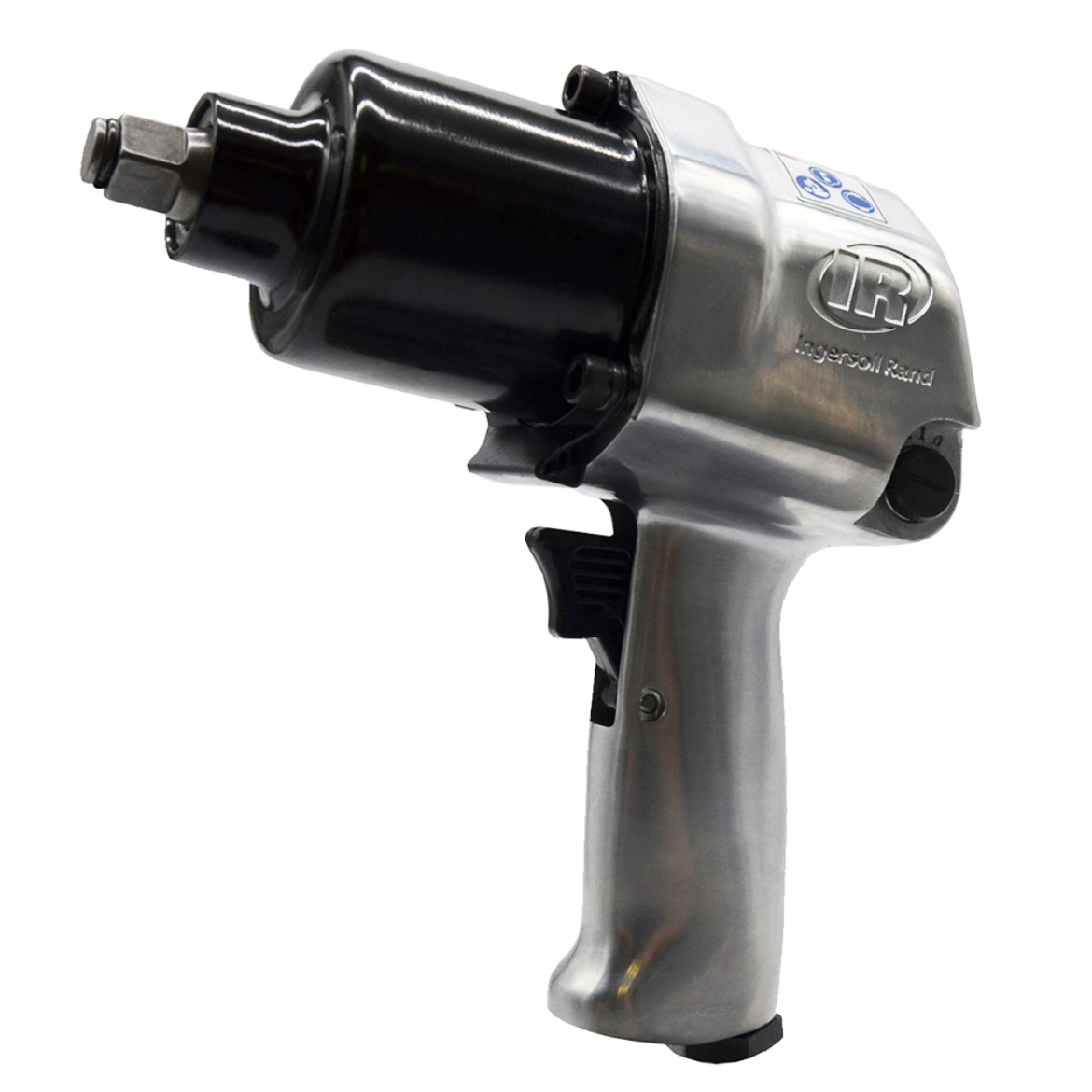

IR 244A

1/2" Air Impact Wrench, Super Duty, 500 ft-lb Torque, Friction Ring Retainer, Pistol

Description: The 244A Series ½" Impact Wrench comes loaded with a steel hammer case, square socket retaining ring, vane motor and metal housing — making this wrench one of the toughest, most durable impact wrenches on the market.

Features And Benefits:

• Increased Control: The power regulator on the 244A Series provides you with increased control and stability on even your toughest projects.
• Durability: Tough and durable, the metal housing and steel hammer case on the 244A Series will help it hold up through repeated drops and harsh environments.
• Two-Piece Construction: Easy-to-service two-piece construction.
• Comfort and Control: Contoured handle for comfort and control. Patented one-hand forward/reverse for easy operation.
• Pressure Feed Lubrication: Pressure feed lubrication system automatically greases the impact mechanism.

Product Application and Uses:

General Industrial, Facility Maintenance

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 21
• Air Consumption @ Load (l/min): 595
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 5.4
• Average Air Consumption (l/min): 153

• Blows per Min: 1300

• Color: Silver
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 1/2
• Drive Type: Square
• Duty Rating: Super Duty

• End Plates: Steel
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 93.0 / 104.0

• Hammer Case: Steel
• Handle Material: Aluminum
• Housing Material: Aluminum
• Impact Mechanism: Twin Hammer

• Max Bolt Diameter (in): 9/16
• Max Free Speed (rpm): 7000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 500
• Max Torque (in-lb): 6001
• Max Torque (nm): 678
• Min Hose Size (in): 3/8
• Motor: Reverse Bias

• Number of Power Settings: 6
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 83.3
• Product Length (in): 7.3

• Product Width (in): 2.95
• Product Height (in): 7.85
• Product Weight (lb): 6
• Recommended Forward Torque Range (ft-lb): 40-350
• Recommended Forward Torque Range (in-lb): 478-4204
• Recommended Forward Torque Range (nm): 54-475
• Recommended Reverse Torque (ft-lb): 40-350
• Recommended Reverse Torque (nm): 54-475
• Retainer Type: Friction Ring

• Side to Center Distance (in): 1.5
• Side to Center Distance (mm): 38

• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 8.7
• Warranty: 1-year

• Accessories: 244-BOOT
• Accessories: S64H1316L-PS1
• Accessories: S64H1516L-PS1
• Accessories: S64H34L-PS1
• Accessories: S64H78L-PS1
• Accessories: S64M17L-PS1
• Accessories: S64M18L-PS1
• Accessories: S64M21L-PS1
• Accessories: S64M22L-PS1
• Accessories: S64M24L-PS1
• Accessories: S64M26L-PS1
• Accessories: SK4H13N
• Accessories: SK4M14LN

• Lubricat
