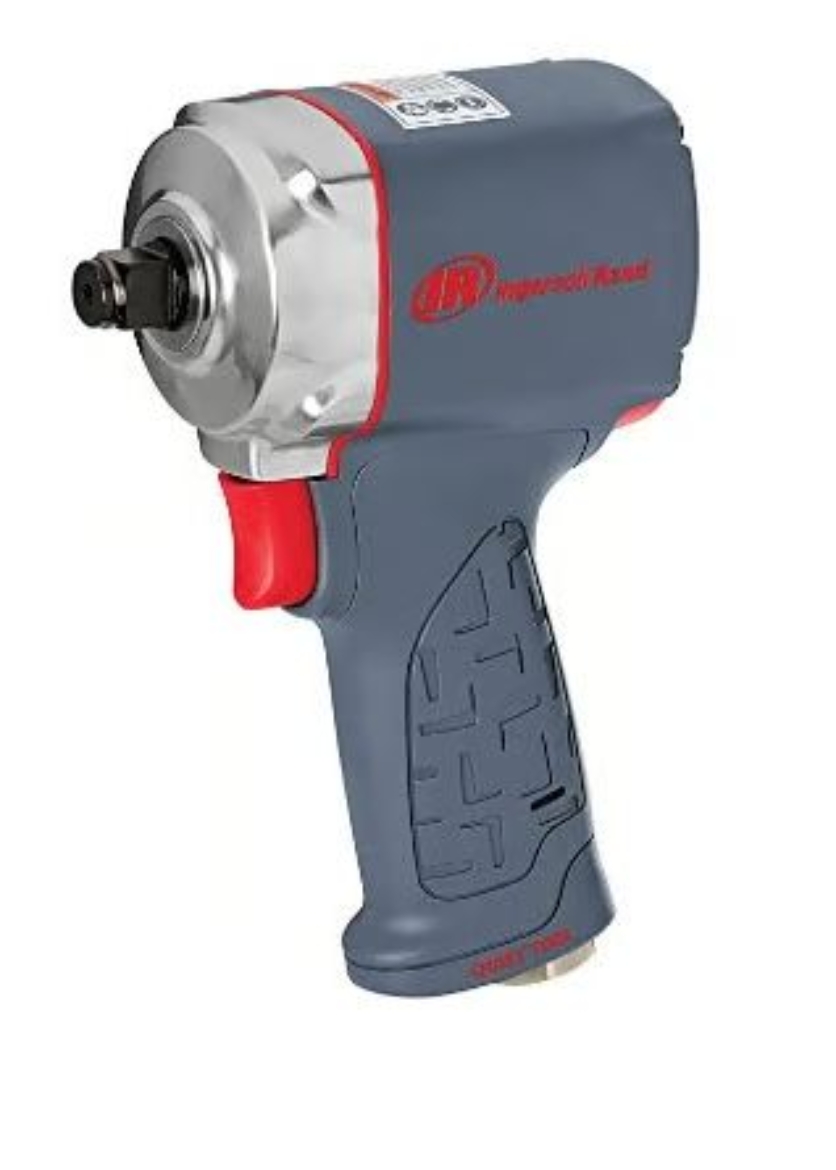

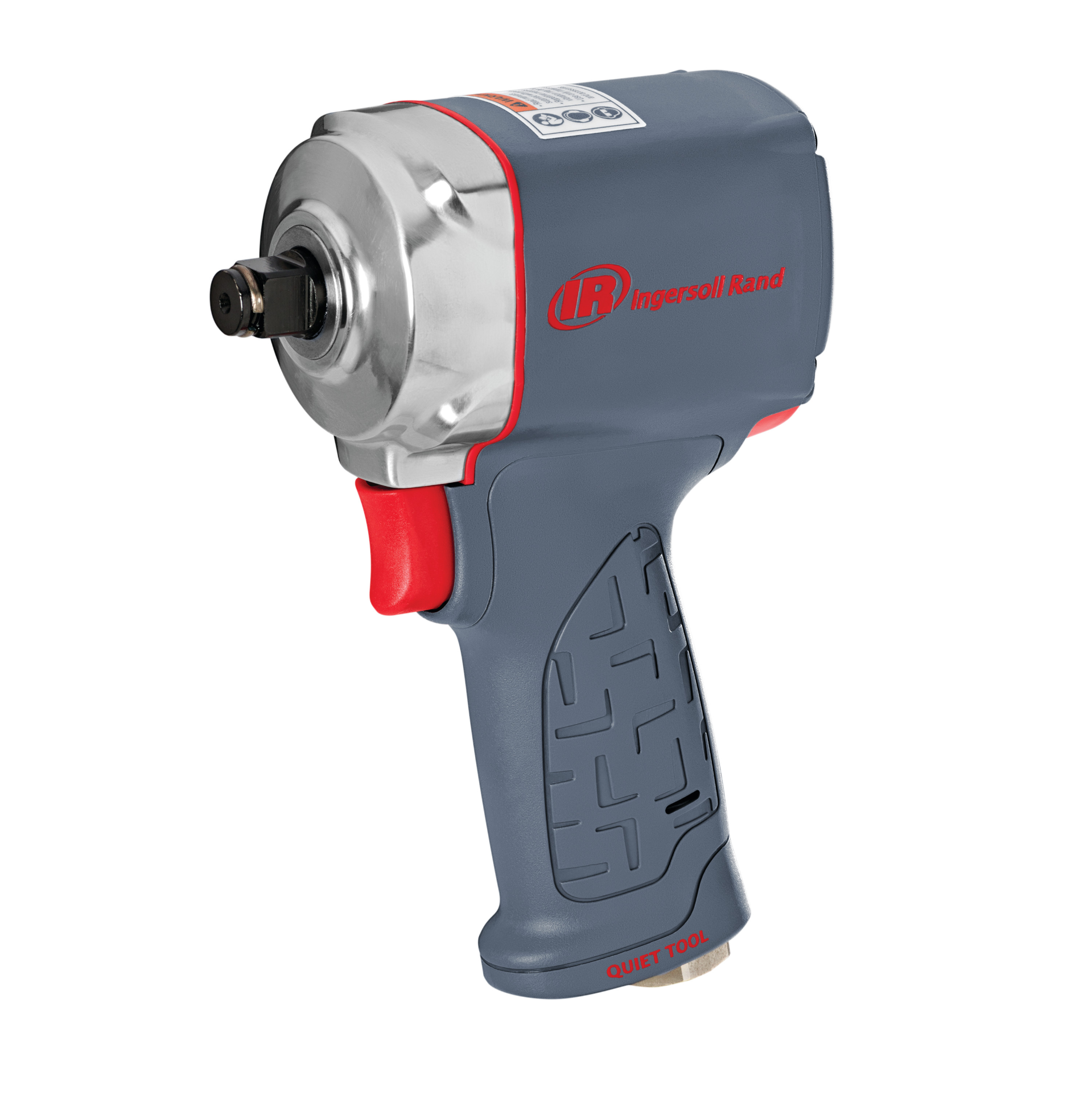

IR 36QMAX
1/2" Ultra Compact Air Impact Wrench, Quiet, 640 ft-lb Torque, Friction Ring Retainer, Pistol
This tool has been rigorously tested, beaten up, dropped and pushed to the limits to make sure it lasts twice as long as the competition. With the twin hammer design, unmatched durability, superior accessibility and up to 640 ft-lbs* of nut busting torque at just 2.4 lbs, the 36QMAX is not just the tool you want, it is the tool you need to get REAL WORK done time and time again.
Features And Benefits
- Power-to-Weight: At 2.4 lbs, this tool is amongst the lightest on the market, and still delivers 640 ft-lbs of nut busting torque; delivering the power you expect from an Ingersoll Rand impact.
- Access: There is no place for work to hide. The compact design provides a user the access and power they need, even if the task is up, under, over, or around any awaiting obstruction.
- Reliability: Built on the IR Impact Wrench legacy, this tool is tested at 2X the life of competitive products available today.
- Quiet: The sound baffling technology provides a quiet design at only 91.3 dB(A).
- Control: The one-handed forward/reverse push button and 3-mode power regulator give you max control and max performance.
Includes: Bare Tool
Product Application and Uses: Vehicle Maintence And Industrial Mro For Resctricted Areas
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 19
Air Consumption @ Load (l/min): 538
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 24
Average Air Consumption (l/min): 680
Blows per Min: 1300
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Maintenance Duty
End Plates: Aluminum with Hard-coating
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 87.6 / 98.6
Hammer Case: Aluminum
Handle Material: Composite
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 91.3 / 102.3
Max Bolt Diameter (in): 9/16
Max Free Speed (rpm): 8000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 472
Max Torque (in-lb): 5664
Max Torque (nm): 640
Min Hose Size (in): 3/8
Motor: Reverse Bias
Number of Power Settings: 3
Nut-busting/Breakaway Torque (ft-lb): 640
Nut-busting/Breakaway Torque (in-lb): 7682
Nut-busting/Breakaway Torque (nm): 868
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 180.77
Product Length (in): 4.61
Product Width (in): 2.36
Product Height (in): 7.13
Product Weight (lb): 2.6
Quiet Tool: Yes
Recommended Forward Torque Range (ft-lb): 384
Recommended Forward Torque Range (in-lb): 4602
Recommended Forward Torque Range (nm): 520
Retainer Type: Friction Ring
Side to Center Distance (in): 1.2
Side to Center Distance (mm): 30
Special Features: Quiet, Ultra compact
Speed Setting: Variable Speed
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Compact
Vanes: 7
Vibration Level (m/s2): 8.1
Warranty: 2-year
