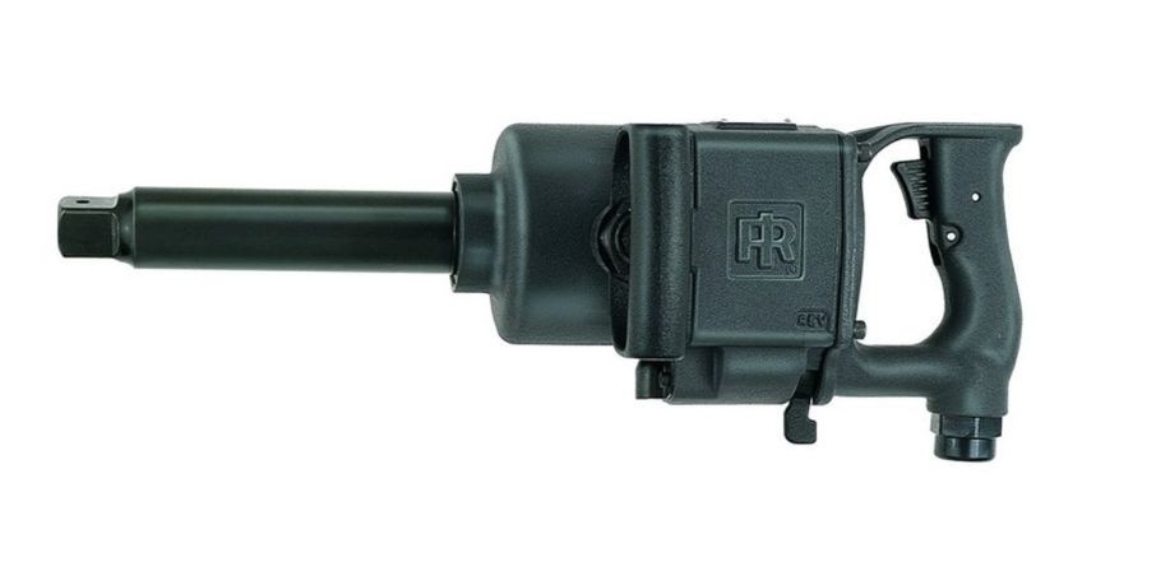

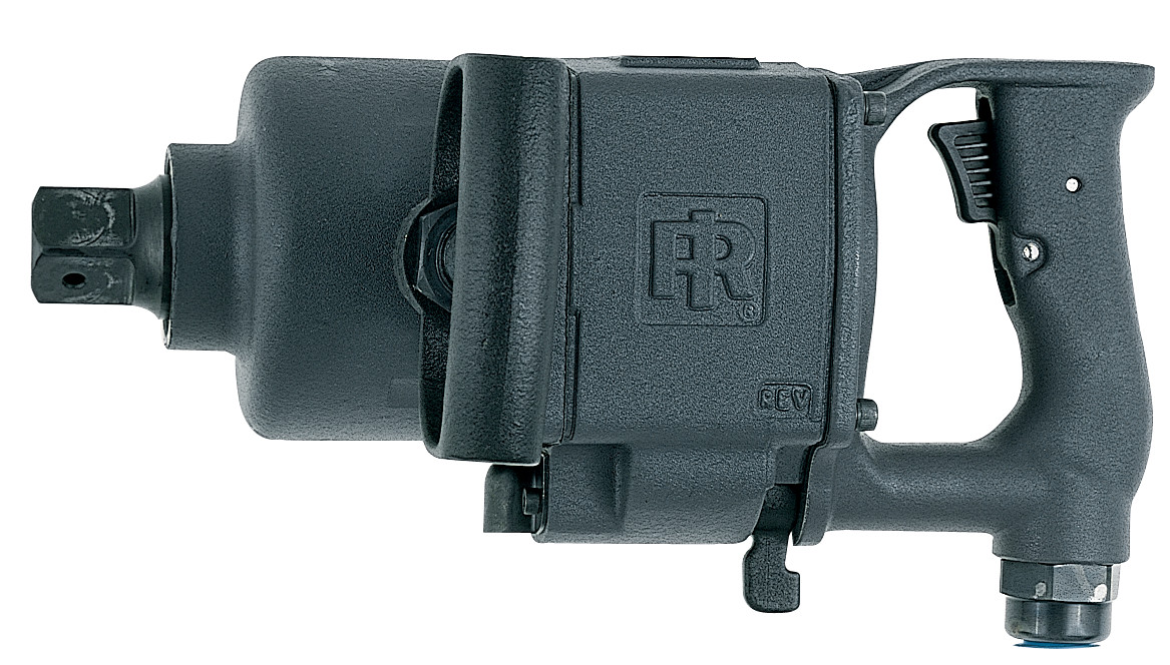

Air Impact Wrench - 1"

IR 280

1" Air Impact Wrench, Super Duty, 1600 ft-lb Torque, Thru-hole Retainer, D-Handle Inside Trigger

Description: For a versatile impact wrench that doesn't compromise safety for power, the 280 Series can't be beat. The D-shaped handle fits comfortably in your hand and the jumbo hammer impact mechanism provides an excellent power-to-weight ratio.

Features And Benefits:

• Reliability: The 280 Series Impact Wrench will stand the test of time. You can count on this tool to deliver the same high-impact performance time and time again.
• Durability: The steel hammer case and metal housing of the 280 Series make this impact wrench incredibly durable and long-lasting.
• High Power: The drive type on the 280 Series provides a higher torque output and an increased reach to help you get the job done.
• Increased Safety: This impact wrench increases on-the-job safety by providing a strong socket connection.

Product Application and Uses:

Applications include tire changing, engine repair, engine component installation and removal, body work installation and removal, farm implement assembly and repair, auto repair and maintenance, and truck repair.

• Actuation/Throttle Type/Switch Type: Inside Trigger
• Air Consumption @ Load (cfm): 55
• Air Consumption @ Load (l/min): 1557
• Air Inlet: 1/2" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 10
• Average Air Consumption (l/min): 283

• Blows per Min: 750

• Color: Grey
• Configuration/Handle Type: D-Handle
• Drive Size (in): 1
• Drive Type: Square
• Duty Rating: Super Duty

• End Plates: Bronze
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 107.7 / 118.7

• Hammer Case: Steel
• Handle Material: Aluminum
• Housing Material: Aluminum
• Impact Mechanism: Jumbo Hammer
• Impacting Sound Pressure/Power Db(A): 103 / 114

• Max Bolt Diameter (in): 1.25
• Max Free Speed (rpm): 6000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 1600
• Max Torque (in-lb): 19197
• Max Torque (nm): 2169
• Min Hose Size (in): 1/2
• Motor: Non-Biased

• Number of Power Settings: Continuous
• Power Source: Air Powered
• Product Length (in): 13

• Product Width (in): 4.8
• Product Height (in): 6.7
• Product Weight (lb): 22
• Recommended Forward Torque Range (ft-lb): 148-1003
• Recommended Forward Torque Range (in-lb): 1770-12037
• Recommended Forward Torque Range (nm): 200-1360
• Recommended Reverse Torque (ft-lb): 148-1003
• Recommended Reverse Torque (nm): 200-1360
• Retainer Type: Thru-hole

• Speed Setting: Variable Speed
• Standards/Certifications: CE

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 19.7
• Warranty: 1-year

• Lubrication: 10P
• Parts: 280-TK2
• Parts: 2934-42-6
