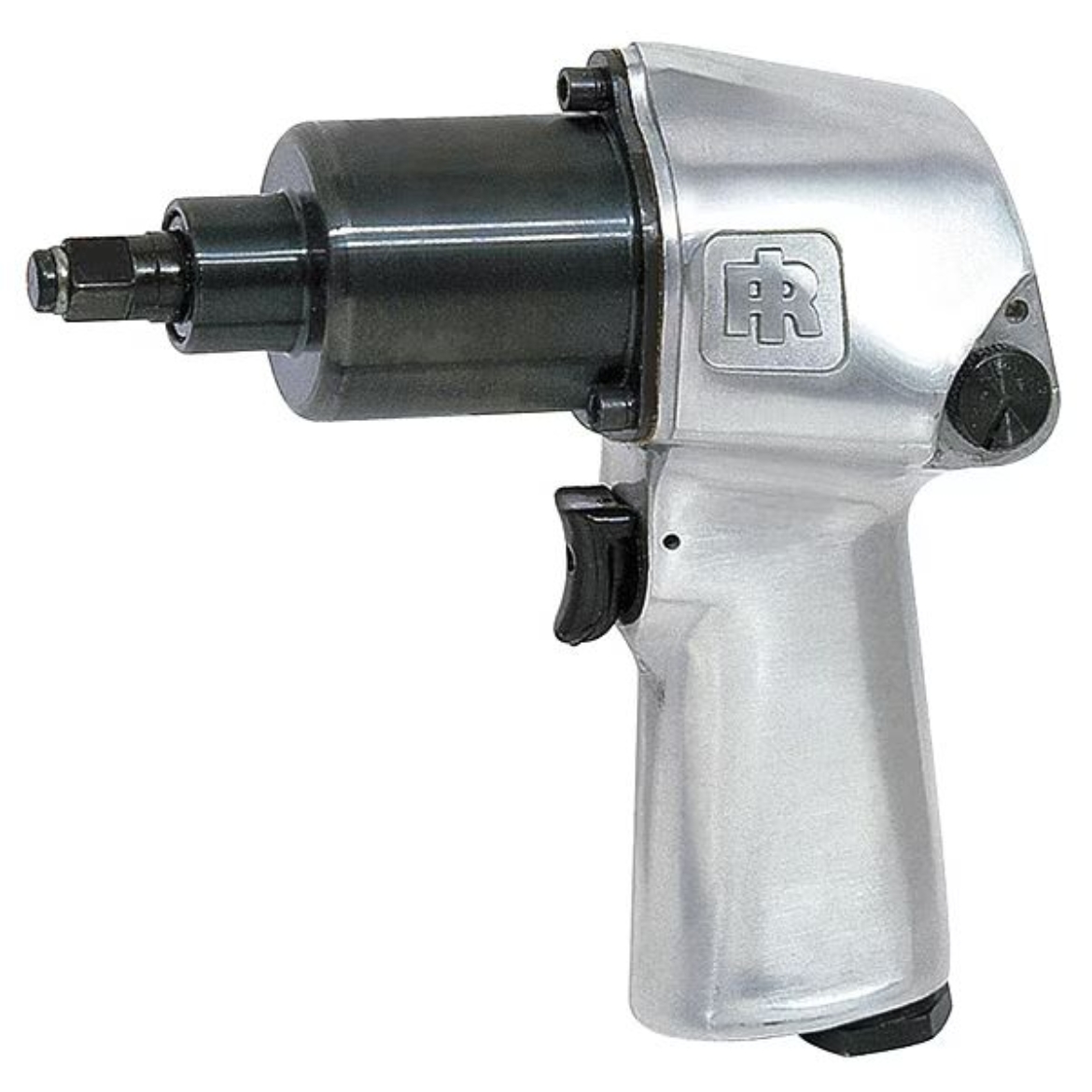

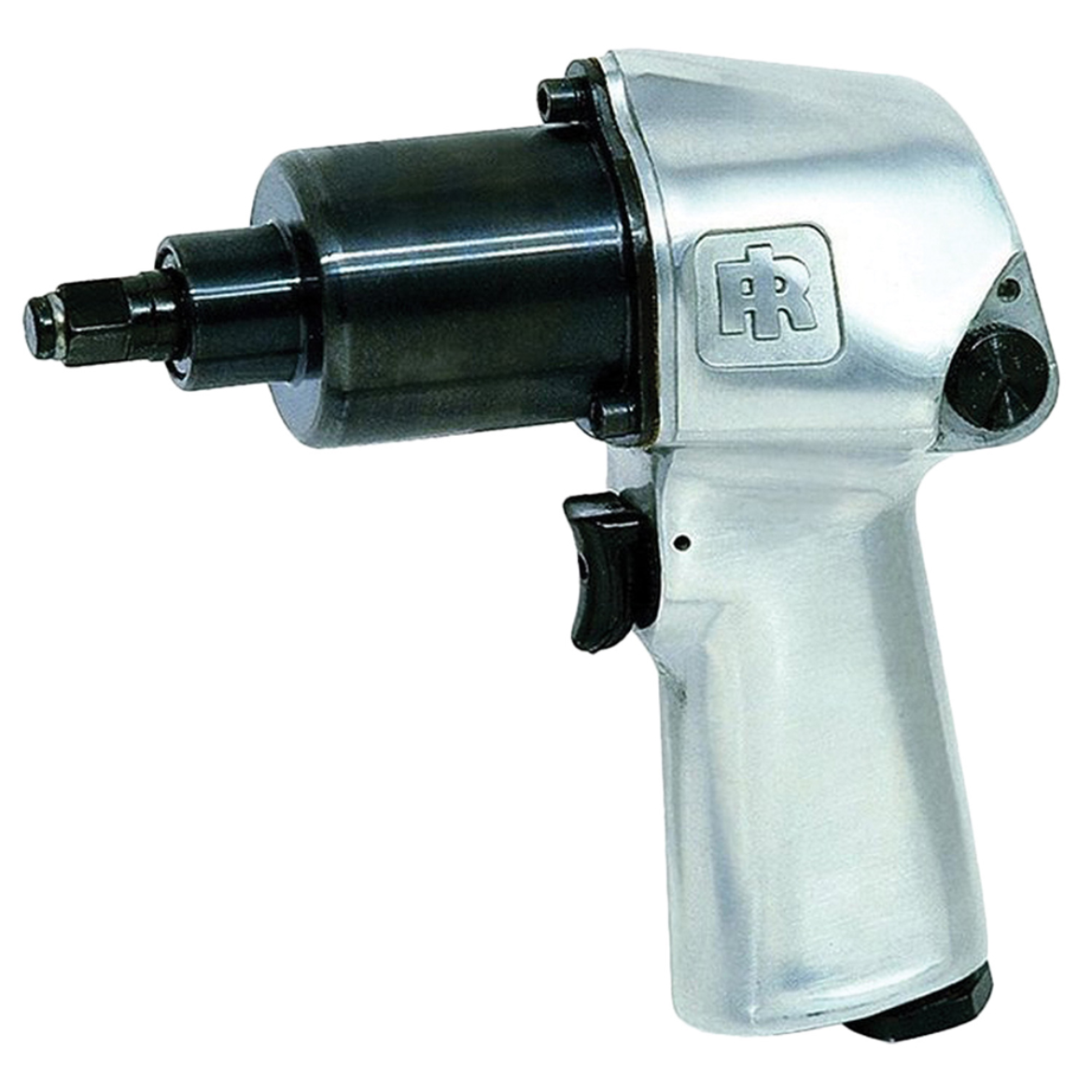

IR 212
3/8" Air Impact Wrench, Super Duty, 150 ft-lb Torque, Friction Ring Retainer, Pistol
Whether you’re working on vehicle repair or maintenance repair, the 212 Impact Wrench will help you through even the toughest of jobs.
Features And Benefits
- Reliability: This wrench was built to ensure high quality output from its first day to its last.
- Durability: This steel hammer case and metal housing make the 212 Impact Wrench as durable as it is efficient. It can withstand repeated drops and harsh environments with ease.
- Access: With a pistol grip and ergonomic design, this wrench helps you access hard-to-reach spots every time.
- Power: The wrench's finely tuned vane motor pairs smoothly with the jumbo hammer impact mechanism on the 212 Impact Wrench for maximum power.
Includes: Bare Tool
Product Application and Uses: Vehicle Repair Or Maintenance Repair
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 11
Air Consumption @ Load (l/min): 311
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 2.5
Average Air Consumption (l/min): 71
Blows per Min: 1500
Color: Silver
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/8
Drive Type: Square
Duty Rating: Super Duty
End Plates: Cast Iron
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 96.0 / 107.0
Hammer Case: Steel
Handle Material: Aluminum
Housing Material: Aluminum
Impact Mechanism: Jumbo Hammer
Impacting Sound Pressure/Power Db(A): 92.2 / 103.2
Max Bolt Diameter (in): 7/16
Max Free Speed (rpm): 13000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 150
Max Torque (in-lb): 1797
Max Torque (nm): 203
Min Hose Size (in): 3/8
Motor: Non-Biased
Number of Power Settings: 6
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 51.9
Product Length (in): 6
Product Width (in): 2.8
Product Height (in): 6.5
Product Weight (lb): 2.89
Recommended Forward Torque Range (ft-lb): 20-125
Recommended Forward Torque Range (in-lb): 239-1505
Recommended Forward Torque Range (nm): 27-170
Recommended Reverse Torque (ft-lb): 20-125
Recommended Reverse Torque (nm): 27-170
Retainer Type: Friction Ring
Side to Center Distance (in): 1.4
Side to Center Distance (mm): 36
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 6.5
Warranty: 1-year
