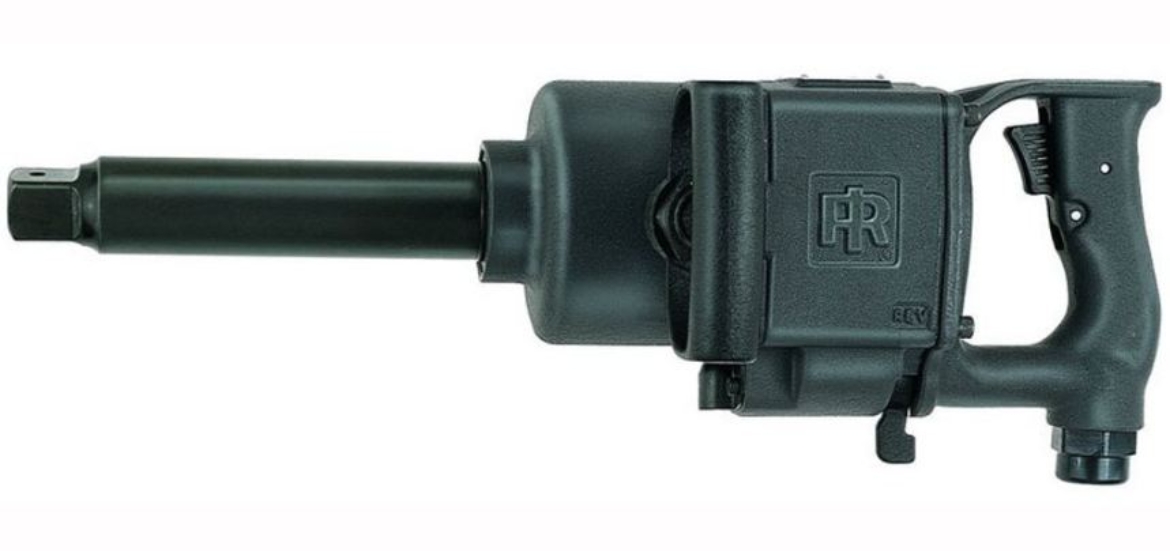

IR 280-6
1" Air Impact Wrench, 6" Ext Anvil, Super Duty, 1600 ft-lb Torque, Thru-hole Retainer, D-Handle Inside Trigger
For a versatile impact wrench that doesn’t compromise safety for power, the 280 Series can’t be beat. The D-shaped handle fits comfortably in your hand and the jumbo hammer impact mechanism provides an excellent power-to-weight ratio.
Features And Benefits
- Durability: The steel hammer case and metal housing of the 280 Series make this impact wrench incredibly durable and long-lasting.
- Increased Safety: Square thru-hole retainer increases on-the-job safety by providing a strong socket connection.
- Power: The jumbo hammer impact mechanism and 6 vane motor gives you the ability to power up to 1600 ft.-lbs. of torque for your toughest applications.
- Extended Reach: The 6-inch extended anvil provides you with increased reach that’s invaluable when working with deeper fasteners.
Product Application and Uses: Applications include tire changing, engine repair, engine component installation and removal, body work installation and removal, farm implement assembly and repair, auto repair and maintenance, and truck repair.
Actuation/Throttle Type/Switch Type: Inside Trigger
Air Consumption @ Load (cfm): 55
Air Consumption @ Load (l/min): 1557
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: 6" Extended
Average Air Consumption (cfm): 10
Average Air Consumption (l/min): 283
Blows per Min: 750
Color: Grey
Configuration/Handle Type: D-Handle
Drive Size (in): 1
Drive Type: Square
Duty Rating: Super Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 107.7 / 118.7
Hammer Case: Steel
Handle Material: Composite
Housing Material: Aluminum core with composite sleeve
Impact Mechanism: Jumbo Hammer
Impacting Sound Pressure/Power Db(A): 103 / 114
Max Bolt Diameter (in): 1.25
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1600
Max Torque (in-lb): 19197
Max Torque (nm): 2169
Min Hose Size (in): 1/2
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 18.5
Product Width (in): 4.8
Product Height (in): 6.7
Product Weight (lb): 23.8
Recommended Forward Torque Range (ft-lb): 148-1003
Recommended Forward Torque Range (in-lb): 1770-12037
Recommended Forward Torque Range (nm): 200-1360
Recommended Reverse Torque (ft-lb): 148-1003
Recommended Reverse Torque (nm): 200-1360
Retainer Type: Thru-hole
Special Features: Extended anvil
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 21.8
Warranty: 1-year
