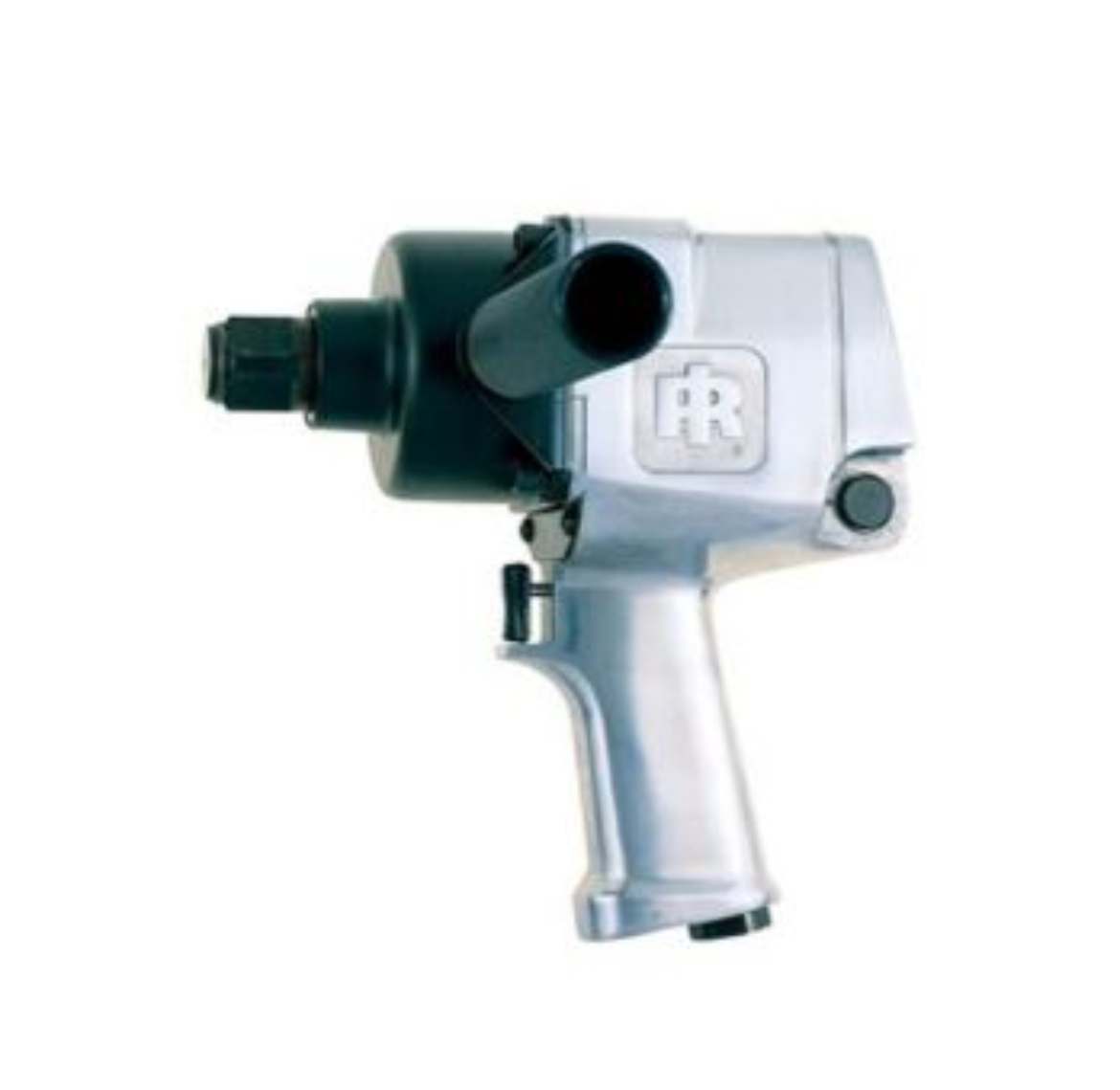

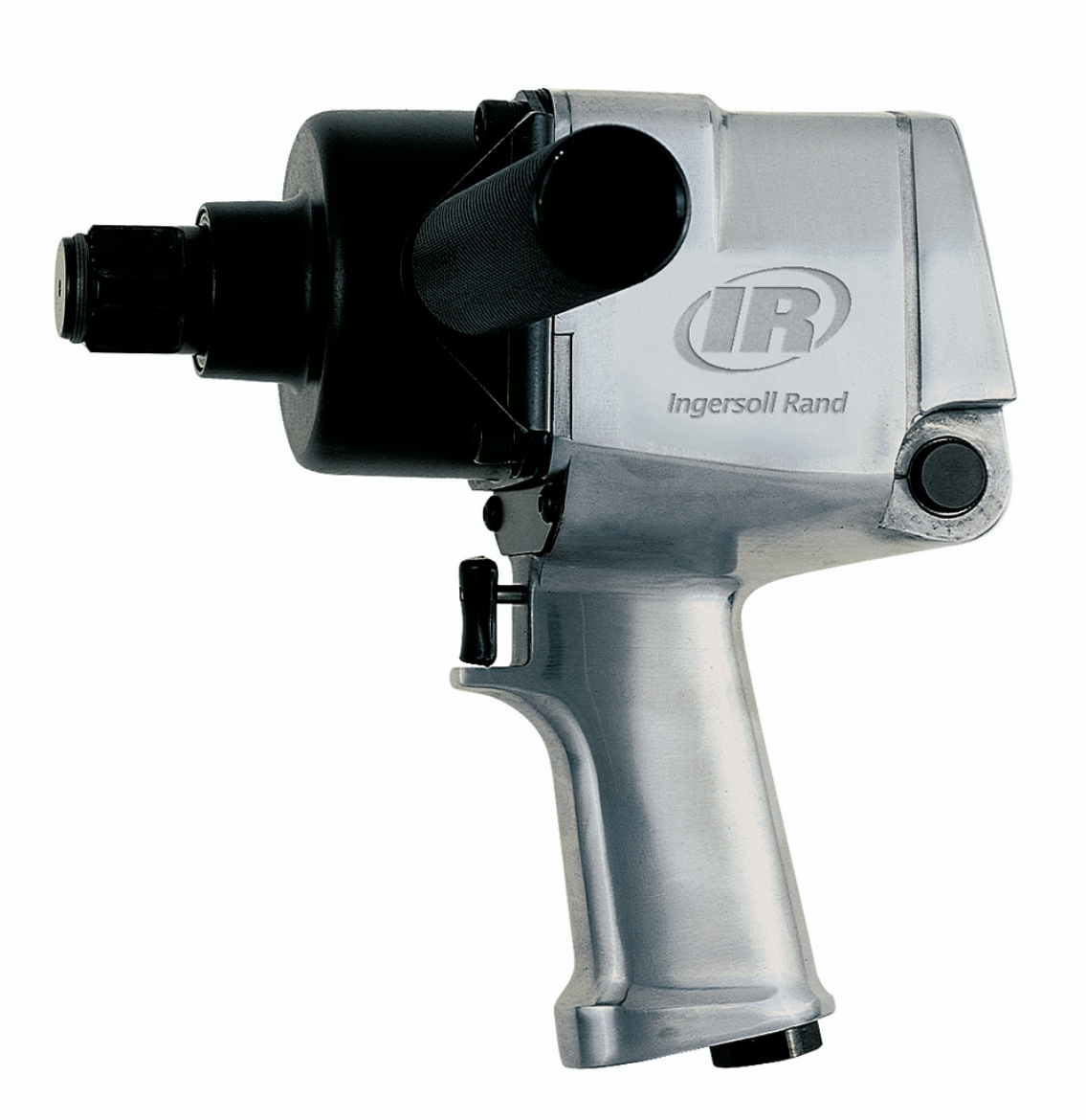

Air Impact Wrench - 1"

IR 271

1" Air Impact Wrench, Super Duty, 1100 ft-lb Torque, Friction Ring Retainer, Pistol

Description: The 271 Series impact wrench is ideal for vehicle repair and heavy truck and machinery jobs where you'll benefit from the square socket retaining ring and the power behind the vane motor. Trigger actuation and a power regulator let you complete projects with control and ease.

Features And Benefits:

• RELIABILITY: The 271 Series is made to last, and will be a trusted tool for all your heavy machinery projects and more
• POWER: The vane motor on the 271 Series provides a high torque output for increased power.
• DURABILITY: The impact wrench's jumbo hammer provides a great power-to-weight ratio and is easy to maintain.
• VEHICLE REPAIR: The square socket retaining ring makes this an ideal impact wrench for projects where you need increased socket connection.

Product Application and Uses:

Vehicle Repair And Heavy Truck Markets

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 39
• Air Consumption @ Load (l/min): 1104
• Air Inlet: 3/8" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 9.5
• Average Air Consumption (l/min): 269

• Blows per Min: 1000

• Color: Silver
• Configuration/Handle Type: Pistol Grip
• Configuration/Handle Type: Auxiliary Handle
• Drive Size (in): 1
• Drive Type: Square
• Duty Rating: Super Duty

• End Plates: Cast Iron
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 100.5 / 111.5

• Hammer Case: Steel
• Handle Material: Aluminum
• Housing Material: Aluminum
• Impact Mechanism: Jumbo Hammer
• Impacting Sound Pressure/Power Db(A): 98.5 / 109.5

• Max Bolt Diameter (in): 1
• Max Free Speed (rpm): 5500
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 1103
• Max Torque (in-lb): 13241
• Max Torque (nm): 1496
• Min Hose Size (in): 1/2
• Motor: Non-Biased

• Number of Power Settings: Continuous
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 96
• Product Length (in): 8.9

• Product Width (in): 8
• Product Height (in): 8
• Product Weight (lb): 12.5
• Recommended Forward Torque Range (ft-lb): 100-750
• Recommended Forward Torque Range (in-lb): 1204-9001
• Recommended Forward Torque Range (nm): 136-1017
• Recommended Reverse Torque (ft-lb): 100-750
• Recommended Reverse Torque (nm): 136-1017
• Retainer Type: Friction Ring

• Side to Center Distance (in): 4
• Side to Center Distance (mm): 102

• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 13.2
• Warranty: 1-year

• Accessories: SK8H9TN
• Accessories: SK8M4LN

• Lubrication: 105-LBK1
• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 1720P-23
• Parts: 261-283

• Parts: 261-TK2
• Parts: 261B-A727
• Parts: 2920P-465
• Parts: 2920P-A93
• Parts: 910-36
• Parts: 910E5-918
