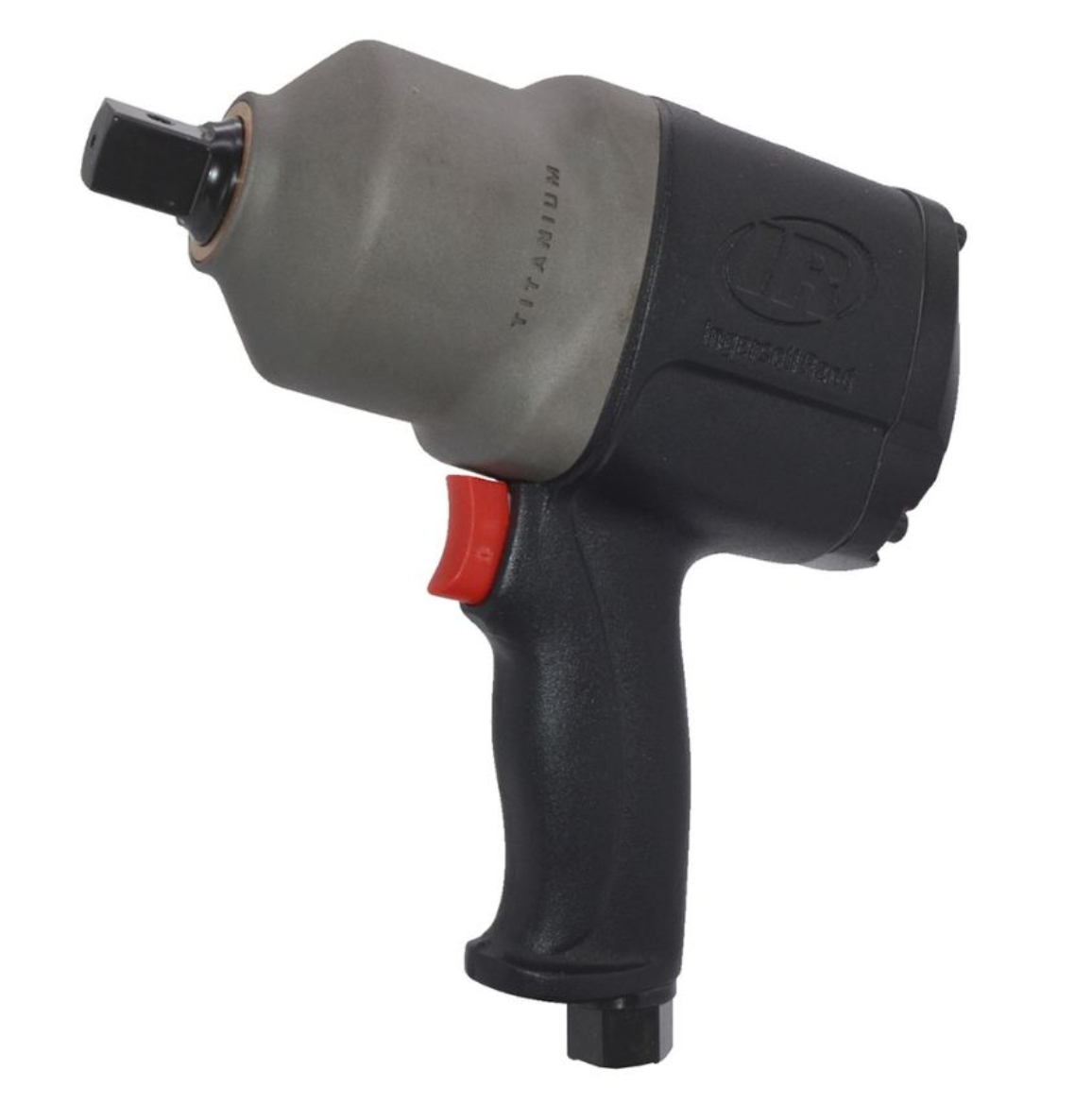

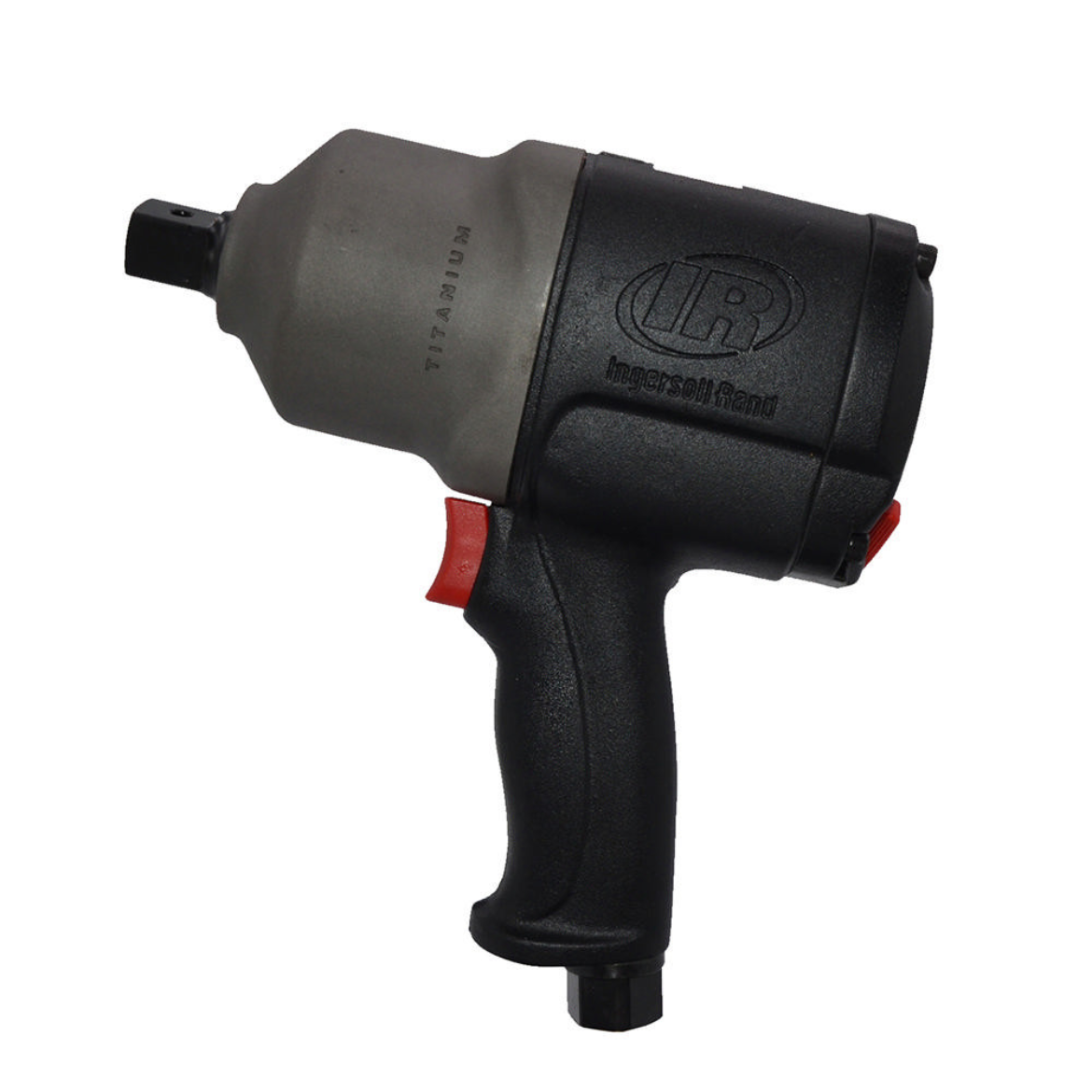

3/4" Reverse Bias Titanium Impact Wrench, Atex

IR 2925RBP1TIEX

3/4" Air Impact Wrench, ATEX/Hazardous Duty, 1600 ft-lb Torque, Titanium Hammercase, Pistol

Description: Specifically designed to meet ATEX Zone 1 or Zone 2 requirements and armed with a titanium hammer case and a corrosion preventative treatment, this ATEX certified impact wrench is rust and corrosion resistant.ATEX Marking: ATEX 2014/34/EU and Ex h IIA T6 Gb XISO 80079-36 Certified

Features And Benefits:

• Durability: Bronze end plates and a corrosion preventative treatment prevent internal corrosion and wear in wet, outdoor environments. And thanks to a titanium hammer case, this impact wrench is both lightweight and durable.
• Reliability: The 2925 Series' twin hammer impact mechanism means it's less sensitive to air pressure fluctuation, which means you never have to worry about your location affecting your wrench's effectiveness.
• Control: This tool features a feather-touch trigger that provides users precise delivery of pressure and speed.
• Pressure-fed mechanism lubrication ensures complete coverage throughout the tool
• Integral muffler
• ATEX markings: ATEX 2014/34/EU and Ex h IIA T6 Gb X
• ISO 80079-36 Certified
• 3/8" NPT inlet
• 1-year warranty

Product Application and Uses:

Optimized For General Industrial Use, Rail, Heavy Machinery, Oil And Gas, And Shipbuilding

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Feather-touch Trigger
• Air Inlet: 3/8" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 60

• Blows per Min: 1050

• Color: Black
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 3/4
• Drive Type: Square
• Duty Rating: Atex/Hazardous Duty

• End Plates: Bronze
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 99.6 / 110.6

• Hammer Case: Titanium
• Housing Material: Aluminum
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 95.9 / 106.9

• Max Bolt Diameter (in): 1-1/8
• Max Free Speed (rpm): 5200
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 1497
• Max Torque (in-lb): 17967
• Max Torque (nm): 2030
• Min Hose Size (in): 1/2
• Motor: Reverse Bias

• Number of Power Settings: 3
• Power Source: Air Powered
• Product Length (in): 8.9

• Product Width (in): 3.5
• Product Height (in): 9.6
• Product Weight (lb): 12
• Recommended Forward Torque Range (ft-lb): 1298
• Recommended Forward Torque Range (in-lb): 15577
• Recommended Forward Torque Range (nm): 1760
• Retainer Type: Thru-hole

• Side to Center Distance (in): 1.8
• Side to Center Distance (mm): 46

• Special Features: ATEX Rated, Titanium hammercase
• Standards/Certifications: Atex 2014/34/Eu, Atex Ex H Iia T6 Gb X, Iso 80079-36

• Tool Type: Full-size
• Vanes: 7
• Vibration Level (m/s2): 10.5
• Warranty: 1-year

• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 2910-726
• Parts: 834-61
