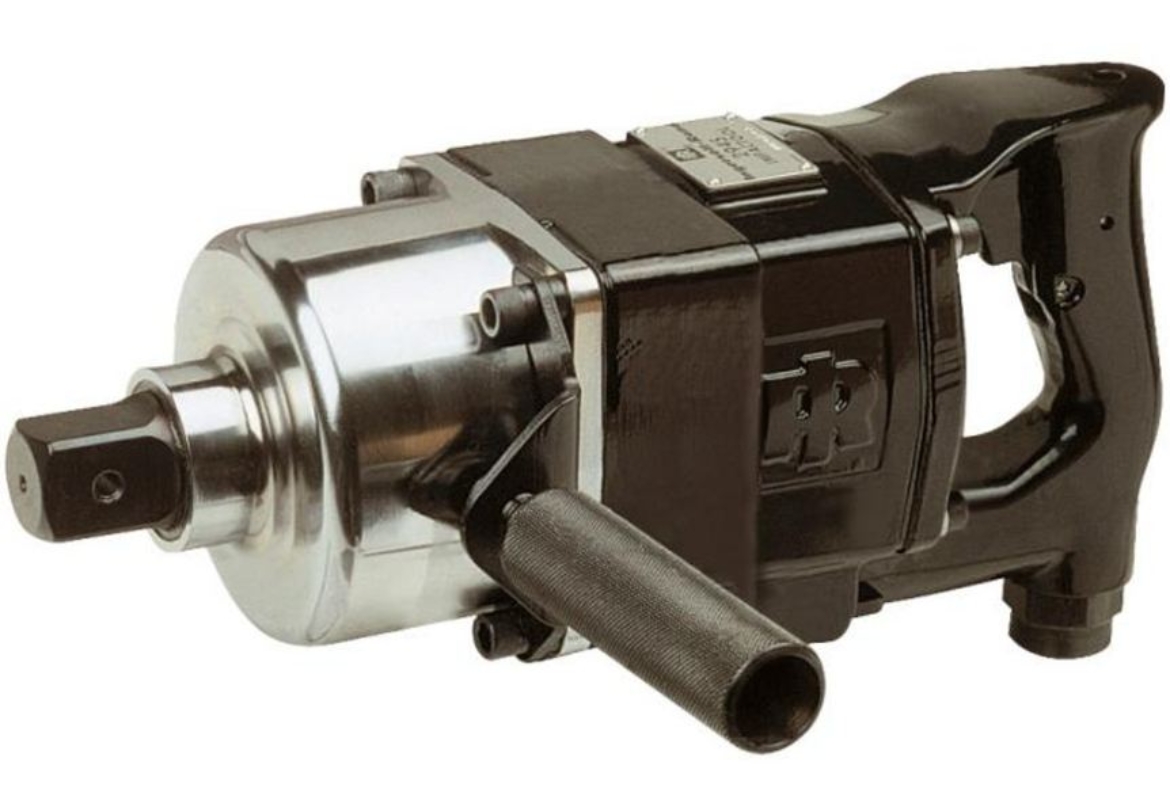

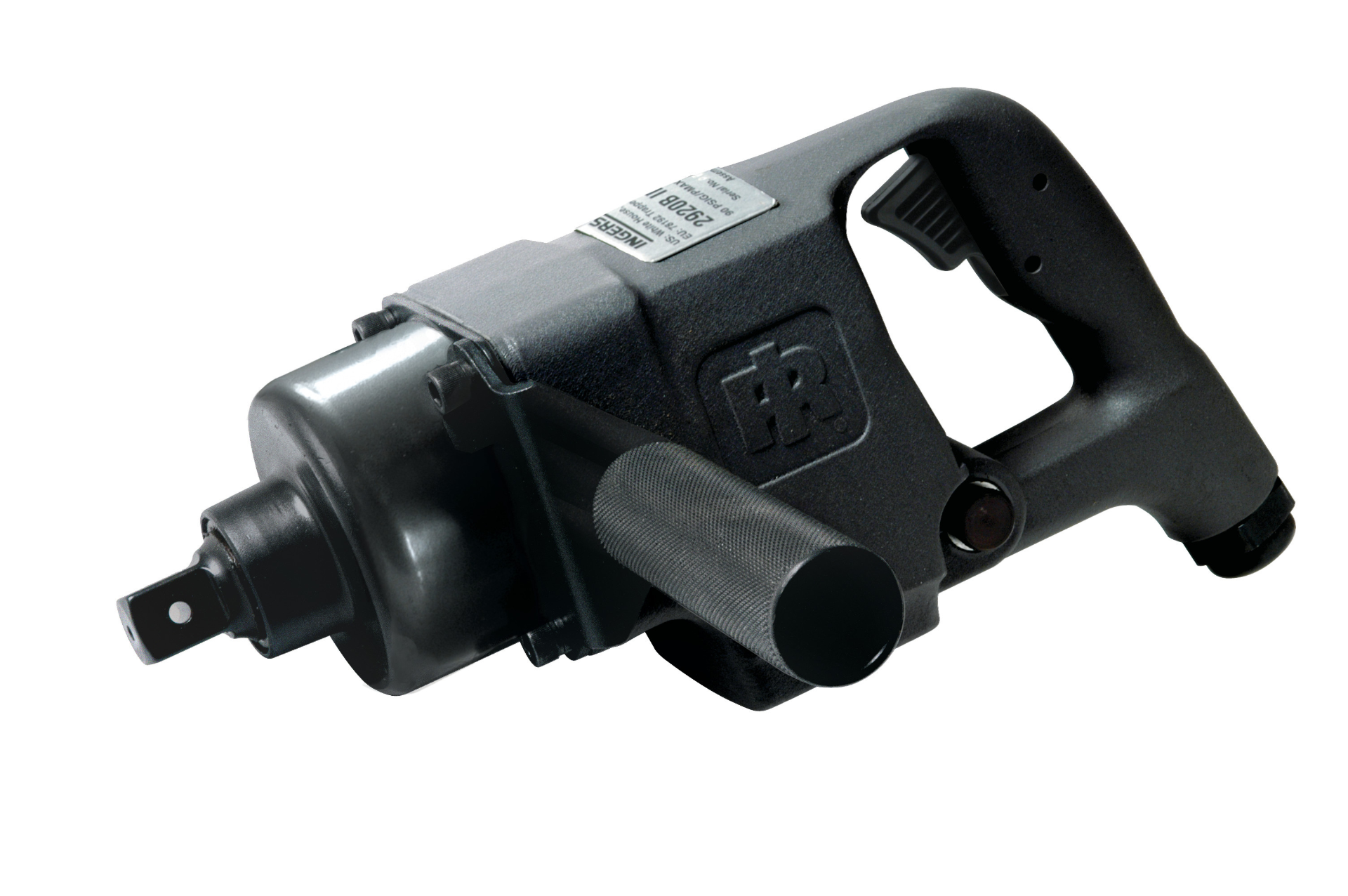

IR 2920B1
3/4" Air Impact Wrench, Super Duty, 1100 ft-lb Torque, Thru-hole Retainer, D-Handle Inside Trigger
The 2920 Series' finely tuned motor and power regulator make this wrench one to beat. Reliable, durable and variable, it can get any job done.
Features And Benefits
- Durability: This wrench can withstand drops or harsh conditions, thanks to its steel hammer case and metal housing.
- Reliability: With a twin hammer impact mechanism that delivers even blows every time, and a power regulator that helps keep control, you’ll never doubt that this wrench will perform the way you want it to. Comes with a 1-year warranty.
- Pressure-fed mechanism lubrication
- Integral muffler
Product Application and Uses: Optimized for general industrial use, rail, heavy machinery, oil and gas, and shipbuilding
Actuation/Throttle Type/Switch Type: Inside Trigger
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 36
Average Air Consumption (l/min): 1020
Blows per Min: 950
Color: Grey
Configuration/Handle Type: D-Handle
Configuration/Handle Type: Auxiliary Handle
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Super Duty
End Plates: Cast Iron
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 84.9 / 95.9
Hammer Case: Steel
Handle Material: Composite
Housing Material: Aluminum core with composite sleeve
Impact Mechanism: Twin Hammer
Max Bolt Diameter (in): 1
Max Free Speed (rpm): 5000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1100
Max Torque (in-lb): 13196
Max Torque (nm): 1491
Min Hose Size (in): 1/2
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 12.5
Product Weight (lb): 13.19
Recommended Forward Torque Range (ft-lb): 250-800
Recommended Forward Torque Range (in-lb): 3000-9603
Recommended Forward Torque Range (nm): 339-1085
Recommended Reverse Torque (ft-lb): 250-800
Recommended Reverse Torque (nm): 339-1085
Retainer Type: Thru-hole
Side to Center Distance (in): 1.91
Side to Center Distance (mm): 49
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 19.9
Warranty: 1-year
