Impactool

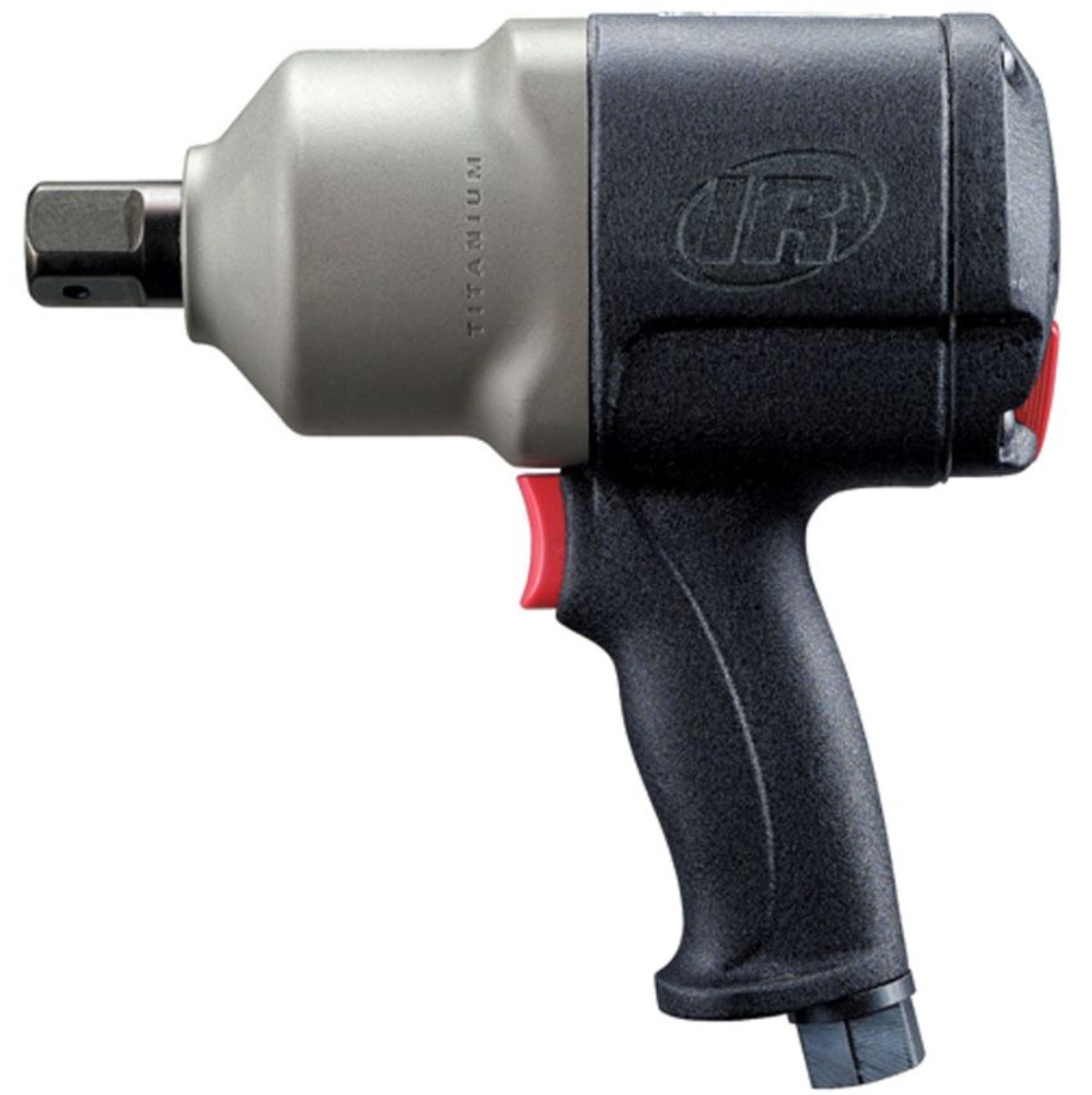

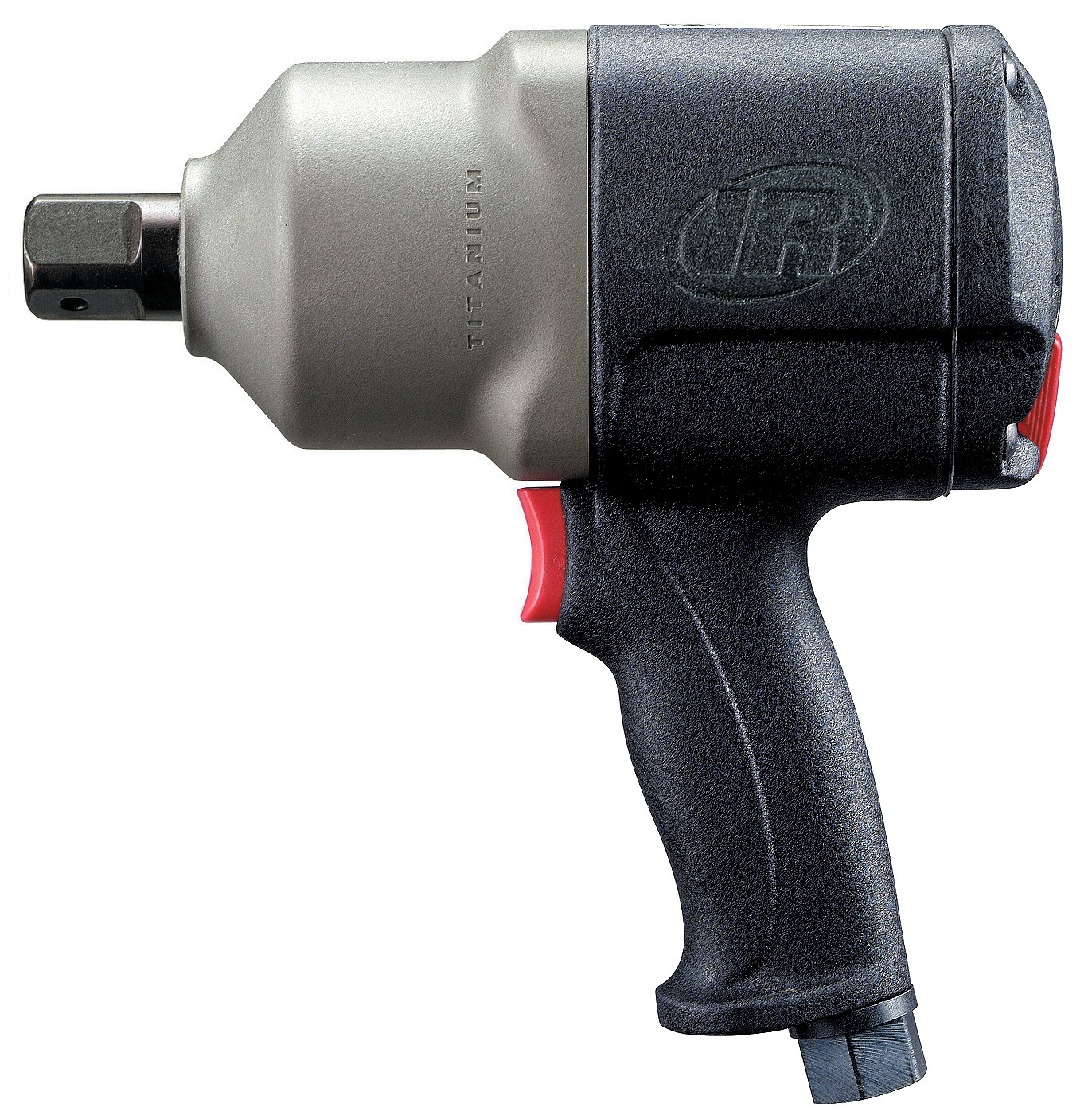

IR 2925P3TI

1" Air Impact Wrench, Heavy Duty, 1450 ft-lb Torque, Titanium Hammercase, Thru-hole Retainer, Pistol

Description: Armed with a titanium hammer case and a special corrosion preventative treatment, this series is rust and corrosion resistant.

Features And Benefits:

• Thanks to a titanium hammer case, this wrench is both lightweight and durable.
• The twin hammer impact mechanism means it's less sensitive to air pressure fluctuation, which means you never have to worry about your location affecting your wrench's effectiveness.
• Bronze endplates and a corrosion preventative treatment prevents internal in outdoor, wet environments.
• Pressure-fed mechanism lubrication ensures complete coverage throughout the tool.
• Optimized for general industrial use, rail, heavy machinery, oil and gas, and shipbuilding.
• Integral muffler.
• 3/8" NPT inlet.

Product Application and Uses:

Vehicle Repair, General Industrial, Facility Maintenance

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 60
• Air Consumption @ Load (l/min): 1699
• Air Inlet: 3/8" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard

• Blows per Min: 1050

• Color: Black
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 1
• Drive Type: Square
• Duty Rating: Heavy Duty

• End Plates: Bronze
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 99.6 / 110.6

• Hammer Case: Titanium
• Housing Material: Aluminum
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 95.9 / 106.6

• Max Bolt Diameter (in): 1-1/8
• Max Free Speed (rpm): 5200
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 1497
• Max Torque (in-lb): 17967
• Max Torque (nm): 2030
• Min Hose Size (in): 1/2
• Motor: Non-Biased

• Number of Power Settings: 3
• Power Source: Air Powered
• Product Length (in): 9

• Product Width (in): 3.5
• Product Height (in): 9.6
• Product Weight (lb): 12.2
• Recommended Forward Torque Range (ft-lb): 1298
• Recommended Forward Torque Range (in-lb): 15577
• Recommended Forward Torque Range (nm): 1760
• Retainer Type: Thru-hole

• Side to Center Distance (in): 1.8
• Side to Center Distance (mm): 46

• Special Features: Titanium hammercase
• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 7
• Vibration Level (m/s2): 10.5
• Warranty: 1-year

• Accessories: SK8H9TN

• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 834-61
