Impactool

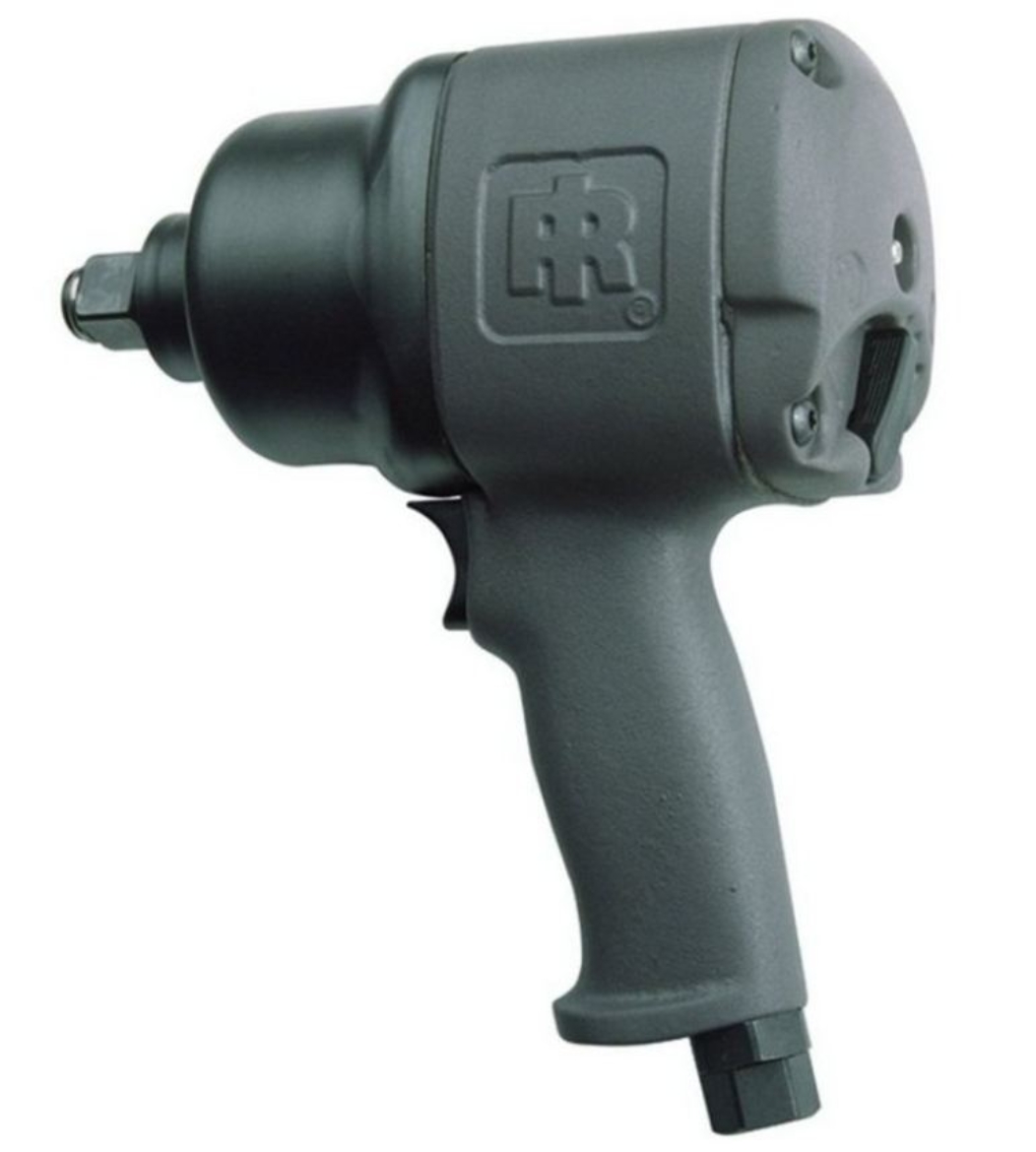

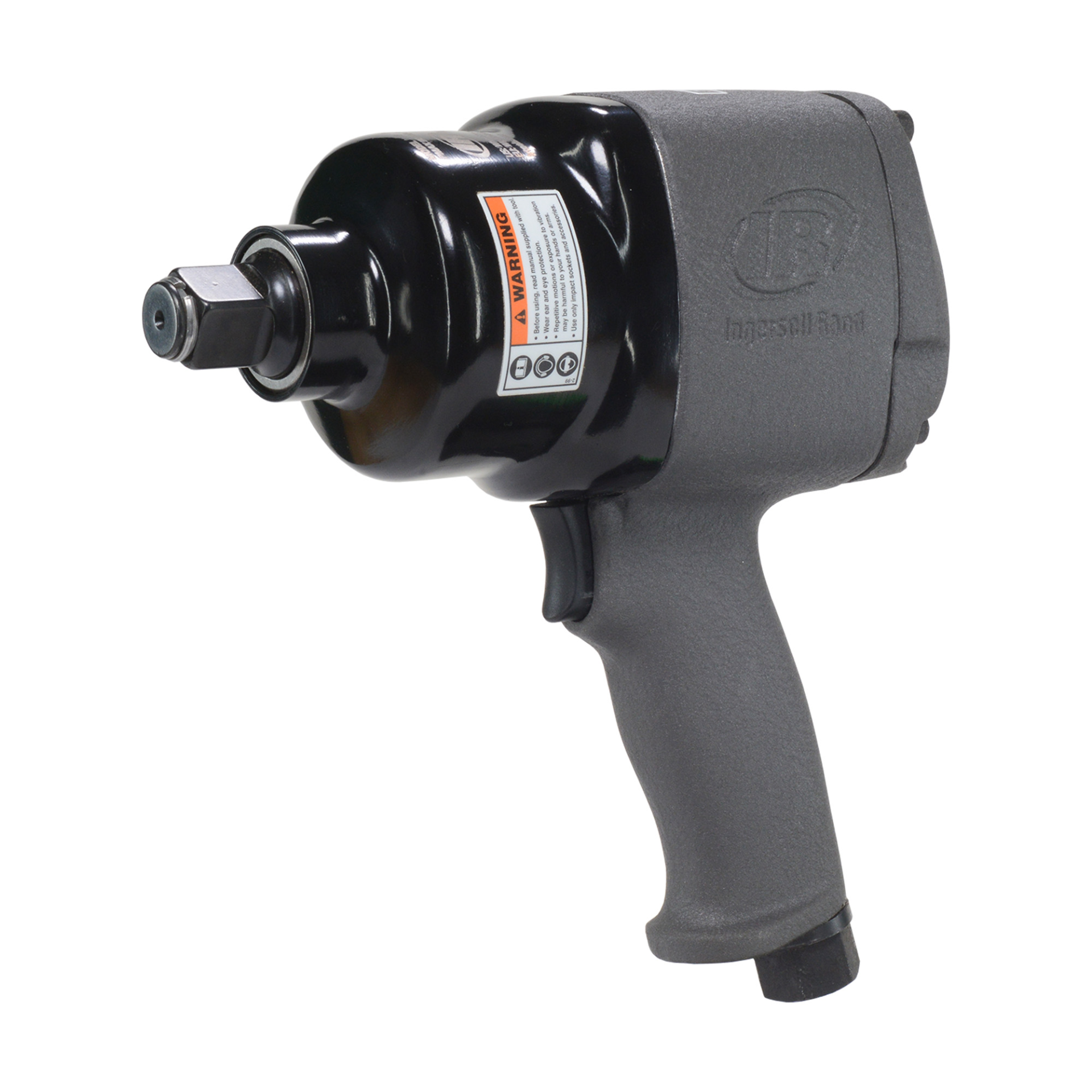

IR 2161XP

3/4" Air Impact Wrench, Ultra Duty, 1250 ft-lb Torque, Friction Ring Retainer, Pistol

Description: The metal housing and steel hammer case of the 2161 Series Impact Wrench makes this one of the toughest tools on the market. You'll also benefit from the twin hammer impact mechanism, which provides a more even impact with every blow and makes it less sensitive to changes in air pressure.

Features And Benefits:

• Power: Most powerful 3/4" Impact in the industry with 1.250 ft.-lbs. of max torque and 6,000 rpm. Finely tuned twin hammer impact mechanism and 6-vane motor.
• Versatility: Ideal for use in multiple markets, from vehicle repair and heavy machinery to general industrial and facility maintenance.
• Power Regulator: 3-position power regulator with full power in reverse.
• Durable: This heavy-duty impact wrench has a steel hammer case and is tough enough to handle harsh environments and repeated drops.

Product Application and Uses:

Heavy Industry, Oil&Gas, Foundry

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 46
• Air Consumption @ Load (l/min): 1303
• Air Inlet: 3/8" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 10
• Average Air Consumption (l/min): 283

• Blows per Min: 1025

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 3/4
• Drive Type: Square
• Duty Rating: Ultra Duty

• End Plates: Steel
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 97.2 / 108.2

• Hammer Case: Steel
• Housing Material: Aluminum
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 92.8 / 103.8

• Max Bolt Diameter (in): 1
• Max Free Speed (rpm): 6000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 1250
• Max Torque (in-lb): 15002
• Max Torque (nm): 1695
• Min Hose Size (in): 1/2
• Motor: Non-Biased

• Number of Power Settings: 3
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 103.3
• Product Length (in): 8.5

• Product Width (in): 3.5
• Product Height (in): 9.5
• Product Weight (lb): 12.14
• Recommended Forward Torque Range (ft-lb): 300-1000
• Recommended Forward Torque Range (in-lb): 3602-12002
• Recommended Forward Torque Range (nm): 407-1356
• Retainer Type: Friction Ring

• Side to Center Distance (in): 1.8
• Side to Center Distance (mm): 46

• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 9.8
• Warranty: 1-year

• Accessories: 2161-BOOT
• Accessories: SK6H8N
• Accessories: SK6M6LN

• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 2161-36
• Parts: 2161-739

• Parts: 2161-TK2
• Parts: 2161XP-626
• Parts: 834-61
