Air Motors

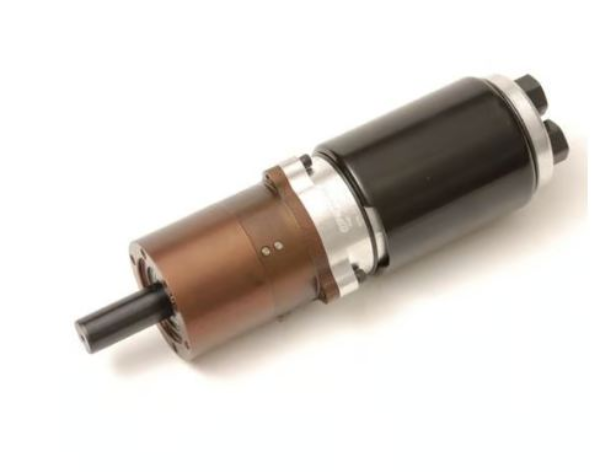

MPT AM-651C

AIR MOTOR

GG 562854

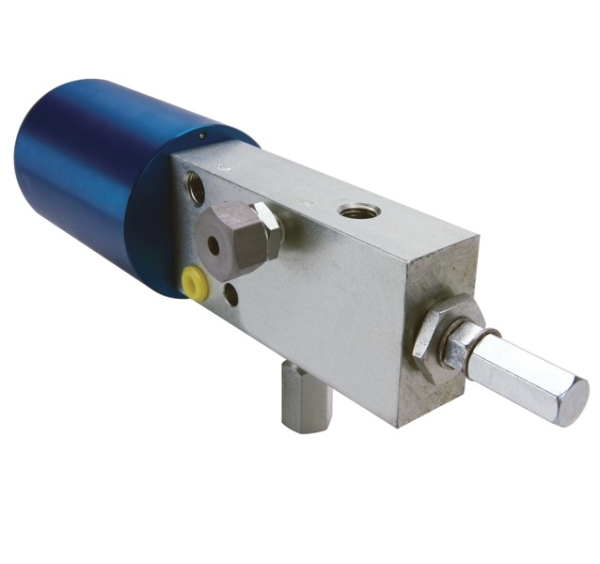

MSA-10 PUMP, ASSY

MSA-10™ Pneumatic Pump

MSA Series products are used together with main lubrication supply lines where the pump is fed directly with no additional reservoir required. No reservoir makes the MSA Series ideal for locations that are difficult to reach or undesirable to enter. Use the MSA-10 for standard applications.

Ideal for applications where space is a premium Handles high pressure lubricant feed of direct line intake Used with or without a reservoir for the ultimate flexibility Lubriquip part number 140-000-111

IR 150BMPD88R54-020R

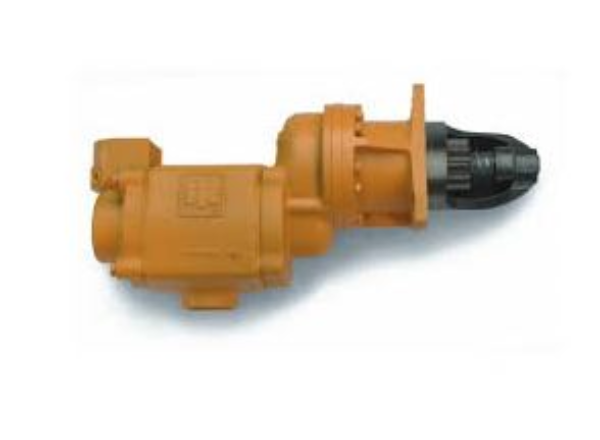

Genuine OEM Factory Remanufactured Starter

IR 1801N

Inline Multi-Vane Air Motor, 5/8" Keyed Shaft, 1990 RPM, 1.4 HP, 19 NM, Non-reversible

Air Consumption at Max HP (scfm): 46
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Drive Size (in): 5/8
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Ratio: 1:1
Gear Reduction: Direct Drive
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 1990
Max Pressure (bar): 6.2
Max Torque (ft-lb): 14
Max Torque (in-lb): 168
Max Torque (nm): 19
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 2
Power Source: Air Powered
Product Weight (lb): 5.38
Rated Power (hp): 1.4
Rated Power (kW): 1.04
Reversible: Non-reversible
Speed at Max Power (rpm): 918
Starting Torque (ft-lb): 10
Starting Torque (nm): 14.2
Warranty: 1-year

IR 1801P

Inline Multi-Vane Air Motor, 5/8" Keyed Shaft, 1050 RPM, 1.35 HP, 31.2 NM, Non-reversible

Air Consumption at Max HP (scfm): 46
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Drive Size (in): 5/8
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 1050
Max Pressure (bar): 6.2
Max Torque (ft-lb): 23
Max Torque (in-lb): 276
Max Torque (nm): 31.2
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 2
Power Source: Air Powered
Product Length (in): 8.5
Product Weight (lb): 5.75
Rated Power (hp): 1.35
Rated Power (kW): 1.01
Reversible: Non-reversible
Speed at Max Power (rpm): 500
Starting Torque (ft-lb): 17
Starting Torque (nm): 23.3
Warranty: 1-year

IR 1801Q

Inline Multi-Vane Air Motor, 5/8" Keyed Shaft, 650 RPM, 1.35 HP, 54.2 NM, Non-reversible

Air Consumption at Max HP (scfm): 46
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Drive Size (in): 5/8
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 650
Max Pressure (bar): 6.2
Max Torque (ft-lb): 40
Max Torque (in-lb): 480
Max Torque (nm): 54.2
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 2
Power Source: Air Powered
Product Weight (lb): 5.75
Rated Power (hp): 1.35
Rated Power (kW): 1.01
Reversible: Non-reversible
Speed at Max Power (rpm): 300
Starting Torque (ft-lb): 30
Starting Torque (nm): 40.7
Warranty: 1-year

IR 1841N

Inline Multi-Vane Air Motor, 5/8" Keyed Shaft, 1700 RPM, 1.2 HP, 17 NM, Reversible

Air Consumption at Max HP (scfm): 43
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Drive Size (in): 5/8
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 1700
Max Pressure (bar): 6.2
Max Torque (ft-lb): 13
Max Torque (in-lb): 150
Max Torque (nm): 17
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 2
Power Source: Air Powered
Product Weight (lb): 5.5
Rated Power (hp): 1.2
Rated Power (kW): 0.89
Reversible: Reversible
Speed at Max Power (rpm): 800
Starting Torque (ft-lb): 9.3
Starting Torque (nm): 12.6
Warranty: 1-year

IR 1841P

Inline Multi-Vane Air Motor, 5/8" Keyed Shaft, 900 RPM, 1.1 HP, 27.1 NM, Reversible

Air Consumption at Max HP (scfm): 43
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Drive Size (in): 5/8
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 900
Max Pressure (bar): 6.2
Max Torque (ft-lb): 20
Max Torque (in-lb): 240
Max Torque (nm): 27.1
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 2
Power Source: Air Powered
Product Weight (lb): 5.88
Rated Power (hp): 1.1
Rated Power (kW): 0.82
Reversible: Reversible
Speed at Max Power (rpm): 430
Starting Torque (ft-lb): 15
Starting Torque (nm): 20.3
Warranty: 1-year

IR 1841W

Inline Multi-Vane Air Motor, 5/8" Keyed Shaft, 320 RPM, 1.1 HP, 81.4 NM, Reversible

Air Consumption at Max HP (scfm): 43
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Drive Size (in): 5/8
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 320
Max Pressure (bar): 6.2
Max Torque (ft-lb): 60
Max Torque (in-lb): 720
Max Torque (nm): 81.4
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 2
Power Source: Air Powered
Product Weight (lb): 5.88
Rated Power (hp): 1.1
Rated Power (kW): 0.82
Reversible: Reversible
Speed at Max Power (rpm): 150
Starting Torque (ft-lb): 45
Starting Torque (nm): 61
Warranty: 1-year

IR 34RA017

Spur Gear Air Motor, 1-1/2" Keyed Shaft, 325 RPM, 4.1 HP, 311 NM, Reversible

Air Consumption at Max HP (scfm): 183
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Single
Gear Train: Spur Gear
Housing Material: Steel Motor, Aluminum Gear Housing
Max Free Speed (rpm): 325
Max Pressure (bar): 6.2
Max Torque (ft-lb): 229
Max Torque (in-lb): 2753
Max Torque (nm): 311
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 43
Rated Power (hp): 4.1
Rated Power (kW): 3.06
Reversible: Reversible
Speed at Max Power (rpm): 168
Starting Torque (ft-lb): 148
Starting Torque (nm): 201
Warranty: 1-year

IR 34RB029

Spur Gear Air Motor, 1-1/2" Keyed Shaft, 187 RPM, 4 HP, 507 NM, Reversible

Air Consumption at Max HP (scfm): 180
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Double
Gear Train: Spur Gear
Housing Material: Steel Motor, Aluminum Gear Housing
Max Free Speed (rpm): 187
Max Pressure (bar): 6.2
Max Torque (ft-lb): 374
Max Torque (in-lb): 4487
Max Torque (nm): 507
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 75
Rated Power (hp): 4
Rated Power (kW): 2.98
Reversible: Reversible
Speed at Max Power (rpm): 99
Starting Torque (ft-lb): 224
Starting Torque (nm): 304
Warranty: 1-year

IR 3800U

Inline Multi-Vane Air Motor, 3/4" Keyed Shaft, 220 RPM, 1.45 HP, 189 NM, Non-reversible

Air Consumption at Max HP (scfm): 48
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 3/4
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Keyaway Length (in): 1.5
Max Free Speed (rpm): 220
Max Pressure (bar): 6.2
Max Torque (ft-lb): 139
Max Torque (in-lb): 1673
Max Torque (nm): 189
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Power Source: Air Powered
Product Length (in): 8.69
Product Width (in): 3.25
Product Height (in): 3.25
Product Weight (lb): 8.5
Rated Power (hp): 1.45
Rated Power (kW): 1.08
Reversible: Non-reversible
Speed at Max Power (rpm): 105
Standards/Certifications: ATEX
Starting Torque (ft-lb): 105
Starting Torque (nm): 142
Warranty: 1-year

IR 3840Q

Inline Multi-Vane Air Motor, 3/4" Keyed Shaft, 280 RPM, 1.35 HP, 106 NM, Reversible

Air Consumption at Max HP (scfm): 44
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 3/4
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Keyaway Length (in): 1.5
Max Free Speed (rpm): 280
Max Pressure (bar): 6.2
Max Torque (ft-lb): 78
Max Torque (in-lb): 938
Max Torque (nm): 106
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Power Source: Air Powered
Product Length (in): 8.69
Product Width (in): 3.25
Product Height (in): 3.25
Product Weight (lb): 8.75
Rated Power (hp): 1.35
Rated Power (kW): 1.01
Reversible: Reversible
Speed at Max Power (rpm): 130
Standards/Certifications: ATEX
Starting Torque (ft-lb): 60
Starting Torque (nm): 81.4
Warranty: 1-year

IR 4800M

Inline Multi-Vane Air Motor, 1" Keyed Shaft, 1050 RPM, 3.7 HP, 93.6 NM, Non-reversible

The 4800 Series has a durable inline planetary gearing system and robust vane motor design making it one of the most durable motors around.

Features And Benefits

• Safety: Meets ATEX Standards
• Durable: Able to withstand harsh environments, you never have to worry about the 4800 Series letting you down.
• Ease of Service: Without having to worry about repair time, you’ll be able to spend more time focused on the job.

Product Application and Uses: Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller
Air Consumption at Max HP (scfm): 95
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 1
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Reduction: Single
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 1050
Max Pressure (bar): 6.2
Max Torque (ft-lb): 69
Max Torque (in-lb): 828
Max Torque (nm): 93.6
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Power Source: Air Powered
Product Length (in): 11.38
Product Width (in): 4
Product Height (in): 4
Product Weight (lb): 15.25
Rated Power (hp): 3.7
Rated Power (kW): 2.76
Reversible: Non-reversible
Speed at Max Power (rpm): 560
Standards/Certifications: ATEX
Starting Torque (ft-lb): 51
Starting Torque (nm): 69.2
Warranty: 1-year

IR 4800Q

Inline Multi-Vane Air Motor, 1" Keyed Shaft, 375 RPM, 3.5 HP, 235 NM, Non-reversible

The 4800 Series has a durable inline planetary gearing system and robust vane motor design making it one of the most durable motors around.

Features And Benefits

• Safety: Meets ATEX Standards
• Durable: Able to withstand harsh environments, you never have to worry about the 4800 Series letting you down.
• Ease of Service: Without having to worry about repair time, you’ll be able to spend more time focused on the job.

Product Application and Uses: Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller
Air Consumption at Max HP (scfm): 95
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 1
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 375
Max Pressure (bar): 6.2
Max Torque (ft-lb): 173
Max Torque (in-lb): 2080
Max Torque (nm): 235
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Power Source: Air Powered
Product Length (in): 11.38
Product Width (in): 4
Product Height (in): 4
Product Weight (lb): 19.75
Rated Power (hp): 3.5
Rated Power (kW): 2.61
Reversible: Non-reversible
Speed at Max Power (rpm): 194
Standards/Certifications: ATEX
Starting Torque (ft-lb): 129
Starting Torque (nm): 175
Warranty: 1-year

IR 4800S

Inline Multi-Vane Air Motor, 1" Keyed Shaft, 275 RPM, 3.5 HP, 323 NM, Non-reversible

The 4800 Series has a durable inline planetary gearing system and robust vane motor design making it one of the most durable motors around.

Features And Benefits

• Safety: Meets ATEX Standards
• Durable: Able to withstand harsh environments, you never have to worry about the 4800 Series letting you down.
• Ease of Service: Without having to worry about repair time, you’ll be able to spend more time focused on the job.

Product Application and Uses: Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller
Air Consumption at Max HP (scfm): 95
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 1
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 275
Max Pressure (bar): 6.2
Max Torque (ft-lb): 238
Max Torque (in-lb): 2859
Max Torque (nm): 323
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Power Source: Air Powered
Product Length (in): 11.38
Product Width (in): 4
Product Height (in): 4
Product Weight (lb): 19.75
Rated Power (hp): 3.5
Rated Power (kW): 2.61
Reversible: Non-reversible
Speed at Max Power (rpm): 146
Standards/Certifications: ATEX
Starting Torque (ft-lb): 178
Starting Torque (nm): 241
Warranty: 1-year

IR 4800U

Inline Multi-Vane Air Motor, 1" Keyed Shaft, 185 RPM, 3.5 HP, 480 NM, Non-reversible

The 4800 Series has a durable inline planetary gearing system and robust vane motor design making it one of the most durable motors around.

Features And Benefits

• Safety: Meets ATEX Standards
• Durable: Able to withstand harsh environments, you never have to worry about the 4800 Series letting you down.
• Ease of Service: Without having to worry about repair time, you’ll be able to spend more time focused on the job.

Product Application and Uses: Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller
Air Consumption at Max HP (scfm): 95
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Length (in): 2.25
Drive Size (in): 1
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Ratio: 53.5:1
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Keyaway Length (in): 1.625
Max Free Speed (rpm): 185
Max Pressure (bar): 6.2
Max Torque (ft-lb): 354
Max Torque (in-lb): 4248
Max Torque (nm): 480
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Operating Temperature Range: 0F to 150F
Power Source: Air Powered
Product Length (in): 11.38
Product Width (in): 4
Product Height (in): 4
Product Weight (lb): 19.75
Rated Power (hp): 3.5
Rated Power (kW): 2.61
Reversible: Non-reversible
Speed at Max Power (rpm): 97
Standards/Certifications: ATEX
Starting Torque (ft-lb): 265
Starting Torque (nm): 359
Warranty: 1-year

IR 4840Q

Inline Multi-Vane Air Motor, 1" Keyed Shaft, 350 RPM, 3 HP, 224 NM, Reversible

Features And Benefits

• Safety: Meets ATEX Standards
• Durable: Able to withstand harsh environments, you never have to worry about the 4800 Series letting you down.
• Ease of Service: Without having to worry about repair time, you’ll be able to spend more time focused on the job.

Product Application and Uses: Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller
Air Consumption at Max HP (scfm): 95
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 1
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 350
Max Pressure (bar): 6.2
Max Torque (ft-lb): 165
Max Torque (in-lb): 1983
Max Torque (nm): 224
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Power Source: Air Powered
Product Length (in): 11.38
Product Width (in): 4
Product Height (in): 4
Product Weight (lb): 20.13
Rated Power (hp): 3
Rated Power (kW): 2.24
Reversible: Reversible
Speed at Max Power (rpm): 167
Standards/Certifications: ATEX
Starting Torque (ft-lb): 123
Starting Torque (nm): 167
Warranty: 1-year

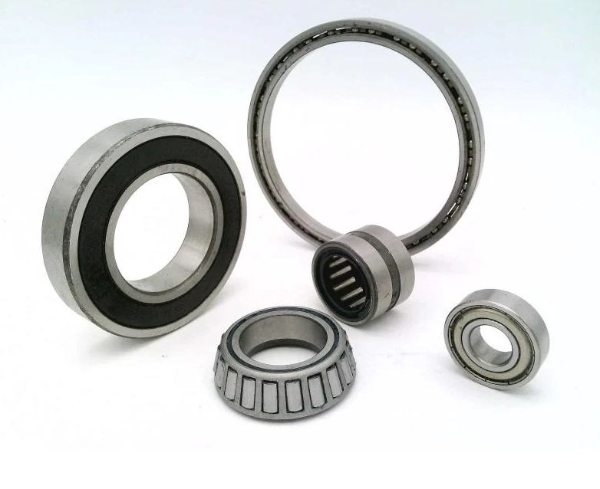

IR 48NA-510

BEARING (845-22)

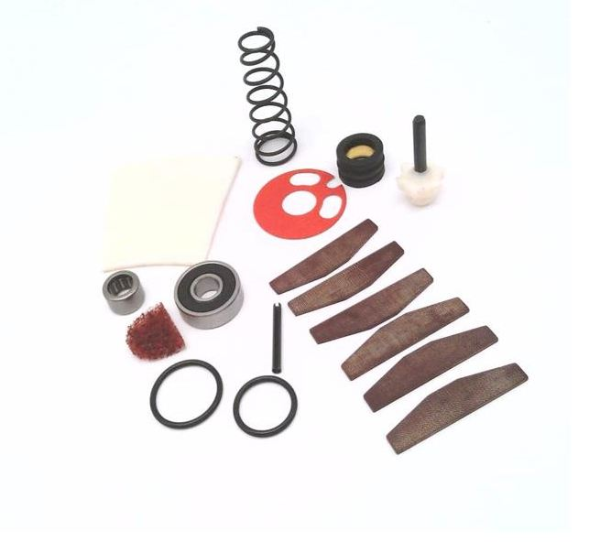

IR 7802RA-TK1

TUNE UP KIT

IR 8232-1

Milling Air Motor, 1/4" Collet, 19000 RPM, 0.6 HP, 0.9 NM, Non-reversible

Air Consumption at Max HP (scfm): 41
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 1/4
Drive Type: Collet
Exhaust Location: Exterior Muffler
Finish: Black Oxide
Gear Ratio: 1:1
Gear Reduction: Direct Drive
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 19000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 0.7
Max Torque (in-lb): 8.0
Max Torque (nm): 0.9
Motor: Rotary Vane
Motor: Milling
Mounting Type: Foot Mount Optional
Power Source: Air Powered
Product Weight (lb): 2.87
Rated Power (hp): 0.6
Rated Power (kW): 0.45
Reversible: Non-reversible
Sound Level dB(A): 80
Speed at Max Power (rpm): 9800
Torque Output @ Max HP (ft-lb): 0.3
Torque Output @ Max HP (nm): 0.4
Warranty: 1-year

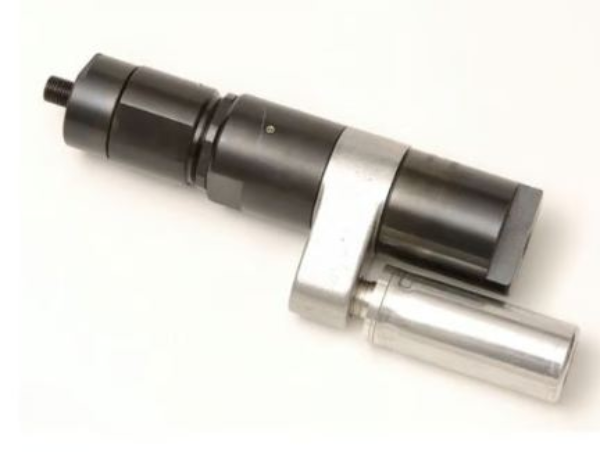

IR 8463

POWER MOTOR

IR 92RB078

Spur Gear Air Motor, 1-1/2" Keyed Shaft, 120 RPM, 7.9 HP, 1478 NM, Reversible

The 92R Series has a durable spur gear system and robust vane motor design making it one of the most durable and powerful motors around.

Features And Benefits

• Safety: Meets ATEX Standards
• Durable: The 92 Series can withstand harsh environments and are deal for high torque and increased side loading applications.
• Ease of Service: Without having to worry about repair time, you’ll be able to spend more time focused on the job.

Product Application and Uses: Paper Machinery, Large conveyers, Heavy Lifting, Valve Actuators, Industrial Equipment
Air Consumption at Max HP (scfm): 225
Air Inlet: 1" NPT
Air Pressure (psi): 90
Drive Length (in): 3.0625
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Ratio: 78:1
Gear Reduction: Double
Gear Train: Spur Gear
Housing Material: Aluminum
Keyaway Length (in): 2
Max Free Speed (rpm): 120
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1090
Max Torque (in-lb): 13081
Max Torque (nm): 1478
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Operating Temperature Range: 0F to 150F
Power Source: Air Powered
Product Length (in): 15.22
Product Width (in): 10.5
Product Height (in): 10.5
Product Weight (lb): 78
Rated Power (hp): 7.9
Rated Power (kW): 5.89
Reversible: Reversible
Sound Level dB(A): 78
Speed at Max Power (rpm): 59
Standards/Certifications: ATEX
Starting Torque (ft-lb): 770
Starting Torque (nm): 1044
Warranty: 1-year

IR B006PVR374-01-P

BARRING MOTOR W/PENDANT

IR M002RVR000AR3

Inline Multi-Vane Air Motor, 3/8" Keyed Shaft, 23000 RPM, 0.2 HP, 0.24 NM, Reversible

Features And Benefits

• Safety: Meets ATEX Standards

Air Consumption at Max HP (scfm): 9.8
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 3/8
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide and Anodize
Gear Ratio: 1:1
Gear Reduction: Direct Drive
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 23000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 0.2
Max Torque (in-lb): 2.1
Max Torque (nm): 0.24
Motor: Rotary Vane
Motor: In line
Mounting Type: Flanged Mounting
Number of Mounting Holes: 2
Power Source: Air Powered
Product Weight (lb): 1
Rated Power (hp): 0.2
Rated Power (kW): 0.15
Reversible: Reversible
Speed at Max Power (rpm): 11500
Standards/Certifications: ATEX
Starting Torque (ft-lb): 0.1
Starting Torque (nm): 0.18
Warranty: 1-year
