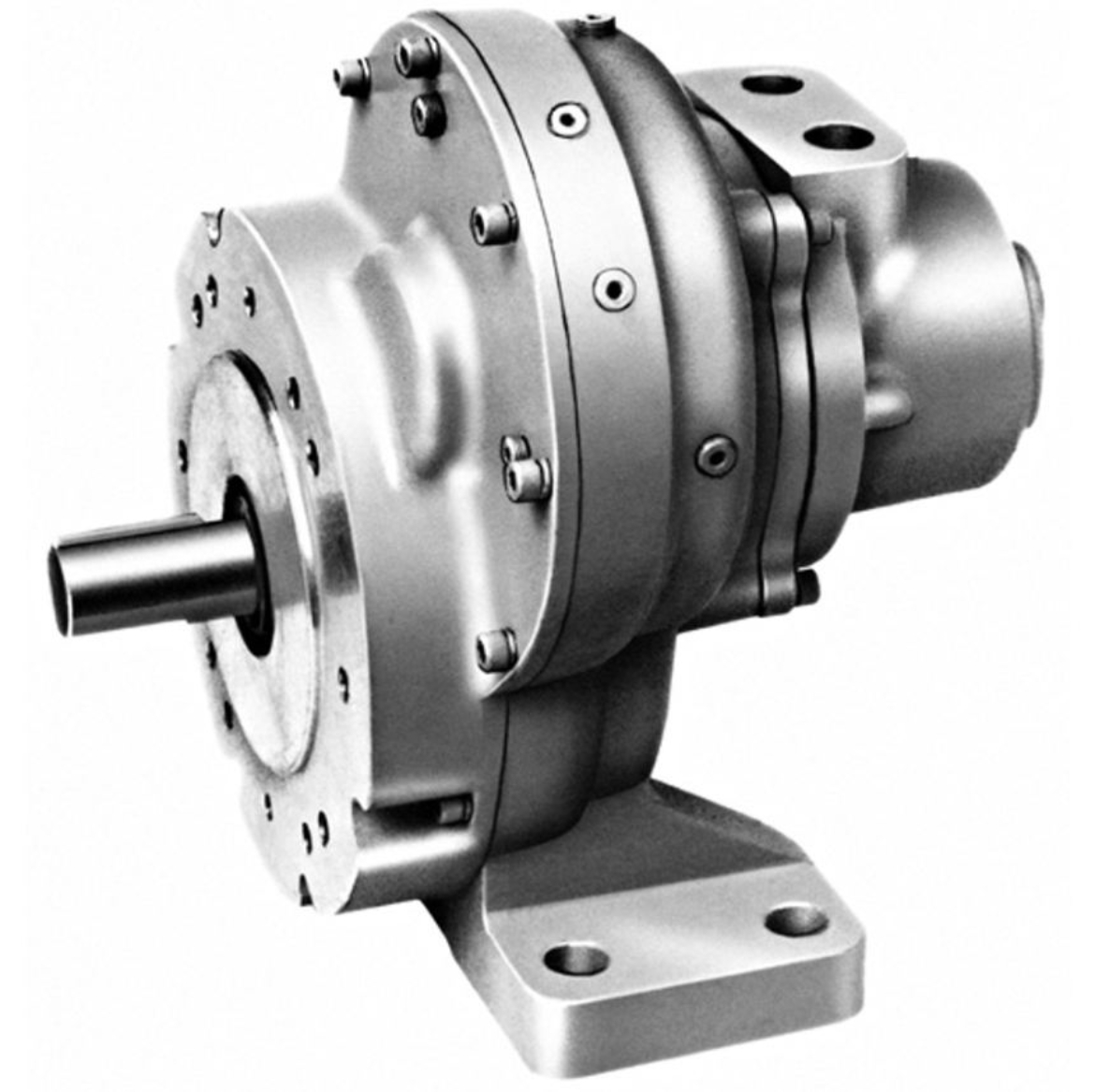

IR 34RB029
Spur Gear Air Motor, 1-1/2" Keyed Shaft, 187 RPM, 4 HP, 507 NM, Reversible
Air Consumption at Max HP (scfm): 180
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Double
Gear Train: Spur Gear
Housing Material: Steel Motor, Aluminum Gear Housing
Max Free Speed (rpm): 187
Max Pressure (bar): 6.2
Max Torque (ft-lb): 374
Max Torque (in-lb): 4487
Max Torque (nm): 507
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 75
Rated Power (hp): 4
Rated Power (kW): 2.98
Reversible: Reversible
Speed at Max Power (rpm): 99
Starting Torque (ft-lb): 224
Starting Torque (nm): 304
Warranty: 1-year
