Motor

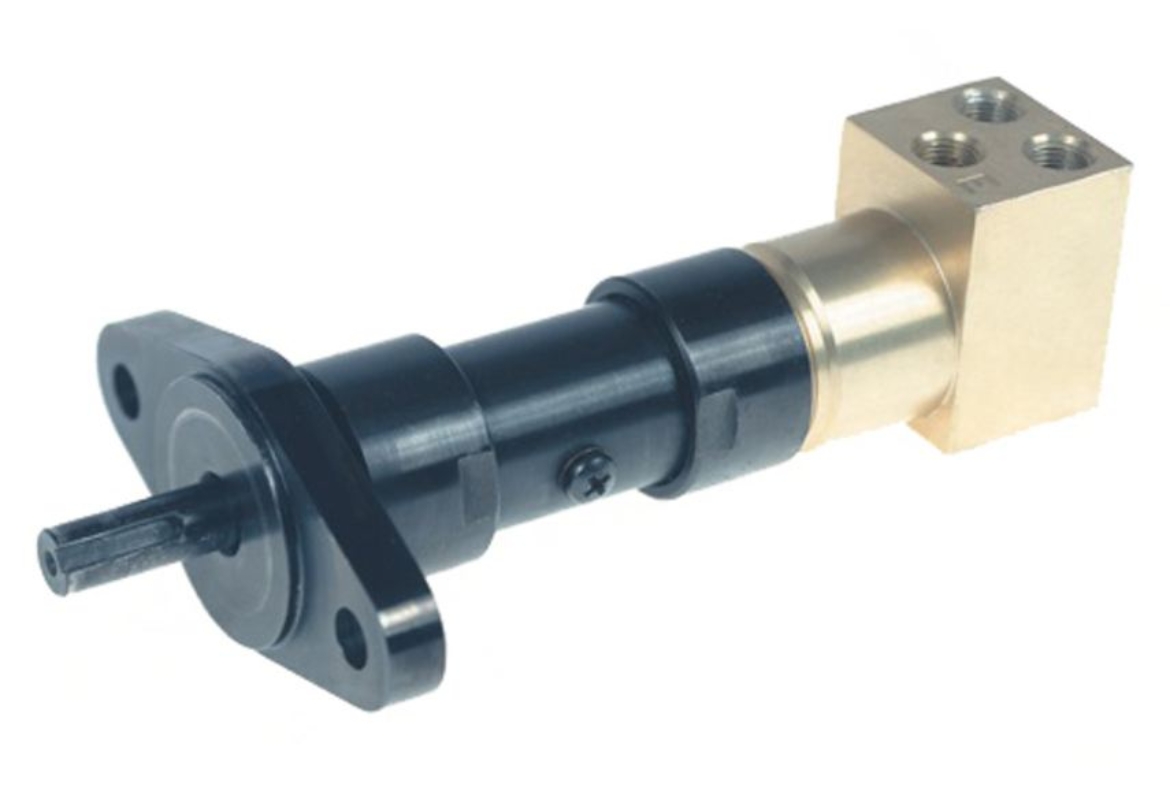

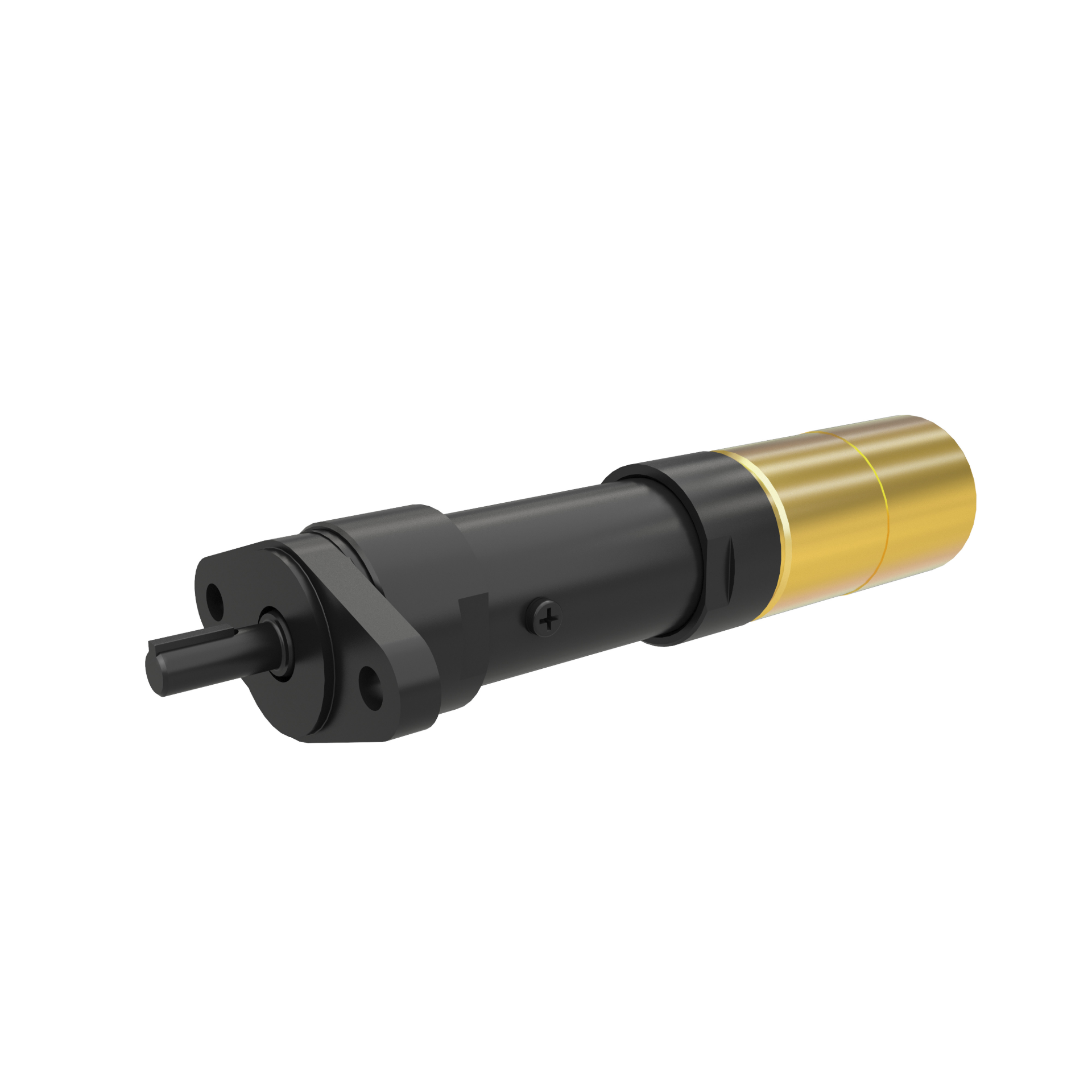

IR M002RVR000AR3

Inline Multi-Vane Air Motor, 3/8" Keyed Shaft, 23000 RPM, 0.2 HP, 0.24 NM, Reversible

Features And Benefits:

• Safety: Meets ATEX Standards

• Air Consumption at Max HP (scfm): 9.8
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90

• Drive Size (in): 3/8
• Drive Type: Round Keyed

• Exhaust Location: Rear
• Finish: Black Oxide and Anodize
• Gear Ratio: 1:1
• Gear Reduction: Direct Drive
• Gear Train: Planetary

• Housing Material: Steel

• Max Free Speed (rpm): 23000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 0.2
• Max Torque (in-lb): 2.1
• Max Torque (nm): 0.24
• Motor: Rotary Vane
• Motor: In line
• Mounting Type: Flanged Mounting

• Number of Mounting Holes: 2
• Power Source: Air Powered

• Product Weight (lb): 1
• Rated Power (hp): 0.2
• Rated Power (kW): 0.15
• Reversible: Reversible

• Speed at Max Power (rpm): 11500
• Standards/Certifications: ATEX
• Starting Torque (ft-lb): 0.1
• Starting Torque (nm): 0.18

• Warranty: 1-year
