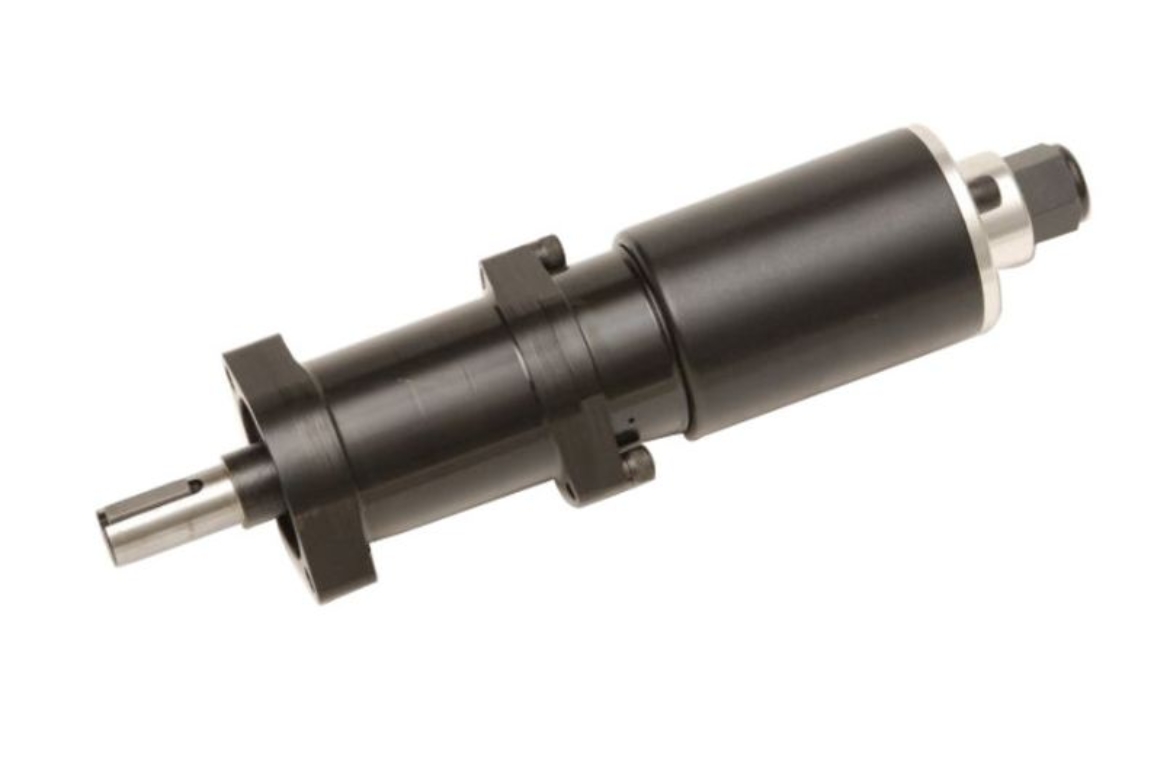

IR 1801N
Inline Multi-Vane Air Motor, 5/8" Keyed Shaft, 1990 RPM, 1.4 HP, 19 NM, Non-reversible
Air Consumption at Max HP (scfm): 46
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Drive Size (in): 5/8
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Ratio: 1:1
Gear Reduction: Direct Drive
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 1990
Max Pressure (bar): 6.2
Max Torque (ft-lb): 14
Max Torque (in-lb): 168
Max Torque (nm): 19
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 2
Power Source: Air Powered
Product Weight (lb): 5.38
Rated Power (hp): 1.4
Rated Power (kW): 1.04
Reversible: Non-reversible
Speed at Max Power (rpm): 918
Starting Torque (ft-lb): 10
Starting Torque (nm): 14.2
Warranty: 1-year
