Power Motor

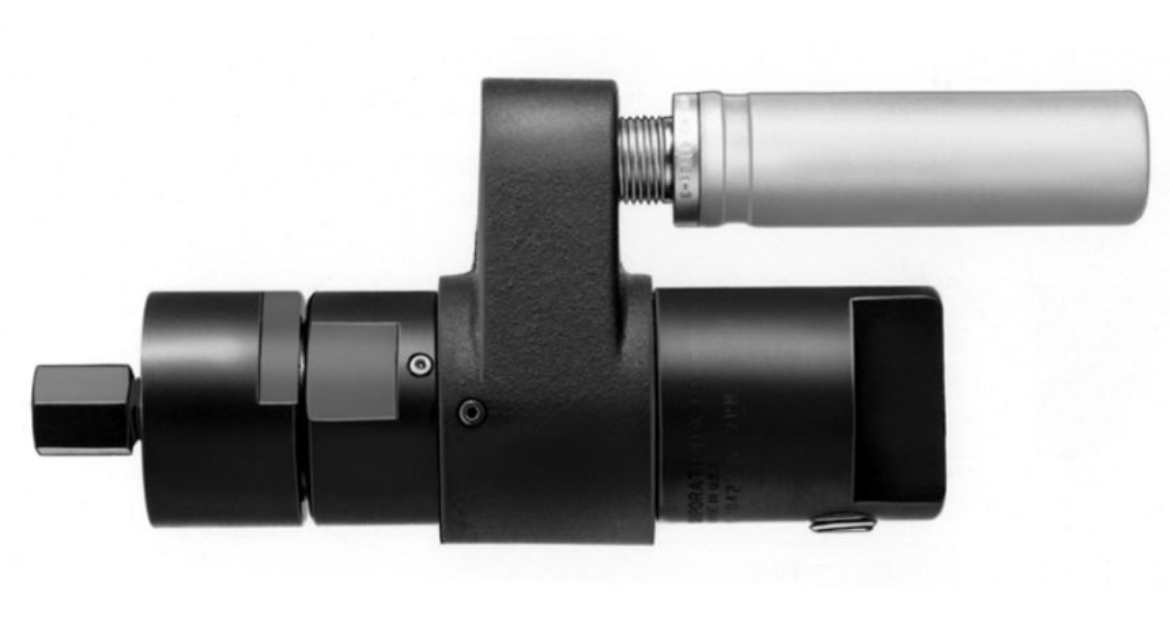

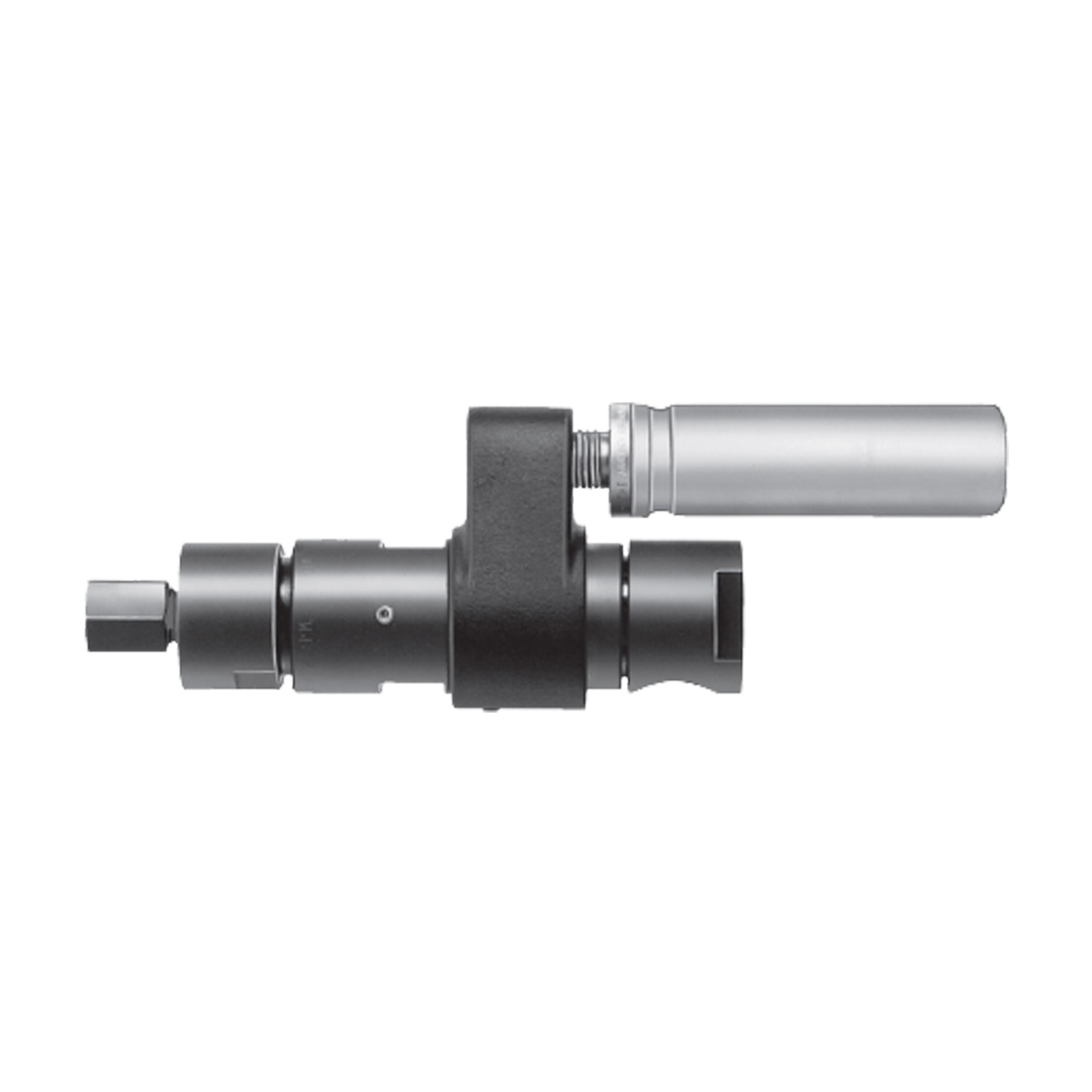

IR 8232-1

Milling Air Motor, 1/4" Collet, 19000 RPM, 0.6 HP, 0.9 NM, Non-reversible

• Air Consumption at Max HP (scfm): 41
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90

• Drive Size (in): 1/4
• Drive Type: Collet

• Exhaust Location: Exterior Muffler
• Finish: Black Oxide
• Gear Ratio: 1:1
• Gear Reduction: Direct Drive
• Gear Train: Planetary

• Housing Material: Steel

• Max Free Speed (rpm): 19000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 0.7
• Max Torque (in-lb): 8.0
• Max Torque (nm): 0.9
• Motor: Rotary Vane
• Motor: Milling
• Mounting Type: Foot Mount Optional

• Power Source: Air Powered

• Product Weight (lb): 2.87
• Rated Power (hp): 0.6
• Rated Power (kW): 0.45
• Reversible: Non-reversible

• Sound Level dB(A): 80
• Speed at Max Power (rpm): 9800

• Torque Output @ Max HP (ft-lb): 0.3
• Torque Output @ Max HP (nm): 0.4
• Warranty: 1-year

• Parts: 45057
