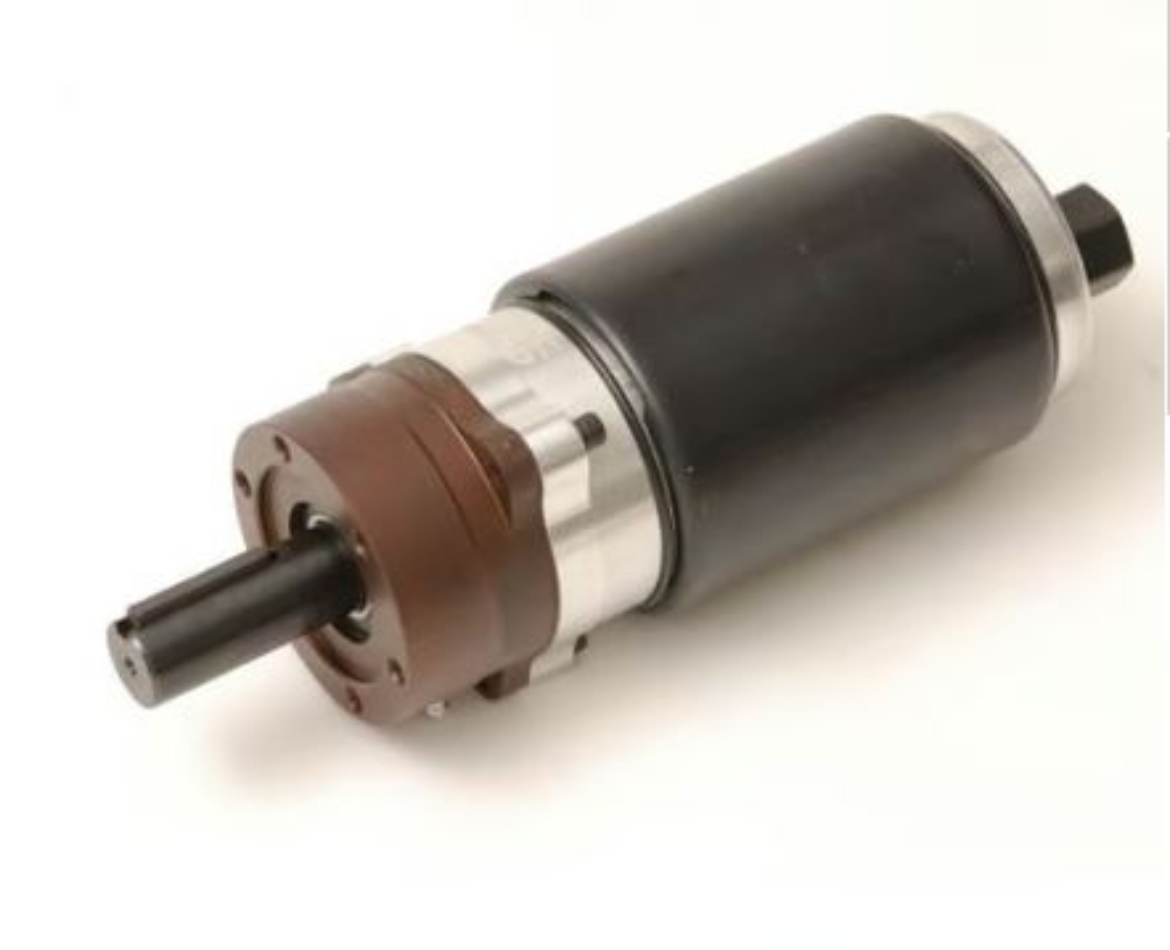

IR 3840Q
Inline Multi-Vane Air Motor, 3/4" Keyed Shaft, 280 RPM, 1.35 HP, 106 NM, Reversible
Air Consumption at Max HP (scfm): 44
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 3/4
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Keyaway Length (in): 1.5
Max Free Speed (rpm): 280
Max Pressure (bar): 6.2
Max Torque (ft-lb): 78
Max Torque (in-lb): 938
Max Torque (nm): 106
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Power Source: Air Powered
Product Length (in): 8.69
Product Width (in): 3.25
Product Height (in): 3.25
Product Weight (lb): 8.75
Rated Power (hp): 1.35
Rated Power (kW): 1.01
Reversible: Reversible
Speed at Max Power (rpm): 130
Standards/Certifications: ATEX
Starting Torque (ft-lb): 60
Starting Torque (nm): 81.4
Warranty: 1-year
