Air Motors

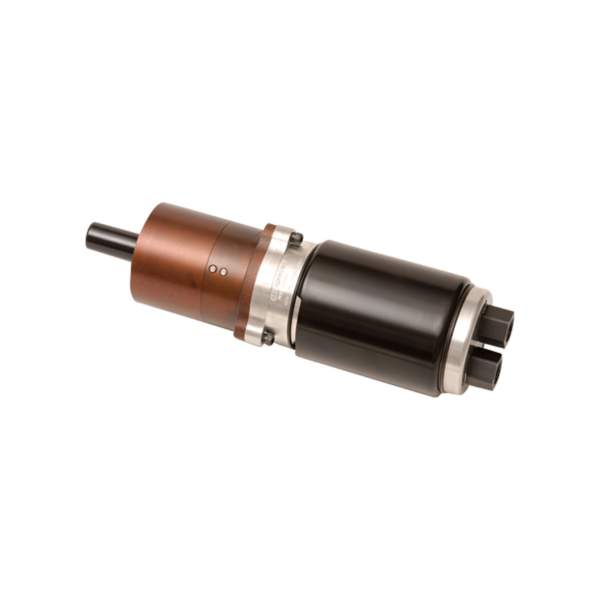

IR 4800Q

Inline Multi-Vane Air Motor, 1" Keyed Shaft, 375 RPM, 3.5 HP, 235 NM, Non-reversible

The 4800 Series has a durable inline planetary gearing system and robust vane motor design making it one of the most durable motors around.

Features And Benefits

• Safety: Meets ATEX Standards
• Durable: Able to withstand harsh environments, you never have to worry about the 4800 Series letting you down.
• Ease of Service: Without having to worry about repair time, you’ll be able to spend more time focused on the job.

Product Application and Uses: Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller
Air Consumption at Max HP (scfm): 95
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 1
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 375
Max Pressure (bar): 6.2
Max Torque (ft-lb): 173
Max Torque (in-lb): 2080
Max Torque (nm): 235
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Power Source: Air Powered
Product Length (in): 11.38
Product Width (in): 4
Product Height (in): 4
Product Weight (lb): 19.75
Rated Power (hp): 3.5
Rated Power (kW): 2.61
Reversible: Non-reversible
Speed at Max Power (rpm): 194
Standards/Certifications: ATEX
Starting Torque (ft-lb): 129
Starting Torque (nm): 175
Warranty: 1-year

IR 4800S

Inline Multi-Vane Air Motor, 1" Keyed Shaft, 275 RPM, 3.5 HP, 323 NM, Non-reversible

The 4800 Series has a durable inline planetary gearing system and robust vane motor design making it one of the most durable motors around.

Features And Benefits

• Safety: Meets ATEX Standards
• Durable: Able to withstand harsh environments, you never have to worry about the 4800 Series letting you down.
• Ease of Service: Without having to worry about repair time, you’ll be able to spend more time focused on the job.

Product Application and Uses: Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller
Air Consumption at Max HP (scfm): 95
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 1
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 275
Max Pressure (bar): 6.2
Max Torque (ft-lb): 238
Max Torque (in-lb): 2859
Max Torque (nm): 323
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Power Source: Air Powered
Product Length (in): 11.38
Product Width (in): 4
Product Height (in): 4
Product Weight (lb): 19.75
Rated Power (hp): 3.5
Rated Power (kW): 2.61
Reversible: Non-reversible
Speed at Max Power (rpm): 146
Standards/Certifications: ATEX
Starting Torque (ft-lb): 178
Starting Torque (nm): 241
Warranty: 1-year

IR 4800U

Inline Multi-Vane Air Motor, 1" Keyed Shaft, 185 RPM, 3.5 HP, 480 NM, Non-reversible

The 4800 Series has a durable inline planetary gearing system and robust vane motor design making it one of the most durable motors around.

Features And Benefits

• Safety: Meets ATEX Standards
• Durable: Able to withstand harsh environments, you never have to worry about the 4800 Series letting you down.
• Ease of Service: Without having to worry about repair time, you’ll be able to spend more time focused on the job.

Product Application and Uses: Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller
Air Consumption at Max HP (scfm): 95
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Length (in): 2.25
Drive Size (in): 1
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Ratio: 53.5:1
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Keyaway Length (in): 1.625
Max Free Speed (rpm): 185
Max Pressure (bar): 6.2
Max Torque (ft-lb): 354
Max Torque (in-lb): 4248
Max Torque (nm): 480
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Operating Temperature Range: 0F to 150F
Power Source: Air Powered
Product Length (in): 11.38
Product Width (in): 4
Product Height (in): 4
Product Weight (lb): 19.75
Rated Power (hp): 3.5
Rated Power (kW): 2.61
Reversible: Non-reversible
Speed at Max Power (rpm): 97
Standards/Certifications: ATEX
Starting Torque (ft-lb): 265
Starting Torque (nm): 359
Warranty: 1-year

IR 4840Q

Inline Multi-Vane Air Motor, 1" Keyed Shaft, 350 RPM, 3 HP, 224 NM, Reversible

Features And Benefits

• Safety: Meets ATEX Standards
• Durable: Able to withstand harsh environments, you never have to worry about the 4800 Series letting you down.
• Ease of Service: Without having to worry about repair time, you’ll be able to spend more time focused on the job.

Product Application and Uses: Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller
Air Consumption at Max HP (scfm): 95
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 1
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 350
Max Pressure (bar): 6.2
Max Torque (ft-lb): 165
Max Torque (in-lb): 1983
Max Torque (nm): 224
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Power Source: Air Powered
Product Length (in): 11.38
Product Width (in): 4
Product Height (in): 4
Product Weight (lb): 20.13
Rated Power (hp): 3
Rated Power (kW): 2.24
Reversible: Reversible
Speed at Max Power (rpm): 167
Standards/Certifications: ATEX
Starting Torque (ft-lb): 123
Starting Torque (nm): 167
Warranty: 1-year

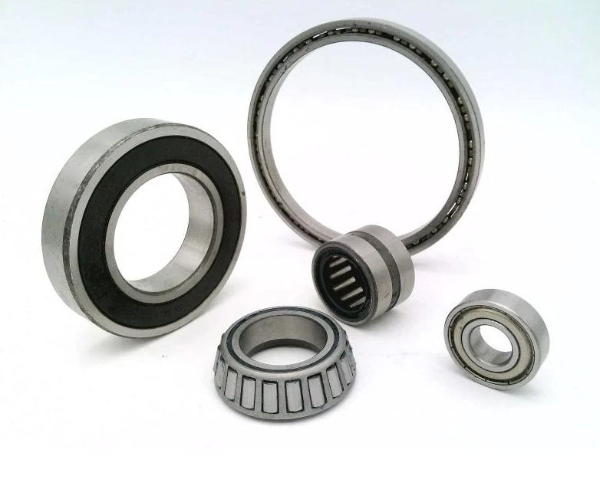

IR 48NA-510

BEARING (845-22)

IR 7802RA-TK1

TUNE UP KIT

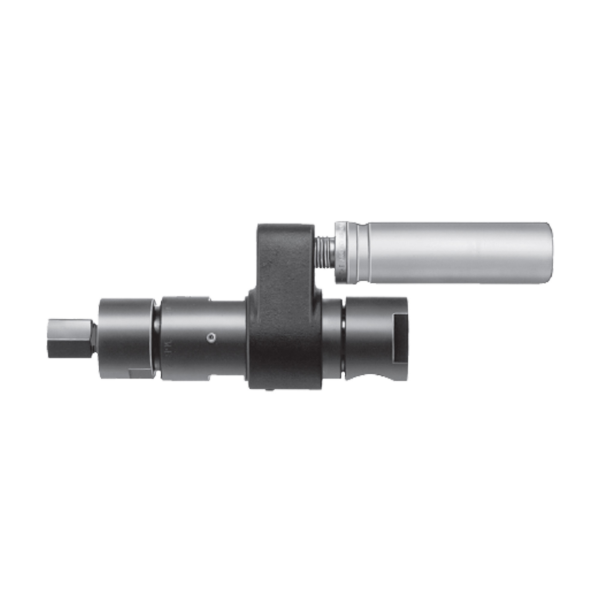

IR 8232-1

Milling Air Motor, 1/4" Collet, 19000 RPM, 0.6 HP, 0.9 NM, Non-reversible

Air Consumption at Max HP (scfm): 41
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 1/4
Drive Type: Collet
Exhaust Location: Exterior Muffler
Finish: Black Oxide
Gear Ratio: 1:1
Gear Reduction: Direct Drive
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 19000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 0.7
Max Torque (in-lb): 8.0
Max Torque (nm): 0.9
Motor: Rotary Vane
Motor: Milling
Mounting Type: Foot Mount Optional
Power Source: Air Powered
Product Weight (lb): 2.87
Rated Power (hp): 0.6
Rated Power (kW): 0.45
Reversible: Non-reversible
Sound Level dB(A): 80
Speed at Max Power (rpm): 9800
Torque Output @ Max HP (ft-lb): 0.3
Torque Output @ Max HP (nm): 0.4
Warranty: 1-year

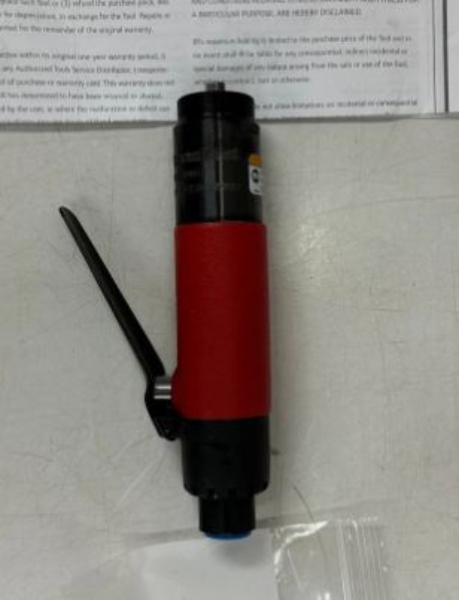

IR 8463

POWER MOTOR

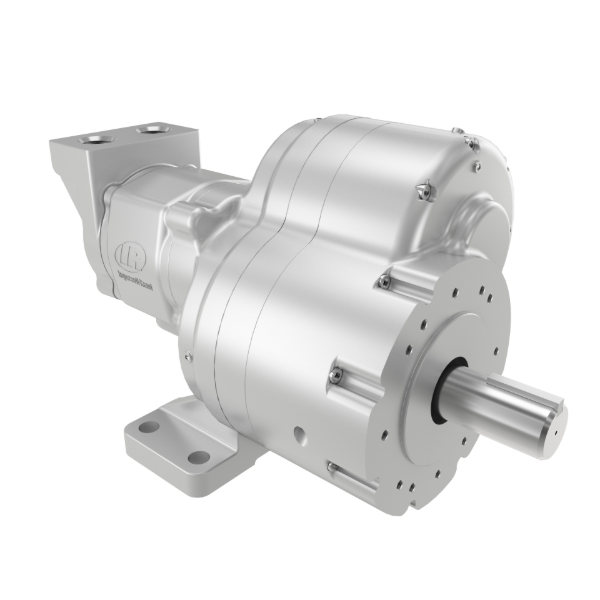

IR 92RB078

Spur Gear Air Motor, 1-1/2" Keyed Shaft, 120 RPM, 7.9 HP, 1478 NM, Reversible

The 92R Series has a durable spur gear system and robust vane motor design making it one of the most durable and powerful motors around.

Features And Benefits

• Safety: Meets ATEX Standards
• Durable: The 92 Series can withstand harsh environments and are deal for high torque and increased side loading applications.
• Ease of Service: Without having to worry about repair time, you’ll be able to spend more time focused on the job.

Product Application and Uses: Paper Machinery, Large conveyers, Heavy Lifting, Valve Actuators, Industrial Equipment
Air Consumption at Max HP (scfm): 225
Air Inlet: 1" NPT
Air Pressure (psi): 90
Drive Length (in): 3.0625
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Ratio: 78:1
Gear Reduction: Double
Gear Train: Spur Gear
Housing Material: Aluminum
Keyaway Length (in): 2
Max Free Speed (rpm): 120
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1090
Max Torque (in-lb): 13081
Max Torque (nm): 1478
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Operating Temperature Range: 0F to 150F
Power Source: Air Powered
Product Length (in): 15.22
Product Width (in): 10.5
Product Height (in): 10.5
Product Weight (lb): 78
Rated Power (hp): 7.9
Rated Power (kW): 5.89
Reversible: Reversible
Sound Level dB(A): 78
Speed at Max Power (rpm): 59
Standards/Certifications: ATEX
Starting Torque (ft-lb): 770
Starting Torque (nm): 1044
Warranty: 1-year

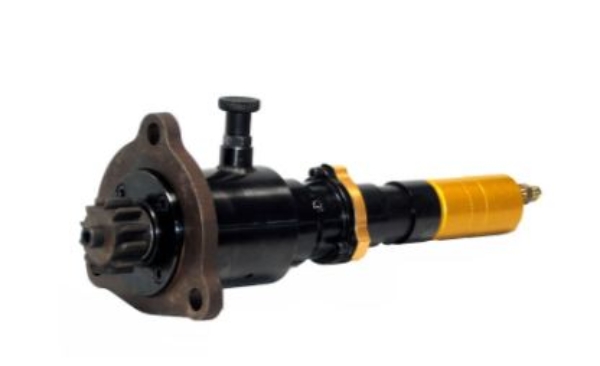

IR B006PVR374-01-P

BARRING MOTOR W/PENDANT

IR M002RVR000AR3

Inline Multi-Vane Air Motor, 3/8" Keyed Shaft, 23000 RPM, 0.2 HP, 0.24 NM, Reversible

Features And Benefits

• Safety: Meets ATEX Standards

Air Consumption at Max HP (scfm): 9.8
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 3/8
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide and Anodize
Gear Ratio: 1:1
Gear Reduction: Direct Drive
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 23000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 0.2
Max Torque (in-lb): 2.1
Max Torque (nm): 0.24
Motor: Rotary Vane
Motor: In line
Mounting Type: Flanged Mounting
Number of Mounting Holes: 2
Power Source: Air Powered
Product Weight (lb): 1
Rated Power (hp): 0.2
Rated Power (kW): 0.15
Reversible: Reversible
Speed at Max Power (rpm): 11500
Standards/Certifications: ATEX
Starting Torque (ft-lb): 0.1
Starting Torque (nm): 0.18
Warranty: 1-year

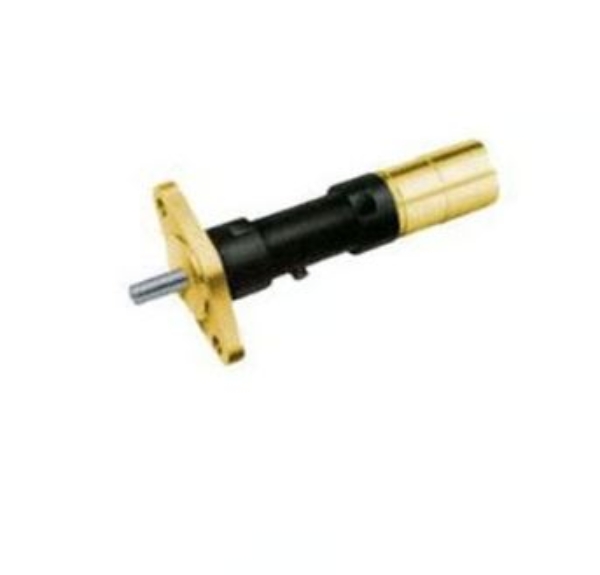

IR M002RVR159BR3

MOTOR

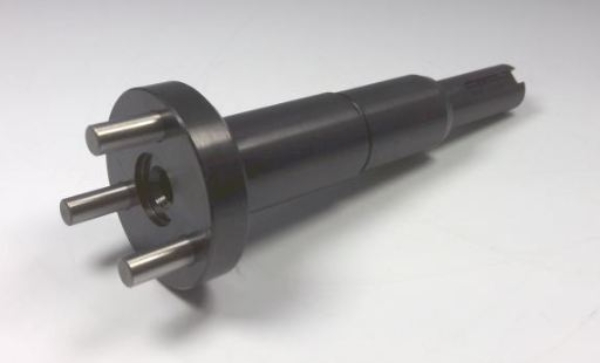

IR M004-108-033

SPINDLE

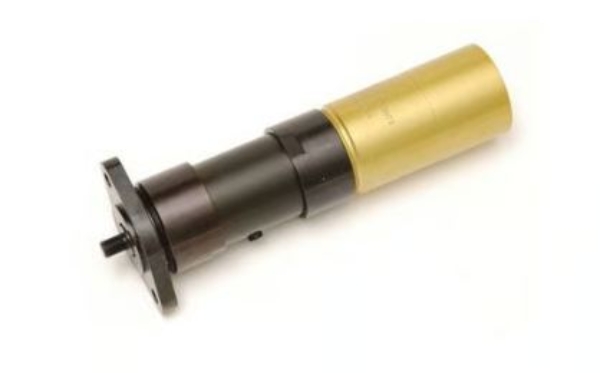

IR M004LHR050AR3

MOTOR

IR M004RHR006AR3

Inline Multi-Vane Air Motor, 3/8" Keyed Shaft, 2680 RPM, 0.47 HP, 4.37 NM, Non-reversible

Features And Benefits

• Safety: Meets ATEX Standards

Air Consumption at Max HP (scfm): 19.5
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 3/8
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide and Anodize
Gear Ratio: 6:1
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 2680
Max Pressure (bar): 6.2
Max Torque (ft-lb): 3.2
Max Torque (in-lb): 39
Max Torque (nm): 4.37
Motor: Rotary Vane
Motor: In line
Mounting Type: Flanged Mounting
Number of Mounting Holes: 2
Power Source: Air Powered
Product Weight (lb): 2.19
Rated Power (hp): 0.47
Rated Power (kW): 0.35
Reversible: Non-reversible
Speed at Max Power (rpm): 1490
Standards/Certifications: ATEX
Starting Torque (ft-lb): 2.4
Starting Torque (nm): 3.28
Warranty: 1-year

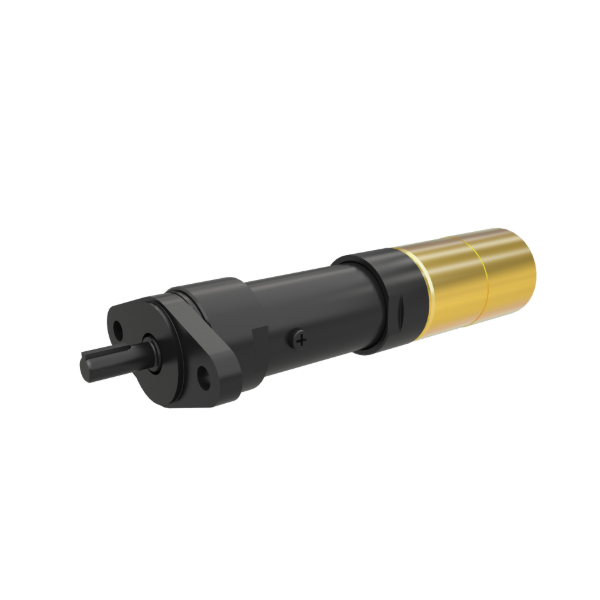

IR M004RVR050AR3

Inline Multi-Vane Air Motor, 3/8" Keyed Shaft, 280 RPM, 0.31 HP, 22.4 NM, Reversible

Features And Benefits

• Safety: Meets ATEX Standards

Air Consumption at Max HP (scfm): 17.5
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 3/8
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide and Anodize
Gear Ratio: 50:1
Gear Reduction: Triple
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 280
Max Pressure (bar): 6.2
Max Torque (ft-lb): 17
Max Torque (in-lb): 198
Max Torque (nm): 22.4
Motor: Rotary Vane
Motor: In line
Mounting Type: Flanged Mounting
Number of Mounting Holes: 2
Power Source: Air Powered
Product Weight (lb): 2.69
Rated Power (hp): 0.31
Rated Power (kW): 0.23
Reversible: Reversible
Speed at Max Power (rpm): 140
Standards/Certifications: ATEX
Starting Torque (ft-lb): 12
Starting Torque (nm): 16.7
Warranty: 1-year

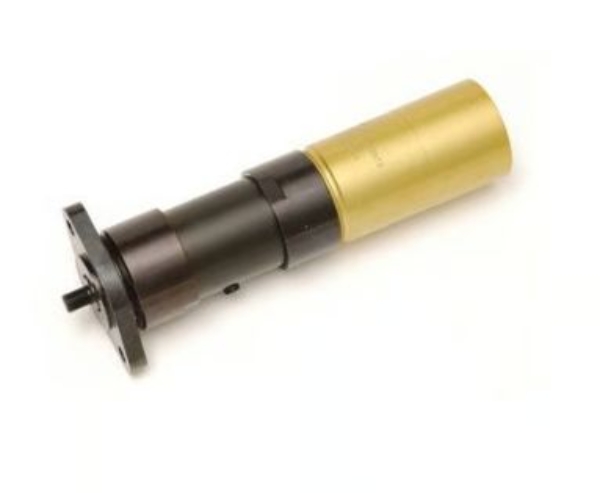

IR M004RVR167BR3

MOTOR

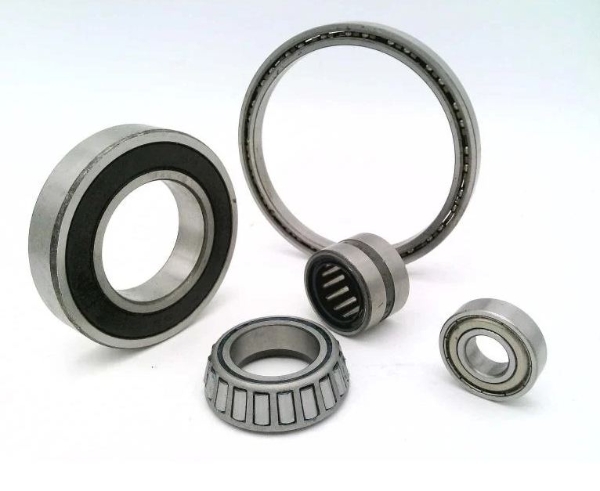

IR M007-111

SPINDLE BEARING SPACER

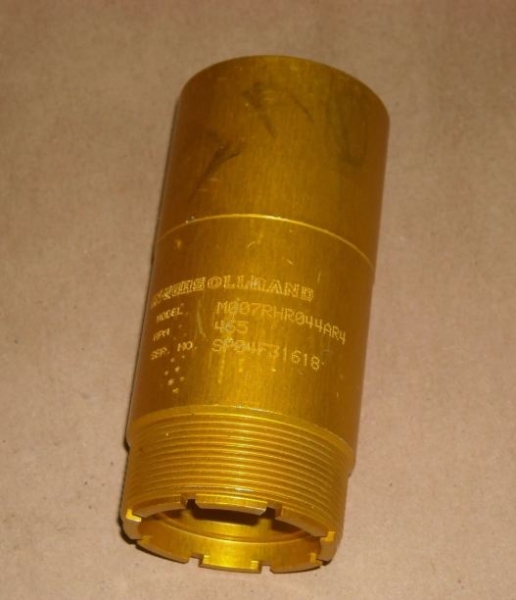

IR M007-N40

MOTOR HOUSING

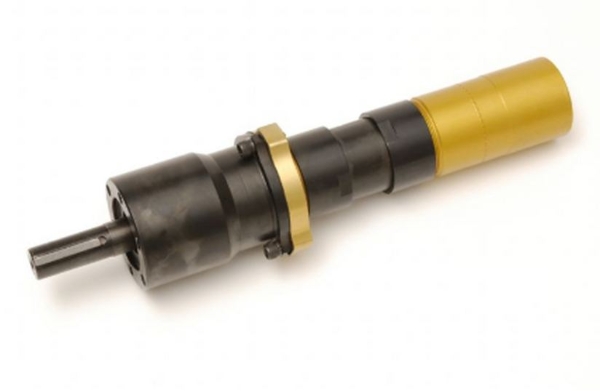

IR M007RVR021AR4

Inline Multi-Vane Air Motor, 1/2" Keyed Spindle, 855 RPM, 0.64 HP, 16.5 NM, Reversible

Features And Benefits

• Safety: Meets ATEX Standards

Air Consumption at Max HP (scfm): 33
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 1/2
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide and Anodize
Gear Ratio: 21:1
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 855
Max Pressure (bar): 6.2
Max Torque (ft-lb): 12
Max Torque (in-lb): 146
Max Torque (nm): 16.5
Motor: Rotary Vane
Motor: In line
Mounting Type: Flanged Mounting
Number of Mounting Holes: 2
Power Source: Air Powered
Product Weight (lb): 3.5
Rated Power (hp): 0.64
Rated Power (kW): 0.48
Reversible: Reversible
Speed at Max Power (rpm): 425
Standards/Certifications: ATEX
Starting Torque (ft-lb): 9.2
Starting Torque (nm): 12.5
Warranty: 1-year

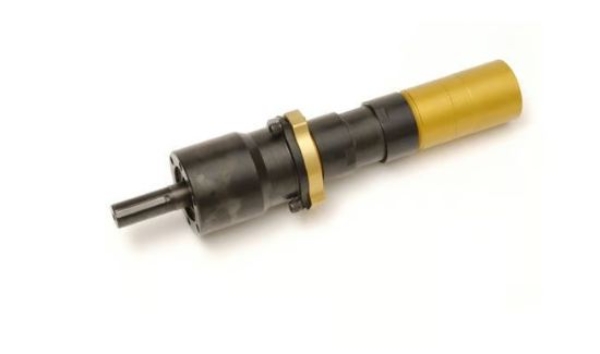

IR M007RVR044AR4

Inline Multi-Vane Air Motor, 1/2" Keyed Spindle, 420 RPM, 0.64 HP, 33.6 NM, Reversible

Features And Benefits

• Safety: Meets ATEX Standards

Air Consumption at Max HP (scfm): 33
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 1/2
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide and Anodize
Gear Ratio: 44:1
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 420
Max Pressure (bar): 6.2
Max Torque (ft-lb): 25
Max Torque (in-lb): 297
Max Torque (nm): 33.6
Motor: Rotary Vane
Motor: In line
Mounting Type: Flanged Mounting
Number of Mounting Holes: 2
Power Source: Air Powered
Product Weight (lb): 3.5
Rated Power (hp): 0.64
Rated Power (kW): 0.48
Reversible: Reversible
Speed at Max Power (rpm): 210
Standards/Certifications: ATEX
Starting Torque (ft-lb): 19
Starting Torque (nm): 25.2
Warranty: 1-year

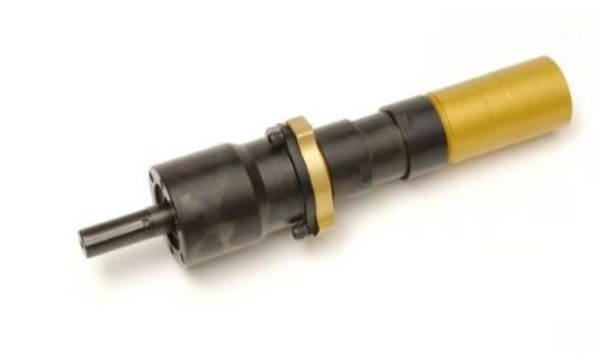

IR M007RVR086BR6

Inline Multi-Vane Air Motor, 3/4" Keyed Shaft, 215 RPM, 0.64 HP, 66.3 NM, Reversible

Features And Benefits

• Safety: Meets ATEX Standards

Air Consumption at Max HP (scfm): 33
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 3/4
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide and Anodize
Gear Ratio: 86:1
Gear Reduction: Triple
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 215
Max Pressure (bar): 6.2
Max Torque (ft-lb): 49
Max Torque (in-lb): 587
Max Torque (nm): 66.3
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Power Source: Air Powered
Product Weight (lb): 7.13
Rated Power (hp): 0.64
Rated Power (kW): 0.48
Reversible: Reversible
Speed at Max Power (rpm): 107
Standards/Certifications: ATEX
Starting Torque (ft-lb): 37
Starting Torque (nm): 49.8
Warranty: 1-year

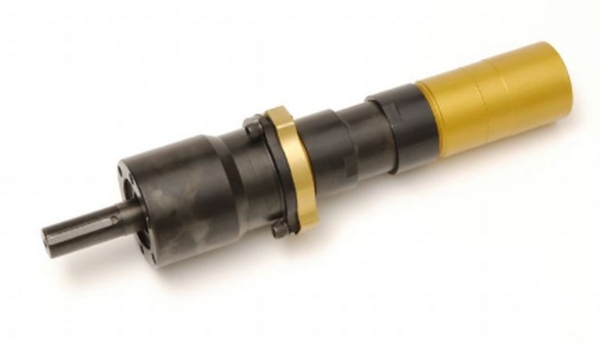

IR M007RVR188BR6

Inline Multi-Vane Air Motor, 3/4" Keyed Shaft, 94 RPM, 0.61 HP, 138 NM, Reversible

Features And Benefits

• Safety: Meets ATEX Standards

Air Consumption at Max HP (scfm): 33
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 3/4
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide and Anodize
Gear Ratio: 188:1
Gear Reduction: Quadruple
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 94
Max Pressure (bar): 6.2
Max Torque (ft-lb): 102
Max Torque (in-lb): 1221
Max Torque (nm): 138
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Power Source: Air Powered
Product Weight (lb): 7.38
Rated Power (hp): 0.61
Rated Power (kW): 0.46
Reversible: Reversible
Speed at Max Power (rpm): 47
Standards/Certifications: ATEX
Starting Torque (ft-lb): 77
Starting Torque (nm): 104
Warranty: 1-year

IR M007RVS374BR6

MOTOR

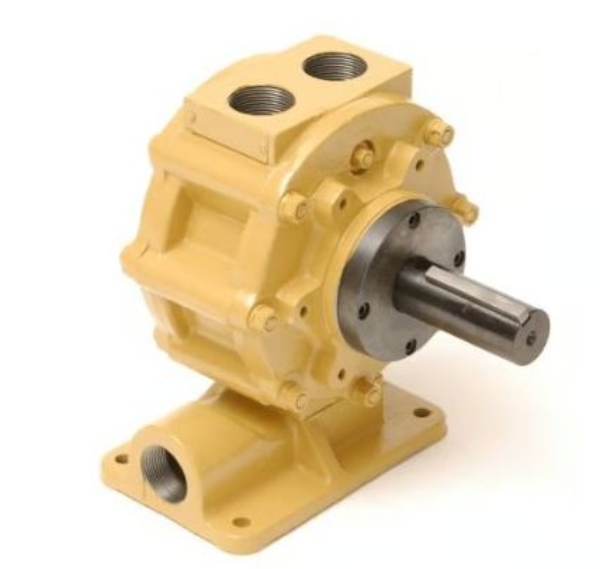

IR M0V075AA

Direct Drive Air Motor, 1-3/8" Keyed Shaft, 5600 RPM, 10.5 HP, 40.7 NM, Reversible

Air Consumption at Max HP (scfm): 260
Air Inlet: 1-1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 1-3/8
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint
Gear Ratio: 1:1
Gear Reduction: Direct Drive
Gear Train: Gearless
Housing Material: Steel
Max Free Speed (rpm): 5600
Max Pressure (bar): 6.2
Max Torque (ft-lb): 30
Max Torque (in-lb): 360
Max Torque (nm): 40.7
Motor: Rotary Vane
Motor: Direct Drive
Mounting Type: Foot and Face
Number of Mounting Holes: 6
Power Source: Air Powered
Product Weight (lb): 64
Rated Power (hp): 10.5
Rated Power (kW): 7.8
Reversible: Reversible
Speed at Max Power (rpm): 2600
Starting Torque (ft-lb): 22
Starting Torque (nm): 30.5
Warranty: 1-year
