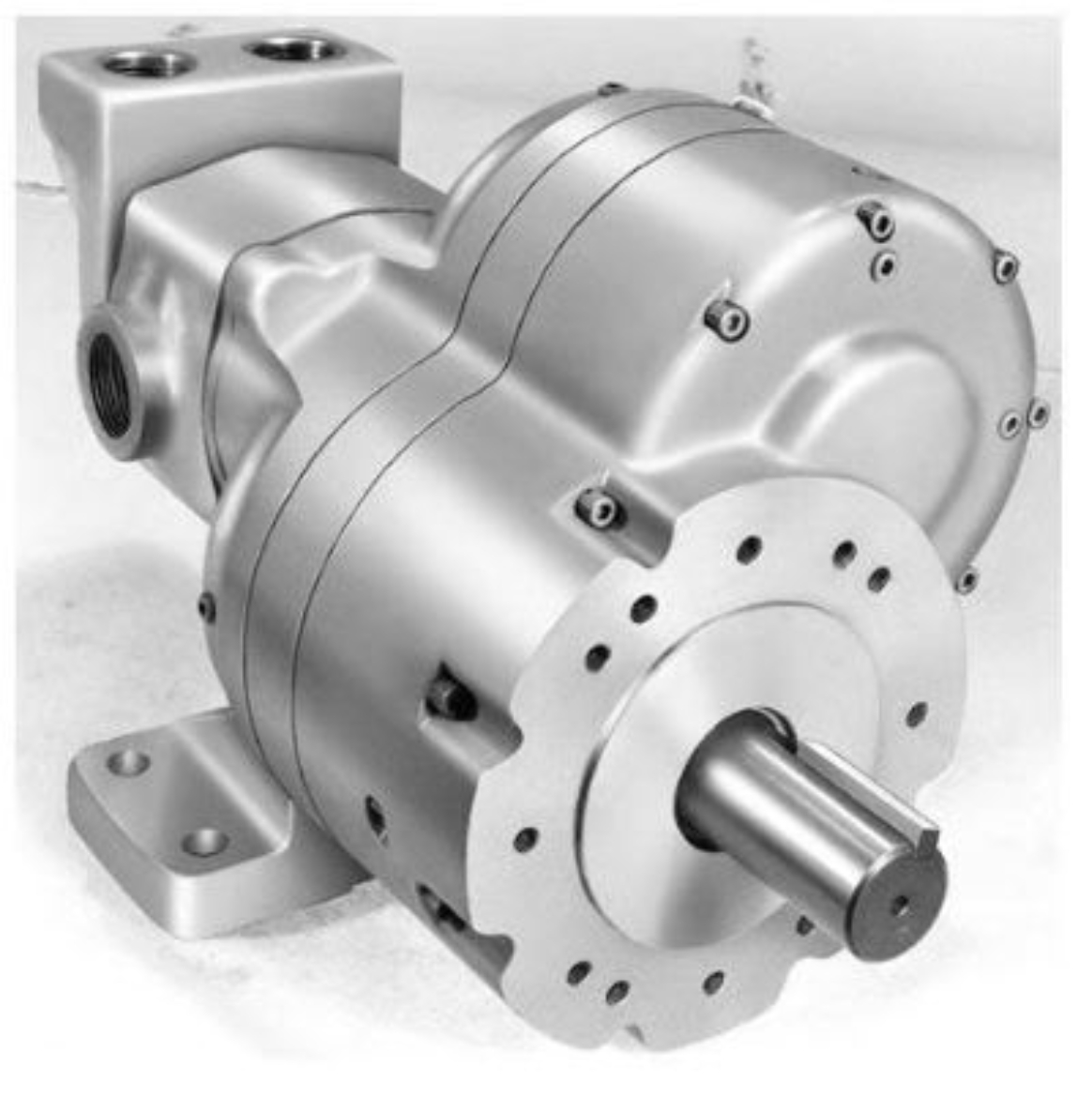

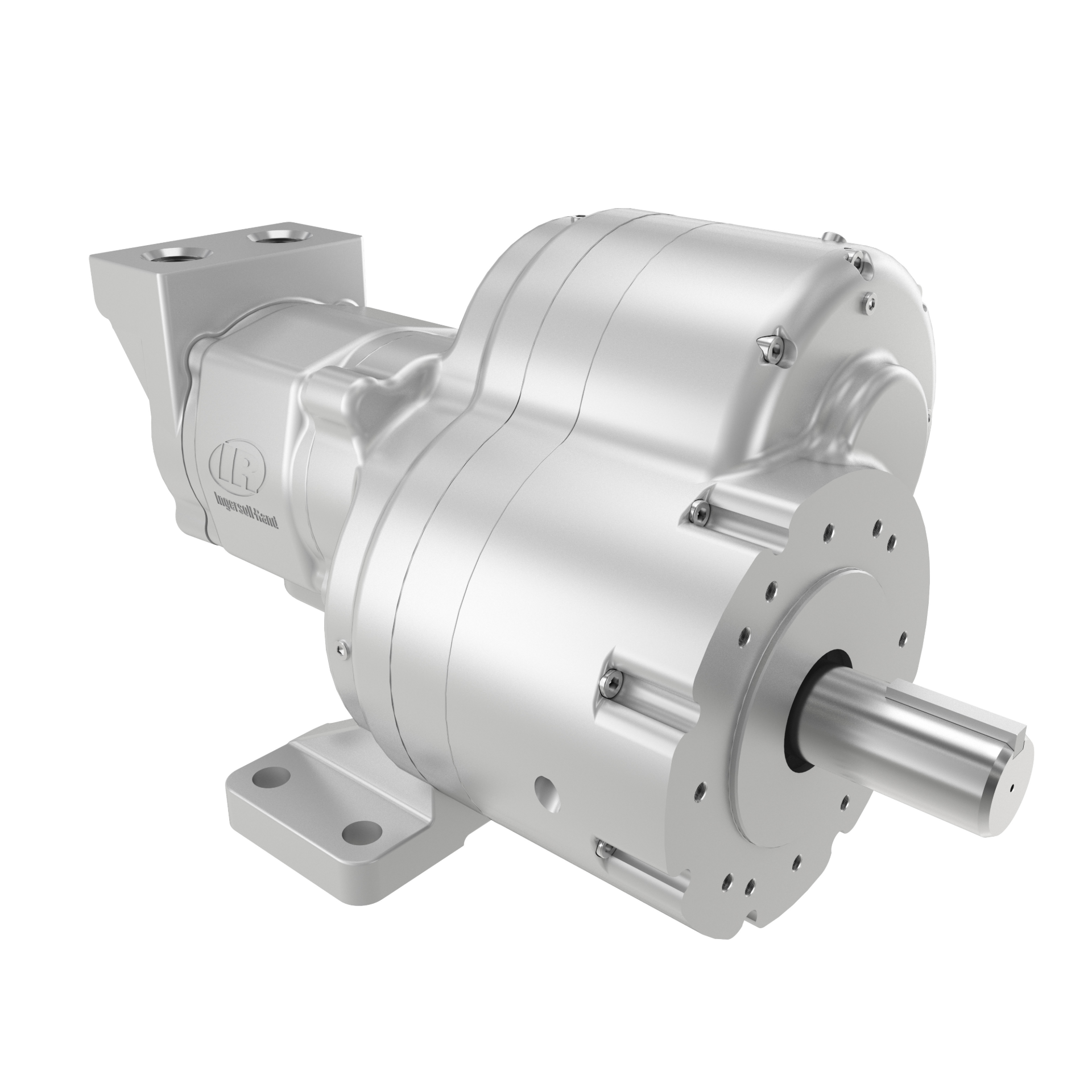

IR 92RB078
Spur Gear Air Motor, 1-1/2" Keyed Shaft, 120 RPM, 7.9 HP, 1478 NM, Reversible
Description: The 92R Series has a durable spur gear system and robust vane motor design making it one of the most durable and powerful motors around.
Features And Benefits:
- Safety: Meets ATEX Standards
- Durable: The 92 Series can withstand harsh environments and are deal for high torque and increased side loading applications.
- Ease of Service: Without having to worry about repair time, you'll be able to spend more time focused on the job.
Product Application and Uses:
Paper Machinery, Large conveyers, Heavy Lifting, Valve Actuators, Industrial Equipment
- Air Consumption at Max HP (scfm): 225
- Air Inlet: 1" NPT
- Air Pressure (psi): 90
- Drive Length (in): 3.0625
- Drive Size (in): 1-1/2
- Drive Type: Round Keyed
- Exhaust Location: Side
- Finish: Paint, Yellow
- Gear Ratio: 78:1
- Gear Reduction: Double
- Gear Train: Spur Gear
- Housing Material: Aluminum
- Keyaway Length (in): 2
- Max Free Speed (rpm): 120
- Max Pressure (bar): 6.2
- Max Torque (ft-lb): 1090
- Max Torque (in-lb): 13081
- Max Torque (nm): 1478
- Motor: Rotary Vane
- Motor: Spur Gear
- Mounting Type: Foot and Face
- Operating Temperature Range: 0F to 150F
- Power Source: Air Powered
- Product Length (in): 15.22
- Product Width (in): 10.5
- Product Height (in): 10.5
- Product Weight (lb): 78
- Rated Power (hp): 7.9
- Rated Power (kW): 5.89
- Reversible: Reversible
- Sound Level dB(A): 78
- Speed at Max Power (rpm): 59
- Standards/Certifications: ATEX
- Starting Torque (ft-lb): 770
- Starting Torque (nm): 1044
