MSA-10 Pneumatic Pump

GG 562854

MSA-10 PUMP, ASSY

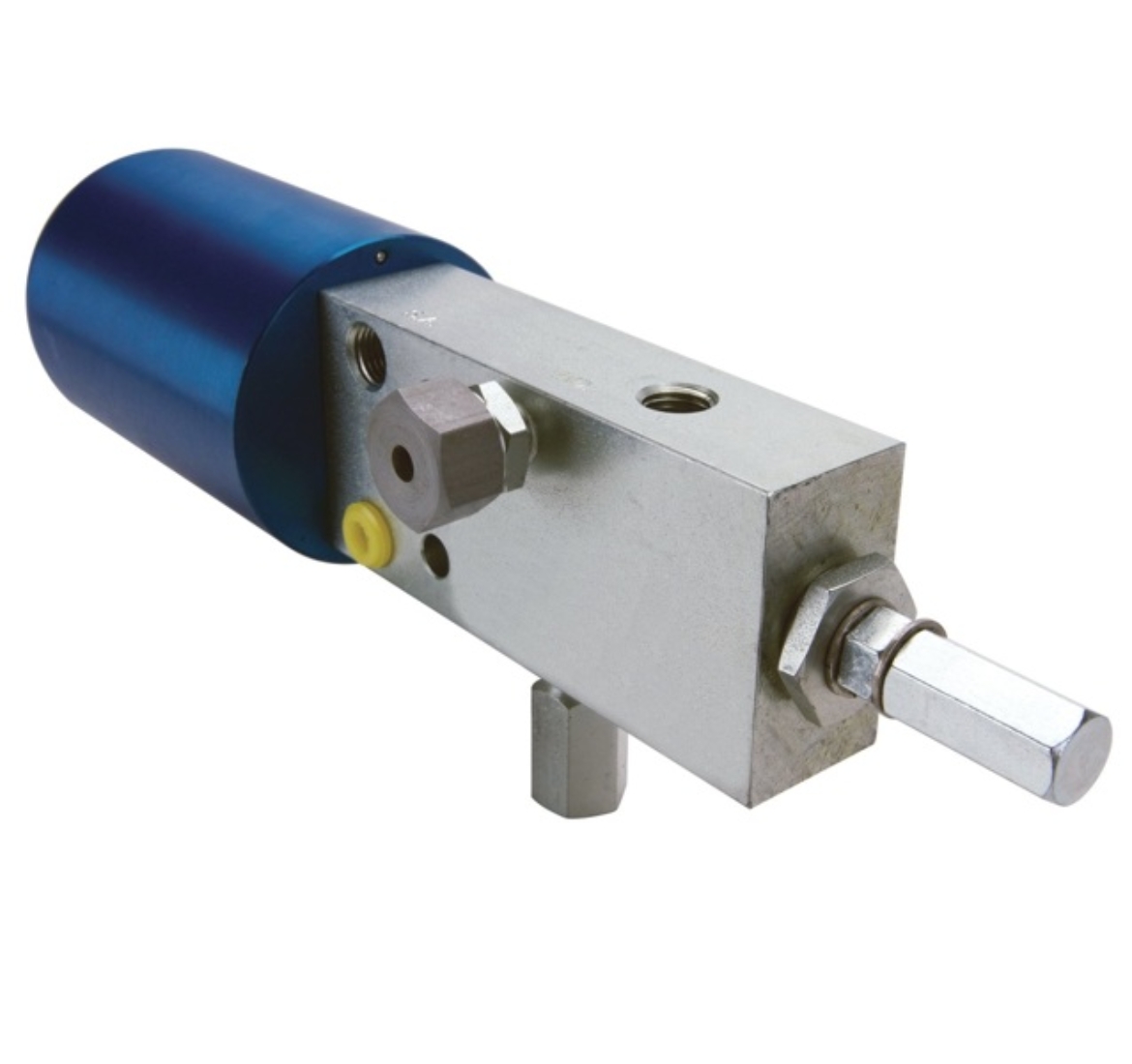

Graco 562854 MSA-10 Pneumatic Pump

MSA Series products are used together with main lubrication supply lines where the pump is fed directly with no additional reservoir required. No reservoir makes the MSA Series ideal for locations that are difficult to reach or undesirable to enter. Use the MSA-10 for standard applications.

• Ideal for applications where space is a premium
• Handles high pressure lubricant feed of direct line intake
• Used with or without a reservoir for the ultimate flexibility

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPSF

• Application: In-Plant Machinery

• Compatible Material: Oil, Grease

• Includes: Repair Parts Kit

• Material: Steel

• Maximum Air Inlet Pressure (bar): 10.34
• Maximum Air Inlet Pressure (kPa): 1034
• Maximum Air Inlet Pressure (psi): 150

• Maximum Cycle Rate (CPM): 60

• Maximum Fluid Output Pressure (bar): 100
• Maximum Fluid Output Pressure (psi): 1450

• Maximum Fluid Output Pressure (bar): 100
• Maximum Fluid Output Pressure (psi): 1450

• Maximum Working Pressure (bar): 206.8
• Maximum Working Pressure (kPa): 20680
• Maximum Working Pressure (MPa): 20.7
• Maximum Working Pressure (psi): 3000

• Minimum Air Inlet Pressure (psi): 40

• Power Type: Pneumatic
