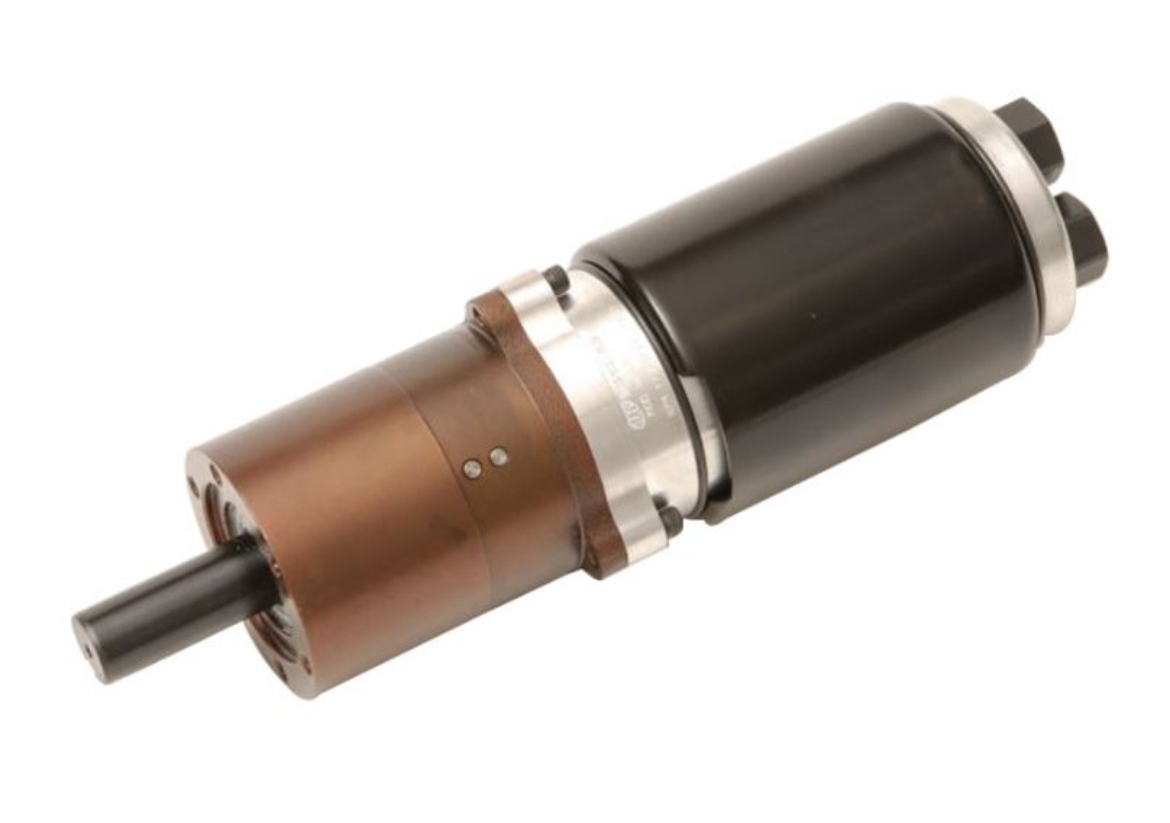

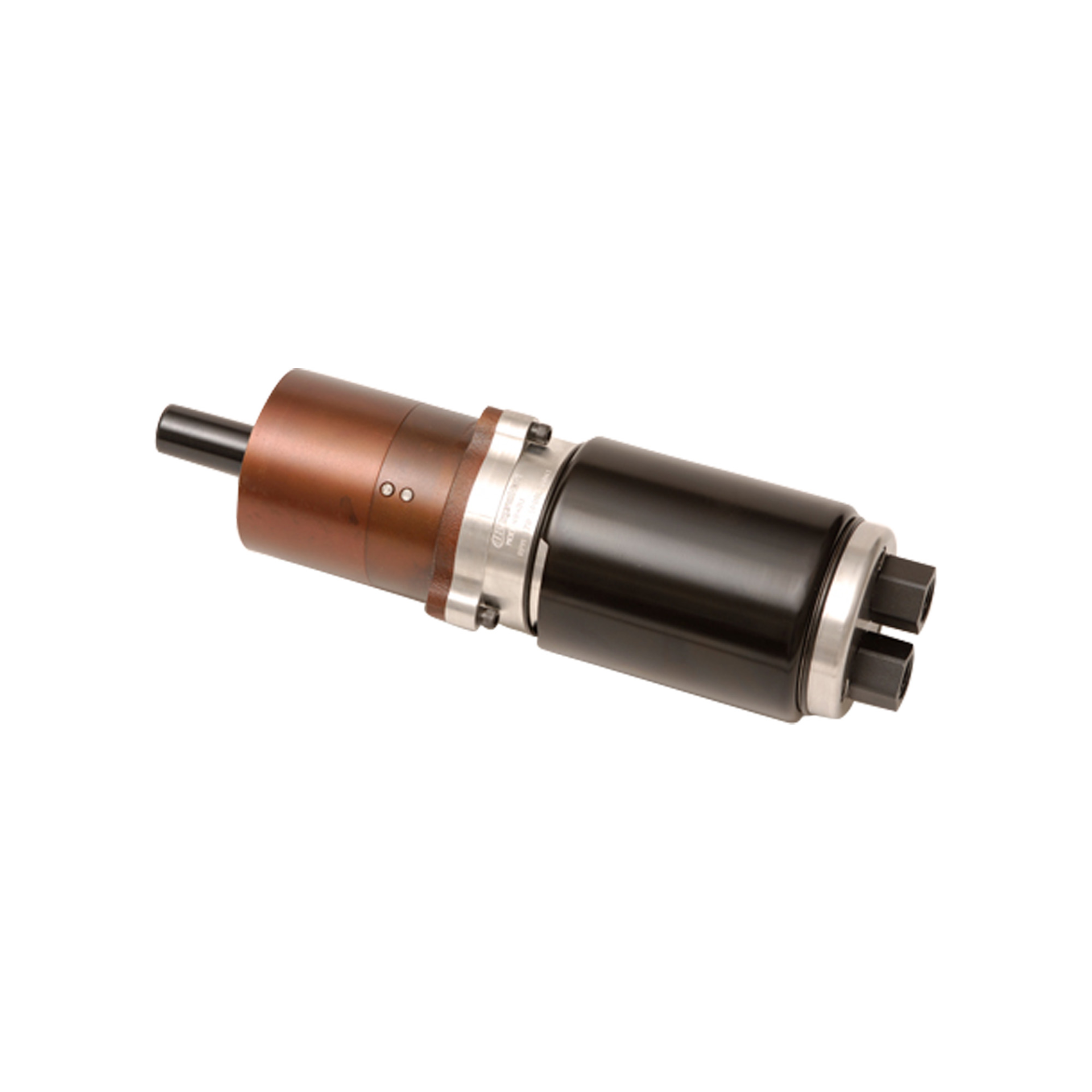

IR 4800S
Inline Multi-Vane Air Motor, 1" Keyed Shaft, 275 RPM, 3.5 HP, 323 NM, Non-reversible
The 4800 Series has a durable inline planetary gearing system and robust vane motor design making it one of the most durable motors around.
Features And Benefits
- Safety: Meets ATEX Standards
- Durable: Able to withstand harsh environments, you never have to worry about the 4800 Series letting you down.
- Ease of Service: Without having to worry about repair time, you’ll be able to spend more time focused on the job.
Product Application and Uses: Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller
Air Consumption at Max HP (scfm): 95
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 1
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 275
Max Pressure (bar): 6.2
Max Torque (ft-lb): 238
Max Torque (in-lb): 2859
Max Torque (nm): 323
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Power Source: Air Powered
Product Length (in): 11.38
Product Width (in): 4
Product Height (in): 4
Product Weight (lb): 19.75
Rated Power (hp): 3.5
Rated Power (kW): 2.61
Reversible: Non-reversible
Speed at Max Power (rpm): 146
Standards/Certifications: ATEX
Starting Torque (ft-lb): 178
Starting Torque (nm): 241
Warranty: 1-year
