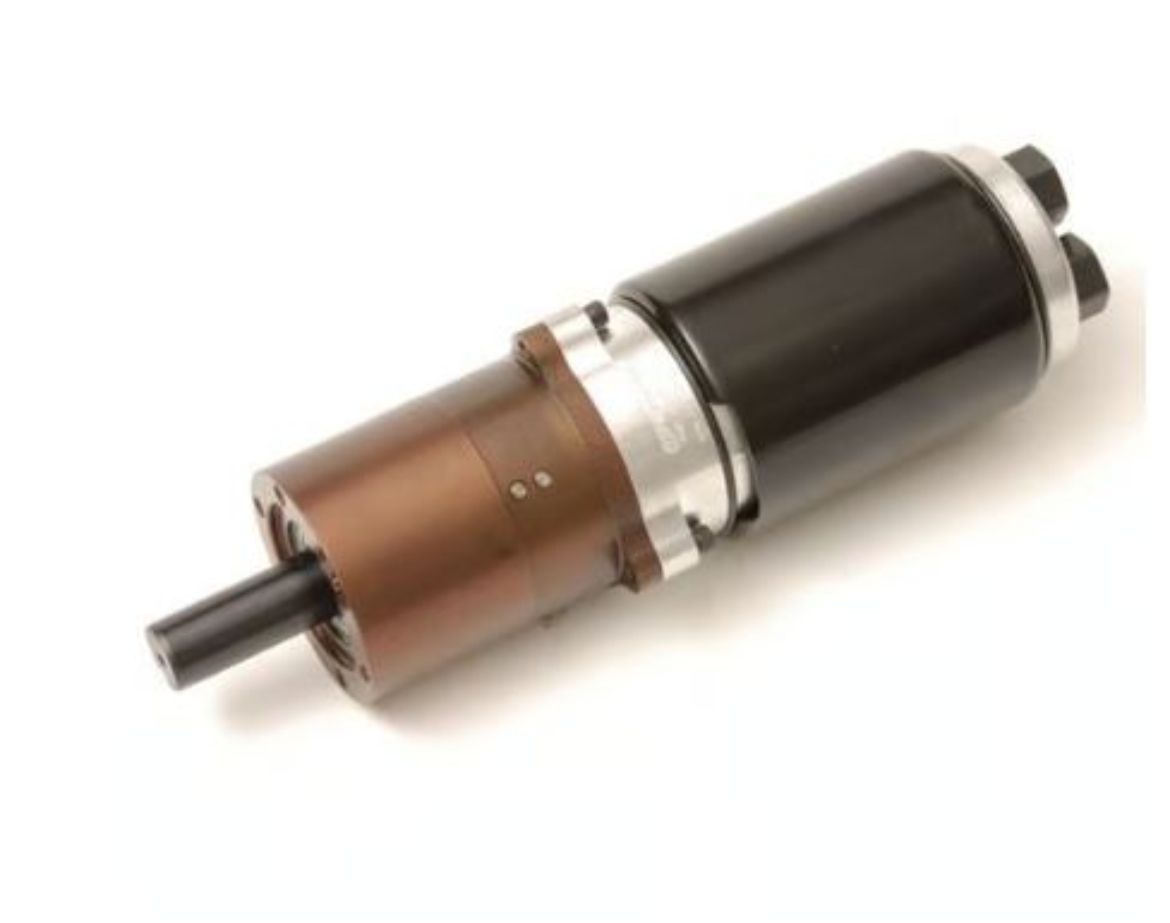

IR 4800M
Inline Multi-Vane Air Motor, 1" Keyed Shaft, 1050 RPM, 3.7 HP, 93.6 NM, Non-reversible
Description: The 4800 Series has a durable inline planetary gearing system and robust vane motor design making it one of the most durable motors around.
Features And Benefits:
- Safety: Meets ATEX Standards
- Durable: Able to withstand harsh environments, you never have to worry about the 4800 Series letting you down.
- Ease of Service: Without having to worry about repair time, you'll be able to spend more time focused on the job.
Product Application and Uses:
Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller
- Air Consumption at Max HP (scfm): 95
- Air Inlet: 1/2" NPT
- Air Pressure (psi): 90
- Drive Size (in): 1
- Drive Type: Round Keyed
- Exhaust Location: Rear
- Finish: Black Oxide
- Gear Reduction: Single
- Gear Train: Planetary
- Max Free Speed (rpm): 1050
- Max Pressure (bar): 6.2
- Max Torque (ft-lb): 69
- Max Torque (in-lb): 828
- Max Torque (nm): 93.6
- Motor: Rotary Vane
- Motor: In line
- Mounting Type: Face
- Number of Mounting Holes: 6
- Power Source: Air Powered
- Product Length (in): 11.38
- Product Width (in): 4
- Product Height (in): 4
- Product Weight (lb): 15.25
- Rated Power (hp): 3.7
- Rated Power (kW): 2.76
- Reversible: Non-reversible
- Speed at Max Power (rpm): 560
- Standards/Certifications: ATEX
- Starting Torque (ft-lb): 51
- Starting Torque (nm): 69.2
- Parts: 518-104
- Parts: R4901-102
