Motor

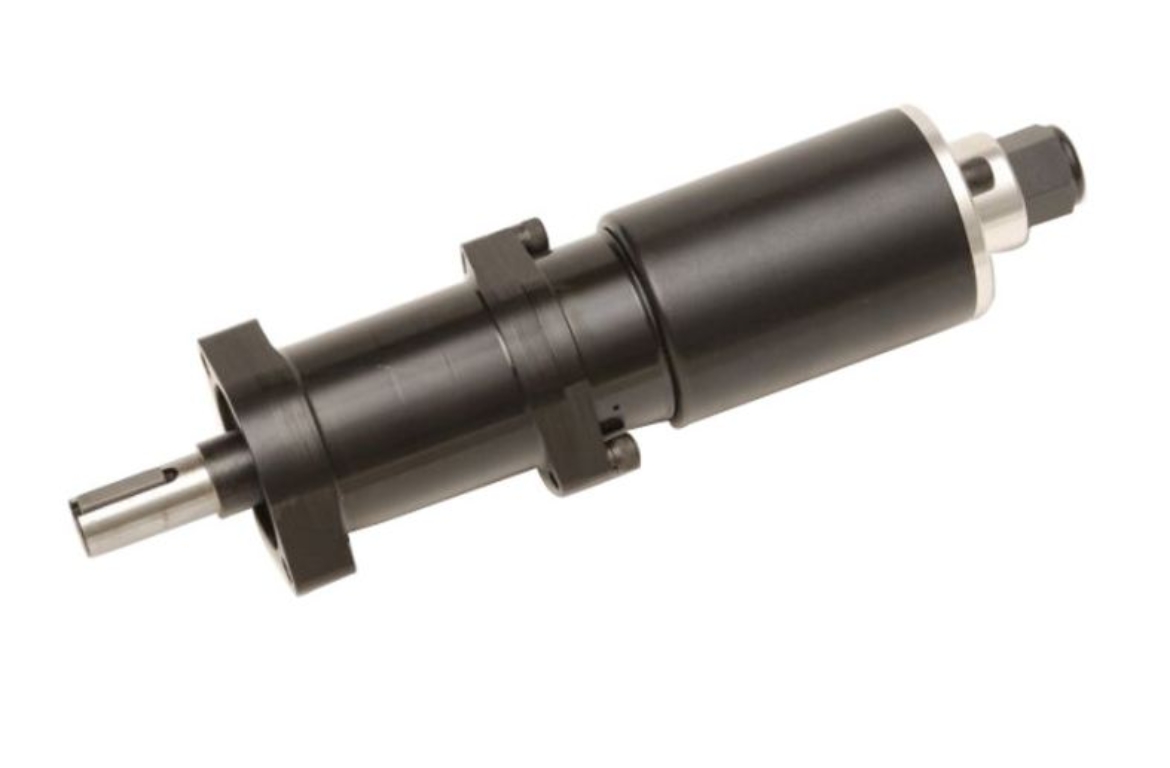

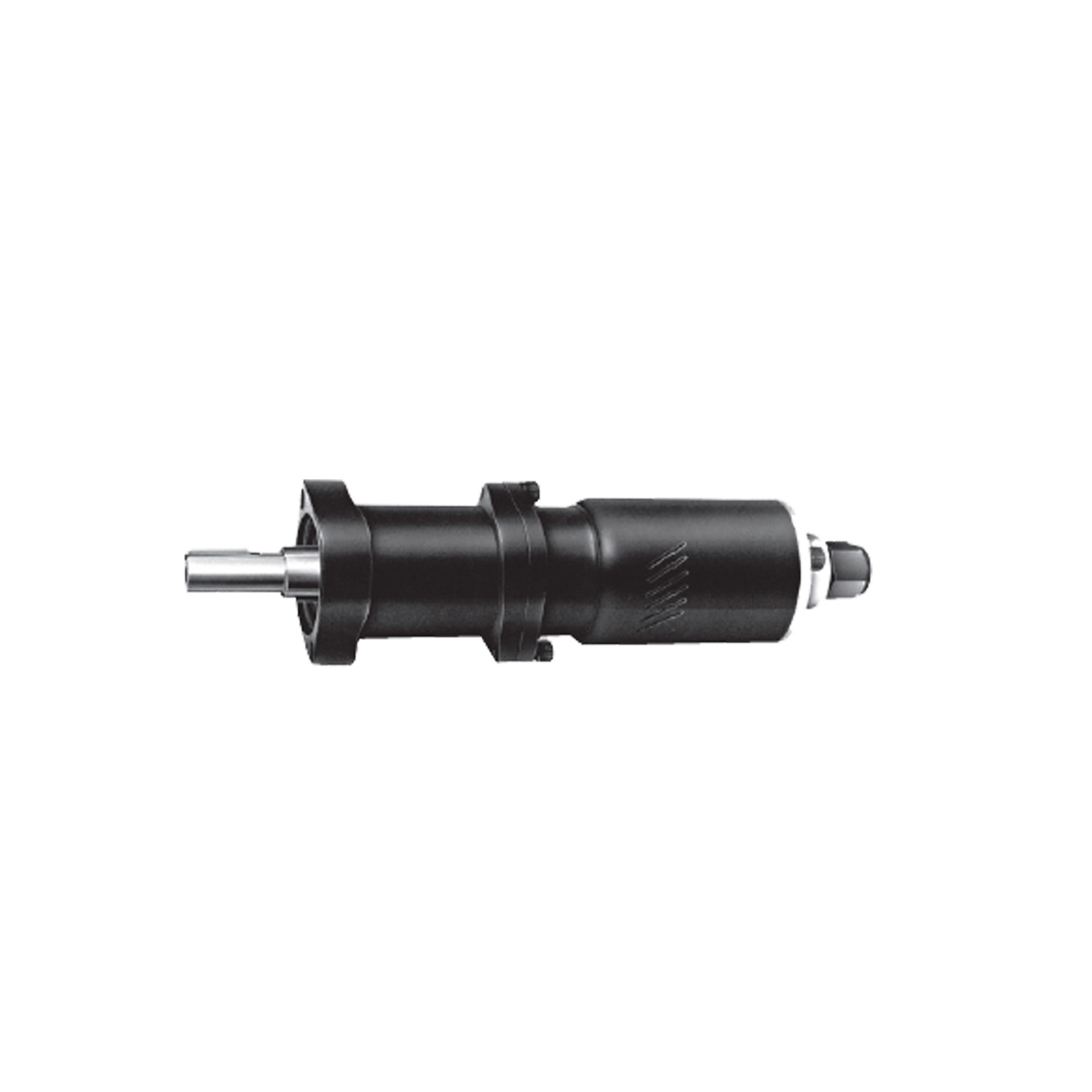

IR 1841N

Inline Multi-Vane Air Motor, 5/8" Keyed Shaft, 1700 RPM, 1.2 HP, 17 NM, Reversible

• Air Consumption at Max HP (scfm): 43
• Air Inlet: 3/8" NPT
• Air Pressure (psi): 90

• Drive Size (in): 5/8
• Drive Type: Round Keyed

• Exhaust Location: Rear
• Finish: Black Oxide
• Gear Train: Planetary

• Housing Material: Steel

• Max Free Speed (rpm): 1700
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 13
• Max Torque (in-lb): 150
• Max Torque (nm): 17
• Motor: Rotary Vane
• Motor: In line
• Mounting Type: Face

• Number of Mounting Holes: 2
• Power Source: Air Powered

• Product Weight (lb): 5.5
• Rated Power (hp): 1.2
• Rated Power (kW): 0.89
• Reversible: Reversible

• Speed at Max Power (rpm): 800
• Starting Torque (ft-lb): 9.3
• Starting Torque (nm): 12.6

• Warranty: 1-year

• Parts: R1801-A123
