Air Motors

IR 7800-2B

Milling Air Motor, 3/8" Collet, 18000 RPM, 0.85 HP, 1.4 NM, Non-reversible

• Air Consumption at Max HP (scfm): 41.7
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90

• Drive Size (in): 3/8
• Drive Type: Collet

• Exhaust Location: Exterior Muffler
• Finish: Black Oxide
• Gear Reduction: Single
• Gear Train: Planetary

• Housing Material: Steel

• Max Free Speed (rpm): 18000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 1.0
• Max Torque (in-lb): 12
• Max Torque (nm): 1.4
• Motor: Rotary Vane
• Motor: Milling
• Mounting Type: Foot Mount Optional

• Power Source: Air Powered

• Product Weight (lb): 4.89
• Rated Power (hp): 0.85
• Rated Power (kW): 0.63
• Reversible: Non-reversible

• Sound Level dB(A): 78
• Speed at Max Power (rpm): 9000

• Torque Output @ Max HP (ft-lb): 0.5
• Torque Output @ Max HP (nm): 0.68
• Warranty: 1-year

• Parts: 45058

IR 7802R-24

IR 7802S-6021

Shear Blades for Ingersoll Rand 7802SA Air Shears

Product Application and Uses:

For use with Ingersoll Rand 7802SA Air Shears

• For Use With: 7802SA

IR 7803A-A37

IR 7811-253

IR 8207-A

Inline Multi-Vane Air Motor, 7/8" Keyed Shaft, 500 RPM, 1.9 HP, 81.3 NM, Reversible

• Air Consumption at Max HP (scfm): 93.5
• Air Inlet: 3/8" NPT
• Air Pressure (psi): 90

• Drive Size (in): 7/8
• Drive Type: Round Keyed

• Exhaust Location: Exterior Muffler
• Finish: Black Oxide
• Gear Ratio: 28:1
• Gear Reduction: Double
• Gear Train: Planetary

• Housing Material: Steel

• Max Free Speed (rpm): 500
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 60
• Max Torque (in-lb): 720
• Max Torque (nm): 81.3
• Motor: Rotary Vane
• Motor: In line
• Mounting Type: Face

• Number of Mounting Holes: 4
• Power Source: Air Powered

• Product Weight (lb): 18.24
• Rated Power (hp): 1.9
• Rated Power (kW): 1.42
• Reversible: Reversible

• Sound Level dB(A): 95
• Speed at Max Power (rpm): 250

• Torque Output @ Max HP (ft-lb): 40
• Torque Output @ Max HP (nm): 54.1
• Warranty: 1-year

IR 92RA005

Spur Gear Air Motor, 1-1/2" Keyed Shaft, 1390 RPM, 8.15 HP, 102 NM, Reversible

• Air Consumption at Max HP (scfm): 230
• Air Inlet: 1" NPT
• Air Pressure (psi): 90

• Drive Size (in): 1-1/2
• Drive Type: Round Keyed

• Exhaust Location: Side
• Finish: Paint, Yellow
• Gear Reduction: Single
• Gear Train: Spur Gear

• Housing Material: Aluminum

• Max Free Speed (rpm): 1390
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 75
• Max Torque (in-lb): 903
• Max Torque (nm): 102
• Motor: Rotary Vane
• Motor: Spur Gear
• Mounting Type: Foot and Face

• Power Source: Air Powered

• Product Weight (lb): 46
• Rated Power (hp): 8.15
• Rated Power (kW): 6.08
• Reversible: Reversible

• Speed at Max Power (rpm): 910
• Starting Torque (ft-lb): 56
• Starting Torque (nm): 75.9

• Warranty: 1-year

IR 92RA014

Spur Gear Air Motor, 1-1/2" Keyed Shaft, 682 RPM, 8.15 HP, 282 NM, Reversible

• Air Consumption at Max HP (scfm): 230
• Air Inlet: 1" NPT
• Air Pressure (psi): 90

• Drive Size (in): 1-1/2
• Drive Type: Round Keyed

• Exhaust Location: Side
• Finish: Paint, Yellow
• Gear Reduction: Single
• Gear Train: Spur Gear

• Housing Material: Aluminum

• Max Free Speed (rpm): 682
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 208
• Max Torque (in-lb): 2496
• Max Torque (nm): 282
• Motor: Rotary Vane
• Motor: Spur Gear
• Mounting Type: Foot and Face

• Power Source: Air Powered

• Product Weight (lb): 46
• Rated Power (hp): 8.15
• Rated Power (kW): 6.08
• Reversible: Reversible

• Speed at Max Power (rpm): 327
• Starting Torque (ft-lb): 152
• Starting Torque (nm): 206

• Warranty: 1-year

IR 92RA022

Spur Gear Air Motor, 1-1/2" Keyed Shaft, 435 RPM, 8.15 HP, 442 NM, Reversible

• Air Consumption at Max HP (scfm): 230
• Air Inlet: 1" NPT
• Air Pressure (psi): 90

• Drive Size (in): 1-1/2
• Drive Type: Round Keyed

• Exhaust Location: Side
• Finish: Paint, Yellow
• Gear Reduction: Single
• Gear Train: Spur Gear

• Housing Material: Aluminum

• Max Free Speed (rpm): 435
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 326
• Max Torque (in-lb): 3912
• Max Torque (nm): 442
• Motor: Rotary Vane
• Motor: Spur Gear
• Mounting Type: Foot and Face

• Power Source: Air Powered

• Product Weight (lb): 46
• Rated Power (hp): 8.15
• Rated Power (kW): 6.08
• Reversible: Reversible

• Speed at Max Power (rpm): 209
• Starting Torque (ft-lb): 235
• Starting Torque (nm): 319

• Warranty: 1-year

IR 92RB036

Spur Gear Air Motor, 1-1/2" Keyed Shaft, 264 RPM, 7.9 HP, 674 NM, Reversible

• Air Consumption at Max HP (scfm): 225
• Air Inlet: 1" NPT
• Air Pressure (psi): 90

• Drive Size (in): 1-1/2
• Drive Type: Round Keyed

• Exhaust Location: Side
• Finish: Paint, Yellow
• Gear Reduction: Double
• Gear Train: Spur Gear

• Housing Material: Aluminum

• Max Free Speed (rpm): 264
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 497
• Max Torque (in-lb): 5965
• Max Torque (nm): 674
• Motor: Rotary Vane
• Motor: Spur Gear
• Mounting Type: Foot and Face

• Power Source: Air Powered

• Product Weight (lb): 78
• Rated Power (hp): 7.9
• Rated Power (kW): 5.89
• Reversible: Reversible

• Speed at Max Power (rpm): 130
• Starting Torque (ft-lb): 345
• Starting Torque (nm): 468

• Warranty: 1-year

IR 9BM-K53

IR EE9G

IR M004-137

IR M004-271

Spindle Seal Service Part for Ingersoll Rand Power Tools

IR M004-510

IR M004-53

IR M004RVR083AR3

Inline Multi-Vane Air Motor, 3/8" Keyed Shaft, 169 RPM, 0.31 HP, 37.3 NM, Reversible

Features And Benefits:

• Safety: Meets ATEX Standards

• Air Consumption at Max HP (scfm): 17.5
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90

• Drive Size (in): 3/8
• Drive Type: Round Keyed

• Exhaust Location: Rear
• Finish: Black Oxide and Anodize
• Gear Ratio: 83:1
• Gear Reduction: Triple
• Gear Train: Planetary

• Housing Material: Steel

• Max Free Speed (rpm): 169
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 28
• Max Torque (in-lb): 330
• Max Torque (nm): 37.3
• Motor: Rotary Vane
• Motor: In line
• Mounting Type: Flanged Mounting

• Number of Mounting Holes: 2
• Power Source: Air Powered

• Product Weight (lb): 2.69
• Rated Power (hp): 0.31
• Rated Power (kW): 0.23
• Reversible: Reversible

• Speed at Max Power (rpm): 84
• Standards/Certifications: ATEX
• Starting Torque (ft-lb): 21
• Starting Torque (nm): 27.9

• Warranty: 1-year

IR M004RVR167AR3

Inline Multi-Vane Air Motor, 3/8" Keyed Shaft, 85 RPM, 0.31 HP, 74.5 NM, Reversible

Description: The M004 Series has a durable inline planetary gearing system and robust vane motor design making it one of the most durable motors around.

Features And Benefits:

• Safety: Meets ATEX Standards
• Durable: Able to withstand harsh environments for a multitude of applications.
• Productive: Thanks to easy servicing, you never have to break for long to fix your equipment.

Product Application and Uses:

Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller

• Air Consumption at Max HP (scfm): 17.5
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90

• Drive Length (in): 1
• Drive Size (in): 3/8
• Drive Type: Round Keyed

• Exhaust Location: Rear
• Finish: Black Oxide and Anodize
• Gear Ratio: 167:1
• Gear Reduction: Triple
• Gear Train: Planetary

• Housing Material: Steel
• Keyaway Length (in): 0.625

• Max Free Speed (rpm): 85
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 55
• Max Torque (in-lb): 659
• Max Torque (nm): 74.5
• Motor: Rotary Vane
• Motor: In line
• Mounting Type: Flanged Mounting

• Number of Mounting Holes: 2
• Operating Temperature Range: 0F to 150F
• Power Source: Air Powered
• Product Length (in): 7.7

• Product Width (in): 1.76
• Product Height (in): 1.76
• Product Weight (lb): 2.69
• Rated Power (hp): 0.31
• Rated Power (kW): 0.23
• Reversible: Reversible

• Speed at Max Power (rpm): 42
• Standards/Certifications: ATEX
• Starting Torque (ft-lb): 41
• Starting Torque (nm): 56

• Warranty: 1-year

IR M007RHR027BS4

IR M007RHR037AR4

Inline Multi-Vane Air Motor, 1/2" Keyed Spindle, 540 RPM, 0.79 HP, 35.7 NM, Non-reversible

Features And Benefits:

• Safety: Meets ATEX Standards

• Air Consumption at Max HP (scfm): 36
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90

• Drive Size (in): 1/2
• Drive Type: Round Keyed

• Exhaust Location: Rear
• Finish: Black Oxide and Anodize
• Gear Ratio: 37:1
• Gear Reduction: Double
• Gear Train: Planetary

• Housing Material: Steel

• Max Free Speed (rpm): 540
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 26
• Max Torque (in-lb): 316
• Max Torque (nm): 35.7
• Motor: Rotary Vane
• Motor: In line
• Mounting Type: Flanged Mounting

• Number of Mounting Holes: 2
• Power Source: Air Powered

• Product Weight (lb): 3.5
• Rated Power (hp): 0.79
• Rated Power (kW): 0.59
• Reversible: Non-reversible

• Speed at Max Power (rpm): 270
• Standards/Certifications: ATEX
• Starting Torque (ft-lb): 20
• Starting Torque (nm): 26.7

• Warranty: 1-year

IR M007RHR188BR6

Inline Multi-Vane Air Motor, 3/4" Keyed Shaft, 103 RPM, 0.76 HP, 174 NM, Non-reversible

Features And Benefits:

• Safety: Meets ATEX Standards

• Air Consumption at Max HP (scfm): 36
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90

• Drive Size (in): 3/4
• Drive Type: Round Keyed

• Exhaust Location: Rear
• Finish: Black Oxide and Anodize
• Gear Ratio: 188:1
• Gear Reduction: Quadruple
• Gear Train: Planetary

• Housing Material: Steel

• Max Free Speed (rpm): 103
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 128
• Max Torque (in-lb): 1540
• Max Torque (nm): 174
• Motor: Rotary Vane
• Motor: In line
• Mounting Type: Face

• Number of Mounting Holes: 6
• Power Source: Air Powered

• Product Weight (lb): 7.38
• Rated Power (hp): 0.76
• Rated Power (kW): 0.57
• Reversible: Non-reversible

• Speed at Max Power (rpm): 52
• Standards/Certifications: ATEX
• Starting Torque (ft-lb): 96
• Starting Torque (nm): 130

• Warranty: 1-year

IR M0V003AA-739

IR MVA008-218

IR MVA017-52

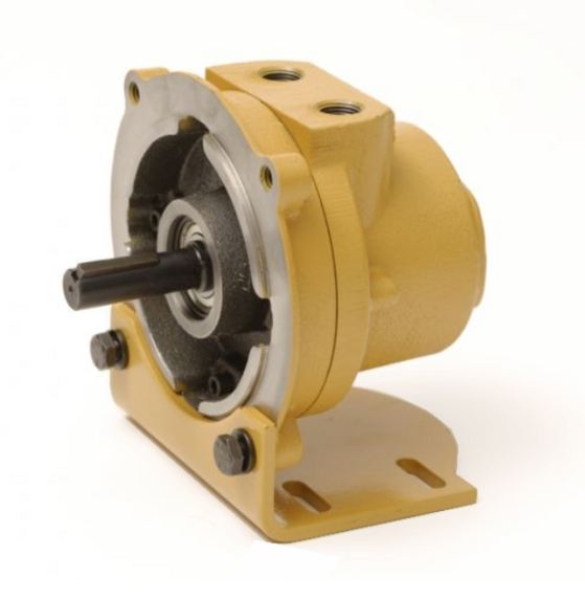

IR MVA017A

Direct Drive Air Motor, 5/8" Keyed Shaft, 5450 RPM, 1.93 HP, 9.5 NM, Reversible

• Air Consumption at Max HP (scfm): 76
• Air Inlet: 3/8" NPT
• Air Pressure (psi): 90

• Drive Size (in): 5/8
• Drive Type: Round Keyed

• Exhaust Location: Side
• Finish: Paint
• Gear Ratio: 1:1
• Gear Reduction: Direct Drive
• Gear Train: Gearless

• Housing Material: Steel

• Max Free Speed (rpm): 5450
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 7.0
• Max Torque (in-lb): 84
• Max Torque (nm): 9.5
• Motor: Rotary Vane
• Motor: Direct Drive
• Mounting Type: Foot

• Number of Mounting Holes: 4
• Power Source: Air Powered

• Product Weight (lb): 12.5
• Rated Power (hp): 1.93
• Rated Power (kW): 1.44
• Reversible: Reversible

• Speed at Max Power (rpm): 2800
• Starting Torque (ft-lb): 4.5
• Starting Torque (nm): 6.1

• Warranty: 1-year
