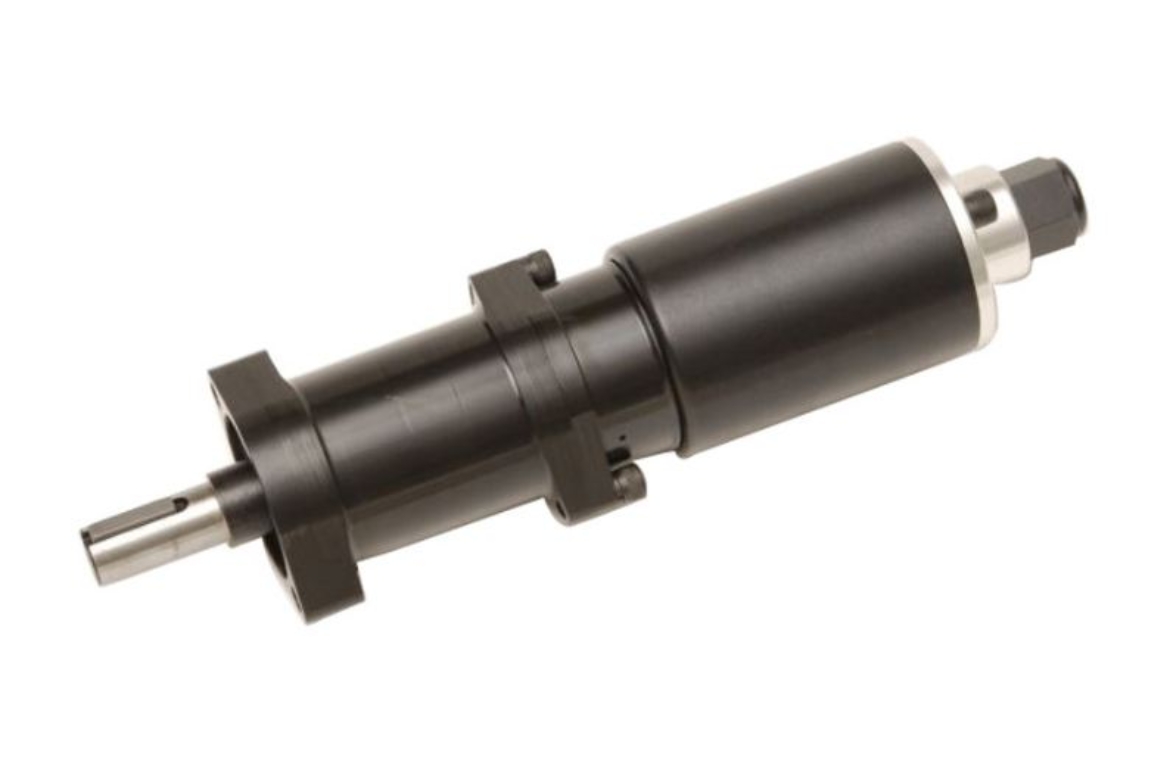

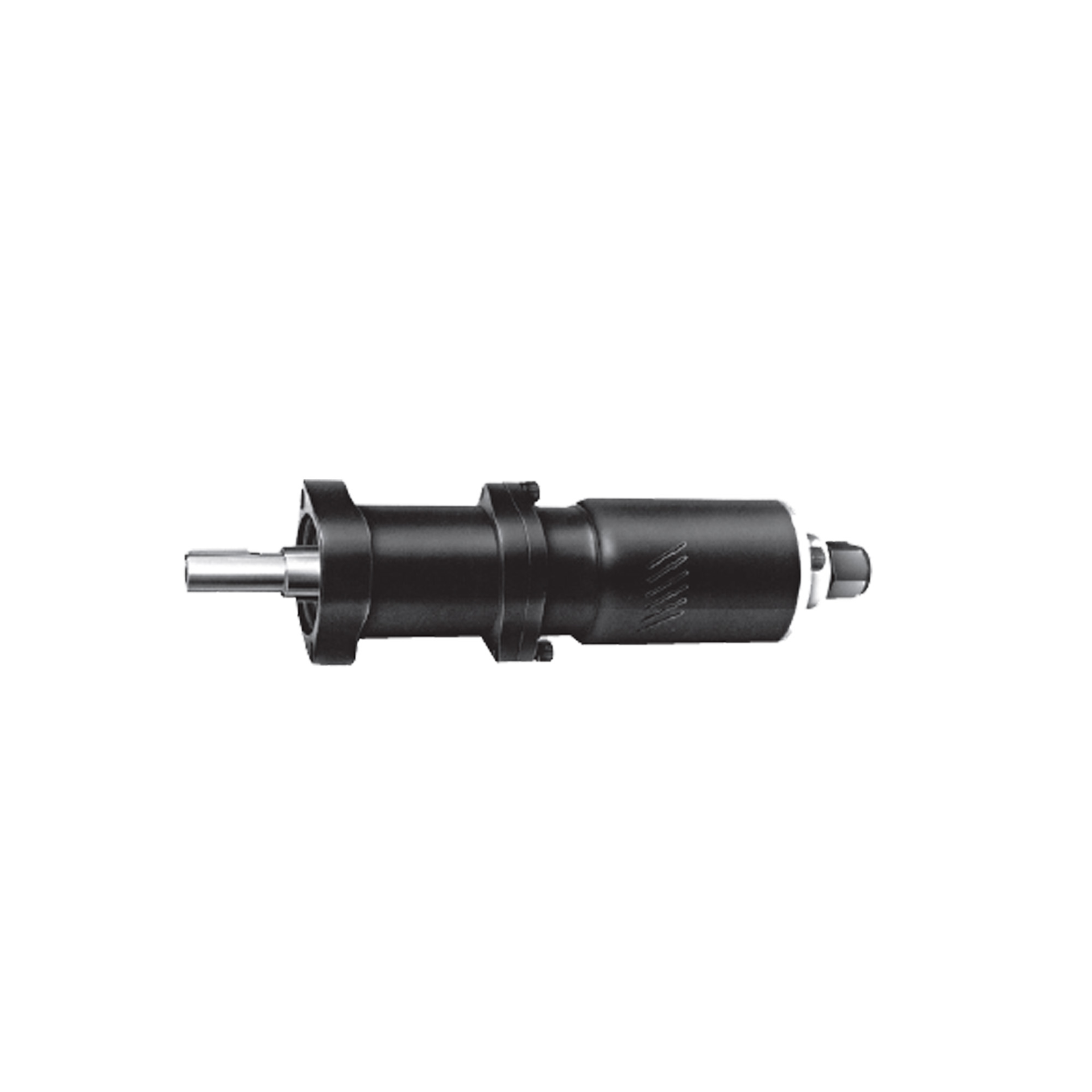

IR 1841W
Inline Multi-Vane Air Motor, 5/8" Keyed Shaft, 320 RPM, 1.1 HP, 81.4 NM, Reversible
Air Consumption at Max HP (scfm): 43
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Drive Size (in): 5/8
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 320
Max Pressure (bar): 6.2
Max Torque (ft-lb): 60
Max Torque (in-lb): 720
Max Torque (nm): 81.4
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 2
Power Source: Air Powered
Product Weight (lb): 5.88
Rated Power (hp): 1.1
Rated Power (kW): 0.82
Reversible: Reversible
Speed at Max Power (rpm): 150
Starting Torque (ft-lb): 45
Starting Torque (nm): 61
Warranty: 1-year
