GRACO INC. S10595
P2 GUN
GG GCP2RA
P2 GUN
Graco GCP2RA Probler P2 Gun Assembly with AA Mix Chamber Kit
The Probler P2 Gun is lightweight and easy to maneuver - even in difficult spraying positions. Its double piston design provides more than 300 pounds (136 kg) of triggering force - much more than a smaller piston diameter. The Probler P2 reduces maintenance, increases spraying uptime and is easy to use.
Application: For high output spray polyurethane foam and polyurea applications.- Easy daily maintenance
- Responsive trigger action
- Easy-to-replace mix chamber insert
- Ergonomic handle and balanced design
- Model: P2
- Series: Standard
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4-18
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Compatible Material: Adhesives, Polyurethane, Roof Coating, Polyurea, Polyurethane Coating
- Component A Inlet Size (cm): 1.27
- Component A Inlet Size (in): 1/2-20
- Component A Inlet Size (mm): 12.7
- Component A Inlet Thread Type: UNF
- Component B Inlet Size (cm): 1.11125
- Component B Inlet Size (in): 7/16-18
- Component B Inlet Size (mm): 11.1125
- Component B Inlet Thread Type: UNF
- Component Type: Plural-Component
- Fluid Orifice Size (cm): 0.091
- Fluid Orifice Size (in): 0.036
- Fluid Orifice Size (mm): 0.91
- Gun Activation: Manual
- Gun Series: Standard
- Gun Type: Air-Purge
- Gun Weight (g): 1770
- Gun Weight (kg): 1.77
- Gun Weight (lb): 3.9
- Gun Weight (oz): 32.4
- Maximum Air Inlet Pressure (bar): 7.6
- Maximum Air Inlet Pressure (kPa): 760
- Maximum Air Inlet Pressure (MPa): 0.76
- Maximum Air Inlet Pressure (psi): 110
- Maximum Air Pressure (bar): 7.6
- Maximum Air Pressure (kPa): 760
- Maximum Air Pressure (MPa): 0.76
- Maximum Air Pressure (psi): 110
- Maximum Flow Rate (kg/min): 18
- Maximum Flow Rate (lb/min): 40
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Working Pressure (bar): 221
- Maximum Fluid Working Pressure (MPa): 22.1
- Maximum Fluid Working Pressure (psi): 3200
- Minimum Air Inlet Pressure (bar): 6.2
- Minimum Air Inlet Pressure (kPa): 620
- Minimum Air Inlet Pressure (MPa): 0.62
- Minimum Air Inlet Pressure (psi): 90
- Minimum Flow Rate (kg/min): 1.4
- Minimum Flow Rate (lb/min): 3
- Mix Chamber: AA (0.036)
- Overall Height (cm): 12.1
- Overall Height (in): 4.75
- Overall Height (mm): 121
P2 GUN, ASSY, GUN, PROBLER ELITE
GG GCP3R0
P2 GUN, ASSY, GUN, PROBLER ELITE
Probler P2 Elite Gun Assembly with 00 Mix Chamber KitThe Probler P2 Gun is lightweight and easy to maneuver - even in difficult spraying positions. Its double piston design provides more than 300 pounds (136 kg) of triggering force - much more than a smaller piston diameter. The Probler P2 reduces maintenance, increases spraying uptime and is easy to use.
For high output spray polyurethane foam and polyurea applications. Easy daily maintenance Responsive trigger action Easy-to-replace mix chamber insert Anti-crossover design virtually eliminates possibility of material entering the air piston Ergonomic handle and balanced design Allows use of additional accessories Alternate side block hose routings Allows filters to be easily removed
P2 GUN, ASSY, GUN, PROBLER ELITE
GG GCP3R1
P2 GUN, ASSY, GUN, PROBLER ELITE
Graco GCP3R1 Probler P2 Elite Gun Assembly with 01 Mix Chamber Kit
The Probler P2 Gun is lightweight and easy to maneuver - even in difficult spraying positions. Its double piston design provides more than 300 pounds (136 kg) of triggering force - much more than a smaller piston diameter. The Probler P2 reduces maintenance, increases spraying uptime and is easy to use.
Application: For high output spray polyurethane foam and polyurea applications.- Easy daily maintenance
- Responsive trigger action
- Easy-to-replace mix chamber insert
- Ergonomic handle and balanced design
- Allows use of additional accessories
- Alternate side block hose routings
- Allows filters to be easily removed
- Model: P2
- Series: Elite
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPT
- Applicator Type: Manual
- Compatible Material: Adhesives, Polyurethane, Roof Coating, Polyurea, Polyurethane Coating
- Component A Inlet Size (cm): 1.27
- Component A Inlet Size (in): 1/2-20
- Component A Inlet Size (mm): 12.7
- Component A Inlet Thread Type: UNF
- Component B Inlet Size (cm): 1.11125
- Component B Inlet Size (in): 7/16-18
- Component B Inlet Size (mm): 11.1125
- Component B Inlet Thread Type: UNF
- Component Type: Plural-Component
- Fluid Orifice Size (cm): 0.107
- Fluid Orifice Size (in): 0.042
- Fluid Orifice Size (mm): 1.07
- For Use With: Reactor Plural Component Proportioner, Reactor Spray Foam and Coatings Equipment
- Gun Activation: Manual
- Gun Included: 1
- Gun Series: Elite
- Gun Type: Air-Purge
- Gun Weight (g): 1770
- Gun Weight (kg): 1.77
- Gun Weight (lb): 3.9
- Gun Weight (oz): 32.4
- Maximum Air Inlet Pressure (bar): 7.6
- Maximum Air Inlet Pressure (kPa): 760
- Maximum Air Inlet Pressure (MPa): 0.76
- Maximum Air Inlet Pressure (psi): 110
- Maximum Air Pressure (bar): 7.6
- Maximum Air Pressure (kPa): 760
- Maximum Air Pressure (MPa): 0.76
- Maximum Air Pressure (psi): 110
- Maximum Flow Rate (kg/min): 18
- Maximum Flow Rate (lb/min): 40
- Maximum Fluid Pressure (bar): 220
- Maximum Fluid Pressure (kPa): 22000
- Maximum Fluid Pressure (MPa): 22
- Maximum Fluid Pressure (psi): 3200
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Pressure (bar): 220
- Maximum Fluid Pressure (kPa): 22000
- Maximum Fluid Pressure (MPa): 22
- Maximum Fluid Pressure (psi): 3200
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Working Pressure (bar): 220
- Maximum Fluid Working Pressure (MPa): 22
- Maximum Fluid Working Pressure (psi): 3200
- Minimum Air Inlet Pressure (bar): 6.2
- Minimum Air Inlet Pressure (kPa): 620
- Minimum Air Inlet Pressure (MPa): 0.62
P2 GUN, ASSY, GUN, PROBLER ELITE
GG GCP3R2
P2 GUN, ASSY, GUN, PROBLER ELITE
Graco GCP3R2 Probler P2 Elite Gun Assembly with 02 Mix Chamber Kit
The Probler P2 Gun is lightweight and easy to maneuver - even in difficult spraying positions. Its double piston design provides more than 300 pounds (136 kg) of triggering force - much more than a smaller piston diameter. The Probler P2 reduces maintenance, increases spraying uptime and is easy to use.
Application: For high output spray polyurethane foam and polyurea applications.- Easy daily maintenance
- Responsive trigger action
- Easy-to-replace mix chamber insert
- Ergonomic handle and balanced design
- Allows use of additional accessories
- Alternate side block hose routings
- Allows filters to be easily removed
- Model: P2
- Series: Elite
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4-18
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPT
- Compatible Material: Adhesives, Polyurethane, Roof Coating, Polyurea, Polyurethane Coating
- Component A Inlet Size (cm): 1.27
- Component A Inlet Size (in): 1/2-20
- Component A Inlet Size (mm): 12.7
- Component A Inlet Thread Type: UNF
- Component B Inlet Size (cm): 1.11125
- Component B Inlet Size (in): 7/16-18
- Component B Inlet Size (mm): 11.1125
- Component B Inlet Thread Type: UNF
- Component Type: Plural-Component
- Fluid Orifice Size (cm): 0.132
- Fluid Orifice Size (in): 0.052
- Fluid Orifice Size (mm): 1.32
- Gun Activation: Manual
- Gun Series: Elite
- Gun Type: Air-Purge
- Gun Weight (g): 1770
- Gun Weight (kg): 1.77
- Gun Weight (lb): 3.9
- Gun Weight (oz): 32.4
- Maximum Air Inlet Pressure (bar): 7.6
- Maximum Air Inlet Pressure (kPa): 760
- Maximum Air Inlet Pressure (MPa): 0.76
- Maximum Air Inlet Pressure (psi): 110
- Maximum Air Pressure (bar): 7.6
- Maximum Air Pressure (kPa): 760
- Maximum Air Pressure (MPa): 0.76
- Maximum Air Pressure (psi): 110
- Maximum Flow Rate (kg/min): 18
- Maximum Flow Rate (lb/min): 40
- Maximum Fluid Pressure (bar): 220
- Maximum Fluid Pressure (kPa): 22000
- Maximum Fluid Pressure (MPa): 22
- Maximum Fluid Pressure (psi): 3200
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Pressure (bar): 220
- Maximum Fluid Pressure (kPa): 22000
- Maximum Fluid Pressure (MPa): 22
- Maximum Fluid Pressure (psi): 3200
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Working Pressure (bar): 221
- Maximum Fluid Working Pressure (MPa): 22.1
- Maximum Fluid Working Pressure (psi): 3200
- Minimum Air Inlet Pressure (bar): 6.2
- Minimum Air Inlet Pressure (kPa): 620
- Minimum Air Inlet Pressure (MPa): 0.62
- Minimum Air Inlet Pressure (psi): 90
- Minimum Flow Rate (kg/min): 1.4
- Minimum Flow Rate (lb/min): 3
- Mix Chamber: 02 (.05
P2 GUN, ASSY, GUN, PROBLER ELITE
GG GCP3R3
P2 GUN, ASSY, GUN, PROBLER ELITE
Graco GCP3R3 Probler P2 Elite Gun Assembly with 03 Mix Chamber Kit
The Probler P2 Gun is lightweight and easy to maneuver - even in difficult spraying positions. Its double piston design provides more than 300 pounds (136 kg) of triggering force - much more than a smaller piston diameter. The Probler P2 reduces maintenance, increases spraying uptime and is easy to use.
Application: For high output spray polyurethane foam and polyurea applications.- Easy daily maintenance
- Responsive trigger action
- Easy-to-replace mix chamber insert
- Ergonomic handle and balanced design
- Allows use of additional accessories
- Alternate side block hose routings
- Allows filters to be easily removed
- Model: P2
- Series: Elite
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4-18
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPT
- Compatible Material: Adhesives, Polyurethane, Roof Coating, Polyurea, Polyurethane Coating
- Component A Inlet Size (cm): 1.27
- Component A Inlet Size (in): 1/2-20
- Component A Inlet Size (mm): 12.7
- Component A Inlet Thread Type: UNF
- Component B Inlet Size (cm): 1.11125
- Component B Inlet Size (in): 7/16-18
- Component B Inlet Size (mm): 11.1125
- Component B Inlet Thread Type: UNF
- Component Type: Plural-Component
- Fluid Orifice Size (cm): 0.152
- Fluid Orifice Size (in): 0.060
- Fluid Orifice Size (mm): 1.52
- Gun Activation: Manual
- Gun Series: Elite
- Gun Type: Air-Purge
- Gun Weight (g): 1770
- Gun Weight (kg): 1.77
- Gun Weight (lb): 3.9
- Gun Weight (oz): 32.4
- Maximum Air Inlet Pressure (bar): 7.6
- Maximum Air Inlet Pressure (kPa): 760
- Maximum Air Inlet Pressure (MPa): 0.76
- Maximum Air Inlet Pressure (psi): 110
- Maximum Air Pressure (bar): 7.6
- Maximum Air Pressure (kPa): 760
- Maximum Air Pressure (MPa): 0.76
- Maximum Air Pressure (psi): 110
- Maximum Flow Rate (kg/min): 18
- Maximum Flow Rate (lb/min): 40
- Maximum Fluid Pressure (bar): 220
- Maximum Fluid Pressure (kPa): 22000
- Maximum Fluid Pressure (MPa): 22
- Maximum Fluid Pressure (psi): 3200
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Pressure (bar): 220
- Maximum Fluid Pressure (kPa): 22000
- Maximum Fluid Pressure (MPa): 22
- Maximum Fluid Pressure (psi): 3200
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Working Pressure (bar): 221
- Maximum Fluid Working Pressure (MPa): 22.1
- Maximum Fluid Working Pressure (psi): 3200
- Minimum Air Inlet Pressure (bar): 6.2
- Minimum Air Inlet Pressure (kPa): 620
- Minimum Air Inlet Pressure (MPa): 0.62
- Minimum Air Inlet Pressure (psi): 90
- Minimum Flow Rate (kg/min): 1.4
- Minimum Flow Rate (lb/min): 3
- Mix Chamber: 03 (.06
P2 GUN, AUTOMATIC
GG GCP4R0
P2 GUN, AUTOMATIC
Graco GCP4R0 Probler P2 Automatic Gun with 00 Mix Chamber Kit
The Probler P2 Gun is lightweight and easy to maneuver - even in difficult spraying positions. Its double piston design provides more than 300 pounds (136 kg) of triggering force - much more than a smaller piston diameter. The Probler P2 reduces maintenance, increases spraying uptime and is easy to use.
Application: For high output spray polyurethane foam and polyurea applications.- Easy daily maintenance
- Responsive trigger action
- Easy-to-replace mix chamber insert
- Ergonomic handle and balanced design
- Model: P2
- Series: Auto
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4-18
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPT
- Compatible Material: Adhesives, Polyurethane, Roof Coating, Polyurea, Polyurethane Coating
- Component A Inlet Size (cm): 1.27
- Component A Inlet Size (in): 1/2-20
- Component A Inlet Size (mm): 12.7
- Component A Inlet Thread Type: UNF
- Component B Inlet Size (cm): 1.11125
- Component B Inlet Size (in): 7/16-18
- Component B Inlet Size (mm): 11.1125
- Component B Inlet Thread Type: UNF
- Component Type: Plural-Component
- Fluid Orifice Size (cm): 0.074
- Fluid Orifice Size (in): 0.029
- Fluid Orifice Size (mm): 0.74
- Gun Activation: Automatic
- Gun Series: Automatic
- Gun Type: Air-Purge
- Gun Weight (g): 1770
- Gun Weight (kg): 1.77
- Gun Weight (lb): 3.9
- Gun Weight (oz): 32.4
- Maximum Air Inlet Pressure (bar): 7.6
- Maximum Air Inlet Pressure (kPa): 760
- Maximum Air Inlet Pressure (MPa): 0.76
- Maximum Air Inlet Pressure (psi): 110
- Maximum Air Pressure (bar): 7.6
- Maximum Air Pressure (kPa): 760
- Maximum Air Pressure (MPa): 0.76
- Maximum Air Pressure (psi): 110
- Maximum Flow Rate (kg/min): 18
- Maximum Flow Rate (lb/min): 40
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Working Pressure (bar): 221
- Maximum Fluid Working Pressure (MPa): 22.1
- Maximum Fluid Working Pressure (psi): 3200
- Minimum Air Inlet Pressure (bar): 6.2
- Minimum Air Inlet Pressure (kPa): 620
- Minimum Air Inlet Pressure (MPa): 0.62
- Minimum Air Inlet Pressure (psi): 90
- Minimum Flow Rate (kg/min): 1.4
- Minimum Flow Rate (lb/min): 3
- Mix Chamber: 00 (.029)
- Overall Height (cm): 12.1
- Overall Height (in): 4.75
- Overall Height (mm): <
P2 GUN, ASSY, GUN, PROBLER ELITE
GG GCP3RA
P2 GUN, ASSY, GUN, PROBLER ELITE
Graco GCP3RA Probler P2 Elite Gun Assembly with AA Mix Chamber Kit
The Probler P2 Gun is lightweight and easy to maneuver - even in difficult spraying positions. Its double piston design provides more than 300 pounds (136 kg) of triggering force - much more than a smaller piston diameter. The Probler P2 reduces maintenance, increases spraying uptime and is easy to use.
Application: For high output spray polyurethane foam and polyurea applications.- Easy daily maintenance
- Responsive trigger action
- Easy-to-replace mix chamber insert
- Ergonomic handle and balanced design
- Allows use of additional accessories
- Alternate side block hose routings
- Allows filters to be easily removed
- Model: P2
- Series: Elite
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4-18
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPT
- Compatible Material: Adhesives, Polyurethane, Roof Coating, Polyurea, Polyurethane Coating
- Component A Inlet Size (cm): 1.27
- Component A Inlet Size (in): 1/2-20
- Component A Inlet Size (mm): 12.7
- Component A Inlet Thread Type: UNF
- Component B Inlet Size (cm): 1.11125
- Component B Inlet Size (in): 7/16-18
- Component B Inlet Size (mm): 11.1125
- Component B Inlet Thread Type: UNF
- Component Type: Plural-Component
- Fluid Orifice Size (cm): 0.091
- Fluid Orifice Size (in): 0.036
- Fluid Orifice Size (mm): 0.91
- Gun Activation: Manual
- Gun Series: Elite
- Gun Type: Air-Purge
- Gun Weight (g): 1770
- Gun Weight (kg): 1.77
- Gun Weight (lb): 3.9
- Gun Weight (oz): 32.4
- Maximum Air Inlet Pressure (bar): 7.6
- Maximum Air Inlet Pressure (kPa): 760
- Maximum Air Inlet Pressure (MPa): 0.76
- Maximum Air Inlet Pressure (psi): 110
- Maximum Air Pressure (bar): 7.6
- Maximum Air Pressure (kPa): 760
- Maximum Air Pressure (MPa): 0.76
- Maximum Air Pressure (psi): 110
- Maximum Flow Rate (kg/min): 18
- Maximum Flow Rate (lb/min): 40
- Maximum Fluid Pressure (bar): 220
- Maximum Fluid Pressure (kPa): 22000
- Maximum Fluid Pressure (MPa): 22
- Maximum Fluid Pressure (psi): 3200
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Pressure (bar): 220
- Maximum Fluid Pressure (kPa): 22000
- Maximum Fluid Pressure (MPa): 22
- Maximum Fluid Pressure (psi): 3200
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Working Pressure (bar): 221
- Maximum Fluid Working Pressure (MPa): 22.1
- Maximum Fluid Working Pressure (psi): 3200
- Minimum Air Inlet Pressure (bar): 6.2
- Minimum Air Inlet Pressure (kPa): 620
- Minimum Air Inlet Pressure (MPa): 0.62
- Minimum Air Inlet Pressure (psi): 90
- Minimum Flow Rate (kg/min): 1.4
- Minimum Flow Rate (lb/min): 3
- Mix Chamber: AA (0.0
DURA-FLO SUPPLY UNIT, 10:1, 3.0 RAM, 200L
GG GDG959
DURA-FLO SUPPLY UNIT, 10:1, 3.0 RAM, 200L
Supply Unit, Dura-Flo, 10:1, 3 in. Ram, 200L, Single EPDM WiperGraco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.
Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials For large drums up to 200 liter (55 gal) Graco D200 - For high-volume in-plant applications Industry-first controls give you immediate and important information at the touch of a button Quick placement of drum Platen wipers can be replaced in seconds Pump's quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram High-quality, durable parts reduce maintenance time, maximize uptime
P2 GUN, AUTOMATIC
GG GCP4R1
P2 GUN, AUTOMATIC
Probler P2 Automatic Gun with 01 Mix Chamber KitThe Probler P2 Gun is lightweight and easy to maneuver - even in difficult spraying positions. Its double piston design provides more than 300 pounds (136 kg) of triggering force - much more than a smaller piston diameter. The Probler P2 reduces maintenance, increases spraying uptime and is easy to use.
For high output spray polyurethane foam and polyurea applications. Easy daily maintenance Responsive trigger action Easy-to-replace mix chamber insert Anti-crossover design virtually eliminates possibility of material entering the air piston Ergonomic handle and balanced design
AA Tip
GG GG3411
TIP, SPRAY,AA4500
Graco GG3411 Spray Tip for AA Pro Xs4 and Pro Auto Xs Spray Gun- 0.279 mm Orifice, 200-250 mm Fan Width
Tip
GG GG3413
TIP, SPRAY,AA4500
Graco GG3413 Spray Tip for AA Pro Xs4 and Pro Auto Xs Spray Gun- 0.330 mm Orifice, 200-250 mm Fan Width
- Bleed Type: Non-Bleeder
- Compatible Material: Enamel, Epoxies, High Solids, Latex, Lacquer, Plural Component Materials, Sealants, Urethane, UV Coating, Waterborne
AA Tip
GG GG3415
TIP, SPRAY,AA4500
Graco GG3415 Spray Tip for AA Pro Xs4 and Pro Auto Xs Spray Gun- 0.381 mm Orifice, 200-250 mm Fan Width
- Bleed Type: Non-Bleeder
- Compatible Material: CARC, Enamel, Epoxies, Fast-Set, High Solids, Latex, Plural Component Materials, Sealants, Solventborne, Urethane, Waterborne
Tip
GG GG3513
TIP, SPRAY,AA4500
Graco GG3513 10-12 in (250 mm) Fan Width, .013 in (.330 mm) Orifice Size Spray Tip for Pro Xs4 AA Spray Gun
AA Tip
GG GG4411
TIP, SPRAY
Graco GG4411 High Wear Industrial Spray Tip for G15 and G40 Guns, 0.011 inch (0.279 mm) Orifice Size, 8-10 inches (200-250 mm) Fan Width
High Wear Industrial Spray Tip for G15 and G40 Guns, 0.013 inch (0.330 mm) Orifice Size, 8-10 inches (200-250 mm) Fan Width
GG GG4413
TIP, SPRAY
Graco GG4413 High Wear Industrial Spray Tip for G15 and G40 Guns, 0.013 inch (0.330 mm) Orifice Size, 8-10 inches (200-250 mm) Fan Width
- Bleed Type: Non-Bleeder
- Compatible Material: Base Coat, Clear Coat, Latex, Plural Component Materials, Primer, Solventborne, Waterborne
High Wear Industrial Spray Tip for G15 and G40 Guns, 0.015 inch (0.381 mm) Orifice Size, 8-10 inches (200-250 mm) Fan Width
GG GG4415
TIP, SPRAY
Graco GG4415 High Wear Industrial Spray Tip for G15 and G40 Guns, 0.015 inch (0.381 mm) Orifice Size, 8-10 inches (200-250 mm) Fan Width
AA Tip
GG GG4515
TIP, SPRAY
Graco GG4515 High Wear Industrial Spray Tip for G15 and G40 Guns, 0.015 inch (0.381 mm) Orifice Size, 10-12 inches (250-300 mm) Fan Width
AA Tip
GG GG4513
TIP, SPRAY
Graco GG4513 High Wear Industrial Spray Tip for G15 and G40 Guns, 0.013 inch (0.330 mm) Orifice Size, 10-12 inches (250-300 mm) Fan Width
AA Tip
GG GG4517
TIP, SPRAY
Graco GG4517 High Wear Industrial Spray Tip for G15 and G40 Guns, 0.017 inch (0.432 mm) Orifice Size, 10-12 inches (250-300 mm) Fan Width
AA Tip
GG GG4615
TIP, SPRAY
Graco GG4615 High Wear Industrial Spray Tip for G15 and G40 Guns, 0.015 inch (0.381 mm) Orifice Size, 12-14 inches (300-350 mm) Fan Width
High Wear Industrial Spray Tip for G15 and G40 Guns, 0.021in Orifice Size, 14-16in Fan Width
GG GG4721
High Wear Industrial Spray Tip for G15 and G40 Guns, 0.021in Orifice Size, 14-16in Fan Width
HOSE, CPLD, 4500PSI, 1/4ID, 3FT
GG H42503
HOSE, CPLD, 4500PSI, 1/4ID, 3FT
Graco H42503 Xtreme-Duty 4500 psi High Pressure Hose- 1/4 in hose diameter, 3 ft length
Xtreme-Duty Airless High-Pressure Hose is designed to withstand the rigors of high-pressure spraying. Its durable design meets exacting standards – ultimately reducing downtime due to hose failure.
Application: For high-pressure spraying applications- A complete line of hoses for all your high pressure spraying – up to 7250 psi
- Passes rigorous tests for quality and performance standards
- Hose cover is chemical resistant – withstands a variety of solvents, acids and bases
- Color-coded by pressure to take the guesswork out of using the right hose
- Connection Type: Coupling
- Inside Diameter (cm): 0.635
- Inside Diameter (in): 1/4
- Inside Diameter (mm): 6.35
- Material: Nylon
- Maximum Working Pressure (bar): 315
- Maximum Working Pressure (kPa): 3150
- Maximum Working Pressure (MPa): 31.5
- Maximum Working Pressure (psi): 4500

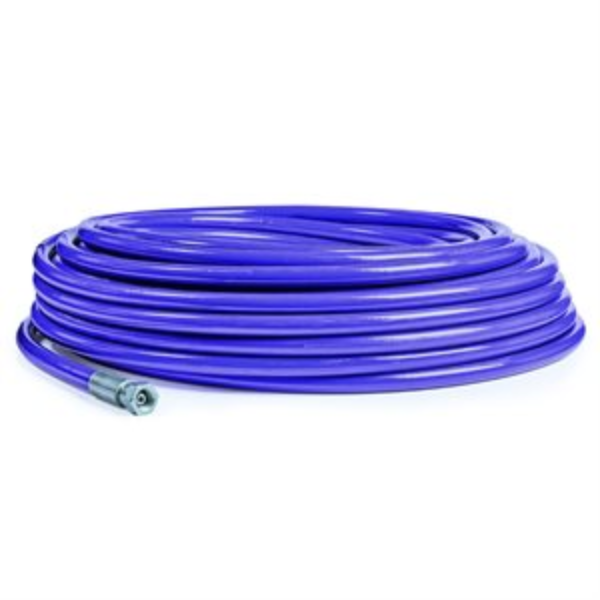

HOSE CPLD, 4500PSI, 1/4ID, 100FT
GG H4251X
HOSE CPLD, 4500PSI, 1/4ID, 100FT
Graco H4251X Xtreme-Duty 4500 psi High Pressure Hose- 1/4 in hose diameter, 100 ft length
Xtreme-Duty Airless High-Pressure Hose is designed to withstand the rigors of high-pressure spraying. Its durable design meets exacting standards – ultimately reducing downtime due to hose failure.
Application: For high-pressure spraying applications- A complete line of hoses for all your high pressure spraying – up to 7250 psi
- Passes rigorous tests for quality and performance standards
- Hose cover is chemical resistant – withstands a variety of solvents, acids and bases
- Color-coded by pressure to take the guesswork out of using the right hose
- Connection Type: Coupling
- Inside Diameter (cm): 0.635
- Inside Diameter (in): 1/4
- Inside Diameter (mm): 6.35
- Material: Nylon
- Maximum Working Pressure (bar): 315
- Maximum Working Pressure (kPa): 3150
- Maximum Working Pressure (MPa): 31.5
- Maximum Working Pressure (psi): 4500
Hose, Coupled, 4500 PSI, 3/8 ID, 3 FT
GG H43803
Hose, Coupled, 4500 PSI, 3/8 ID, 3 FT
Xtreme-Duty 4500 psi High Pressure Hose- 3/8 in hose diameter, 3 ft lengthXtreme-Duty Airless High-Pressure Hose is designed to withstand the rigors of high-pressure spraying. Its durable design meets exacting standards – ultimately reducing downtime due to hose failure.
For high-pressure spraying applicationsA complete line of hoses for all your high pressure spraying – up to 7250 psi
Passes rigorous tests for quality and performance standards
Hose cover is chemical resistant – withstands a variety of solvents, acids and bases
Hose cover stands up to sunlight, ozone, oxygen and extreme weather conditions
Color-coded by pressure to take the guesswork out of using the right hose

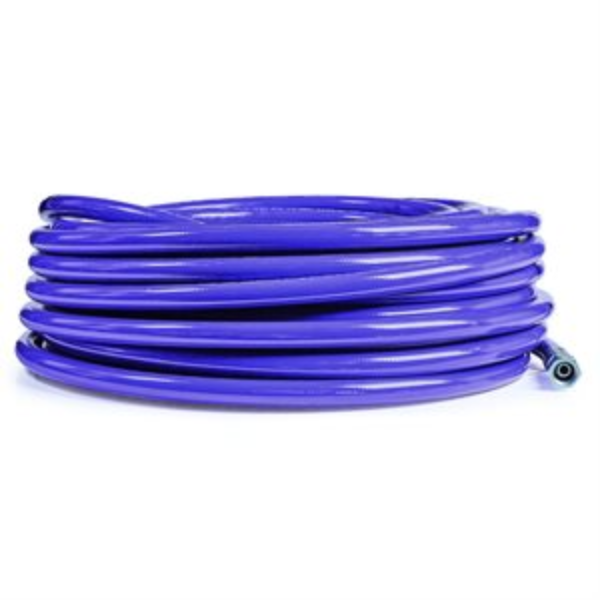

HOSE CPLD, 4500PSI, 3/8ID, 100FT
GG H4381X
HOSE CPLD, 4500PSI, 3/8ID, 100FT
Xtreme-Duty 4500 psi High Pressure Hose- 3/8 in hose diameter, 100 ft lengthXtreme-Duty Airless High-Pressure Hose is designed to withstand the rigors of high-pressure spraying. Its durable design meets exacting standards – ultimately reducing downtime due to hose failure.
For high-pressure spraying applicationsA complete line of hoses for all your high pressure spraying – up to 7250 psi
Passes rigorous tests for quality and performance standards
Hose cover is chemical resistant – withstands a variety of solvents, acids and bases
Hose cover stands up to sunlight, ozone, oxygen and extreme weather conditions
Color-coded by pressure to take the guesswork out of using the right hose
HOSE, CPLD, 4500 PSI, 3/8 ID, 50 FT
GG H43850
HOSE, CPLD, 4500 PSI, 3/8 ID, 50 FT
Xtreme-Duty 4500 psi High Pressure Hose- 3/8 in hose diameter, 50 ft lengthXtreme-Duty Airless High-Pressure Hose is designed to withstand the rigors of high-pressure spraying. Its durable design meets exacting standards – ultimately reducing downtime due to hose failure.
For high-pressure spraying applicationsA complete line of hoses for all your high pressure spraying – up to 7250 psi
Passes rigorous tests for quality and performance standards
Hose cover is chemical resistant – withstands a variety of solvents, acids and bases
Hose cover stands up to sunlight, ozone, oxygen and extreme weather conditions
Color-coded by pressure to take the guesswork out of using the right hose
HOSE, CPLD, 4500PSI, 1/2ID, 50FT
GG H45050
HOSE, CPLD, 4500PSI, 1/2ID, 50FT
Graco H45050 Xtreme-Duty 4500 psi High Pressure Hose- 1/2 in hose diameter, 50 ft length
Xtreme-Duty Airless High-Pressure Hose is designed to withstand the rigors of high-pressure spraying. Its durable design meets exacting standards – ultimately reducing downtime due to hose failure.
Application: For high-pressure spraying applications- A complete line of hoses for all your high pressure spraying – up to 7250 psi
- Passes rigorous tests for quality and performance standards
- Hose cover is chemical resistant – withstands a variety of solvents, acids and bases
- Color-coded by pressure to take the guesswork out of using the right hose
- Connection Type: Coupling
- Inside Diameter (cm): 1.27
- Inside Diameter (in): 1/2
- Inside Diameter (mm): 12.7
- Material: Nylon
- Maximum Working Pressure (bar): 315
- Maximum Working Pressure (kPa): 3150
- Maximum Working Pressure (MPa): 31.5
- Maximum Working Pressure (psi): 4500
HOSE, CPLD, 5600PSI, 1/4ID, 50FT
GG H52550
HOSE, CPLD, 5600PSI, 1/4ID, 50FT
Xtreme-Duty 5600 psi High Pressure Hose- 1/4 in hose diameter, 50 ft lengthXtreme-Duty Airless High-Pressure Hose is designed to withstand the rigors of high-pressure spraying. Its durable design meets exacting standards – ultimately reducing downtime due to hose failure.
For high-pressure spraying applicationsA complete line of hoses for all your high pressure spraying – up to 7250 psi
Passes rigorous tests for quality and performance standards
Hose cover is chemical resistant – withstands a variety of solvents, acids and bases
Hose cover stands up to sunlight, ozone, oxygen and extreme weather conditions
Color-coded by pressure to take the guesswork out of using the right hose
QUANTM PUMP, QHD-HSFF1FL--POEPSSASF21
GG HE80-0192
QUANTM PUMP, QHD-HSFF1FL--POEPSSASF21
QUANTM h80, 1.5"Tri-clamp, HS SST Electric Diaphragm Pump, 200-240 V, FEP AL Center, FL Seat, PO Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. The groundbreaking new QUANTM electric pumps for large particle applications feature a stainless-steel flapper check design that removes the traditional ball and seat check valve in a normal diaphragm pump. This is critical for applications that involve larger pieces of meat and poultry pieces, pieces of fruit for bakery fillings and jarred fruit, as well as whole vegetables for soups or prepackaged meals. QUANTM electric pumps feature a powerful new electric motor that delivers up to 8x more continuous torque at low speeds than conventional motors. Plus, the fast, easy plug-and-play installation allows you to easily replace your existing pumps without additional investment or infrastructure rework. Revolutionary Design- Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
- Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
- Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
- Quiet operation reduces plant noise and improves employee safety and health
- Smart pump control provides more accurate flow set points and built-in I/O
- FEP coated aluminum electric drive
- 240 VAC 1Ph motor with 15 ft cord and NEMA L15-20plug
- Non-hazardous
- 32 Ra surface finish 316L stainless steel fluid section with tri-clamp center port
- Internal components include 316L stainless steel seat, 316L stainless steel Flapper ball, PTFE overmold diaphragm and EPDM manifold o-ring
- EN 2.1 material certification
PRO XP GUN, ES, 85KV, AA, SMART
GG H85M10
PRO XP GUN, ES, 85KV, AA, SMART
Graco H85M10 Pro Xp85 Air Assist Manual Electrostatic Gun, 85 kV, with smart display, standard coatings, includes AEM or AEF tip of choice
Pro Xp85 kV air-assist gun maximizes transfer efficiency and lowers cost of ownership. Pro Xp85 AA gun line includes Standard and Smart models.
- High quality spray performance with a one-piece aircap and variety of spray tips
- Alternator speed indicator light ensures your turbine speed is running at the correct level
- Smart Controls help you analyze performance, adapt to your voltage needs and make troubleshooting easier
- Internal power supply reduces operator fatigue with no heavy cords to slow you done
- Rugged, dependable design supported by a three year warranty
- Every gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Graco&prime, s requirements
- Model: Pro Xp
- Series: 85
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Application: Electrostatic, Standard
- Applicator Type: Manual
- Coating Type: Standard
- Compatible Paint Type: Epoxy, High Solids, Lacquers, Plural Component Materials, Polyurethanes, Solvent borne, Urethanes, UV Curing, Varnishes,
- Display Type: Smart
- Fluid Inlet Size (in): 1/4
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Gun Activation: Manual
- Gun Type: Electrostatic
- Gun Weight (g): 728
- Gun Weight (kg): 0.73
- Gun Weight (lb): 1.6
- Gun Weight (oz): 25.68
- Includes: Smart Display, Tip Guard Air Cap, Tip of Choice, Tool Kit, Gun Cover, Exhaust Tube,
- Maximum Fluid Pressure (bar): 210
- Maximum Fluid Pressure (kg/cm²): 214.14
- Maximum Fluid Pressure (kPa): 21000
- Maximum Fluid Pressure (MPa): 21
- Maximum Fluid Pressure (psi): 3000
- Maximum Fluid Temperature (°C): 48
- Maximum Fluid Temperature (°F): 120
- Maximum Fluid Pressure (bar): 210
- Maximum Fluid Pressure (kg/cm²): 214.14
- Maximum Fluid Pressure (kPa): 21000
- Maximum Fluid Pressure (MPa): 21
- Maximum Fluid Pressure (psi): 3000
- Maximum Fluid Temperature (°C): 48
- Maximum Fluid Temperature (°F): 120
- Maximum Paint Resistivity (megohm/cm): Infinity
- Minimum Paint Resistivity (megohm/cm): 3
- Overall Length (cm): 27.18
- Overall Length (in): 10.7
- Overall Length (mm): 271.8
QUANTM PUMP, QHC-FGFF5SSPTPSPTS130021
GG HE30-0009
QUANTM PUMP, QHC-FGFF5SSPTPSPTS130021
QUANTM h30, 1" FG SST Electric Diaphragm Pump, 100-120 V, FEP AL Center, SS Seat, PT Ball, PS Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. Graco food-grade pumps are our most popular series for general food transfer. With their all-stainless-steel construction and 125 Ra surface finish, the groundbreaking new QUANTM food-grade electric pumps are certified to handle a wide range of food and beverage products and meet certification requirements for some personal care applications as well. From dressings, sauces, oils, syrups to soaps, creams and solvents, QUANTM electric food-grade pumps are a workhorse for almost any hygienic food-grade application. The powerful new electric motor delivers up to 8x more continuous torque at low speeds than conventional motors and the fast, easy plug-and-play installation allows you to easily replace existing pumps without additional investment or infrastructure rework. Revolutionary Design- Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
- Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
- Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
- Quiet operation reduces plant noise and improves employee safety and health
- Smart pump control provides more accurate flow set points and built-in I/O
- FEP coated aluminum electric drive
- 120 VAC 1Ph motor with 15 ft cord and NEMA 5-15 plug
- Non-hazardous
- 125 Ra surface finish 316 stainless steel fluid section with tri-clamp center port
- Internal components include 316L stainless steel seat, PTFE ball, PTFE/Santoprene 2-Piece diaphragm and PTFE manifold o-ring
- EN 2.1 material certification
- Materials of Construction
XD SERIES 30 REEL, HOSE, 3/4 X 50, DEF, BLUE
GG HSDD5B
XD SERIES 30 REEL, HOSE, 3/4 X 50, DEF, BLUE
Graco HSDD5B XD30™, DEF, 3/4 in. (19 mm) Inlet, 3/4 in. X 50 ft. (19 mm X 15 m) Hose, NPT, Truck/Bench Mount, Metallic Blue
Graco’s XD30 Series Hose Reels are used in applications requiring longer-range dispense and higher capacity than the standard XD10 and XD20 Series. The Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (9.1-22.8 meters) hose capacity for a wide variety of applications. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze, windshield washer fluid, pressure wash, waste oil and diesel exhaust fluid (DEF).
Application: Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.- Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid
- Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
- Optional Adjustable Arm - Easily change the arm position for your application, order with arm (HS models) or without (HN models)
- Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (91-228 meters) hose capacity for a wide variety of applications
- Model: XD
- Series: 30
- Application: Diesel Fuel
- Color: Metallic Blue
- Frame Type: Dual Pedestal
- Hose Inside Diameter (in): 3/4
- Hose Inside Diameter (mm): 19.05
- Hose Length (ft): 50
- Hose Length (m): 15
- Hose Reel Type: Reel with Hose
- Includes Hose: Yes
- Inlet Size (in): 3/4
- Inlet Size (mm): 19.05
- Inlet Thread Type: BSPP
- Maximum Working Pressure (psi): 50
- Mount Location: Truck Mount, Bench Mount
- Outlet Size (in): 3/4
- Outlet Size (mm): 19.05
- Overall Height (in): 23.10
- Overall Height (mm): 588
- Overall Length (in): 22.12
- Overall Length (mm): 561.73
- Overall Width (in): 9.0
- Overall Width (mm): 229
- Recommended Environment: Indoor, Outdoor
- Recommended Fluid Type: DEF
XD SERIES 30 REEL, HOSE, BARE, DEF, BLUE
GG HSDDDB
XD SERIES 30 REEL, HOSE, BARE, DEF, BLUE
XD30™, DEF, 3/4 in. (19 mm) Inlet, Bare Reel (3/4 in. X 50 ft. (19 mm X 15 m) Capacity), NPT, Truck/Bench Mount, Metallic Blue Graco’s XD30 Series Hose Reels are used in applications requiring longer-range dispense and higher capacity than the standard XD10 and XD20 Series. The Compact pedestal and spool fits into tight spaces and can accommodate 30-50 foot (9.1-15 meters) hose capacity for a wide variety of applications. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze, windshield washer fluid, pressure wash, waste oil and diesel exhaust fluid (DEF). Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks. Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop Optional Adjustable Arm - Easily change the arm position for your application, order with arm (HS models) or without (HN models) Durable Finish - Baked-on enamel finish protects reel from corrosion Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (91-228 meters) hose capacity for a wide variety of applications
XD SERIES 30 REEL, 3/8 X BARE, P/W, BLUE
GG HSHFFB
XD SERIES 30 REEL, 3/8 X BARE, P/W, BLUE
XD30™, Pressure Wash, 1/2 in. (13 mm) Inlet, Bare Reel (3/8 in. X 75 ft. (10 mm X 23 m) Capacity), NPT, Truck/Bench Mount, Metallic Blue Graco’s XD30 Series Hose Reels are used in applications requiring longer-range dispense and higher capacity than the standard XD10 and XD20 Series. The Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (9.1-22.8 meters) hose capacity for a wide variety of applications. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze, windshield washer fluid, pressure wash, waste oil and diesel exhaust fluid (DEF). Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks. Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop Optional Adjustable Arm - Easily change the arm position for your application, order with arm (HS models) or without (HN models) Durable Finish - Baked-on enamel finish protects reel from corrosion Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (91-228 meters) hose capacity for a wide variety of applications
Pro XP Gun, ES, Auto Rear, AA
GG HA1T10
Pro XP Gun, ES, Auto Rear, AA
Pro Xp Auto Air-Assist Electrostatic Spray Gun, standard model, with rear manifold, 85 kV, includes AEM or AEF tip of choice Pro Xp Auto Air-Assist has an 85 kV power supply and internal power so there’s no electrical cord to damage or replace. Standard gun models always run at 85 kV power and include an alternator speed indicator to display electrostatic performance. Ideal for high pressure spraying designed to improve transfer efficiency and deliver a high quality finish. Versatile product line gives you more models to choose from and greater spraying flexibility with air spray, air assist and waterborne guns Manifold style fits almost any systems requirement - back manifold is ideal for stationary and reciprocator systems and bottom manifold is ideal for robot mounting 85 kV power supply and internal power so there's no electrical cord to worry about damaging or replacing Higher transfer efficiency equals less waste, saving you money on material Durable components reduce cost of ownership, supported by a three year warranty

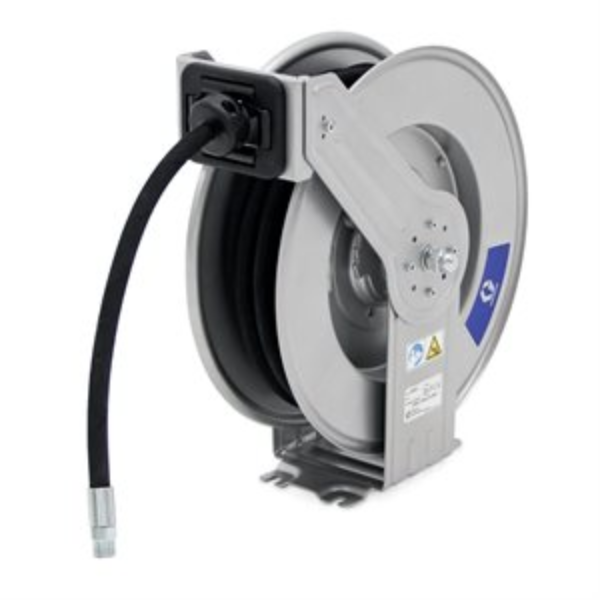

LDX SERIES REEL, HOSE, 1/2" X 50', OIL
GG HEM004
LDX SERIES REEL, HOSE, 1/2" X 50', OIL
LDX™ Series, Oil, 1/2 in (13 mm) Inlet, 1/2 in X 50 ft (13 mm X 15 m) Hose, NPT Graco’s industrial-grade LDX hose reel offers incredible value for cost-conscious workshops. Its all-metal frame and specially crafted, long-lasting components provide consistent release and retraction. Designed for smaller garages, independent repair facilities and industrial manufacturing environments. Dual Pedestal Frame - Ribbed metal for increased stability and robustness. External Swivel Housing - Quickly access swivel seal for faster repairs. Ball Bearing Swivel - Swivel designed with internal ball bearings reduces friction and ensures smooth operation. Adjustable Arm - Easily change to one of six arm positions to fit your application. Large Hose Capacity with Small Profile - Compact design accommodates up to a 50 foot (15 meter) hose to meet a wide variety of application requirements.
XD SERIES 30 REEL, 3/8 X 75, GREASE, BLUE
GG HSHB7B
XD SERIES 30 REEL, 3/8 X 75, GREASE, BLUE
XD30™, Grease, 1/2 in. (13 mm) Inlet, 3/8 in. X 75 ft. (10 mm X 23 m) Hose, NPT, Truck/Bench Mount, Metallic Blue Graco’s XD30 Series Hose Reels are used in applications requiring longer-range dispense and higher capacity than the standard XD10 and XD20 Series. The Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (9.1-22.8 meters) hose capacity for a wide variety of applications. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze, windshield washer fluid, pressure wash, waste oil and diesel exhaust fluid (DEF). Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks. Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop Optional Adjustable Arm - Easily change the arm position for your application, order with arm (HS models) or without (HN models) Durable Finish - Baked-on enamel finish protects reel from corrosion Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (91-228 meters) hose capacity for a wide variety of applications

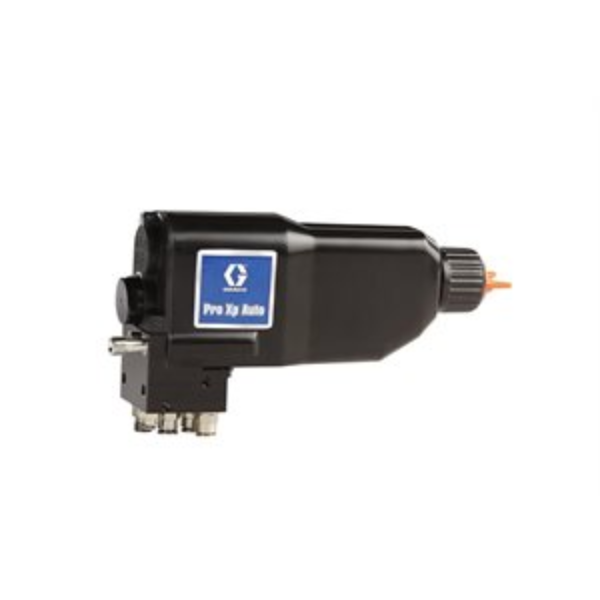

PRO XP GUN, ES, AUTO BOTTOM, SMT, AA
GG HA2M10
PRO XP GUN, ES, AUTO BOTTOM, SMT, AA
Pro Xp Auto Air-Assist Electrostatic Spray Gun, smart model, with bottom manifold, 85 kV, includes AEM or AEF tip of choice Pro Xp Auto Air-Assist has an 85 kV power supply and internal power so there’s no electrical cord to damage or replace. Smart gun models connect to a control module for kV control and displaying gun performance. Ideal for high pressure spraying designed to improve transfer efficiency and deliver a high quality finish. Versatile product line gives you more models to choose from and greater spraying flexibility with air spray, air assist and waterborne guns Manifold style fits almost any systems requirement - back manifold is ideal for stationary and reciprocator systems and bottom manifold is ideal for robot mounting 85 kV power supply and internal power so there's no electrical cord to worry about damaging or replacing Higher transfer efficiency equals less waste, saving you money on material Durable components reduce cost of ownership, supported by a three year warranty

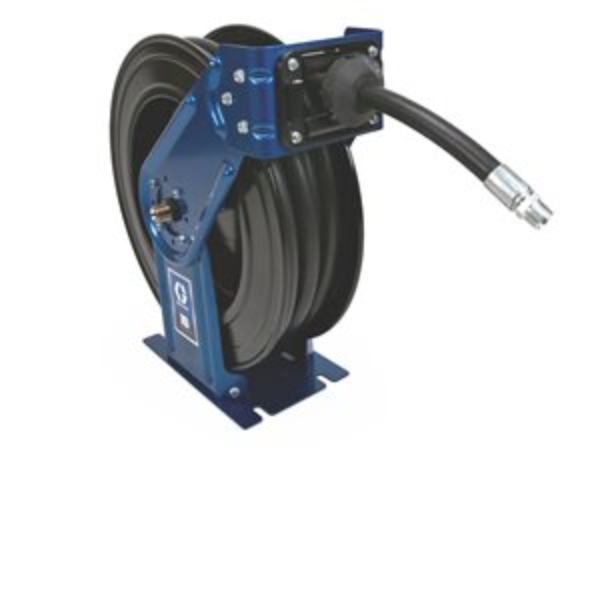

XD SERIES 30 REEL, 3/4 X 50, A/W, BLUE
GG HSLD5B
XD SERIES 30 REEL, 3/4 X 50, A/W, BLUE
Graco HSLD5B XD30™, Air/Water/Antifreeze/WWS, 3/4 in. (19 mm) Inlet, 3/4 in. X 50 ft. (19 mm X 15 m) Hose, NPT, Truck/Bench Mount, Metallic Blue
Graco’s XD30 Series Hose Reels are used in applications requiring longer-range dispense and higher capacity than the standard XD10 and XD20 Series. The Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (9.1-22.8 meters) hose capacity for a wide variety of applications. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze, windshield washer fluid, pressure wash, waste oil and diesel exhaust fluid (DEF).
Application: Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.- Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid
- Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
- Optional Adjustable Arm - Easily change the arm position for your application, order with arm (HS models) or without (HN models)
- Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (91-228 meters) hose capacity for a wide variety of applications
- Model: XD
- Series: 30
- Application: Air, Water, Antifreeze, WWS
- Color: Metallic Blue
- Dry Weight (lb): 98
- Frame Type: Dual Pedestal
- Hose Inside Diameter (in): 3/4
- Hose Inside Diameter (mm): 19.05
- Hose Length (ft): 50
- Hose Length (m): 15
- Hose Reel Type: Reel with Hose
- Includes Hose: Yes
- Inlet Size (in): 3/4
- Inlet Size (mm): 19.05
- Inlet Thread Type: NPSM
- Maximum Working Pressure (psi): 300
- Mount Location: Truck Mount, Bench Mount
- Outlet Size (in): 3/4
- Outlet Size (mm): 19.05
- Overall Height (in): 23.10
- Overall Height (mm): 588.00
- Overall Length (in): 22.12
- Overall Length (mm): 561.73
- Overall Width (in): 9.0
- Overall Width (mm): 229
- Recommended Environment: Indoor, Outdoor
- Recommended Fluid Type: Air, Water, Antifreeze, WWS
QUANTM PUMP, QHD-FGFF1SSCWSPEPS130021
GG HE80-0003
QUANTM PUMP, QHD-FGFF1SSCWSPEPS130021
QUANTM h80, 1.5" FG SST Electric Diaphragm Pump, 200-240 V, FEP AL Center, SS Seat, CW Ball, SP Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. Graco food-grade pumps are our most popular series for general food transfer. With their all-stainless-steel construction and 125 Ra surface finish, the groundbreaking new QUANTM food-grade electric pumps are certified to handle a wide range of food and beverage products and meet certification requirements for some personal care applications as well. From dressings, sauces, oils, syrups to soaps, creams and solvents, QUANTM electric food-grade pumps are a workhorse for almost any hygienic food-grade application. The powerful new electric motor delivers up to 8x more continuous torque at low speeds than conventional motors and the fast, easy plug-and-play installation allows you to easily replace existing pumps without additional investment or infrastructure rework. Revolutionary Design- Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
- Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
- Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
- Quiet operation reduces plant noise and improves employee safety and health
- Smart pump control provides more accurate flow set points and built-in I/O
- FEP coated aluminum electric drive
- 240 VAC 1Ph motor with 15 ft cord and NEMA L15-20plug
- Non-hazardous
- 125 Ra surface finish 316 stainless steel fluid section with tri-clamp center port
- Internal components include 316L stainless steel seat, polychloroprene weighted ball, Santoprene diaphragm and EPDM manifold o-ring
- EN 2.1 material certification
PRO XP GUN, ES, 60KV, AA, WB
GG H60T18
PRO XP GUN, ES, 60KV, AA, WB
Graco H60T18 Pro Xp60 AA WB Manual Air-Assist Spray Gun, 60 kV, standard display, for waterborne coatings
Excellent, air assisted pattern control eliminates defects for a fine finish with waterborne material.
Application: For spraying conductive, waterborne fluids with an isolation system- This 60 kV model is the smallest and lightest air assist gun on the market.
- Air-assist aircaps use less air, lowering your energy bill.
- Made in the USA
- Fan adjust pattern control reduces overspray by changing the fan pattern width according to the size of the part – improving quality and saving you money
- Every gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Graco&prime, s requirements
- Model: Pro Xp
- Series: 60
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Application: Electrostatic, Waterborne
- Applicator Type: Manual
- Coating Type: Waterborne
- Compatible Paint Type: Epoxy, High Solids, Lacquers, Latex, Plural Component Materials, Polyurethanes, Urethanes, UV Curing, Varnishes, Waterborne
- Display Type: Standard
- Fluid Inlet Size (in): 1/4
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Gun Activation: Manual
- Gun Type: Electrostatic
- Gun Weight (g): 660
- Gun Weight (kg): 0.66
- Gun Weight (lb): 1.46
- Gun Weight (oz): 23.28
- Includes: Tip Guard Air Cap, Tip of Choice, Tool Kit, Gun Cover, Exhaust Tube
- Maximum Fluid Pressure (bar): 210
- Maximum Fluid Pressure (kg/cm²): 214.14
- Maximum Fluid Pressure (kPa): 21000
- Maximum Fluid Pressure (MPa): 21
- Maximum Fluid Pressure (psi): 3000
- Maximum Fluid Temperature (°C): 48
- Maximum Fluid Temperature (°F): 120
- Maximum Fluid Pressure (bar): 210
- Maximum Fluid Pressure (kg/cm²): 214.14
- Maximum Fluid Pressure (kPa): 21000
- Maximum Fluid Pressure (MPa): 21
- Maximum Fluid Pressure (psi): 3000
- Maximum Fluid Temperature (°C): 48
- Maximum Fluid Temperature (°F): 120
- Maximum Paint Resistivity (megohm/cm): 1
- Minimum Paint Resistivity (megohm/cm): 0
- Overall Length (cm): 24.64
- Overall Length (in): 9.7
- Overall Length (mm): 246.4
PRO XP GUN, ES, 60KV, AA
GG H60T10
PRO XP GUN, ES, 60KV, AA
Pro Xp60 Air Assist Manual Electrostatic Gun, 60 kV, with standard display, standard coatings, includes AEM or AEF tip of choice Pro Xp60 kV air-assist gun is the smallest and lightest electrostatic air-assist gun on the market – delivering a consistent, high quality finish every time you spray. Pro Xp60 AA gun line includes Standard, Smart and Waterborne models. High quality spray performance with a one-piece aircap and variety of spray tips Transfer efficiency is improved over conventional air-assist guns Made in the USA The smallest profile gun with internal power supply on the market – 1 inch (2.5 cm) shorter and 4 oz (110 g) lighter Fan adjust pattern control reduces overspray by changing the fan pattern width according to the size of the part – improving quality and saving you money Every gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Graco's requirements
PRO XP GUN, ES, AUTO REAR, SMT, AA, WB
GG HA1M18
PRO XP GUN, ES, AUTO REAR, SMT, AA, WB
Pro Xp Auto Waterborne Air-Assist Electrostatic Spray Gun, smart model, with rear manifold, 60 kV. Use with isolation systems. Pro Xp Auto waterborne air-assist guns are ideal for high pressure spraying with an isolation system including the WB3000. Versatile product line gives you more models to choose from and greater spraying flexibility Back manifold is ideal for a variety of systems 60 kV power supply and internal power so there’s no electrical cord to worry about damaging or replacing Higher transfer efficiency equals less waste, saving you money on material Made in the USA Durable components reduce cost of ownership, supported by a three year warranty
QUANTM H80, 1.5" Tri-clamp, 3A SST Electric Diaphragm Pump 200-240 V FEP AL SS PT PS
GG HE80-0102
QUANTM H80, 1.5" Tri-clamp, 3A SST Electric Diaphragm Pump 200-240 V FEP AL SS PT PS
XD SERIES 30 REEL, 3/4 X 50, OIL, BLUE
GG HSMD5B
XD SERIES 30 REEL, 3/4 X 50, OIL, BLUE
XD30™, Oil, 3/4 in. (19 mm) Inlet, 3/4 in. X 50 ft. (19 mm X 15 m) Hose, NPT, Truck/Bench Mount, Metallic Blue Graco’s XD30 Series Hose Reels are used in applications requiring longer-range dispense and higher capacity than the standard XD10 and XD20 Series. The Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (9.1-22.8 meters) hose capacity for a wide variety of applications. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze, windshield washer fluid, pressure wash, waste oil and diesel exhaust fluid (DEF). Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks. Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop Optional Adjustable Arm - Easily change the arm position for your application, order with arm (HS models) or without (HN models) Durable Finish - Baked-on enamel finish protects reel from corrosion Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (91-228 meters) hose capacity for a wide variety of applications
Control Box, 2000C, Mikron
GG HV-2000C-S102
Control Box, 2000C, Mikron
ADVANJET VALVE, HV-2000
GG HV-2000
ADVANJET VALVE, HV-2000
Graco HV-2000 Advanjet HV-2000 Jet Valve
The Advanjet HV-2000 jet valve provides non-contact jet dispensing for the successful application of fluids in the electronic, semiconductor, industrial and life science markets. A single, easily replaceable diaphragm eliminates dynamic fluid seals common in all other jets. No need to disassemble, clean and replace worn seals, saving time and money. The diaphragm allows fast cycle rates because of its very small mass. There is no large sliding valve stem slowing down the process. With this novel diaphragm design, the energy needed to eject a drop can be adjusted providing wider process windows.
Application: The Easiest to Clean Non-Contact Jet Dispenser- Easy to Clean
Only two parts contact the fluid making it easy to exchange and replace parts. - Easy to Maintain
Unlike complicated piezo jets, the jet valve can be maintained within your factory with low-cost maintenance kits. - Easy to Integrate
The HV-9500 valve is a drop in replacement for existing operations. No external controller box required. - Features:
Up to 300 drops/sec
Outstanding repeatability
Viscosities up to 400K cps
Drops as small as 10 nl
No fluid seals to clean or replace
Integral heater with minimal fluid heated
Tungsten carbide internal components for long life
- Model: AdvanJet
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Spray, Underfill, Metering
- Component Type: Single Component
- Container Type: Cartridge
- Maximum Working Pressure (bar): 6
- Maximum Working Pressure (kg/cm²): 6
- Maximum Working Pressure (kPa): 620
- Maximum Working Pressure (MPa): 0.6
- Maximum Working Pressure (psi): 90
- Power Type: Pneumatic

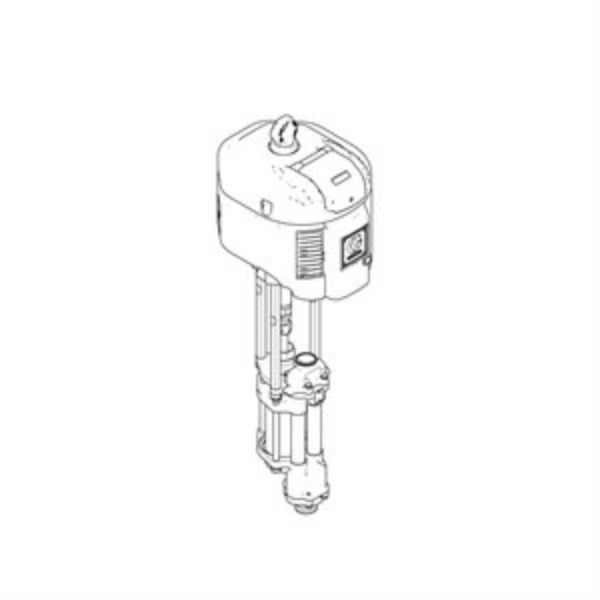

HIGH-FLO PUMP, 2200/1000, LOW DT, OPN, NPT
GG JC40M9
HIGH-FLO PUMP, 2200/1000, LOW DT, OPN, NPT
Graco JC40M9 High-Flo 4-Ball Pump, CS, 4:1, Low Noise Exhaust, DataTrak, Open Wet Cup Lower, NPT Fittings, Ultralife Rod/Cylinder
Pneumatic High-Flo 4-ball piston pumps provide high output per cycle to reduce pump wear and maintenance. Ideal for low pressure, high flow applications and inherently safe for hazardous locations.
- Slow-moving reciprocating motion does not damage paint like other rotary pumping technologies
- Rugged body armor, won’t rust or dent
- De-icing controls eliminate stalling
- DataTrak tracks material usage, monitors and protects your pump
- Model: High-Flo
- Series: 4-Ball
- Application: Circulation
- Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, Metallics, Topcoats, Stains, Varnish, CARC
- Fluid Outlet Size (in): 1-1/2
- Fluid Outlet Size (mm): 38.1
- Fluid Outlet Thread Type: NPT
- Fluid Section Type: Open Wet Cup
- Includes: Carbon Steel Pump, Low Noise Exhaust, DataTrak Monitor, NPT Fittings, Ultralife Rods, Ultralife Cylinder
- Material: Carbon Steel
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 12
- Maximum Flow Rate (GPM): 16.9
- Maximum Flow Rate (L/min): 63.97
- Maximum Operating Temperature (°C): 66
- Maximum Operating Temperature (°F): 150
- Maximum Working Pressure (bar): 31
- Maximum Working Pressure (kPa): 3100
- Maximum Working Pressure (MPa): 3.1
- Maximum Working Pressure (psi): 450
- Motor Type: Low Noise NXT with DataTrak
- Portable: Non-Portable
- Pump Ratio: 4:1
Kit, Repair, Jet
GG JK-2001
KIT,REPAIR,JET
KIT INCLUDES: BEARING, PIN, DIAPHRAGM [QTY. 1], SEAL, HEATER [QTY. 1], LEVER, [QTY. 1], SOLENOID, MAIN AIR [QTY. 1], SPRING, COMP, .296ODX.246ID, 5.4LB/ [QTY. 1], SCREW, SHC, SHLDR, .25ODX.652L [QTY. 1], MUFFLER, AIR, #10-32, BRONZE [QTY. 1], WASHER, FLAT, #12, NYLON, BLACK [QTY. 1], CYLINDER, ASSEMBLY, HAMMER [QTY. 1]
HIGH-FLO PUMP, 4000, LN, SLD, TRI
GG JS17A8
HIGH-FLO PUMP, 4000, LN, SLD, TRI
High-Flo 4-Ball Pump, SST, 1.7:1, Low Noise XL, Sealed SST Lower, Ultralife Rod/Cylinder, Tri-Clamp Pneumatic High-Flo 4-ball piston pumps provide high output per cycle to reduce pump wear and maintenance. Ideal for low pressure, high flow applications and inherently safe for hazardous locations. Slow-moving reciprocating motion does not damage paint like other rotary pumping technologies Completely sealed fluid section can be used almost anywhere, including catalyst and moisture sensitive materials Ultralife Series ceramic coating holds up to the harshest materials, including waterborne paints De-icing controls eliminate stalling Rugged body armor, won’t rust or dent
HIGH-FLO PUMP, 4000, LN, SLD, TRI
GG JS33A8
HIGH-FLO PUMP, 4000, LN, SLD, TRI
Graco JS33A8 High-Flo 4-Ball Pump, SST, 3.3:1, Low Noise XL, Sealed SST Lower, Ultralife Rod/Cylinder, Tri-Clamp
Pneumatic High-Flo 4-ball piston pumps provide high output per cycle to reduce pump wear and maintenance. Ideal for low pressure, high flow applications and inherently safe for hazardous locations.
- Slow-moving reciprocating motion does not damage paint like other rotary pumping technologies
- Completely sealed fluid section can be used almost anywhere, including catalyst and moisture sensitive materials
- Ultralife Series ceramic coating holds up to the harshest materials, including waterborne paints
- Rugged body armor, won’t rust or dent
- Model: High-Flo
- Series: 4-Ball
- Application: Circulation
- Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, Metallics, Topcoats, Stains, Varnish, CARC
- Fluid Outlet Size (in): 1.5
- Fluid Outlet Size (mm): 50.8
- Fluid Section Type: Sealed
- Includes: Stainless Steel Pump, Low Noise Exhaust, Tri-Clamp Fittings, Ultralife Rod, Ultralife Cylinder
- Material: Stainless Steel
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 20
- Maximum Flow Rate (GPM): 21.1
- Maximum Flow Rate (L/min): 80
- Maximum Operating Temperature (°C): 60
- Maximum Operating Temperature (°F): 140
- Maximum Working Pressure (bar): 22.7
- Maximum Working Pressure (kPa): 2275
- Maximum Working Pressure (MPa): 2.3
- Maximum Working Pressure (psi): 330
- Motor Type: Low Noise XL
- Portable: Non-Portable
- Pump Ratio: 3.3:1
HIGH-FLO PUMP, 4000, LN DT, SLD, TRI
GG JS33B8
HIGH-FLO PUMP, 4000, LN DT, SLD, TRI
High-Flo 4-Ball Pump, SST, 3.3:1, Low Noise, DataTrak, Sealed SST Lower, Ultralife Rod/Cylinder, Tri-Clamp Pneumatic High-Flo 4-ball piston pumps provide high output per cycle to reduce pump wear and maintenance. Ideal for low pressure, high flow applications and inherently safe for hazardous locations. Slow-moving reciprocating motion does not damage paint like other rotary pumping technologies Completely sealed fluid section can be used almost anywhere, including catalyst and moisture sensitive materials Ultralife Series ceramic coating holds up to the harshest materials, including waterborne paints De-icing controls eliminate stalling Rugged body armor, won’t rust or dent DataTrak tracks material usage, monitors and protects your pump
HIGH-FLO PUMP, XL34/2000, LN, SLD, TRI
GG JS35A8
HIGH-FLO PUMP, XL34/2000, LN, SLD, TRI
High-Flo 4-Ball Pump, SST, 3.5:1, Low Noise XL, Sealed SST Lower, Ultralife Rod/Cylinder, Tri-Clamp Pneumatic High-Flo 4-ball piston pumps provide high output per cycle to reduce pump wear and maintenance. Ideal for low pressure, high flow applications and inherently safe for hazardous locations. Slow-moving reciprocating motion does not damage paint like other rotary pumping technologies Completely sealed fluid section can be used almost anywhere, including catalyst and moisture sensitive materials Ultralife Series ceramic coating holds up to the harshest materials, including waterborne paints De-icing controls eliminate stalling Rugged body armor, won’t rust or dent
HIGH-FLO PUMP, XL34/2000, LN, DT, SLD, TRI
GG JS35B8
HIGH-FLO PUMP, XL34/2000, LN, DT, SLD, TRI
Graco JS35B8 High-Flo 4-Ball Pump, SST, 3.5:1, Low Noise, DataTrak, Sealed SST Lower, Ultralife Rod/Cylinder, Tri-Clamp
Pneumatic High-Flo 4-ball piston pumps provide high output per cycle to reduce pump wear and maintenance. Ideal for low pressure, high flow applications and inherently safe for hazardous locations.
- Slow-moving reciprocating motion does not damage paint like other rotary pumping technologies
- Completely sealed fluid section can be used almost anywhere, including catalyst and moisture sensitive materials
- Ultralife Series ceramic coating holds up to the harshest materials, including waterborne paints
- Rugged body armor, won’t rust or dent
- DataTrak tracks material usage, monitors and protects your pump
- Model: High-Flo
- Series: 4-Ball
- Application: Circulation
- Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, Metallics, Topcoats, Stains, Varnish, CARC
- Fluid Outlet Size (in): 1.5
- Fluid Outlet Size (mm): 38.1
- Fluid Section Type: Sealed
- Includes: Stainless Steel Pump, Low Noise Exhaust, DataTrak Monitor, Tri-Clamp Fittings, Ultralife Rod, Ultralife Cylinder
- Material: Stainless Steel
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 20
- Maximum Flow Rate (GPM): 10.6
- Maximum Flow Rate (L/min): 40
- Maximum Operating Temperature (°C): 60
- Maximum Operating Temperature (°F): 140
- Maximum Working Pressure (bar): 24.1
- Maximum Working Pressure (kPa): 2410
- Maximum Working Pressure (MPa): 2.4
- Maximum Working Pressure (psi): 350
- Motor Type: Low Noise with DataTrak
- Portable: Non-Portable
- Pump Ratio: 3.5:1
HIGH-FLO PUMP, 2200/1000, LOW N, SLD, TRI
GG JS40L8
HIGH-FLO PUMP, 2200/1000, LOW N, SLD, TRI
Graco JS40L8 High-Flo 4-Ball Pump, SST, 4:1, Low Noise Exhaust, Sealed SST Lower, Tri-Clamp Fittings, Ultralife Rod/Cylinder
Pneumatic High-Flo 4-ball piston pumps provide high output per cycle to reduce pump wear and maintenance. Ideal for low pressure, high flow applications and inherently safe for hazardous locations.
- Slow-moving reciprocating motion does not damage paint like other rotary pumping technologies
- Completely sealed fluid section can be used almost anywhere, including catalyst and moisture sensitive materials
- Ultralife Series ceramic coating holds up to the harshest materials, including waterborne paints
- Rugged body armor, won’t rust or dent
- Model: High-Flo
- Series: 4-Ball
- Application: Circulation
- Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, Metallics, Topcoats, Stains, Varnish, CARC
- Fluid Outlet Size (in): 1-1/2
- Fluid Outlet Size (mm): 38.1
- Fluid Section Type: Sealed
- Includes: Stainless Steel Pump, Low Noise Exhaust, Tri-Clamp Fittings, Ultralife Rod, Ultralife Cylinder
- Material: Stainless Steel
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 20
- Maximum Flow Rate (GPM): 16.9
- Maximum Flow Rate (L/min): 63.97
- Maximum Operating Temperature (°C): 66
- Maximum Operating Temperature (°F): 150
- Maximum Working Pressure (bar): 28
- Maximum Working Pressure (kPa): 2800
- Maximum Working Pressure (MPa): 2.8
- Maximum Working Pressure (psi): 400
- Motor Type: Low Noise NXT
- Portable: Non-Portable
- Pump Ratio: 4:1
HIGH-FLO PUMP, 2200/1000, LOW DT, SLD, TRI
GG JS40M8
HIGH-FLO PUMP, 2200/1000, LOW DT, SLD, TRI
Graco JS40M8 High-Flo 4-Ball Pump, SST, 4:1, Low Noise Exhaust, DataTrak, Sealed SST Lower, Tri-Clamp Fittings, Ultralife Rod/Cylinder
Pneumatic High-Flo 4-ball piston pumps provide high output per cycle to reduce pump wear and maintenance. Ideal for low pressure, high flow applications and inherently safe for hazardous locations.
- Slow-moving reciprocating motion does not damage paint like other rotary pumping technologies
- Completely sealed fluid section can be used almost anywhere, including catalyst and moisture sensitive materials
- Ultralife Series ceramic coating holds up to the harshest materials, including waterborne paints
- Rugged body armor, won’t rust or dent
- DataTrak tracks material usage, monitors and protects your pump
- Model: High-Flo
- Series: 4-Ball
- Application: Circulation
- Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, Metallics, Topcoats, Stains, Varnish, CARC
- Fluid Outlet Size (in): 1-1/2
- Fluid Outlet Size (mm): 38.1
- Fluid Section Type: Sealed
- Includes: Stainless Steel Pump, Low Noise Exhaust, DataTrak Monitor, Tri-Clamp Fittings, Ultralife Rod, Ultralife Cylinder
- Material: Stainless Steel
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 20
- Maximum Flow Rate (GPM): 16.9
- Maximum Flow Rate (L/min): 63.97
- Maximum Operating Temperature (°C): 66
- Maximum Operating Temperature (°F): 150
- Maximum Working Pressure (bar): 28
- Maximum Working Pressure (kPa): 2800
- Maximum Working Pressure (MPa): 2.8
- Maximum Working Pressure (psi): 400
- Motor Type: Low Noise NXT with DataTrak
- Portable: Non-Portable
- Pump Ratio: 4:1
HIGH-FLO PUMP, 3000, LN, SLD, TRI
GG JS44A8
HIGH-FLO PUMP, 3000, LN, SLD, TRI
High-Flo 4-Ball Pump, SST, 4.4:1, Low Noise XL, Sealed SST Lower, Ultralife Rod/Cylinder, Tri-Clamp Pneumatic High-Flo 4-ball piston pumps provide high output per cycle to reduce pump wear and maintenance. Ideal for low pressure, high flow applications and inherently safe for hazardous locations. Slow-moving reciprocating motion does not damage paint like other rotary pumping technologies Completely sealed fluid section can be used almost anywhere, including catalyst and moisture sensitive materials Ultralife Series ceramic coating holds up to the harshest materials, including waterborne paints De-icing controls eliminate stalling Rugged body armor, won’t rust or dent
HIGH-FLO PUMP, 3000, LN DT, SLD, TRI
GG JS44B8
HIGH-FLO PUMP, 3000, LN DT, SLD, TRI
Graco JS44B8 High-Flo 4-Ball Pump, SST, 4.4:1, Low Noise, DataTrak, Sealed SST Lower, Ultralife Rod/Cylinder, Tri-Clamp
Pneumatic High-Flo 4-ball piston pumps provide high output per cycle to reduce pump wear and maintenance. Ideal for low pressure, high flow applications and inherently safe for hazardous locations.
- Slow-moving reciprocating motion does not damage paint like other rotary pumping technologies
- Completely sealed fluid section can be used almost anywhere, including catalyst and moisture sensitive materials
- Ultralife Series ceramic coating holds up to the harshest materials, including waterborne paints
- Rugged body armor, won’t rust or dent
- DataTrak tracks material usage, monitors and protects your pump
- Model: High-Flo
- Series: 4-Ball
- Application: Circulation
- Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, Metallics, Topcoats, Stains, Varnish, CARC
- Fluid Outlet Size (in): 1.5
- Fluid Outlet Size (mm): 38.1
- Fluid Section Type: Sealed
- Includes: Stainless Steel Pump, Low Noise Exhaust, DataTrak Monitor, Tri-Clamp Fittings, Ultralife Rod, Ultralife Cylinder
- Material: Stainless Steel
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 20
- Maximum Flow Rate (GPM): 15.9
- Maximum Flow Rate (L/min): 60
- Maximum Operating Temperature (°C): 60
- Maximum Operating Temperature (°F): 140
- Maximum Working Pressure (bar): 30.3
- Maximum Working Pressure (kPa): 3030
- Maximum Working Pressure (MPa): 3
- Maximum Working Pressure (psi): 440
- Motor Type: Low Noise with DataTrak
- Portable: Non-Portable
- Pump Ratio: 4.4:1
High-Flo Pump, 3000, Rem Dt, Sld, Tri
GG JS44D8
High-Flo Pump, 3000, Rem Dt, Sld, Tri
HIGH-FLO PUMP, XL34/1500, LN, OPN, NPT
GG JS45A9
HIGH-FLO PUMP, XL34/1500, LN, OPN, NPT
High-Flo 4-Ball Pump, SST, 4.5:1, Low Noise XL, Open Wet Cup SST Lower, Ultralife Rod/Cylinder, NPT Pneumatic High-Flo 4-ball piston pumps provide high output per cycle to reduce pump wear and maintenance. Ideal for low pressure, high flow applications and inherently safe for hazardous locations. Slow-moving reciprocating motion does not damage paint like other rotary pumping technologies Rugged body armor, won’t rust or dent De-icing controls eliminate stalling Ultralife Series ceramic coating holds up to the harshest materials, including waterborne paints
KING SPRAYER, 25:1, H-P, BF, WALL, BARE
GG K25FW0
KING SPRAYER, 25:1, H-P, BF, WALL, BARE
Graco K25FW0 Discontinued: King 25:1 Sprayer, Integrated Filter, Wall Mount, Air Controls, Siphon Kit
Product replaced by newer version, see part number K30FW0
Application: High-quality, high-volume, high-pressure. The Graco King pneumatic airless sprayers are the most powerful machines for protective coatings. The system provides the applicator output values, pressure ratios and pumping capacities never seen before. The Graco King units are designed to withstand the harshest environmental conditions and easily handle the toughest protective coatings and corrosion control applications. With 10 different ratios available, there is a sprayer with the correct pressure and flow characteristics for your application.- Simple Maintenance
- Improved Icing Performance
- Less Pulsation
With more than 145% higher exhaust capacity in the air valve, you&prime, ll achieve a faster, smoother changeover.
Eliminating the &Prime, wink&Prime, in your pattern - it is a difference you will feel.
- New Air Motor
Multi gun capabilities Graco’s powerful new air motor lets you use multiple guns with almost no perceivable pulsation. A new manifold has been designed to simplify the installation of multiple guns.
The newly designed poppets and external pilot lines virtually eliminate pilot valve freezing that can result in an instant stop.
The icing potential has been reduced by up to 70%
- Model: King
- Approved for Hazardous Locations: Yes
- Frame Configuration: Wall Mount
- Gun Model: No Applicator
- Lower Type: Integrated Filter
- Maximum Fluid Working Pressure (psi): 2375
- Package Options: Air Controls, Siphon Kit
- Package Pressure Ratio (Motor/Lower): 25:1 XL3400 / 290cc
This air motor has 50% less parts when compared to the NXT valve, making maintenance and troubleshooting easy.
All motor parts are easily accessible and require simple maintenance.
KING SPRAYER, 30:1, H-P, BF, WALL, BARE
GG K30FW0
KING SPRAYER, 30:1, H-P, BF, WALL, BARE
Graco K30FW0 King 30:1 Sprayer, Integrated Filter, Wall Mount, Air Controls, Siphon Kit
High-quality, high-volume, high-pressure. The Graco King pneumatic airless sprayers are the most powerful machines for protective coatings. The system provides the applicator output values, pressure ratios and pumping capacities never seen before. The Graco King units are designed to withstand the harshest environmental conditions and easily handle the toughest protective coatings and corrosion control applications. With 10 different ratios available, there is a sprayer with the correct pressure and flow characteristics for your application.
Application: Superior air-operated pumps for high-volume and high-pressure waterproofing, fireproofing and protective coatings- Simple Maintenance
- Improved Icing Performance
- Less Pulsation
With more than 145% higher exhaust capacity in the air valve, you&prime, ll achieve a faster, smoother changeover.
Eliminating the &Prime, wink&Prime, in your pattern - it is a difference you will feel.
- New Air Motor
Multi gun capabilities Graco’s powerful new air motor lets you use multiple guns with almost no perceivable pulsation. A new manifold has been designed to simplify the installation of multiple guns.
The newly designed poppets and external pilot lines virtually eliminate pilot valve freezing that can result in an instant stop.
The icing potential has been reduced by up to 70%
- Model: King
- Approved for Hazardous Locations: Yes
- Compatible Material: Protective Coating
- Control Type: Fixed Ratio
- Convertible: Non-Convertible
- Features: Exposed Thermally Isolated Poppets, De-Icing Valve, Tool Box, Trusted XL Motor, Protective Rod Guard, Robust Air Controls, Xtreme Lowers, Improved Siphon Hose, Cart With Wheels
- Fluid Inlet Size (in): 1-1/4
- Fluid Inlet Size (mm): 31.75
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Size (mm): 12.7
- Frame Configuration: Wall Mount
- Gun Model: No Applicator
- Includes: Pump, Lower, Motor, Standard Filter, Wall Mount Bracket, Air Controls, Siphon Kit
- Lower Type: Integrated Filter
- Material Application: Paints, Primers
- Maximum Air Inlet Pressure (psi): 150
- Maximum Fluid Working Pressure (psi): 3150
- Maximum Sound Pressure Level (dB(A)): 81.48
- Maximum Tip Size (in): Variable
- Maximum Working Pressure (bar): 217
- Maximum Working Pressure (kPa): 21700
- Maximum Working Pressure (MPa): 21.7
- Maximum Working Pressure (psi): 3150
- Motor Type: XL High Performance
- Number of Guns: 0
- Package Options: Air Controls, Siphon Kit
This air motor has 50% less parts when compared to the NXT valve, making maintenance and troubleshooting easy.
All motor parts are easily accessible and require simple maintenance.
KING SPRAYER, 30:1, H-P, BF, WALL, COMP
GG K30FW1
KING SPRAYER, 30:1, H-P, BF, WALL, COMP
Graco K30FW1 King 30:1 Sprayer, Integrated Filter, Wall Mount, Air Controls, Siphon Kit, XTR-5+, 50 ft (15 m) Hose, 6 ft (1.8 m) Whip
High-quality, high-volume, high-pressure. The Graco King pneumatic airless sprayers are the most powerful machines for protective coatings. The system provides the applicator output values, pressure ratios and pumping capacities never seen before. The Graco King units are designed to withstand the harshest environmental conditions and easily handle the toughest protective coatings and corrosion control applications. With 10 different ratios available, there is a sprayer with the correct pressure and flow characteristics for your application.
Application: Superior air-operated pumps for high-volume and high-pressure waterproofing, fireproofing and protective coatings- Simple Maintenance
- Improved Icing Performance
- Less Pulsation
With more than 145% higher exhaust capacity in the air valve, you&prime, ll achieve a faster, smoother changeover.
Eliminating the &Prime, wink&Prime, in your pattern - it is a difference you will feel.
- New Air Motor
Multi gun capabilities Graco’s powerful new air motor lets you use multiple guns with almost no perceivable pulsation. A new manifold has been designed to simplify the installation of multiple guns.
The newly designed poppets and external pilot lines virtually eliminate pilot valve freezing that can result in an instant stop.
The icing potential has been reduced by up to 70%
- Model: King
- Approved for Hazardous Locations: Yes
- Compatible Material: Protective Coating
- Control Type: Fixed Ratio
- Convertible: Non-Convertible
- Features: Exposed Thermally Isolated Poppets, De-Icing Valve, Tool Box, Trusted XL Motor, Protective Rod Guard, Robust Air Controls, Xtreme Lowers, Improved Siphon Hose, Cart With Wheels
- Fluid Inlet Size (in): 1-1/4
- Fluid Inlet Size (mm): 31.75
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Size (mm): 12.7
- Frame Configuration: Wall Mount
- Gun Model: XTR-5
- Includes: Pump, Lower, Motor, Standard Filter, Wall Mount Bracket, Air Controls, Siphon Kit, Hose, Gun
- Lower Type: Integrated Filter
- Material Application: Paints, Primers
- Maximum Air Inlet Pressure (psi): 150
- Maximum Fluid Working Pressure (psi): 3150
- Maximum Sound Pressure Level (dB(A)): 81.48
- Maximum Tip Size (in): Variable
- Maximum Working Pressure (bar): 217
- Maximum Working Pressure (kPa): 21700
- Maximum Working Pressure (MPa): 21.7
- Maximum Working Pressure (psi): 3150
- Motor Type: XL High Performance
- Number of Guns: 1
This air motor has 50% less parts when compared to the NXT valve, making maintenance and troubleshooting easy.
All motor parts are easily accessible and require simple maintenance.
KING SPRAYER, 40:1, H-P, BF, HD, COMP
GG K40FH1
KING SPRAYER, 40:1, H-P, BF, HD, COMP
Graco K40FH1 King 40:1 Sprayer, Integrated Filter, Heavy Duty Cart, Air Controls, Siphon Kit, XTR-5+, 50 ft (15 m) Hose, 6 ft (1.8 m) Whip
High-quality, high-volume, high-pressure. The Graco King pneumatic airless sprayers are the most powerful machines for protective coatings. The system provides the applicator output values, pressure ratios and pumping capacities never seen before. The Graco King units are designed to withstand the harshest environmental conditions and easily handle the toughest protective coatings and corrosion control applications. With 10 different ratios available, there is a sprayer with the correct pressure and flow characteristics for your application.
Application: Superior air-operated pumps for high-volume and high-pressure waterproofing, fireproofing and protective coatings- Simple Maintenance
- Improved Icing Performance
- Less Pulsation
With more than 145% higher exhaust capacity in the air valve, you&prime, ll achieve a faster, smoother changeover.
Eliminating the &Prime, wink&Prime, in your pattern - it is a difference you will feel.
- New Air Motor
Multi gun capabilities Graco’s powerful new air motor lets you use multiple guns with almost no perceivable pulsation. A new manifold has been designed to simplify the installation of multiple guns.
The newly designed poppets and external pilot lines virtually eliminate pilot valve freezing that can result in an instant stop.
The icing potential has been reduced by up to 70%
- Model: King
- Air Inlet Size (in): 1
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Approved for Hazardous Locations: Yes
- Compatible Material: Protective Coating
- Control Type: Fixed Ratio
- Convertible: Non-Convertible
- Features: Exposed Thermally Isolated Poppets, De-Icing Valve, Tool Box, Trusted XL Motor, Protective Rod Guard, Robust Air Controls, Xtreme Lowers, Improved Siphon Hose, Cart With Wheels
- Fluid Inlet Size (in): 1-1/4
- Fluid Inlet Size (mm): 31.75
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Size (mm): 12.7
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Frame Configuration: Heavy-Duty Cart
- Gun Model: XTR-5
- Includes: Pump, Lower, Motor, Standard Filter, Heavy Duty Cart, Air Controls, Siphon Kit, Hose, Gun
- Lower Type: Integrated Filter
- Material Application: Paints, Primers
- Maximum Air Inlet Pressure (psi): 150
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (kPa): 700
- Maximum Air Pressure (psi): 100
- Maximum Fluid Working Pressure (psi): 3800
- Maximum Sound Pressure Level (dB(A)): 81.48
This air motor has 50% less parts when compared to the NXT valve, making maintenance and troubleshooting easy.
All motor parts are easily accessible and require simple maintenance.
KING SPRAYER, 40:1, H-P, NF, HD, BARE
GG K40NH0
KING SPRAYER, 40:1, H-P, NF, HD, BARE
Graco K40NH0 Discontinued: King 40:1 Sprayer, Non-Filter, Heavy Duty Cart, Air Controls, Siphon Kit
Product replaced by newer version, see part number K40FH0
Application: Superior air-operated pumps for high-volume and high-pressure waterproofing, fireproofing and protective coatings- Simple Maintenance
- Improved Icing Performance
- Less Pulsation
With more than 145% higher exhaust capacity in the air valve, you&prime, ll achieve a faster, smoother changeover.
Eliminating the &Prime, wink&Prime, in your pattern - it is a difference you will feel.
- New Air Motor
Multi gun capabilities Graco’s powerful new air motor lets you use multiple guns with almost no perceivable pulsation. A new manifold has been designed to simplify the installation of multiple guns.
The newly designed poppets and external pilot lines virtually eliminate pilot valve freezing that can result in an instant stop.
The icing potential has been reduced by up to 70%
- Model: King
- Approved for Hazardous Locations: Yes
- Compatible Material: Protective Coating
- Control Type: Fixed Ratio
- Convertible: Non-Convertible
- Features: Exposed Thermally Isolated Poppets, De-Icing Valve, Tool Box, Trusted XL Motor, Protective Rod Guard, Robust Air Controls, Xtreme Lowers, Improved Siphon Hose, Cart With Wheels
- Fluid Inlet Size (in): 1-1/4
- Fluid Inlet Size (mm): 31.75
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Size (mm): 12.7
- Fluid Outlet Thread Type: NPT
- Frame Configuration: Heavy-Duty Cart
- Gun Model: No Applicator
- Includes: Pump, Lower, Motor, Standard Non-Filter, Heavy Duty Cart, Air Controls, Siphon Kit
- Lower Type: Non-Filter
- Material Application: Paints, Primers
- Maximum Air Inlet Pressure (psi): 150
- Maximum Fluid Working Pressure (psi): 3800
- Maximum Sound Pressure Level (dB(A)): 81.48
- Maximum Tip Size (in): Variable
- Maximum Working Pressure (bar): 262
- Maximum Working Pressure (kPa): 26200
- Maximum Working Pressure (MPa): 26.2
- Maximum Working Pressure (psi): 3800
- Motor Type: XL High Performance
- Number of Guns: 0
- Package Options: Air Controls, Siphon Kit
- Package Pressure Ratio (Motor/Lower): 40:1 XL3400 / 180cc
- Power Source: Air
- Product Type: Single Leg
- Pump Mount Type: Heavy-Duty Cart
- Pump Rod Type: MaxLife
- Pump Type: Pneumatic Piston Pump
This air motor has 50% less parts when compared to the NXT valve, making maintenance and troubleshooting easy.
All motor parts are easily accessible and require simple maintenance.
KING SPRAYER, 45:1, H-P, BF, HD, BARE
GG K45FH0
KING SPRAYER, 45:1, H-P, BF, HD, BARE
Graco K45FH0 King 45:1 Sprayer, Integrated Filter, Heavy Duty Cart, Air Controls, Siphon Kit
High-quality, high-volume, high-pressure. The Graco King pneumatic airless sprayers are the most powerful machines for protective coatings. The system provides the applicator output values, pressure ratios and pumping capacities never seen before. The Graco King units are designed to withstand the harshest environmental conditions and easily handle the toughest protective coatings and corrosion control applications. With 10 different ratios available, there is a sprayer with the correct pressure and flow characteristics for your application.
Application: Superior air-operated pumps for high-volume and high-pressure waterproofing, fireproofing and protective coatings- Simple Maintenance
- Improved Icing Performance
- Less Pulsation
With more than 145% higher exhaust capacity in the air valve, you&prime, ll achieve a faster, smoother changeover.
Eliminating the &Prime, wink&Prime, in your pattern - it is a difference you will feel.
- New Air Motor
Multi gun capabilities Graco’s powerful new air motor lets you use multiple guns with almost no perceivable pulsation. A new manifold has been designed to simplify the installation of multiple guns.
The newly designed poppets and external pilot lines virtually eliminate pilot valve freezing that can result in an instant stop.
The icing potential has been reduced by up to 70%
- Model: King
- Approved for Hazardous Locations: Yes
- Compatible Material: Protective Coating
- Control Type: Fixed Ratio
- Convertible: Non-Convertible
- Features: Exposed Thermally Isolated Poppets, De-Icing Valve, Tool Box, Trusted XL Motor, Protective Rod Guard, Robust Air Controls, Xtreme Lowers, Improved Siphon Hose, Cart With Wheels
- Fluid Inlet Size (in): 1-1/4
- Fluid Inlet Size (mm): 31.75
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Size (mm): 12.7
- Fluid Outlet Thread Type: NPT
- Frame Configuration: Heavy-Duty Cart
- Gun Model: No Applicator
- Includes: Pump, Lower, Motor, Standard Filter, Heavy Duty Cart, Air Controls, Siphon Kit
- Lower Type: Integrated Filter
- Material Application: Paints, Primers
- Maximum Air Inlet Pressure (psi): 150
- Maximum Fluid Working Pressure (psi): 4500
- Maximum Sound Pressure Level (dB(A)): 81.48
- Maximum Tip Size (in): Variable
- Maximum Working Pressure (bar): 310
- Maximum Working Pressure (kPa): 31000
- Maximum Working Pressure (MPa): 31
- Maximum Working Pressure (psi): 4500
- Motor Type: XL High Performance
- Number of Guns: 0
- <
This air motor has 50% less parts when compared to the NXT valve, making maintenance and troubleshooting easy.
All motor parts are easily accessible and require simple maintenance.
KING SPRAYER, 45:1, H-P, BF, HD, COMP
GG K45FH1
KING SPRAYER, 45:1, H-P, BF, HD, COMP
Graco K45FH1 King 45:1 Sprayer, Integrated Filter, Heavy Duty Cart, Air Controls, Siphon Kit, XTR-5+, 50 ft (15 m) Hose, 6 ft (1.8 m) Whip
High-quality, high-volume, high-pressure. The Graco King pneumatic airless sprayers are the most powerful machines for protective coatings. The system provides the applicator output values, pressure ratios and pumping capacities never seen before. The Graco King units are designed to withstand the harshest environmental conditions and easily handle the toughest protective coatings and corrosion control applications. With 10 different ratios available, there is a sprayer with the correct pressure and flow characteristics for your application.
Application: Superior air-operated pumps for high-volume and high-pressure waterproofing, fireproofing and protective coatings- Simple Maintenance
- Improved Icing Performance
- Less Pulsation
With more than 145% higher exhaust capacity in the air valve, you&prime, ll achieve a faster, smoother changeover.
Eliminating the &Prime, wink&Prime, in your pattern - it is a difference you will feel.
- New Air Motor
Multi gun capabilities Graco’s powerful new air motor lets you use multiple guns with almost no perceivable pulsation. A new manifold has been designed to simplify the installation of multiple guns.
The newly designed poppets and external pilot lines virtually eliminate pilot valve freezing that can result in an instant stop.
The icing potential has been reduced by up to 70%
- Model: King
- Air Inlet Size (in): 1
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Approved for Hazardous Locations: Yes
- Compatible Material: Protective Coating
- Control Type: Fixed Ratio
- Convertible: Non-Convertible
- Features: Exposed Thermally Isolated Poppets, De-Icing Valve, Tool Box, Trusted XL Motor, Protective Rod Guard, Robust Air Controls, Xtreme Lowers, Improved Siphon Hose, Cart With Wheels
- Fluid Inlet Size (in): 1-1/4
- Fluid Inlet Size (mm): 31.75
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Size (mm): 12.7
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Frame Configuration: Heavy-Duty Cart
- Gun Model: XTR-5
- Includes: Pump, Lower, Motor, Standard Filter, Heavy Duty Cart, Air Controls, Siphon Kit, Hose, Gun
- Lower Type: Integrated Filter
- Material Application: Paints, Primers
- Maximum Air Inlet Pressure (psi): 150
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (kPa): 700
- Maximum Air Pressure (psi): 100
- Maximum Fluid Working Pressure (psi): 4500
- Maximum Sound Pressure Level (dB(A)): 81.48
This air motor has 50% less parts when compared to the NXT valve, making maintenance and troubleshooting easy.
All motor parts are easily accessible and require simple maintenance.
KING SPRAYER, 45:1, H-P, NF, HD, BARE
GG K45NH0
KING SPRAYER, 45:1, H-P, NF, HD, BARE
King 45:1 Sprayer, Non-Filter, Heavy Duty Cart, Air Controls, Siphon KitHigh-quality, high-volume, high-pressure. The Graco King pneumatic airless sprayers are the most powerful machines for protective coatings. The system provides the applicator output values, pressure ratios and pumping capacities never seen before. The Graco King units are designed to withstand the harshest environmental conditions and easily handle the toughest protective coatings and corrosion control applications. With 10 different ratios available, there is a sprayer with the correct pressure and flow characteristics for your application.
Superior air-operated pumps for high-volume and high-pressure waterproofing, fireproofing and protective coatings- This air motor has 50% less parts when compared to the NXT valve, making maintenance and troubleshooting easy.
- All motor parts are easily accessible and require simple maintenance.
- The newly designed poppets and external pilot lines virtually eliminate pilot valve freezing that can result in an instant stop.
- The icing potential has been reduced by up to 70%
- With more than 145% higher exhaust capacity in the air valve, you'll achieve a faster, smoother changeover.
- Eliminating the "wink" in your pattern - it is a difference you will feel.
- Improved sealing and strength with the improved edge loading and seven throat pickings instead of five. The new MaxLife pump Lowers are designed for the most demanding jobs, providing unmatched durability and life.
- Multi gun capabilities Graco’s powerful new air motor lets you use multiple guns with almost no perceivable pulsation. A new manifold has been designed to simplify the installation of multiple guns.
KING SPRAYER, 45:1, H-P, NF, HD, COMP
GG K45NH1
KING SPRAYER, 45:1, H-P, NF, HD, COMP
King 45:1 Sprayer, Non-Filter, Heavy Duty Cart, Air Controls, Siphon Kit, XTR-5+, 50 ft (15 m) Hose, 6 ft (1.8 m) WhipHigh-quality, high-volume, high-pressure. The Graco King pneumatic airless sprayers are the most powerful machines for protective coatings. The system provides the applicator output values, pressure ratios and pumping capacities never seen before. The Graco King units are designed to withstand the harshest environmental conditions and easily handle the toughest protective coatings and corrosion control applications. With 10 different ratios available, there is a sprayer with the correct pressure and flow characteristics for your application.
Superior air-operated pumps for high-volume and high-pressure waterproofing, fireproofing and protective coatings- This air motor has 50% less parts when compared to the NXT valve, making maintenance and troubleshooting easy.
- All motor parts are easily accessible and require simple maintenance.
- The newly designed poppets and external pilot lines virtually eliminate pilot valve freezing that can result in an instant stop.
- The icing potential has been reduced by up to 70%
- With more than 145% higher exhaust capacity in the air valve, you'll achieve a faster, smoother changeover.
- Eliminating the "wink" in your pattern - it is a difference you will feel.
- Improved sealing and strength with the improved edge loading and seven throat pickings instead of five. The new MaxLife pump Lowers are designed for the most demanding jobs, providing unmatched durability and life.
- Multi gun capabilities Graco’s powerful new air motor lets you use multiple guns with almost no perceivable pulsation. A new manifold has been designed to simplify the installation of multiple guns.
KING SPRAYER, 60:1, H-P, BF, HD, BARE
GG K60FH0
KING SPRAYER, 60:1, H-P, BF, HD, BARE
Graco K60FH0 King 60:1 Sprayer, Integrated Filter, Heavy Duty Cart, Air Controls, Siphon Kit
High-quality, high-volume, high-pressure. The Graco King pneumatic airless sprayers are the most powerful machines for protective coatings. The system provides the applicator output values, pressure ratios and pumping capacities never seen before. The Graco King units are designed to withstand the harshest environmental conditions and easily handle the toughest protective coatings and corrosion control applications. With 10 different ratios available, there is a sprayer with the correct pressure and flow characteristics for your application.
Application: Superior air-operated pumps for high-volume and high-pressure waterproofing, fireproofing and protective coatings- Simple Maintenance
- Improved Icing Performance
- Less Pulsation
With more than 145% higher exhaust capacity in the air valve, you&prime, ll achieve a faster, smoother changeover.
Eliminating the &Prime, wink&Prime, in your pattern - it is a difference you will feel.
- New Air Motor
Multi gun capabilities Graco’s powerful new air motor lets you use multiple guns with almost no perceivable pulsation. A new manifold has been designed to simplify the installation of multiple guns.
The newly designed poppets and external pilot lines virtually eliminate pilot valve freezing that can result in an instant stop.
The icing potential has been reduced by up to 70%
- Model: King
- Approved for Hazardous Locations: Yes
- Compatible Material: Protective Coating
- Control Type: Fixed Ratio
- Convertible: Non-Convertible
- Features: Exposed Thermally Isolated Poppets, De-Icing Valve, Tool Box, Trusted XL Motor, Protective Rod Guard, Robust Air Controls, Xtreme Lowers, Improved Siphon Hose, Cart With Wheels
- Fluid Inlet Size (in): 1-1/4
- Fluid Inlet Size (mm): 31.75
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Size (mm): 12.7
- Fluid Outlet Thread Type: NPT
- Frame Configuration: Heavy-Duty Cart
- Gun Model: No Applicator
- Includes: Pump, Lower, Motor, Standard Filter, Heavy Duty Cart, Air Controls, Siphon Kit
- Lower Type: Integrated Filter
- Material Application: Paints, Primers
- Maximum Air Inlet Pressure (psi): 150
- Maximum Fluid Working Pressure (psi): 6000
- Maximum Sound Pressure Level (dB(A)): 81.48
- Maximum Tip Size (in): Variable
- Maximum Working Pressure (bar): 417
- Maximum Working Pressure (kPa): 41700
- Maximum Working Pressure (MPa): 41.7
- Maximum Working Pressure (psi): 6000
- Motor Type: XL High Performance
- Number of Guns: 0
This air motor has 50% less parts when compared to the NXT valve, making maintenance and troubleshooting easy.
All motor parts are easily accessible and require simple maintenance.
KING SPRAYER, 60:1, H-P, BF, HD, COMP
GG K60FH1
KING SPRAYER, 60:1, H-P, BF, HD, COMP
Graco K60FH1 King 60:1 Sprayer, Integrated Filter, Heavy Duty Cart, Air Controls, Siphon Kit, XTR-7+, 50 ft (15 m) Hose, 6 ft (1.8 m) Whip
High-quality, high-volume, high-pressure. The Graco King pneumatic airless sprayers are the most powerful machines for protective coatings. The system provides the applicator output values, pressure ratios and pumping capacities never seen before. The Graco King units are designed to withstand the harshest environmental conditions and easily handle the toughest protective coatings and corrosion control applications. With 10 different ratios available, there is a sprayer with the correct pressure and flow characteristics for your application.
Application: Superior air-operated pumps for high-volume and high-pressure waterproofing, fireproofing and protective coatings- Simple Maintenance
- Improved Icing Performance
- Less Pulsation
With more than 145% higher exhaust capacity in the air valve, you&prime, ll achieve a faster, smoother changeover.
Eliminating the &Prime, wink&Prime, in your pattern - it is a difference you will feel.
- New Air Motor
Multi gun capabilities Graco’s powerful new air motor lets you use multiple guns with almost no perceivable pulsation. A new manifold has been designed to simplify the installation of multiple guns.
The newly designed poppets and external pilot lines virtually eliminate pilot valve freezing that can result in an instant stop.
The icing potential has been reduced by up to 70%
- Model: King
- Air Inlet Size (in): 1
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Approved for Hazardous Locations: Yes
- Compatible Material: Protective Coating
- Control Type: Fixed Ratio
- Convertible: Non-Convertible
- Features: Exposed Thermally Isolated Poppets, De-Icing Valve, Tool Box, Trusted XL Motor, Protective Rod Guard, Robust Air Controls, Xtreme Lowers, Improved Siphon Hose, Cart With Wheels
- Fluid Inlet Size (in): 1-1/4
- Fluid Inlet Size (mm): 31.75
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Size (mm): 12.7
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Frame Configuration: Heavy-Duty Cart
- Gun Model: XTR-7
- Includes: Pump, Lower, Motor, Standard Filter, Heavy Duty Cart, Air Controls, Siphon Kit, Hose, Gun
- Lower Type: Integrated Filter
- Material Application: Paints, Primers
- Maximum Air Inlet Pressure (psi): 150
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (kPa): 700
- Maximum Air Pressure (psi): 100
- Maximum Fluid Working Pressure (psi): 6000
- Maximum Sound Pressure Level (dB(A)): 81.48
This air motor has 50% less parts when compared to the NXT valve, making maintenance and troubleshooting easy.
All motor parts are easily accessible and require simple maintenance.
LOWER, CM060 SEVERE DUTY
GG L060CS
LOWER, CM060 SEVERE DUTY
Graco L060CS Carbon Steel Severe Duty Check-Mate 60 Lower
Application: With priming piston, rod and cylinder.
- Model: Check-Mate
- Ambient/Warm Melt/Hot Melt: Ambient
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
- Fluid Outlet Size (in): 3/4
- Fluid Outlet Thread Gender: Male
- Fluid Outlet Thread Type: NPT
- For Use With: Check-Mate Pump Packages
- Maximum Flow Rate (GPM): 0.9
- Maximum Operating Temperature (°F): 180
- Maximum Output (cm³): 60
- Maximum Pump Speed (CPM): 60
- Maximum Working Pressure (psi): 6100
LOWER, CHEMICAL, 40, SST, UCUP
GG L040S1
LOWER, CHEMICAL, 40, SST, UCUP
Graco L040S1 Z-Pump, 40 cc, Severe Duty, S1
Z-Pumps are positive displacement pump components for use with the Graco meter, mix, and dispense systems and are ideal for two-component sealant and adhesives requiring precision ratio, flow, and volume controls.
- Severe Duty coatings and 1 inch (2.54 cm) checks easily manage material wear from silicones, sealants, epoxies, foam, and structural adhesives.
- Precision control eliminates pressure spikes and guarantees on ratio dispense.
- Pump seals are the only wear parts, which reduces maintenance downtime and repair costs.
- Model: Z-Pump
- Series: S1
- Ambient/Warm Melt/Hot Melt: Ambient
- Application: Industrial
- Ball Check Size (in): 1
- Ball Material: Silicon Nitride
- Coating Type: Severe Duty
- Feed Type: Pressure Feed
- Fluid Inlet Size (cm): 1.905
- Fluid Inlet Size (in): 3/4
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: SAE
- For Use With: HFR
- Maximum Flow Rate (GPM): 0.63
- Maximum Operating Temperature (°F): 180
- Maximum Output (cm³): 40
- Maximum Pump Speed (CPM): 60
- Maximum Viscosity (cP): 3000000
LOWER, CHEMICAL, 010, SST, UCUP
GG L010S4
LOWER, CHEMICAL, 010, SST, UCUP
Z-Pump, 10 cc, Severe Duty, S4 Z-Pumps are positive displacement pump components for use with the Graco and meter, mix, and dispense systems and are ideal for two-component sealant and adhesives requiring precision ratio, flow, and volume controls. Severe Duty coatings and 1/2 inch (1.27 cm) checks easily manage material wear from silicones, sealants, epoxies, and structural adhesives. Precision control eliminates pressure spikes and guarantees on ratio dispense. Pump seals are the only wear parts, which reduces maintenance downtime and repair costs.
LOWER, CHEMICAL, 040, SST, UCUP
GG L040S4
LOWER, CHEMICAL, 040, SST, UCUP
Graco L040S4 Z-Pump, 40 cc, Severe Duty, S4
Z-Pumps are positive displacement pump components for use with the Graco and meter, mix, and dispense systems and are ideal for two-component sealant and adhesives requiring precision ratio, flow, and volume controls.
- Severe Duty coatings and 1/2 inch (1.27 cm) checks easily manage material wear from silicones, sealants, epoxies, and structural adhesives.
- Precision control eliminates pressure spikes and guarantees on ratio dispense.
- Pump seals are the only wear parts, which reduces maintenance downtime and repair costs.
- Model: Z-Pump
- Series: S4
- Ambient/Warm Melt/Hot Melt: Ambient
- Application: Industrial
- Ball Check Size (in): 1/2
- Ball Material: Silicon Nitride
- Coating Type: Severe Duty
- Feed Type: Pressure Feed
- Fluid Inlet Size (cm): 1.905
- Fluid Inlet Size (in): 3/4
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: SAE
- For Use With: EFR, HFR
- Maximum Flow Rate (GPM): 0.63
- Maximum Operating Temperature (°F): 180
- Maximum Output (cm³): 40
- Maximum Pump Speed (CPM): 60
- Maximum Viscosity (cP): 3000000
LOWER, CHEMICAL, 020, SST, UCUP
GG L020S4
LOWER, CHEMICAL, 020, SST, UCUP
Graco L020S4 Z-Pump, 20 cc, Severe Duty, S4
Z-Pumps are positive displacement pump components for use with the Graco and meter, mix, and dispense systems and are ideal for two-component sealant and adhesives requiring precision ratio, flow, and volume controls.
- Severe Duty coatings and 1/2 inch (1.27 cm) checks easily manage material wear from silicones, sealants, epoxies, and structural adhesives.
- Precision control eliminates pressure spikes and guarantees on ratio dispense.
- Pump seals are the only wear parts, which reduces maintenance downtime and repair costs.
- Model: Z-Pump
- Series: S4
- Ambient/Warm Melt/Hot Melt: Ambient
- Application: Industrial
- Ball Check Size (in): 1/2
- Ball Material: Silicon Nitride
- Coating Type: Severe Duty
- Feed Type: Pressure Feed
- Fluid Inlet Size (cm): 1.905
- Fluid Inlet Size (in): 3/4
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: SAE
- For Use With: EFR, HFR
- Maximum Flow Rate (GPM): 0.32
- Maximum Operating Temperature (°F): 180
- Maximum Output (cm³): 20
- Maximum Pump Speed (CPM): 60
- Maximum Viscosity (cP): 3000000
KING SPRAYER, 70:1, H-P, BF, HD, BARE
GG K70FH0
KING SPRAYER, 70:1, H-P, BF, HD, BARE
Graco K70FH0 King 70:1 Sprayer, Integrated Filter, Heavy Duty Cart, Air Controls, Siphon Kit
High-quality, high-volume, high-pressure. The Graco King pneumatic airless sprayers are the most powerful machines for protective coatings. The system provides the applicator output values, pressure ratios and pumping capacities never seen before. The Graco King units are designed to withstand the harshest environmental conditions and easily handle the toughest protective coatings and corrosion control applications. With 10 different ratios available, there is a sprayer with the correct pressure and flow characteristics for your application.
Application: Superior air-operated pumps for high-volume and high-pressure waterproofing, fireproofing and protective coatings- Simple Maintenance
- Improved Icing Performance
- Less Pulsation
With more than 145% higher exhaust capacity in the air valve, you&prime, ll achieve a faster, smoother changeover.
Eliminating the &Prime, wink&Prime, in your pattern - it is a difference you will feel.
- New Air Motor
Multi gun capabilities Graco’s powerful new air motor lets you use multiple guns with almost no perceivable pulsation. A new manifold has been designed to simplify the installation of multiple guns.
The newly designed poppets and external pilot lines virtually eliminate pilot valve freezing that can result in an instant stop.
The icing potential has been reduced by up to 70%
- Model: King
- Air Inlet Size (in): 1
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Approved for Hazardous Locations: Yes
- Compatible Material: Protective Coating
- Control Type: Fixed Ratio
- Convertible: Non-Convertible
- Features: Exposed Thermally Isolated Poppets, De-Icing Valve, Tool Box, Trusted XL Motor, Protective Rod Guard, Robust Air Controls, Xtreme Lowers, Improved Siphon Hose, Cart With Wheels
- Fluid Inlet Size (in): 1-1/4
- Fluid Inlet Size (mm): 31.75
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Size (mm): 12.7
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Frame Configuration: Heavy-Duty Cart
- Gun Model: No Applicator
- Includes: Pump, Lower, Motor, Standard Filter, Heavy Duty Cart, Air Controls, Siphon Kit
- Lower Type: Integrated Filter
- Material Application: Paints, Primers
- Maximum Air Inlet Pressure (psi): 150
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (kPa): 700
- Maximum Air Pressure (psi): 100
- Maximum Fluid Working Pressure (psi): 7250
- Maximum Sound Pressure Level (dB(A)): 81.48
- Maximum Tip Siz
This air motor has 50% less parts when compared to the NXT valve, making maintenance and troubleshooting easy.
All motor parts are easily accessible and require simple maintenance.
