King Sprayer,40:1,H-P,Nf,Hd,Bare

GG K40NH0

KING SPRAYER, 40:1, H-P, NF, HD, BARE

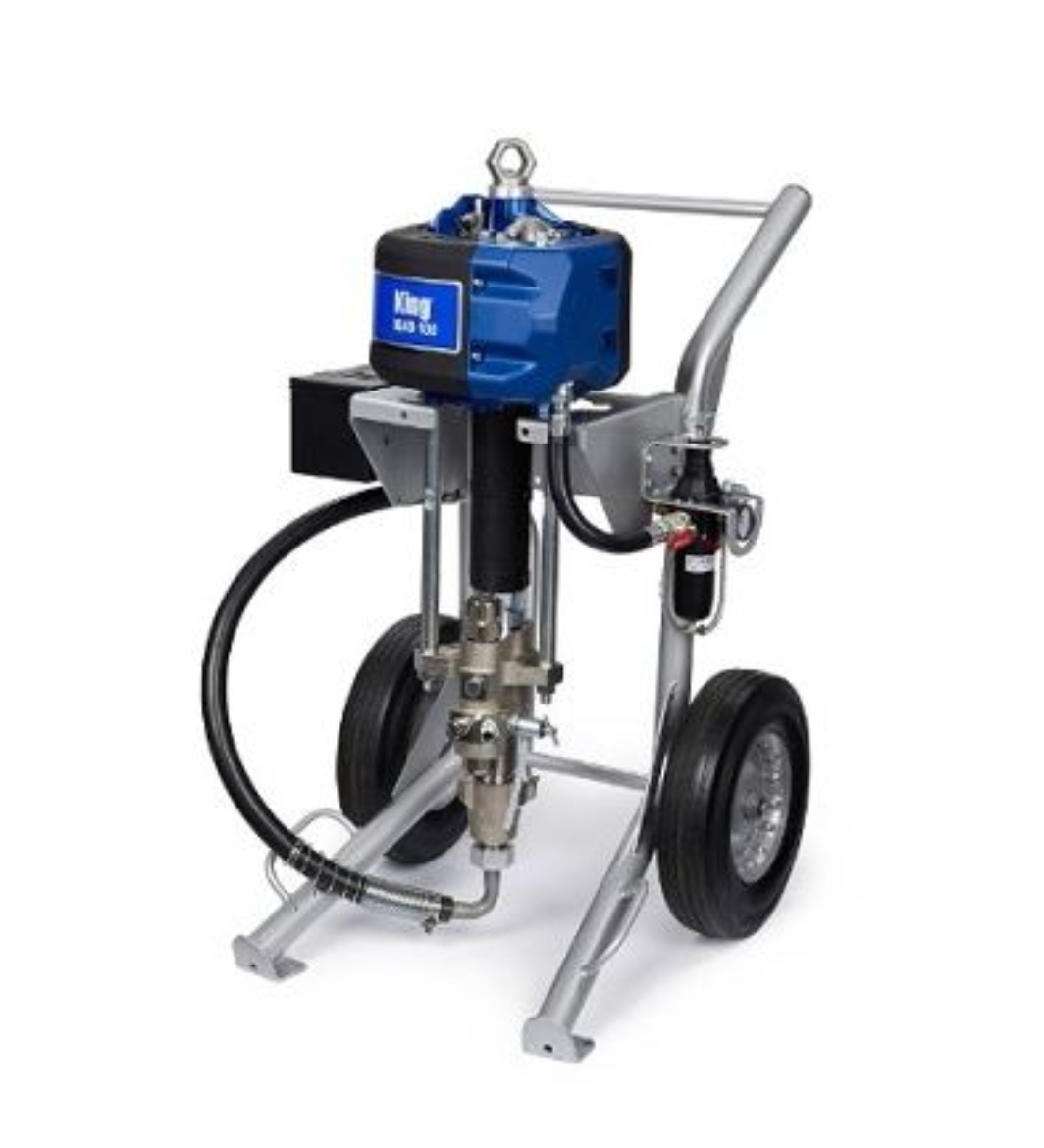

Graco K40NH0 Discontinued: King 40:1 Sprayer, Non-Filter, Heavy Duty Cart, Air Controls, Siphon Kit

Product replaced by newer version, see part number K40FH0

• Simple Maintenance

  This air motor has 50% less parts when compared to the NXT valve, making maintenance and troubleshooting easy.

  All motor parts are easily accessible and require simple maintenance.

  • Improved Icing Performance

    The newly designed poppets and external pilot lines virtually eliminate pilot valve freezing that can result in an instant stop.

    The icing potential has been reduced by up to 70%

    • Less Pulsation

      With more than 145% higher exhaust capacity in the air valve, youll achieve a faster, smoother changeover.

      Eliminating the winkin your pattern - it is a difference you will feel.

    • New Air Motor

      Multi gun capabilities Graco's powerful new air motor lets you use multiple guns with almost no perceivable pulsation. A new manifold has been designed to simplify the installation of multiple guns.




    • Model: King
    • Approved for Hazardous Locations: Yes
    • Compatible Material: Protective Coating
    • Control Type: Fixed Ratio
    • Convertible: Non-Convertible
    • Features: Exposed Thermally Isolated Poppets, De-Icing Valve, Tool Box, Trusted XL Motor, Protective Rod Guard, Robust Air Controls, Xtreme Lowers, Improved Siphon Hose, Cart With Wheels
    • Fluid Inlet Size (in): 1-1/4
    • Fluid Inlet Size (mm): 31.75
    • Fluid Inlet Thread Type: NPT
    • Fluid Outlet Size (in): 1/2
    • Fluid Outlet Size (mm): 12.7
    • Fluid Outlet Thread Type: NPT
    • Frame Configuration: Heavy-Duty Cart
    • Gun Model: No Applicator
    • Includes: Pump, Lower, Motor, Standard Non-Filter, Heavy Duty Cart, Air Controls, Siphon Kit
    • Lower Type: Non-Filter
    • Material Application: Paints, Primers
    • Maximum Air Inlet Pressure (psi): 150
    • Maximum Fluid Working Pressure (psi): 3800
    • Maximum Sound Pressure Level (dB(A)): 81.48
    • Maximum Tip Size (in): Variable
    • Maximum Working Pressure (bar): 262
    • Maximum Working Pressure (kPa): 26200
    • Maximum Working Pressure (MPa): 26.2
    • Maximum Working Pressure (psi): 3800
    • Motor Type: XL High Performance
    • Number of Guns: 0
    • Package Options: Air Controls, Siphon Kit
    • Package Pressure Ratio (Motor/Lower): 40:1 XL3400 / 180cc
    • Power Source: Air
    • Product Type: Single Leg
    • Pump Mount Type: Heavy-Duty Cart
    • Pump Rod Type: MaxLife
    • Pump Type: Pneumatic Piston Pump
