GG GDG959
DURA-FLO SUPPLY UNIT, 10:1, 3.0 RAM, 200L

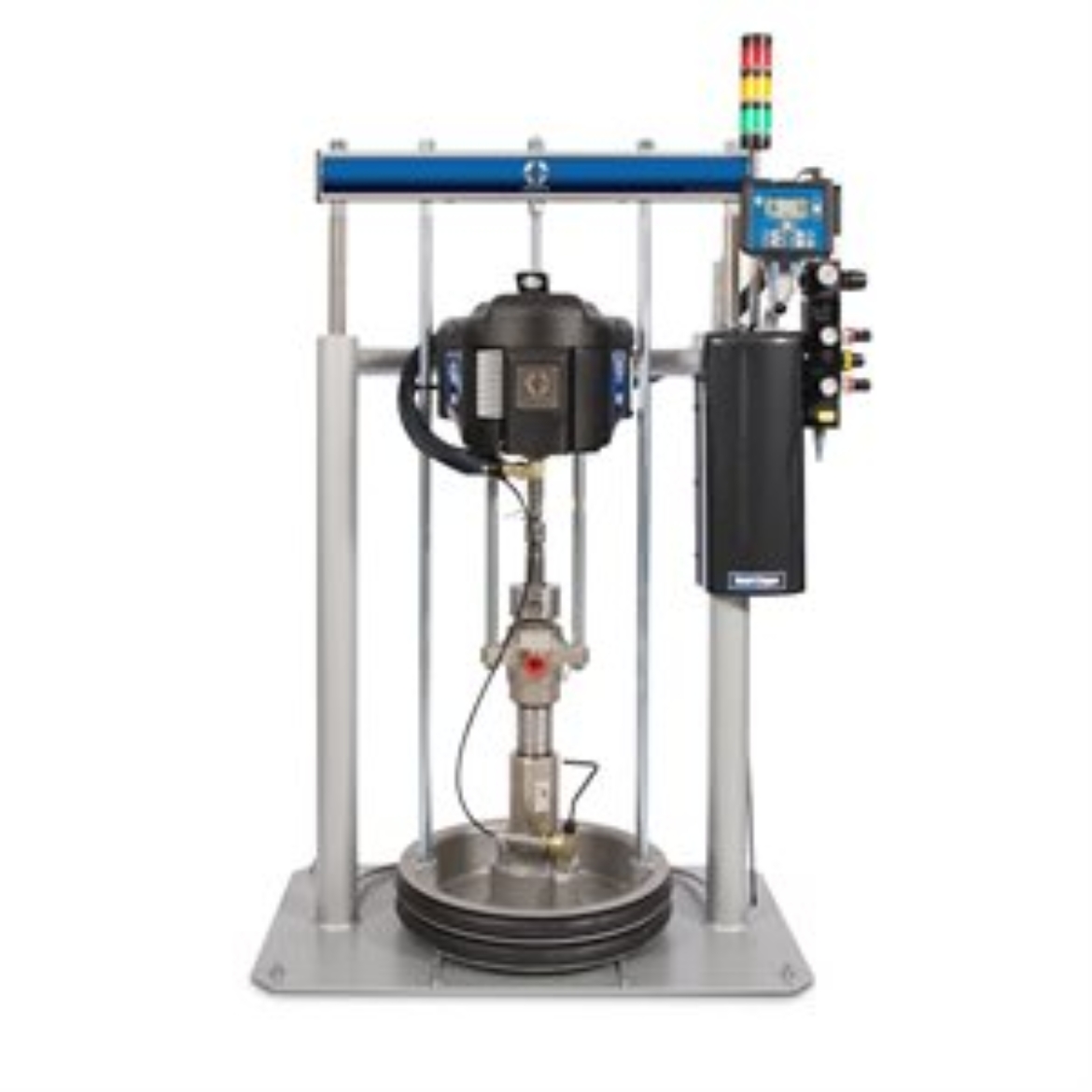

Graco GDG959 Supply Unit, Check-Mate, 10:1, 3 in. Ram, 200L, Single EPDM Wiper
Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.
Application: Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials
- For large drums up to 200 liter (55 gal)
- Graco D200 - For high-volume in-plant applications
- Industry-first controls give you immediate and important information at the touch of a button
- Platen wipers can be replaced in seconds
- Pumps quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
- High-quality, durable parts reduce maintenance time, maximize uptime
- Model: Dura-Flo
- Series: D200
- Ambient/Warm Melt/Hot Melt: Ambient
- Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
- Material Container Volume (gal): 52.8
- Material Container Volume (l): 200
- Maximum Air Inlet Pressure (bar): 10.34
- Maximum Air Inlet Pressure (kg/cm 2): 10.55
- Maximum Air Inlet Pressure (kPa): 1034
- Maximum Air Inlet Pressure (psi): 150
- Maximum Flow Rate (GPM): 17.4
- Maximum Flow Rate (L/min): 65.9
- Maximum Fluid Pressure (bar): 81.4
- Maximum Fluid Pressure (kPa): 8140
- Maximum Fluid Pressure (psi): 1180
- Maximum Fluid Pressure (bar): 81.4
- Maximum Fluid Pressure (kPa): 8140
- Maximum Fluid Pressure (psi): 1180
- Maximum Height (cm): 101.6
- Maximum Height (ft): 3.33
- Maximum Height (in): 40
- Maximum Height (m): 1.02
- Maximum Height (mm): 1016
- Maximum Operating Temperature ( degree C): 49
- Maximum Operating Temperature ( degree F): 120
- Minimum Height (cm): 164.6
- Minimum Height (ft): 5.4
- Minimum Height (in): 64.8
- Minimum Height (m): 1.65
- Minimum Height (mm): 1646
- Overall Depth (cm): 63.5
- Overall Depth (in): 25
- Overall Depth (mm): 635
- Overall Width (cm): 106.7
- Overall Width (in): 42
- Overall Width (mm): 1067
- Pump Ratio: 10:1
- Pump Type: Double Ball
- Ram Material: Carbon Steel
