Gun Assy, Probler P2 Elite

GG GCP3R3

P2 GUN, ASSY, GUN, PROBLER ELITE

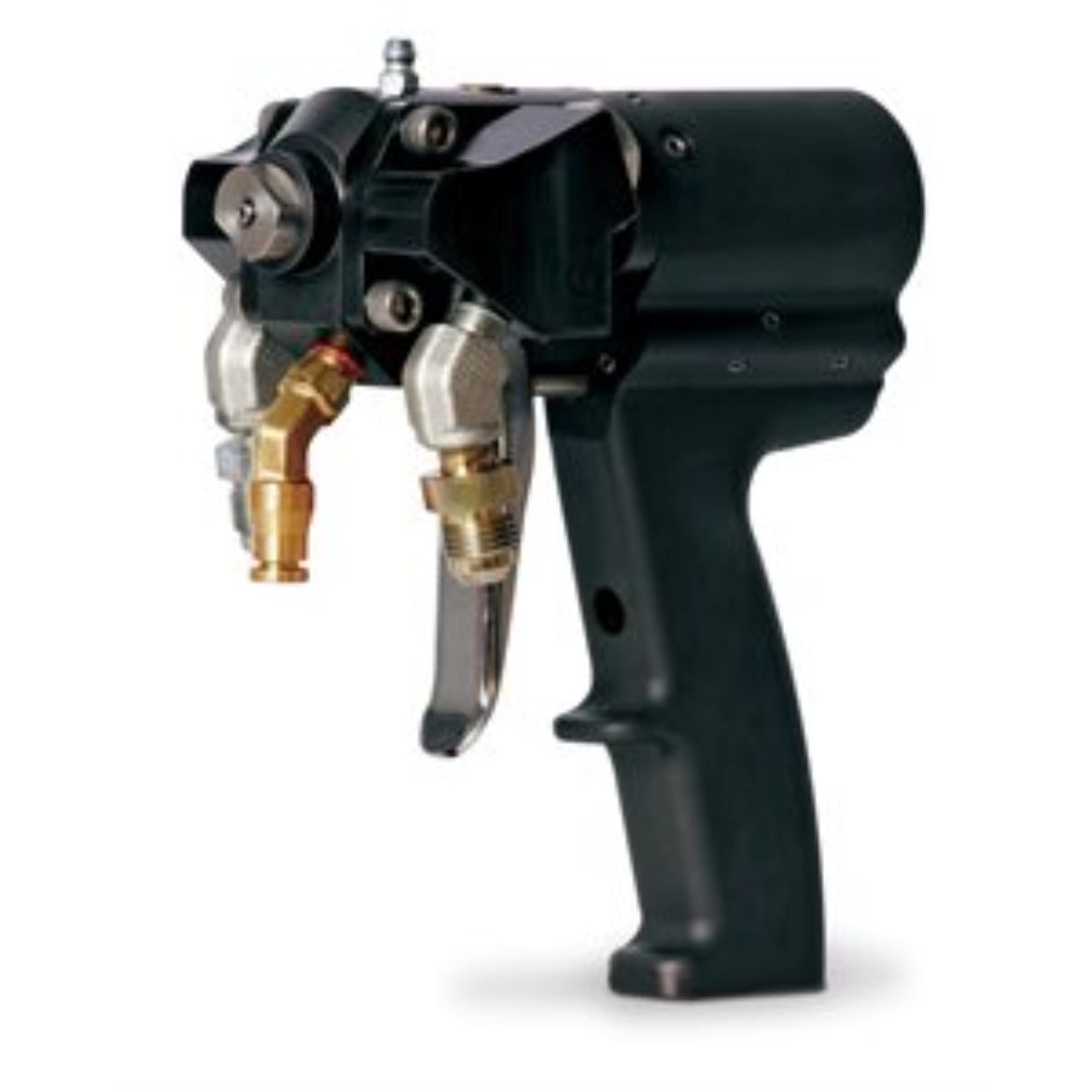

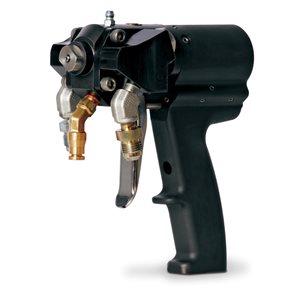

Graco GCP3R3 Probler P2 Elite Gun Assembly with 03 Mix Chamber Kit

The Probler P2 Gun is lightweight and easy to maneuver - even in difficult spraying positions. Its double piston design provides more than 300 pounds (136 kg) of triggering force - much more than a smaller piston diameter. The Probler P2 reduces maintenance, increases spraying uptime and is easy to use.

• Easy daily maintenance
• Responsive trigger action
• Easy-to-replace mix chamber insert
• Ergonomic handle and balanced design
• Allows use of additional accessories
• Alternate side block hose routings
• Allows filters to be easily removed

• Model: P2
• Series: Elite

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4-18
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPT

• Compatible Material: Adhesives, Polyurethane, Roof Coating, Polyurea, Polyurethane Coating
• Component A Inlet Size (cm): 1.27

• Component A Inlet Size (in): 1/2-20
• Component A Inlet Size (mm): 12.7
• Component A Inlet Thread Type: UNF
• Component B Inlet Size (cm): 1.11125
• Component B Inlet Size (in): 7/16-18
• Component B Inlet Size (mm): 11.1125
• Component B Inlet Thread Type: UNF
• Component Type: Plural-Component

• Fluid Orifice Size (cm): 0.152
• Fluid Orifice Size (in): 0.060
• Fluid Orifice Size (mm): 1.52

• Gun Activation: Manual
• Gun Series: Elite
• Gun Type: Air-Purge
• Gun Weight (g): 1770
• Gun Weight (kg): 1.77
• Gun Weight (lb): 3.9
• Gun Weight (oz): 32.4

• Maximum Air Inlet Pressure (bar): 7.6
• Maximum Air Inlet Pressure (kPa): 760
• Maximum Air Inlet Pressure (MPa): 0.76
• Maximum Air Inlet Pressure (psi): 110
• Maximum Air Pressure (bar): 7.6

• Maximum Air Pressure (kPa): 760
• Maximum Air Pressure (MPa): 0.76
• Maximum Air Pressure (psi): 110

• Maximum Flow Rate (kg/min): 18
• Maximum Flow Rate (lb/min): 40

• Maximum Fluid Pressure (bar): 220
• Maximum Fluid Pressure (kPa): 22000
• Maximum Fluid Pressure (MPa): 22
• Maximum Fluid Pressure (psi): 3200
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 220
• Maximum Fluid Pressure (kPa): 22000
• Maximum Fluid Pressure (MPa): 22
• Maximum Fluid Pressure (psi): 3200
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Working Pressure (bar): 221
• Maximum Fluid Working Pressure (MPa): 22.1
• Maximum Fluid Working Pressure (psi): 3200

• Minimum Air Inlet Pressure (bar): 6.2
• Minimum Air Inlet Pressure (kPa): 620
• Minimum Air Inlet Pressure (MPa): 0.62
• Minimum Air Inlet Pressure (psi): 90

• Minimum Flow Rate (kg/min): 1.4
• Minimum Flow Rate (lb/min): 3

• Mix Chamber: 03 (.060)

• Overall Height (cm): 12.1
• Overall Height (in): 4.75
• Overall Height (mm): 121
• Overall Length (cm): 7.9
• Overall Length (in): 3.1
