High-Flo Pump,Xl34/2000,Ln,Sld,Tri

GG JS35A8

HIGH-FLO PUMP, XL34/2000, LN, SLD, TRI

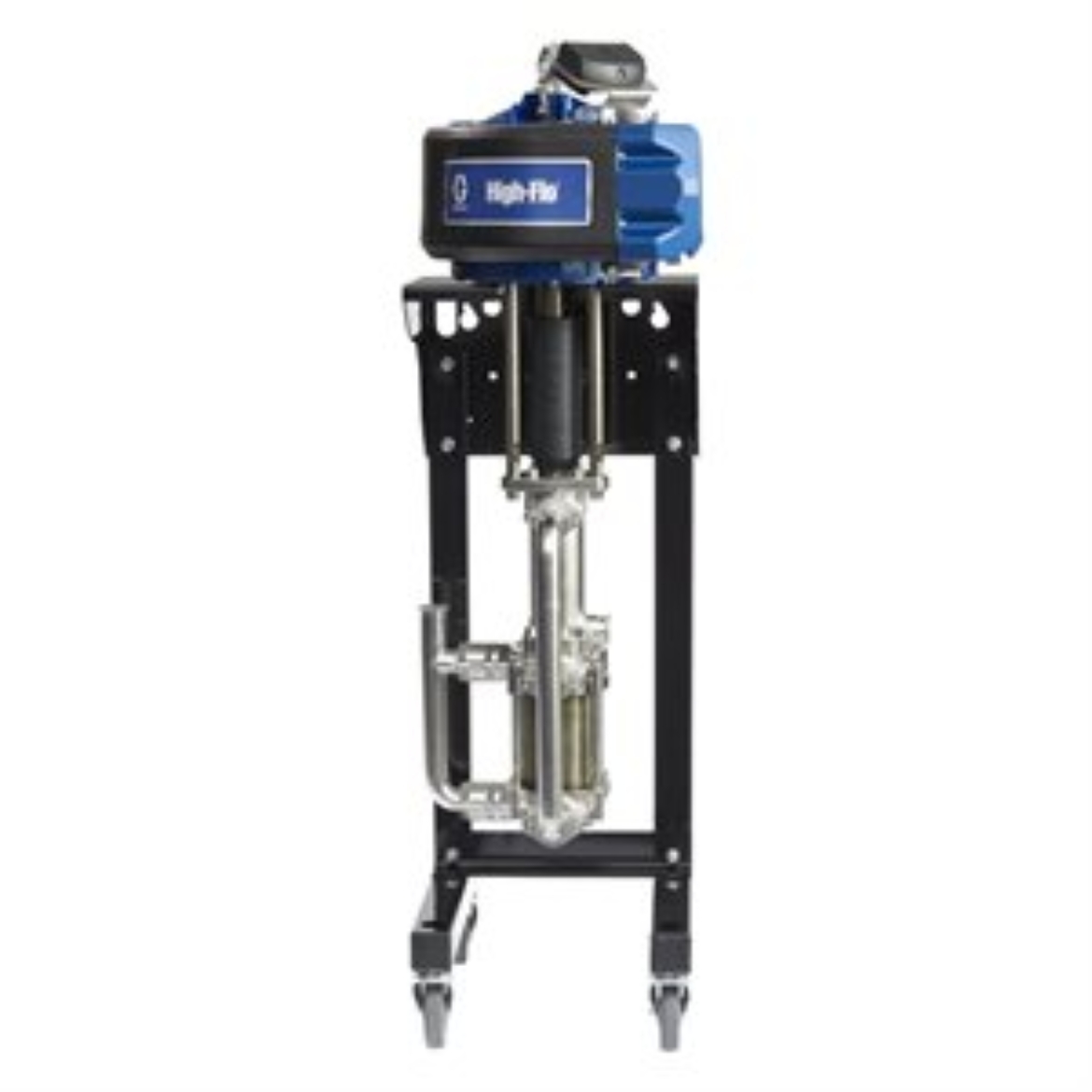

Graco JS35A8 High-Flo 4-Ball Pump, SST, 3.5:1, Low Noise XL, Sealed SST Lower, Ultralife Rod/Cylinder, Tri-Clamp

Pneumatic High-Flo 4-ball piston pumps provide high output per cycle to reduce pump wear and maintenance. Ideal for low pressure, high flow applications and inherently safe for hazardous locations.

• Slow-moving reciprocating motion does not damage paint like other rotary pumping technologies
• Completely sealed fluid section can be used almost anywhere, including catalyst and moisture sensitive materials
• Ultralife Series ceramic coating holds up to the harshest materials, including waterborne paints
• Rugged body armor, won't rust or dent

• Model: High-Flo
• Series: 4-Ball

• Application: Circulation

• Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, Metallics, Topcoats, Stains, Varnish, CARC

• Fluid Outlet Size (in): 1.5
• Fluid Outlet Size (mm): 38.1
• Fluid Section Type: Sealed

• Includes: Stainless Steel Pump, Low Noise Exhaust, Tri-Clamp Fittings, Ultralife Rod, Ultralife Cylinder

• Material: Stainless Steel

• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Continuous Cycle Rate (CPM): 20

• Maximum Flow Rate (GPM): 10.6
• Maximum Flow Rate (L/min): 40

• Maximum Operating Temperature ( degree C): 60
• Maximum Operating Temperature ( degree F): 140

• Maximum Working Pressure (bar): 24.1
• Maximum Working Pressure (kPa): 2410
• Maximum Working Pressure (MPa): 2.4
• Maximum Working Pressure (psi): 350

• Motor Type: Low Noise XL

• Portable: Non-Portable

• Pump Ratio: 3.5:1
