Gun, Probler P2

GG GCP2RA

P2 GUN

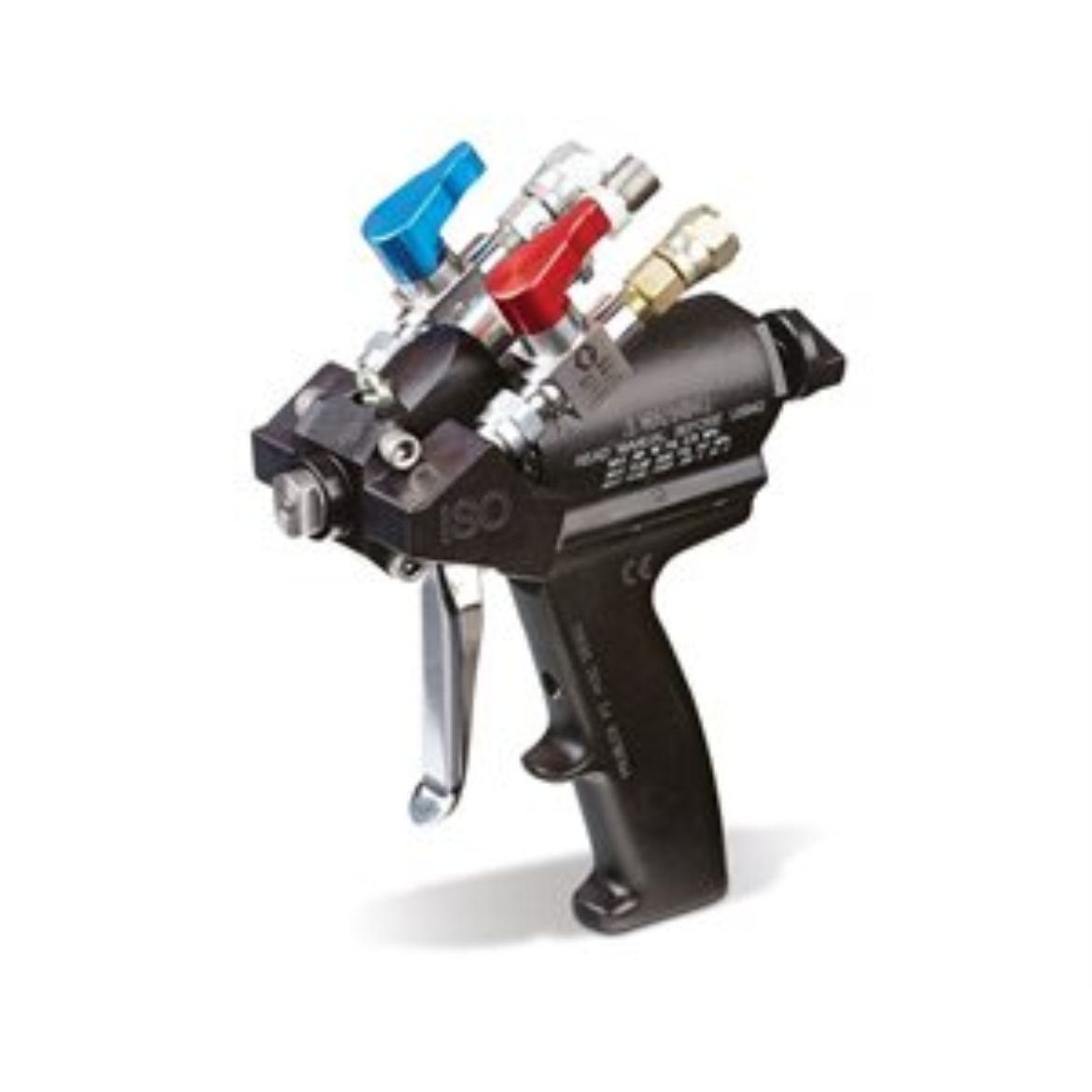

Graco GCP2RA Probler P2 Gun Assembly with AA Mix Chamber Kit

The Probler P2 Gun is lightweight and easy to maneuver - even in difficult spraying positions. Its double piston design provides more than 300 pounds (136 kg) of triggering force - much more than a smaller piston diameter. The Probler P2 reduces maintenance, increases spraying uptime and is easy to use.

• Easy daily maintenance
• Responsive trigger action
• Easy-to-replace mix chamber insert
• Ergonomic handle and balanced design

• Model: P2
• Series: Standard

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4-18
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPSM

• Compatible Material: Adhesives, Polyurethane, Roof Coating, Polyurea, Polyurethane Coating
• Component A Inlet Size (cm): 1.27

• Component A Inlet Size (in): 1/2-20
• Component A Inlet Size (mm): 12.7
• Component A Inlet Thread Type: UNF
• Component B Inlet Size (cm): 1.11125
• Component B Inlet Size (in): 7/16-18
• Component B Inlet Size (mm): 11.1125
• Component B Inlet Thread Type: UNF
• Component Type: Plural-Component

• Fluid Orifice Size (cm): 0.091
• Fluid Orifice Size (in): 0.036
• Fluid Orifice Size (mm): 0.91

• Gun Activation: Manual
• Gun Series: Standard
• Gun Type: Air-Purge
• Gun Weight (g): 1770
• Gun Weight (kg): 1.77
• Gun Weight (lb): 3.9
• Gun Weight (oz): 32.4

• Maximum Air Inlet Pressure (bar): 7.6
• Maximum Air Inlet Pressure (kPa): 760
• Maximum Air Inlet Pressure (MPa): 0.76
• Maximum Air Inlet Pressure (psi): 110
• Maximum Air Pressure (bar): 7.6

• Maximum Air Pressure (kPa): 760
• Maximum Air Pressure (MPa): 0.76
• Maximum Air Pressure (psi): 110

• Maximum Flow Rate (kg/min): 18
• Maximum Flow Rate (lb/min): 40

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Working Pressure (bar): 221
• Maximum Fluid Working Pressure (MPa): 22.1
• Maximum Fluid Working Pressure (psi): 3200

• Minimum Air Inlet Pressure (bar): 6.2
• Minimum Air Inlet Pressure (kPa): 620
• Minimum Air Inlet Pressure (MPa): 0.62
• Minimum Air Inlet Pressure (psi): 90

• Minimum Flow Rate (kg/min): 1.4
• Minimum Flow Rate (lb/min): 3

• Mix Chamber: AA (0.036)

• Overall Height (cm): 12.1
• Overall Height (in): 4.75
• Overall Height (mm): 121
• Overall Length (cm): 7.9
• Overall Length (in): 3.125
• Overall Length (mm): 79
• Overall Width (cm): 17.4
• Overall Width (in): 6.875
• Overall Width (mm)
