High-Flo Pump, Xl34/1500, Ln, Opn, Npt

GG JS45A9

HIGH-FLO PUMP, XL34/1500, LN, OPN, NPT

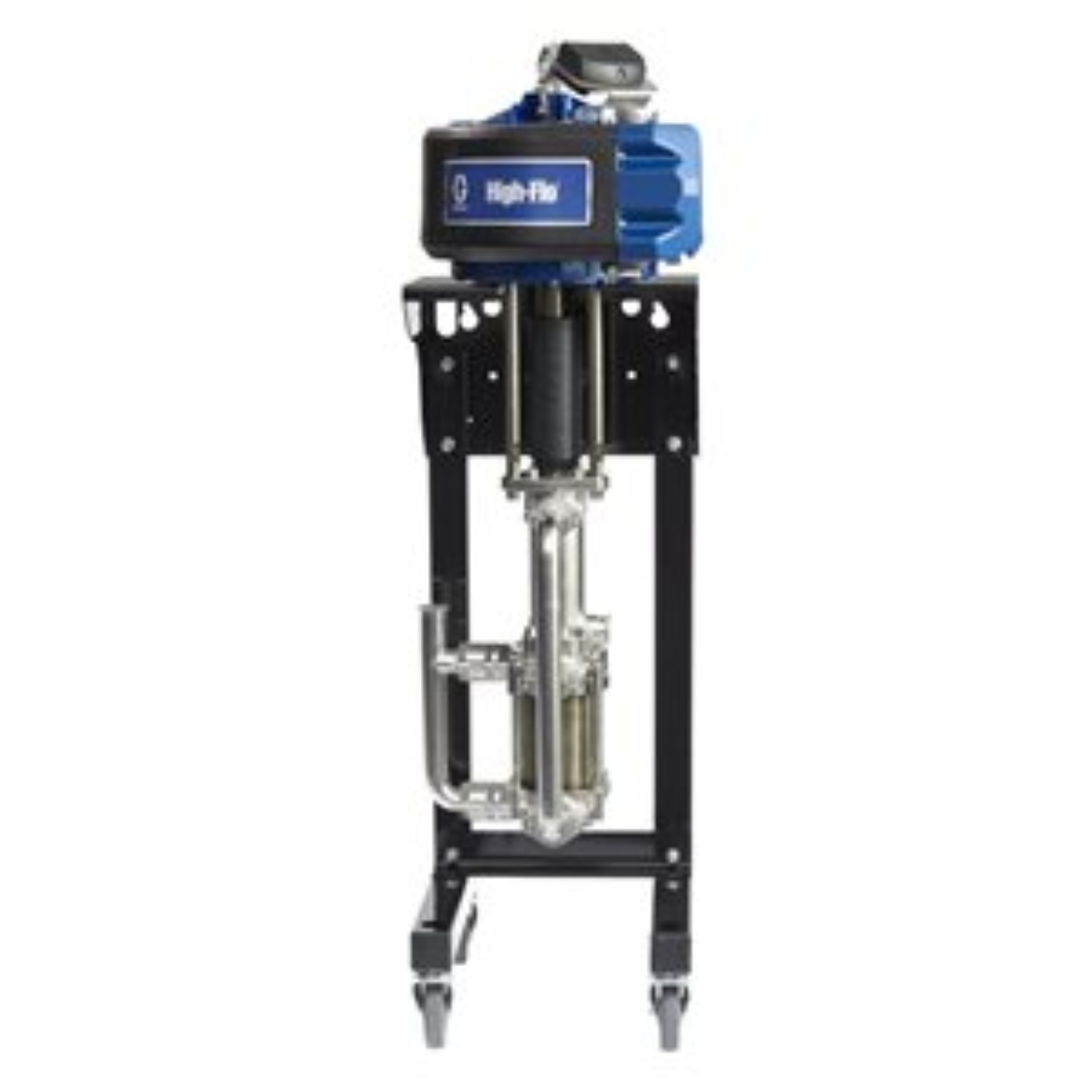

Graco JS45A9 High-Flo 4-Ball Pump, SST, 4.5:1, Low Noise XL, Open Wet Cup SST Lower, Ultralife Rod/Cylinder, NPT

Pneumatic High-Flo 4-ball piston pumps provide high output per cycle to reduce pump wear and maintenance. Ideal for low pressure, high flow applications and inherently safe for hazardous locations.

• Slow-moving reciprocating motion does not damage paint like other rotary pumping technologies
• Rugged body armor, won't rust or dent
• De-icing controls eliminate stalling

• Model: High-Flo
• Series: 4-Ball

• Application: Circulation

• Fluid Outlet Size (in): 1.5
• Fluid Outlet Size (mm): 38.1
• Fluid Section Type: Open Wet Cup

• Includes: Stainless Steel Pump, Low Noise Exhaust, NPT Fittings, Ultralife Rod, Ultralife Cylinder

• Material: Stainless Steel

• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Continuous Cycle Rate (CPM): 12

• Maximum Flow Rate (GPM): 4.8
• Maximum Flow Rate (L/min): 18

• Maximum Operating Temperature ( degree C): 60
• Maximum Operating Temperature ( degree F): 140

• Maximum Working Pressure (bar): 31
• Maximum Working Pressure (kPa): 3100
• Maximum Working Pressure (MPa): 3.1
• Maximum Working Pressure (psi): 450

• Motor Type: Low Noise XL

• Portable: Non-Portable

• Pump Ratio: 4.5:1
