GG HA1M18
PRO XP GUN, ES, AUTO REAR, SMT, AA, WB

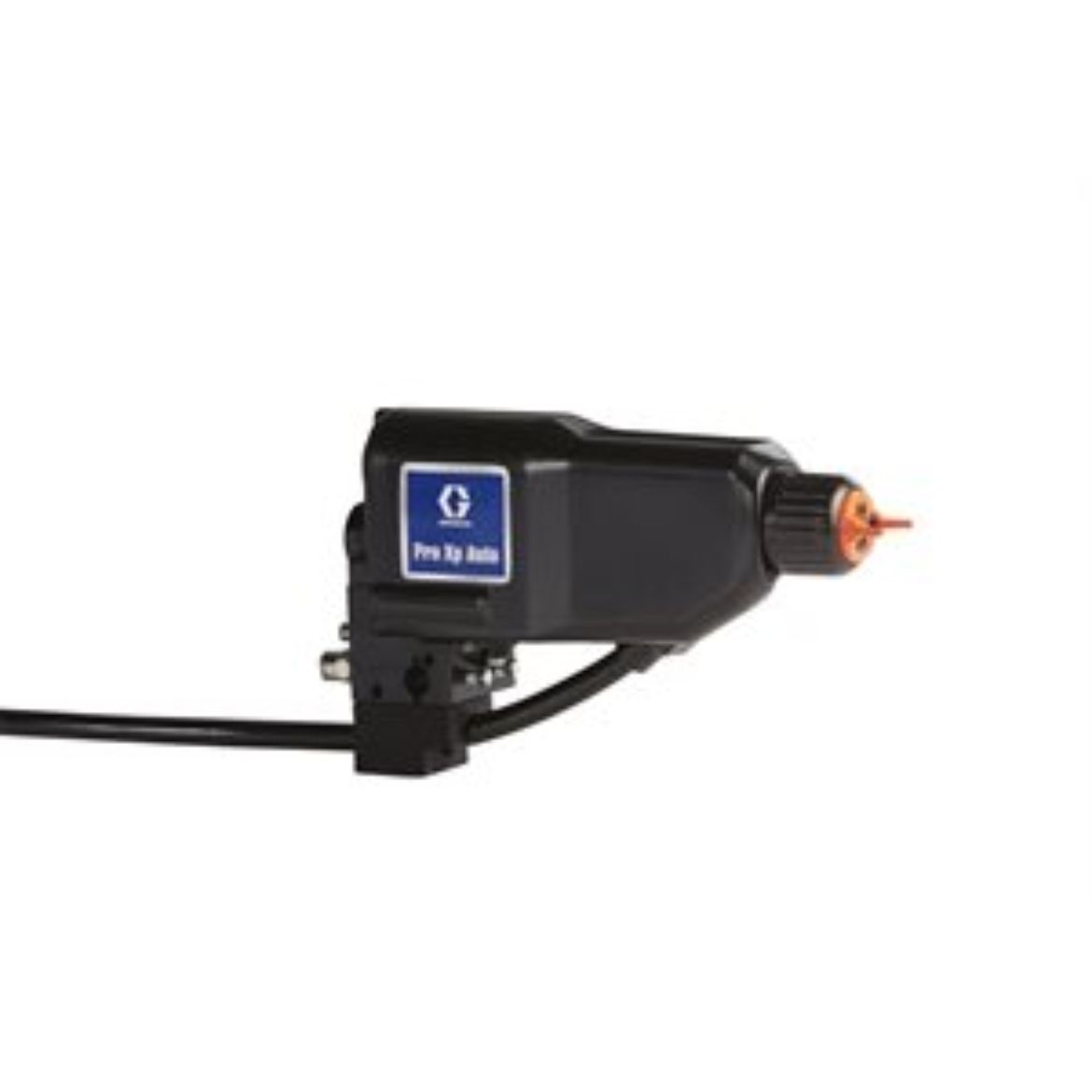

Graco HA1M18 Pro Xp Auto Waterborne Air-Assist Electrostatic Spray Gun, smart model, with rear manifold, 60 kV. Use with isolation systems.
Pro Xp Auto waterborne air-assist guns are ideal for high pressure spraying with an isolation system including the WB3000.
- Versatile product line gives you more models to choose from and greater spraying flexibility
- Back manifold is ideal for a variety of systems
- 60 kV power supply and internal power so there's no electrical cord to worry about damaging or replacing
- Made in the USA
- Durable components reduce cost of ownership, supported by a three year warranty
- Model: Pro Xp
- Series: Auto
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Application: Electrostatic, Waterborne
- Applicator Type: Automatic
- Compatible Paint Type: Waterborne
- Fluid Inlet Size (in): 1/4
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- For Use With: Pro Xp Auto Control Module
- Gun Activation: Automatic
- Gun Type: Electrostatic
- Gun Weight (g): 1197
- Gun Weight (kg): 1.2
- Gun Weight (lb): 2.64
- Gun Weight (oz): 42.24
- Maximum Fluid Pressure (bar): 7
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Temperature (°C): 48
- Maximum Fluid Temperature (°F): 120
- Maximum Fluid Pressure (bar): 7
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Temperature (°C): 48
- Maximum Fluid Temperature (°F): 120
- Maximum Paint Resistivity (megohm/cm): 1
- Minimum Paint Resistivity (megohm/cm): 3
- Nozzle Size (cm): 0.15
- Nozzle Size (in): 0.055
- Nozzle Size (mm): 1.5
- Overall Length (cm): 27.94
- Overall Length (in): 11
- Overall Length (mm): 279.4
