PRO XP GUN, ES, 60KV, AA, WB

Manufacturer: GRACO INC. S10595

GG H60T18

PRO XP GUN, ES, 60KV, AA, WB

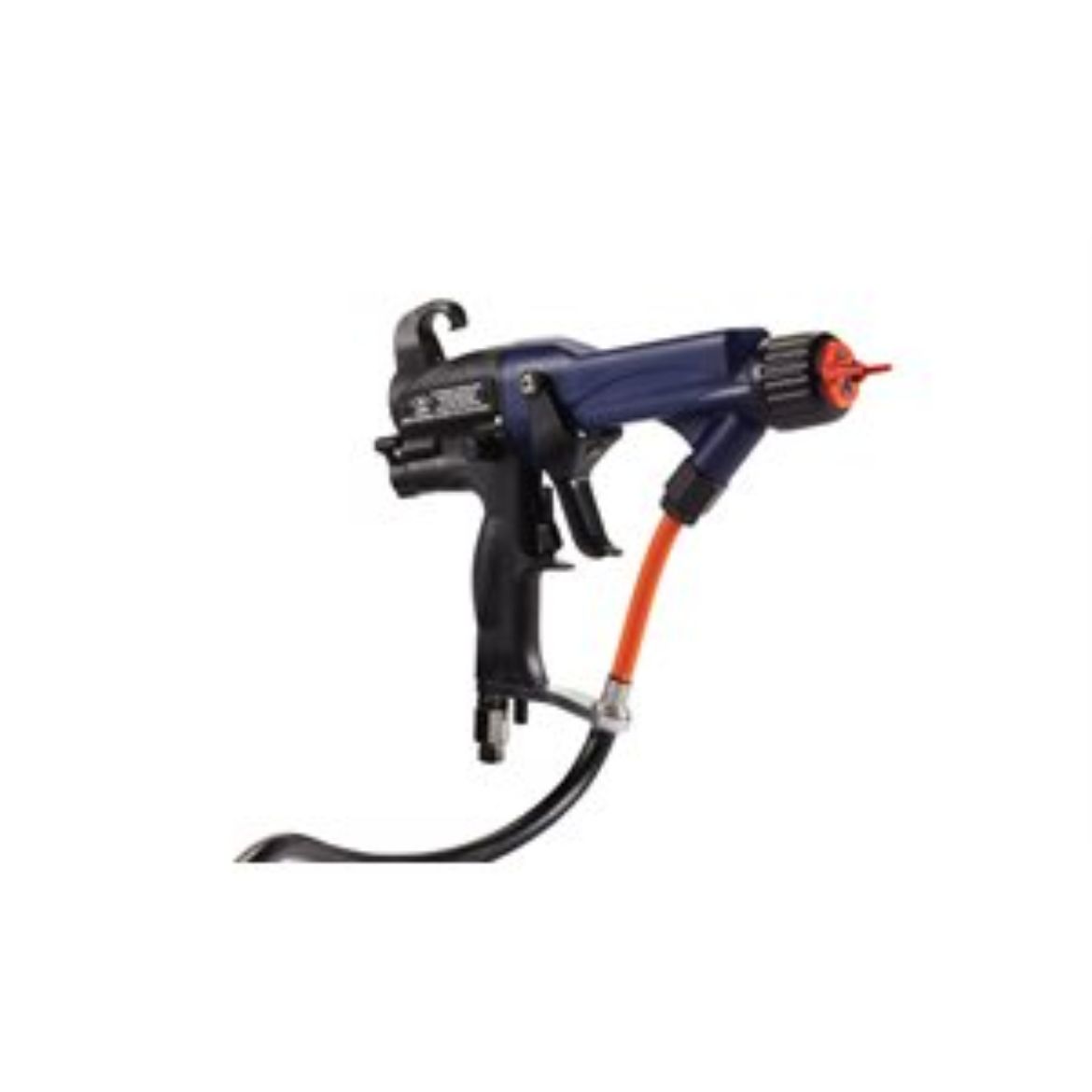

Graco H60T18 Pro Xp60 AA WB Manual Air-Assist Spray Gun, 60 kV, standard display, for waterborne coatings

Excellent, air assisted pattern control eliminates defects for a fine finish with waterborne material.

Application: For spraying conductive, waterborne fluids with an isolation system
  • This 60 kV model is the smallest and lightest air assist gun on the market.
  • Air-assist aircaps use less air, lowering your energy bill.
  • Made in the USA
  • Fan adjust pattern control reduces overspray by changing the fan pattern width according to the size of the part – improving quality and saving you money
  • Every gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Graco&prime, s requirements


  • Model: Pro Xp
  • Series: 60
  • Air Inlet Size (cm): 0.635
  • Air Inlet Size (in): 1/4
  • Air Inlet Size (mm): 6.35
  • Air Inlet Thread Gender: Male
  • Air Inlet Thread Type: NPSM
  • Application: Electrostatic, Waterborne
  • Applicator Type: Manual
  • Coating Type: Waterborne
  • Compatible Paint Type: Epoxy, High Solids, Lacquers, Latex, Plural Component Materials, Polyurethanes, Urethanes, UV Curing, Varnishes, Waterborne
  • Display Type: Standard
  • Fluid Inlet Size (in): 1/4
  • Fluid Inlet Thread Gender: Male
  • Fluid Inlet Thread Type: NPSM
  • Gun Activation: Manual
  • Gun Type: Electrostatic
  • Gun Weight (g): 660
  • Gun Weight (kg): 0.66
  • Gun Weight (lb): 1.46
  • Gun Weight (oz): 23.28
  • Includes: Tip Guard Air Cap, Tip of Choice, Tool Kit, Gun Cover, Exhaust Tube
  • Maximum Fluid Pressure (bar): 210
  • Maximum Fluid Pressure (kg/cm²): 214.14
  • Maximum Fluid Pressure (kPa): 21000
  • Maximum Fluid Pressure (MPa): 21
  • Maximum Fluid Pressure (psi): 3000
  • Maximum Fluid Temperature (°C): 48
  • Maximum Fluid Temperature (°F): 120
  • Maximum Fluid Pressure (bar): 210
  • Maximum Fluid Pressure (kg/cm²): 214.14
  • Maximum Fluid Pressure (kPa): 21000
  • Maximum Fluid Pressure (MPa): 21
  • Maximum Fluid Pressure (psi): 3000
  • Maximum Fluid Temperature (°C): 48
  • Maximum Fluid Temperature (°F): 120
  • Maximum Paint Resistivity (megohm/cm): 1
  • Minimum Paint Resistivity (megohm/cm): 0
  • Overall Length (cm): 24.64
  • Overall Length (in): 9.7
  • Overall Length (mm): 246.4
SKU: GG H60T18
Availability:
Price: $9,670.00
