GG HE80-0192
QUANTM PUMP, QHD-HSFF1FL--POEPSSASF21

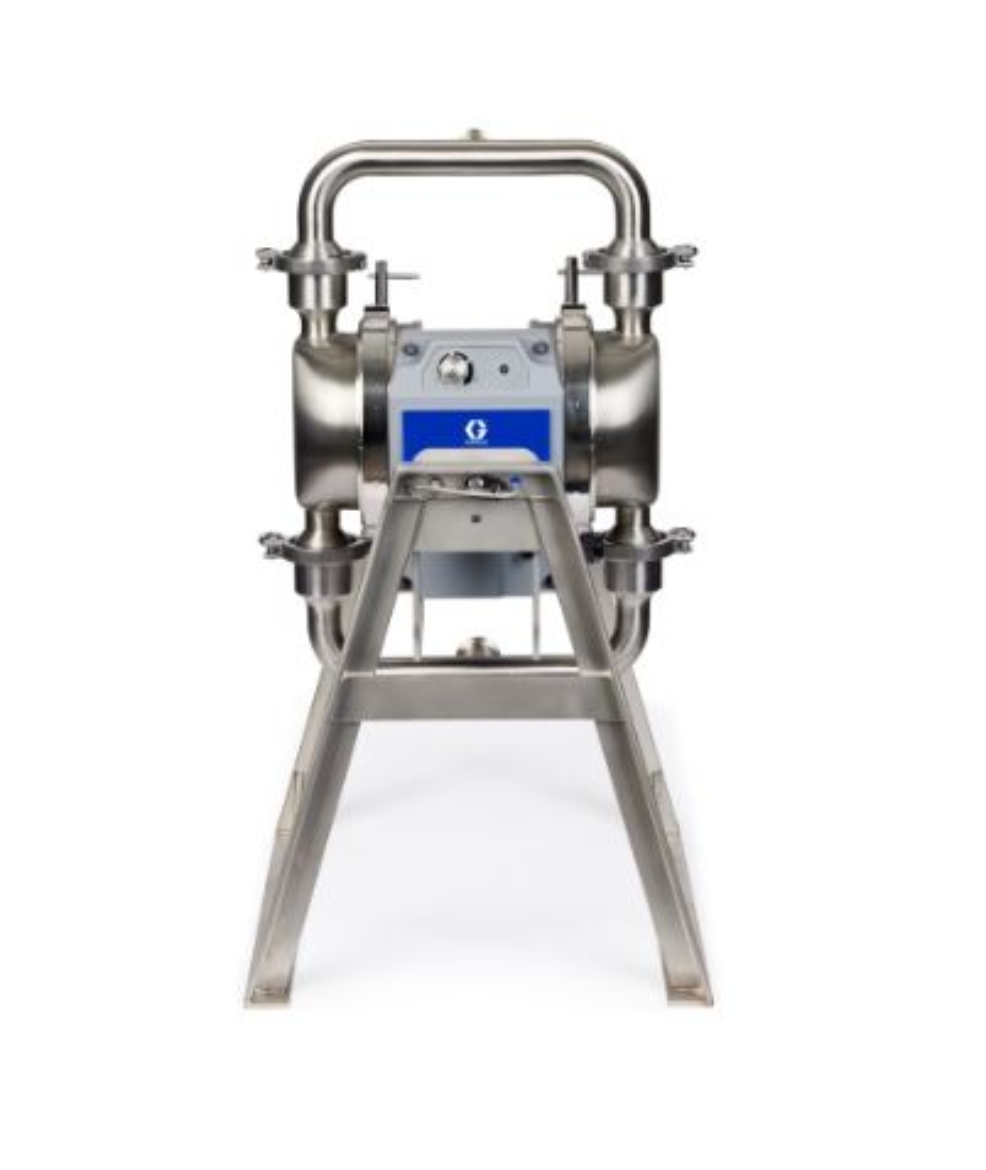

Graco HE80-0192 QUANTM h80, 1.5" Tri-clamp, HS SST Electric Diaphragm Pump, 200-240 V, FEP AL Center, FL Seat, PO Diaphragm
QUANTM isn't just another electric pump: it's a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It's time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump.
Application: The groundbreaking new QUANTM electric pumps for large particle applications feature a stainless-steel flapper check design that removes the traditional ball and seat check valve in a normal diaphragm pump. This is critical for applications that involve larger pieces of meat and poultry pieces, pieces of fruit for bakery fillings and jarred fruit, as well as whole vegetables for soups or prepackaged meals. QUANTM electric pumps feature a powerful new electric motor that delivers up to 8x more continuous torque at low speeds than conventional motors. Plus, the fast, easy plug-and-play installation allows you to easily replace your existing pumps without additional investment or infrastructure rework.
- Revolutionary Design
- Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
- Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
- Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
- Quiet operation reduces plant noise and improves employee safety and health
- Smart pump control provides more accurate flow set points and built-in I/O
- Efficient Electric Motor
- FEP coated aluminum electric drive
- 240 VAC 1Ph motor with 15 ft cord and NEMA L15-20plug
- Non-hazardous
- Materials of Construction
- 32 Ra surface finish 316L stainless steel fluid section with tri-clamp center port
- Internal components include 316L stainless steel seat, 316L stainless steel Flapper ball, PTFE overmold diaphragm and EPDM manifold o-ring
- EN 2.1 material certification
- Application: Food, Beverage, Personal Care, Pharmaceutical
- Ball Material: 316L Stainless Steel Flapper
- Center Section Material: FEP Coated Aluminum
- Connection Type: Tri-Clamp
- Cord Length (ft): 15
- Cord Length (m): 4.57
- Diaphragm Material: PTFE Overmold
- Fluid Inlet Size (in): 1.5
- Fluid Inlet Size (mm): 38
- Fluid Inlet Thread Type: Tri-Clamp
- Fluid Outlet Size (in): 1.5
- Fluid Outlet Size (mm): 38
- Fluid Outlet Thread Type: Tri-Clamp
- Fluid Section: 316L Stainless Steel, Center Port, Tri-Clamp
- Fluid Section Material: 316L Stainless Steel
- Hazardous Location Approval: None
