Gun, ES, Auto XP, Bottom

GG HA2M10

PRO XP GUN, ES, AUTO BOTTOM, SMT, AA

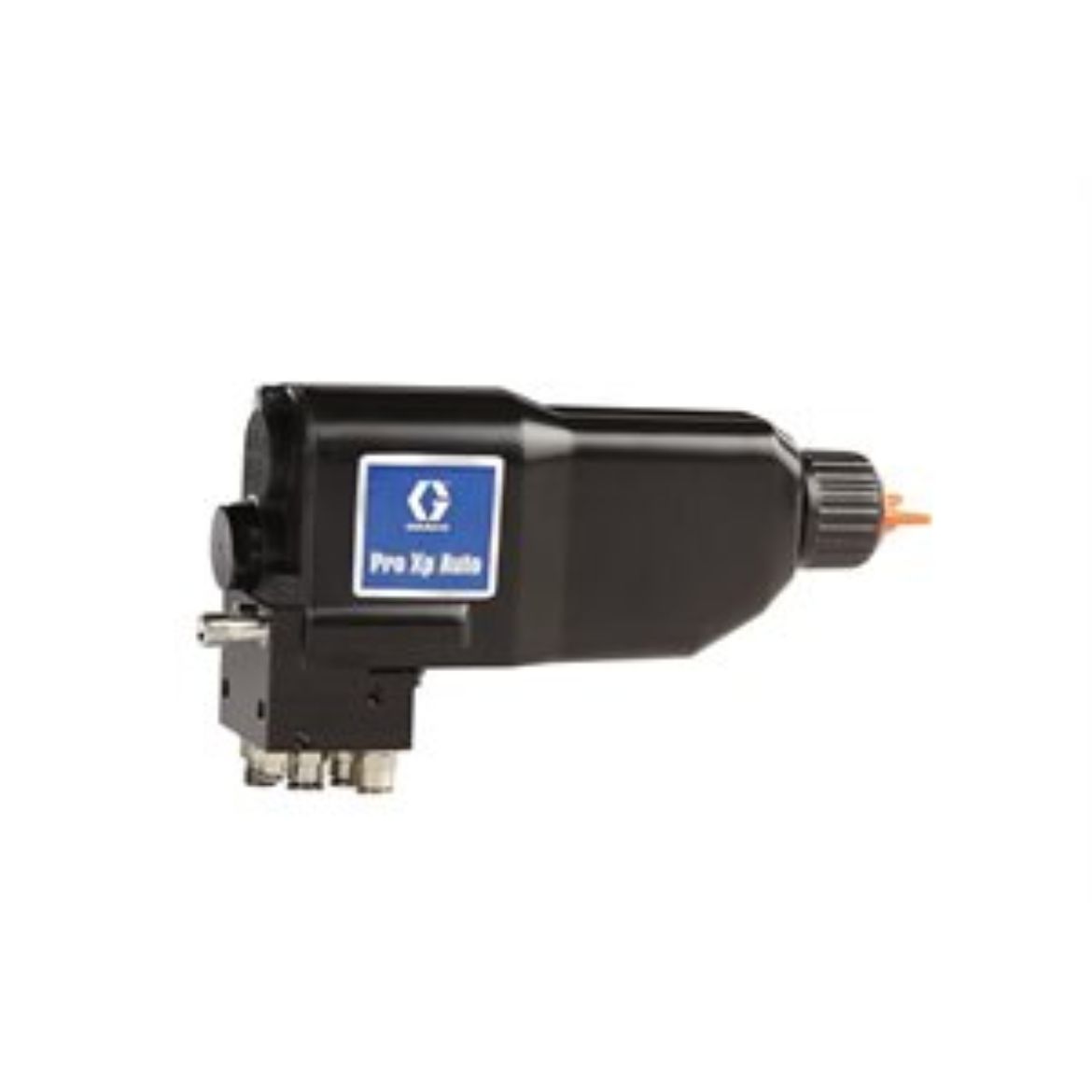

Graco HA2M10 Pro Xp Auto Air-Assist Electrostatic Spray Gun, smart model, with bottom manifold, 85 kV, includes AEM or AEF tip of choice

Pro Xp Auto Air-Assist has an 85 kV power supply and internal power so there's no electrical cord to damage or replace. Smart gun models connect to a control module for kV control and displaying gun performance. Ideal for high pressure spraying designed to improve transfer efficiency and deliver a high quality finish.

• Versatile product line gives you more models to choose from and greater spraying flexibility with air spray, air assist and waterborne guns
• Manifold style fits almost any systems requirement - back manifold is ideal for stationary and reciprocator systems and bottom manifold is ideal for robot mounting
• 85 kV power supply and internal power so theres no electrical cord to worry about damaging or replacing
• Durable components reduce cost of ownership, supported by a three year warranty

• Model: Pro Xp
• Series: Auto

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPSM

• Application: Electrostatic, Standard
• Applicator Type: Automatic

• Coating Type: Standard

• Compatible Paint Type: Solvent borne

• Display Type: Smart

• Fluid Inlet Size (in): 1/4
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPSM

• For Use With: Pro Xp Auto Control Module

• Gun Activation: Automatic
• Gun Type: Electrostatic
• Gun Weight (g): 1197
• Gun Weight (kg): 1.2
• Gun Weight (lb): 2.64
• Gun Weight (oz): 42.24

• Manifold Type: Bottom

• Maximum Fluid Pressure (bar): 210
• Maximum Fluid Pressure (kPa): 21000
• Maximum Fluid Pressure (MPa): 21
• Maximum Fluid Pressure (psi): 3000
• Maximum Fluid Temperature (°C): 48
• Maximum Fluid Temperature (°F): 120

• Maximum Fluid Pressure (bar): 210
• Maximum Fluid Pressure (kPa): 21000
• Maximum Fluid Pressure (MPa): 21
• Maximum Fluid Pressure (psi): 3000
• Maximum Fluid Temperature (°C): 48
• Maximum Fluid Temperature (°F): 120

• Maximum Paint Resistivity (megohm/cm): Infinity

• Minimum Paint Resistivity (megohm/cm): 3

• Overall Length (cm): 27.94
• Overall Length (in): 11
• Overall Length (mm): 279.4
