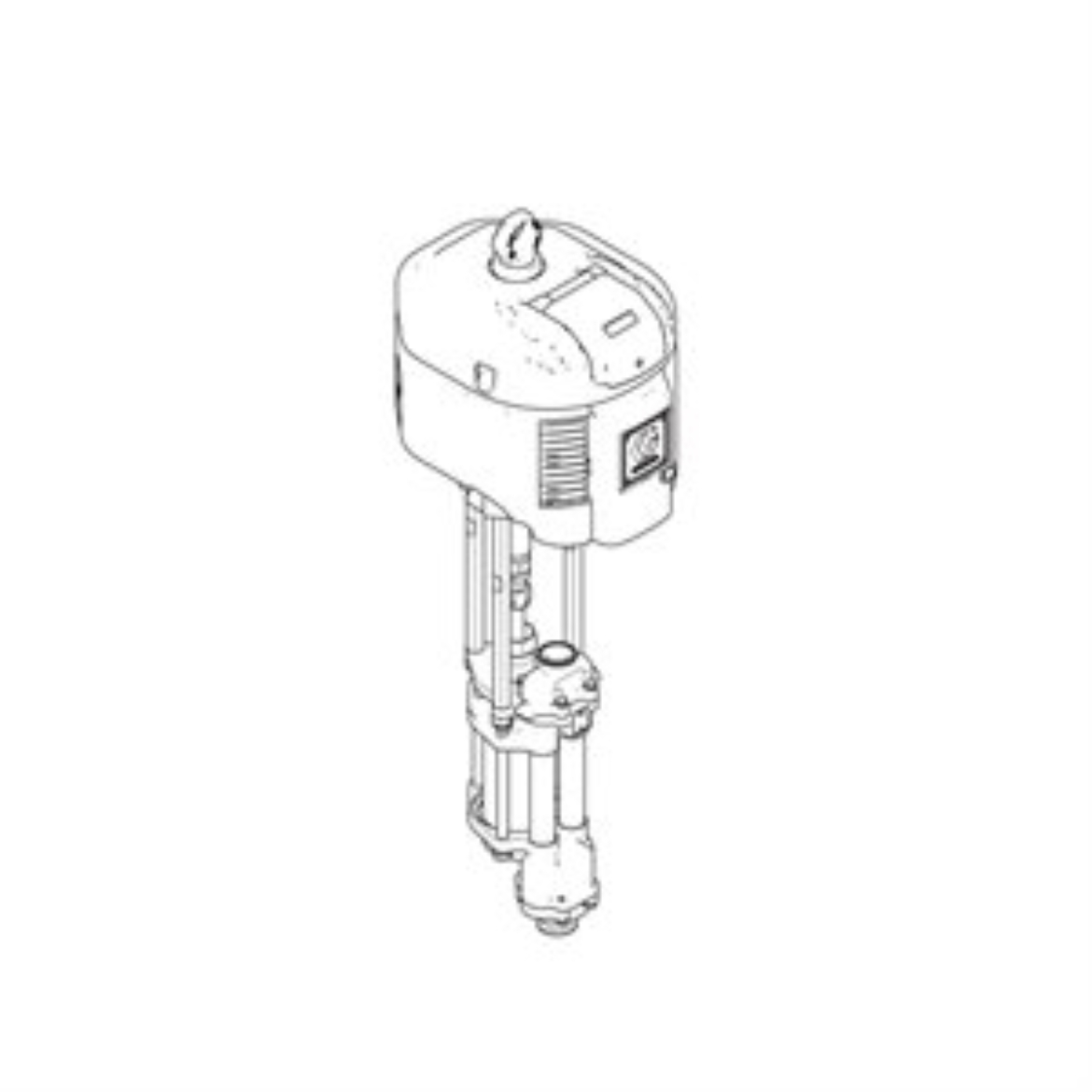

GG JC40M9
HIGH-FLO PUMP, 2200/1000, LOW DT, OPN, NPT
Graco JC40M9 High-Flo 4-Ball Pump, CS, 4:1, Low Noise Exhaust, DataTrak, Open Wet Cup Lower, NPT Fittings, Ultralife Rod/Cylinder
Pneumatic High-Flo 4-ball piston pumps provide high output per cycle to reduce pump wear and maintenance. Ideal for low pressure, high flow applications and inherently safe for hazardous locations.
- Slow-moving reciprocating motion does not damage paint like other rotary pumping technologies
- Rugged body armor, won’t rust or dent
- De-icing controls eliminate stalling
- DataTrak tracks material usage, monitors and protects your pump
- Model: High-Flo
- Series: 4-Ball
- Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, Metallics, Topcoats, Stains, Varnish, CARC
- Fluid Outlet Size (in): 1-1/2
- Fluid Outlet Size (mm): 38.1
- Fluid Outlet Thread Type: NPT
- Fluid Section Type: Open Wet Cup
- Includes: Carbon Steel Pump, Low Noise Exhaust, DataTrak Monitor, NPT Fittings, Ultralife Rods, Ultralife Cylinder
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 12
- Maximum Flow Rate (GPM): 16.9
- Maximum Flow Rate (L/min): 63.97
- Maximum Operating Temperature (°C): 66
- Maximum Operating Temperature (°F): 150
- Maximum Working Pressure (bar): 31
- Maximum Working Pressure (kPa): 3100
- Maximum Working Pressure (MPa): 3.1
- Maximum Working Pressure (psi): 450
- Motor Type: Low Noise NXT with DataTrak
