Air Motors

View as Grid List
Sort by
Display items per page
Picture of Air Motor Assembly, Replacement Kit

Air Motor Assembly, Replacement Kit

EP CB336900SR

EP CB336900SR

Air Motor Assembly, Replacement Kit
PA-Series
  • Type: Service Kit
  • SubTypes: Repair Part
$247.70
Picture of Air Motor, XA-Series

Air Motor, XA-Series

EP XA1AMK

EP XA1AMK

Air Motor, XA-Series
  • Type: Service Kit
  • SubTypes: Repair Part
$155.34
Picture of Motor, Air, Quiet King

Motor, Air, Quiet King

GG 220106

GG 220106

Motor, Air, Quiet King
$14,190.00
Picture of FRONT ROTOR BEARING

FRONT ROTOR BEARING

IR 7811-24

IR 7811-24

FRONT ROTOR BEARING
$15.00

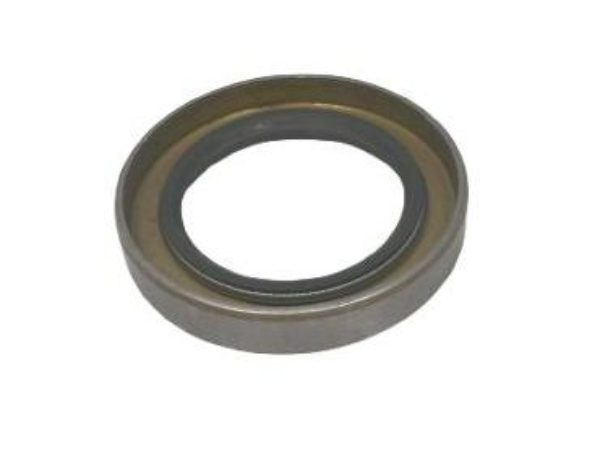

Picture of SEAL

SEAL

IR MVA008-103

IR MVA008-103

SEAL
$21.00
Picture of ST700-100B

ST700-100B

IR PARTS-388-SERIES

IR PARTS-388-SERIES

ST700-100B
Call for pricing
Picture of GEAR

GEAR

IR R4801U-10

IR R4801U-10

GEAR
$275.00

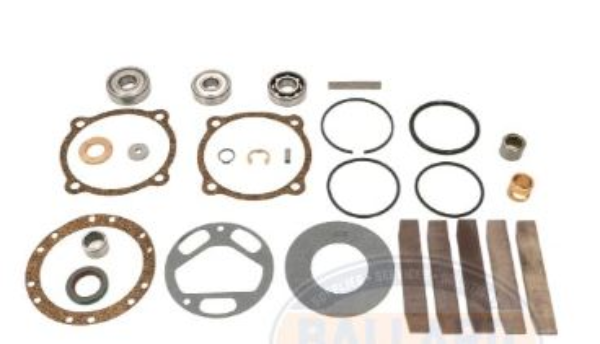

Picture of TUNE-UP KIT

TUNE-UP KIT

IR SM2AMC-TK1

IR SM2AMC-TK1

TUNE-UP KIT
$182.00
Picture of MOTOR AND SWITCH ASSEMBLY

MOTOR AND SWITCH ASSEMBLY

IR TA-W9691-054

IR TA-W9691-054

MOTOR AND SWITCH ASSEMBLY
$355.00
Picture of Air Motor Shafts, Left Handed

Air Motor Shafts, Left Handed

RR 70897-02

RR 70897-02

Air Motor Shafts, Left Handed
$853.00

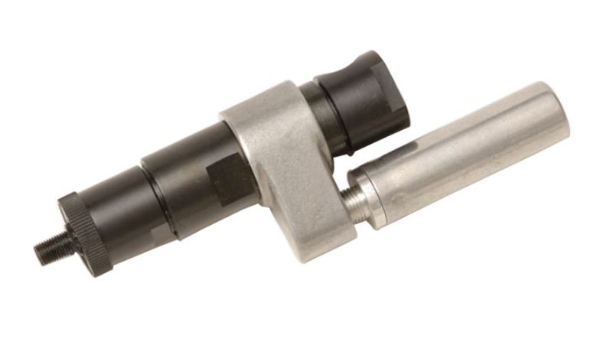

AA 7534-B.jpg

Power Motor

AA 7534-B

AA 7534-B

Inline Multi-Vane Air Motor, 3/8" Keyed Shaft, 900 RPM, 0.25 HP, 6.7 NM, Non-reversible

  • Air Consumption at Max HP (scfm): 18.1
  • Air Inlet: 1/8" NPT
  • Air Pressure (psi): 90
  • Drive Size (in): 3/8
  • Drive Type: Round Keyed
  • Exhaust Location: Exterior Muffler
  • Finish: Black Oxide
  • Gear Ratio: 23.3:1
  • Gear Reduction: Double
  • Gear Train: Planetary
  • Housing Material: Steel
  • Max Free Speed (rpm): 900
  • Max Pressure (bar): 6.2
  • Max Torque (ft-lb): 4.9
  • Max Torque (in-lb): 59
  • Max Torque (nm): 6.7
  • Motor: Rotary Vane
  • Motor: In line
  • Mounting Type: Foot Mount Optional
  • Power Source: Air Powered
  • Product Weight (lb): 1.82
  • Rated Power (hp): 0.25
  • Rated Power (kW): 0.19
  • Reversible: Non-reversible
  • Sound Level dB(A): 75
  • Speed at Max Power (rpm): 550
  • Torque Output @ Max HP (ft-lb): 2.4
  • Torque Output @ Max HP (nm): 3.2
  • Warranty: 1-year
  • Parts: 37898
$1,548.00

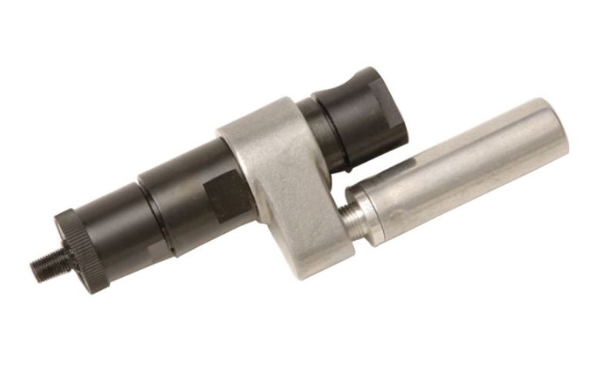

AA 7535-C.jpg

Power Motor

AA 7535-C

AA 7535-C

Inline Multi-Vane Air Motor, 3/8" Keyed Shaft, 2700 RPM, 0.25 HP, 2.3 NM, Non-reversible

  • Air Consumption at Max HP (scfm): 18.1
  • Air Inlet: 1/8" NPT
  • Air Pressure (psi): 90
  • Drive Size (in): 3/8
  • Drive Type: Round Keyed
  • Exhaust Location: Exterior Muffler
  • Finish: Black Oxide
  • Gear Ratio: 8:1
  • Gear Reduction: Single
  • Gear Train: Planetary
  • Housing Material: Steel
  • Max Free Speed (rpm): 2700
  • Max Pressure (bar): 6.2
  • Max Torque (ft-lb): 1.7
  • Max Torque (in-lb): 20
  • Max Torque (nm): 2.3
  • Motor: Rotary Vane
  • Motor: In line
  • Mounting Type: Foot Mount Optional
  • Power Source: Air Powered
  • Product Weight (lb): 1.52
  • Rated Power (hp): 0.25
  • Rated Power (kW): 0.19
  • Reversible: Non-reversible
  • Sound Level dB(A): 75
  • Speed at Max Power (rpm): 1600
  • Torque Output @ Max HP (ft-lb): 0.8
  • Torque Output @ Max HP (nm): 1.1
  • Warranty: 1-year
  • Parts: 37898
$1,580.00
AA 7543-B.jpg

Power Motor

AA 7543-B

AA 7543-B

Inline Multi-Vane Air Motor, 3/8" Keyed Shaft, 550 RPM, 0.25 HP, 10.6 NM, Reversible

  • Air Consumption at Max HP (scfm): 20
  • Air Inlet: 1/8" NPT
  • Air Pressure (psi): 90
  • Drive Size (in): 3/8
  • Drive Type: Round Keyed
  • Exhaust Location: Exterior Muffler
  • Finish: Black Oxide
  • Gear Ratio: 38.6:1
  • Gear Reduction: Double
  • Gear Train: Planetary
  • Housing Material: Steel
  • Max Free Speed (rpm): 550
  • Max Pressure (bar): 6.2
  • Max Torque (ft-lb): 7.8
  • Max Torque (in-lb): 94
  • Max Torque (nm): 10.6
  • Motor: Rotary Vane
  • Motor: In line
  • Mounting Type: Foot Mount Optional
  • Power Source: Air Powered
  • Product Weight (lb): 1.82
  • Rated Power (hp): 0.25
  • Rated Power (kW): 0.19
  • Reversible: Reversible
  • Sound Level dB(A): 75
  • Speed at Max Power (rpm): 300
  • Torque Output @ Max HP (ft-lb): 4.4
  • Torque Output @ Max HP (nm): 5.9
  • Warranty: 1-year
  • Parts: 37898
$1,754.40

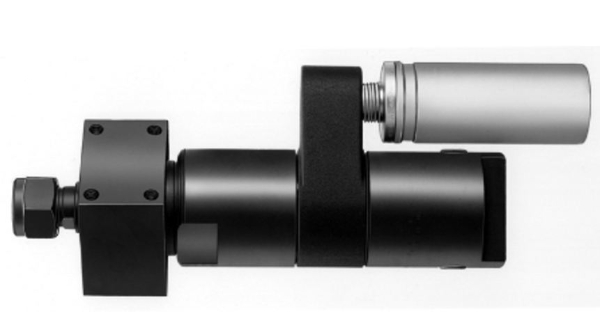

AA 7800-2B.jpg

Power Motor

AA 7800-2B

AA 7800-2B

Milling Air Motor, 3/8" Collet, 18000 RPM, 0.85 HP, 1.4 NM, Non-reversible

  • Air Consumption at Max HP (scfm): 41.7
  • Air Inlet: 1/4" NPT
  • Air Pressure (psi): 90
  • Drive Size (in): 3/8
  • Drive Type: Collet
  • Exhaust Location: Exterior Muffler
  • Finish: Black Oxide
  • Gear Reduction: Single
  • Gear Train: Planetary
  • Housing Material: Steel
  • Max Free Speed (rpm): 18000
  • Max Pressure (bar): 6.2
  • Max Torque (ft-lb): 1.0
  • Max Torque (in-lb): 12
  • Max Torque (nm): 1.4
  • Motor: Rotary Vane
  • Motor: Milling
  • Mounting Type: Foot Mount Optional
  • Power Source: Air Powered
  • Product Weight (lb): 4.89
  • Rated Power (hp): 0.85
  • Rated Power (kW): 0.63
  • Reversible: Non-reversible
  • Sound Level dB(A): 78
  • Speed at Max Power (rpm): 9000
  • Torque Output @ Max HP (ft-lb): 0.5
  • Torque Output @ Max HP (nm): 0.68
  • Warranty: 1-year
  • Parts: 45058
$2,870.00
AA 7816-B.jpg

Power Motor

AA 7816-B

AA 7816-B

Inline Multi-Vane Air Motor, 1/2"-20 Thd Spindle, 4600 RPM, 0.85 HP, 5.5 NM, Non-reversible

  • Air Consumption at Max HP (scfm): 41.7
  • Air Inlet: 1/4" NPT
  • Air Pressure (psi): 90
  • Arbor/Collet: 1/2"-20 Thread
  • Drive Size (in): 1/2
  • Drive Type: Threaded
  • Exhaust Location: Exterior Muffler
  • Finish: Black Oxide
  • Gear Reduction: Single
  • Gear Train: Planetary
  • Housing Material: Steel
  • Max Free Speed (rpm): 4600
  • Max Pressure (bar): 6.2
  • Max Torque (ft-lb): 4.1
  • Max Torque (in-lb): 49
  • Max Torque (nm): 5.5
  • Motor: Rotary Vane
  • Motor: In line
  • Mounting Type: Foot Mount Optional
  • Power Source: Air Powered
  • Product Weight (lb): 4.24
  • Rated Power (hp): 0.85
  • Rated Power (kW): 0.63
  • Reversible: Non-reversible
  • Sound Level dB(A): 78
  • Speed at Max Power (rpm): 2400
  • Torque Output @ Max HP (ft-lb): 1.8
  • Torque Output @ Max HP (nm): 2.5
  • Warranty: 1-year
  • Parts: 37894
$1,900.60

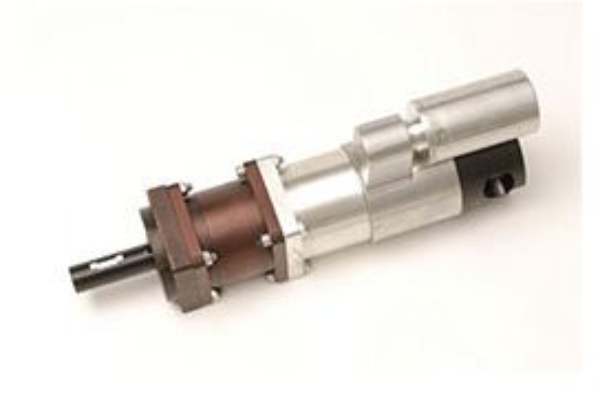

AA 8200-A.jpg

Power Motor

AA 8200-A

AA 8200-A

Inline Multi-Vane Air Motor, 7/8" Keyed Shaft, 275 RPM, 2 HP, 168 NM, Non-reversible

  • Air Consumption at Max HP (scfm): 95
  • Air Inlet: 3/8" NPT
  • Air Pressure (psi): 90
  • Drive Size (in): 7/8
  • Drive Type: Round Keyed
  • Exhaust Location: Exterior Muffler
  • Finish: Black Oxide
  • Gear Ratio: 49:1
  • Gear Reduction: Double
  • Gear Train: Planetary
  • Housing Material: Steel
  • Max Free Speed (rpm): 275
  • Max Pressure (bar): 6.2
  • Max Torque (ft-lb): 124
  • Max Torque (in-lb): 1487
  • Max Torque (nm): 168
  • Motor: Rotary Vane
  • Motor: In line
  • Mounting Type: Face
  • Number of Mounting Holes: 4
  • Power Source: Air Powered
  • Product Weight (lb): 18.24
  • Rated Power (hp): 2
  • Rated Power (kW): 1.49
  • Reversible: Non-reversible
  • Sound Level dB(A): 80
  • Speed at Max Power (rpm): 140
  • Torque Output @ Max HP (ft-lb): 75
  • Torque Output @ Max HP (nm): 101.6
  • Warranty: 1-year
$4,775.00

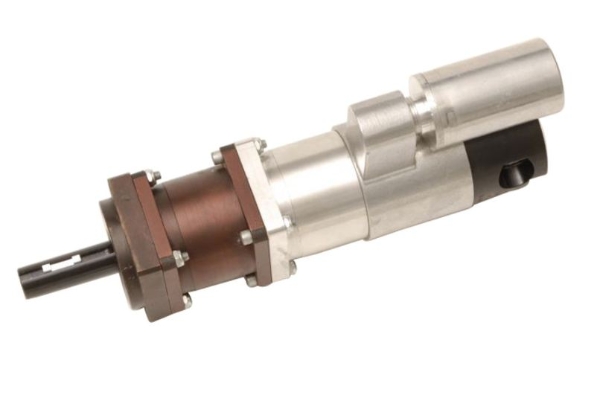

AA 8201-A.jpg

Power Motor

AA 8201-A

AA 8201-A

Inline Multi-Vane Air Motor, 7/8" Keyed Shaft, 500 RPM, 2 HP, 95.5 NM, Non-reversible

  • Air Consumption at Max HP (scfm): 95
  • Air Inlet: 3/8" NPT
  • Air Pressure (psi): 90
  • Drive Size (in): 7/8
  • Drive Type: Round Keyed
  • Exhaust Location: Exterior Muffler
  • Finish: Black Oxide
  • Gear Ratio: 28:1
  • Gear Reduction: Double
  • Gear Train: Planetary
  • Housing Material: Steel
  • Max Free Speed (rpm): 500
  • Max Pressure (bar): 6.2
  • Max Torque (ft-lb): 70
  • Max Torque (in-lb): 845
  • Max Torque (nm): 95.5
  • Motor: Rotary Vane
  • Motor: In line
  • Mounting Type: Face
  • Number of Mounting Holes: 4
  • Power Source: Air Powered
  • Product Weight (lb): 18.24
  • Rated Power (hp): 2
  • Rated Power (kW): 1.49
  • Reversible: Non-reversible
  • Sound Level dB(A): 80
  • Speed at Max Power (rpm): 255
  • Torque Output @ Max HP (ft-lb): 41
  • Torque Output @ Max HP (nm): 55.5
  • Warranty: 1-year
$4,235.50
AA 8203-4A-S.jpg

Mill Motor

AA 8203-4A-S

AA 8203-4A-S

Forward Rotation Milling Motor, 3/4" Round Collet, 2000 RPM, 2HP, 24.4 Nm, Non-reversible

Description: The inline planetary gear and vane motor allows the 44-Series Milling Motors to handle high torque applications with ease.

Features And Benefits:

  • Ease of Service: Without having to spend time repairing your tools, your productivity can soar.
  • Durable: Able to withstand harsh conditions, these milling motors are ones you can count on. Ideal for increased side loading applications such as milling and sawing.
  • Safety: ATEX and CE certified for reliable performance in hazardous environments requiring intrinsically safe components.
  • Air Consumption (cfm): 95
  • Air Inlet: 3/8" NPT
  • Air Pressure (psi): 90
  • Drive Size (in): 3/4
  • Drive Type: Collet
  • Exhaust Location: Rear- 360 adjustable
  • Finish: Black Oxide
  • Gear Reduction: Single
  • Gear Train: Planetary
  • Housing Material: Steel
  • Max Free Speed (rpm): 2000
  • Max Pressure (bar): 6.2
  • Max Torque (ft-lb): 18
  • Max Torque (in-lb): 216
  • Max Torque (nm): 24.4
  • Motor: Rotary Vane
  • Motor: Milling
  • Motor: In line
  • Mounting Type: Face
  • Number of Mounting Holes: 4
  • Power Source: Air Powered
  • Product Length (in): 11.69
  • Product Width (in): 5.44
  • Product Weight (lb): 13.82
  • Rated Power (hp): 2
  • Rated Power (kW): 1.49
  • Reversible: Non-reversible
  • Sound Level dB(A): 80
  • Speed at Max Power (rpm): 1050
  • Standards/Certifications: ATEX
  • Torque Output @ Max HP (ft-lb): 10.0
  • Torque Output @ Max HP (nm): 13.5
  • Warranty: 1-year
  • Parts: 35264-17
$4,880.50

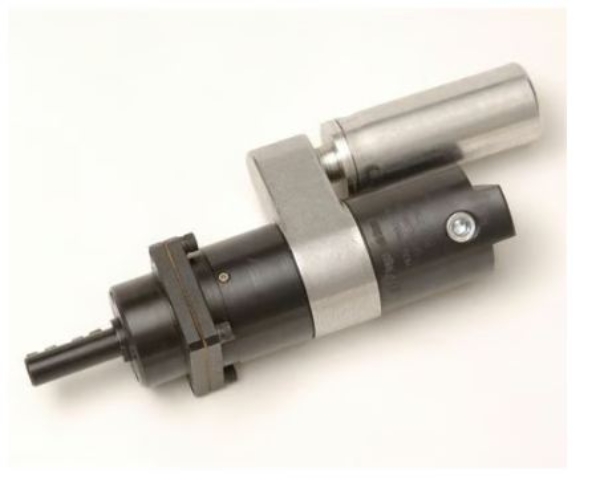

AA 8228-6B.jpg

Power Motor

AA 8228-6B

AA 8228-6B

Inline Multi-Vane Air Motor, 1/2" Keyed Spindle, 650 RPM, 0.5 HP, 18.7 NM, Reversible

  • Air Consumption at Max HP (scfm): 30
  • Air Inlet: 1/4" NPT
  • Air Pressure (psi): 90
  • Drive Size (in): 1/2
  • Drive Type: Round Keyed
  • Exhaust Location: Exterior Muffler
  • Finish: Black Oxide
  • Gear Ratio: 27.4:1
  • Gear Reduction: Double
  • Gear Train: Planetary
  • Housing Material: Steel
  • Max Free Speed (rpm): 650
  • Max Pressure (bar): 6.2
  • Max Torque (ft-lb): 14
  • Max Torque (in-lb): 166
  • Max Torque (nm): 18.7
  • Motor: Rotary Vane
  • Motor: In line
  • Mounting Type: Face
  • Number of Mounting Holes: 4
  • Power Source: Air Powered
  • Product Weight (lb): 4.25
  • Rated Power (hp): 0.5
  • Rated Power (kW): 0.37
  • Reversible: Reversible
  • Sound Level dB(A): 80
  • Speed at Max Power (rpm): 330
  • Torque Output @ Max HP (ft-lb): 8.0
  • Torque Output @ Max HP (nm): 10.8
  • Warranty: 1-year
$2,650.00

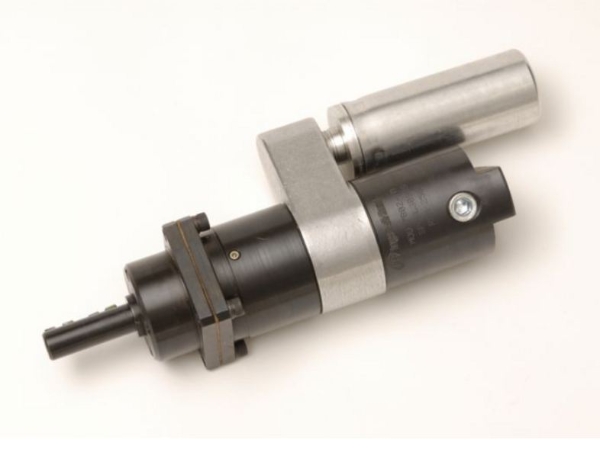

AA 8229-2A.jpg

Power Motor

AA 8229-2A

AA 8229-2A

Inline Multi-Vane Air Motor, 3/8"-24 Thd Spindle, 5700 RPM, 0.6 HP, 2.9 NM, Non-reversible

  • Air Consumption at Max HP (scfm): 41
  • Air Inlet: 1/4" NPT
  • Air Pressure (psi): 90
  • Arbor/Collet: 3/8"-24 Thread
  • Drive Type: Threaded
  • Exhaust Location: Exterior Muffler
  • Finish: Black Oxide
  • Gear Ratio: 3.4:1
  • Gear Reduction: Single
  • Gear Train: Planetary
  • Housing Material: Steel
  • Max Free Speed (rpm): 5700
  • Max Pressure (bar): 6.2
  • Max Torque (ft-lb): 2.1
  • Max Torque (in-lb): 26
  • Max Torque (nm): 2.9
  • Motor: Rotary Vane
  • Motor: In line
  • Mounting Type: Foot Mount Optional
  • Power Source: Air Powered
  • Product Weight (lb): 2.45
  • Rated Power (hp): 0.6
  • Rated Power (kW): 0.45
  • Reversible: Non-reversible
  • Sound Level dB(A): 80
  • Speed at Max Power (rpm): 2900
  • Torque Output @ Max HP (ft-lb): 1.1
  • Torque Output @ Max HP (nm): 1.5
  • Warranty: 1-year
  • Parts: 37896
$1,920.00
AA 8230-7A.jpg

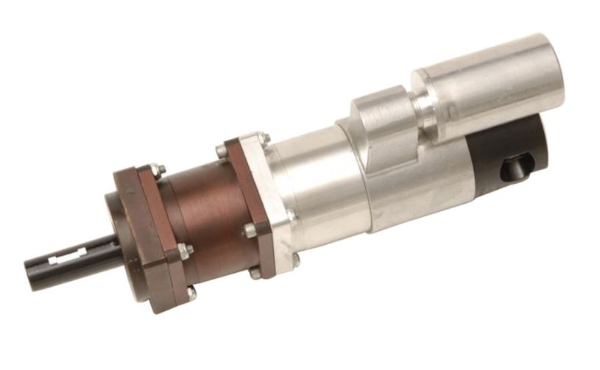

Power Motor

AA 8230-7A

AA 8230-7A

Inline Multi-Vane Air Motor, 3/8" Keyed Shaft, 800 RPM, 0.6 HP, 20 NM, Non-reversible

  • Air Consumption at Max HP (scfm): 41
  • Air Inlet: 1/4" NPT
  • Air Pressure (psi): 90
  • Drive Size (in): 3/8
  • Drive Type: Round Keyed
  • Exhaust Location: Exterior Muffler
  • Finish: Black Oxide
  • Gear Ratio: 23.4:1
  • Gear Reduction: Double
  • Gear Train: Planetary
  • Housing Material: Steel
  • Max Free Speed (rpm): 800
  • Max Pressure (bar): 6.2
  • Max Torque (ft-lb): 15
  • Max Torque (in-lb): 177
  • Max Torque (nm): 20
  • Motor: Rotary Vane
  • Motor: In line
  • Mounting Type: Foot Mount Optional
  • Power Source: Air Powered
  • Product Weight (lb): 2.98
  • Rated Power (hp): 0.6
  • Rated Power (kW): 0.45
  • Reversible: Non-reversible
  • Sound Level dB(A): 80
  • Speed at Max Power (rpm): 390
  • Torque Output @ Max HP (ft-lb): 8.0
  • Torque Output @ Max HP (nm): 10.8
  • Warranty: 1-year
  • Parts: 37896
$2,130.00
CL 22M5270-50.jpg

Rev Pwr Mtr 2400 RPM 1/2in Keyed

CL 22M5270-50

CL 22M5270-50

REV PWR MTR 2400 RPM,1/2in KEYED
Maximum Power 0.7 hp | 0.52 kw
  • Maximum Power 0.7 hp | 0.52 kw

  • Torque Range 0.6 - 28.4 ft. lbs. | 0.81 - 38.48 Nm

Exhaust: Side
Weight (lbs): 2.1 lb

Air Inlet: 1/4 NPT Side and rear Air consumption: 29 cfm(.82 m3/min) All tools performance rated @ 90psi(620 kPa) air pressure Standard Equipment: Hex socket screw provided for closure of unused inlet Flush fitting for lubrication of gears
$2,138.50

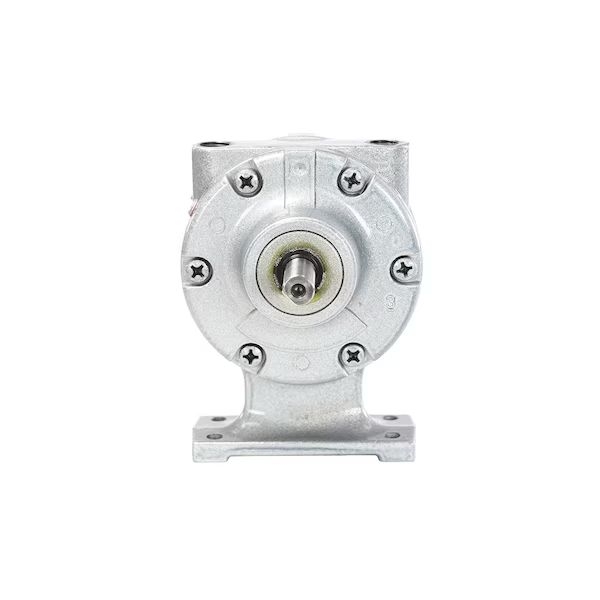

GS 1AM-NCC-12.JPG

Air Motor

GS 1AM-NCC-12

GS 1AM-NCC-12

Air Motor
Call for pricing

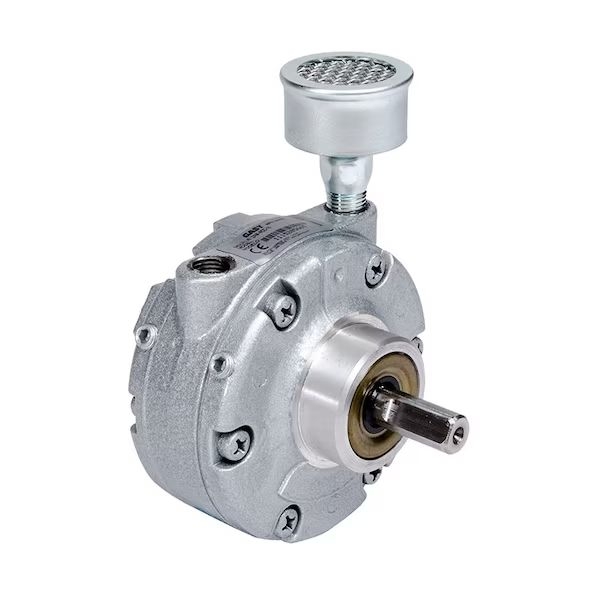

GS 2AM-NRV-89.JPG

Air Motor

GS 2AM-NRV-89

GS 2AM-NRV-89

Air Motor
$465.47

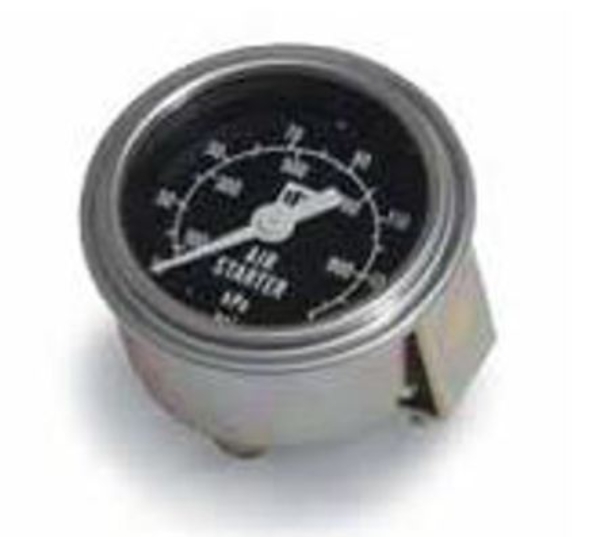

IR 150BMP-1064.jpg

GAUGE - 150 PSI DASH MO

IR 150BMP-1064

IR 150BMP-1064

GAUGE - 150 PSI DASH MO
$114.00
Refine
×
Manufacturer
