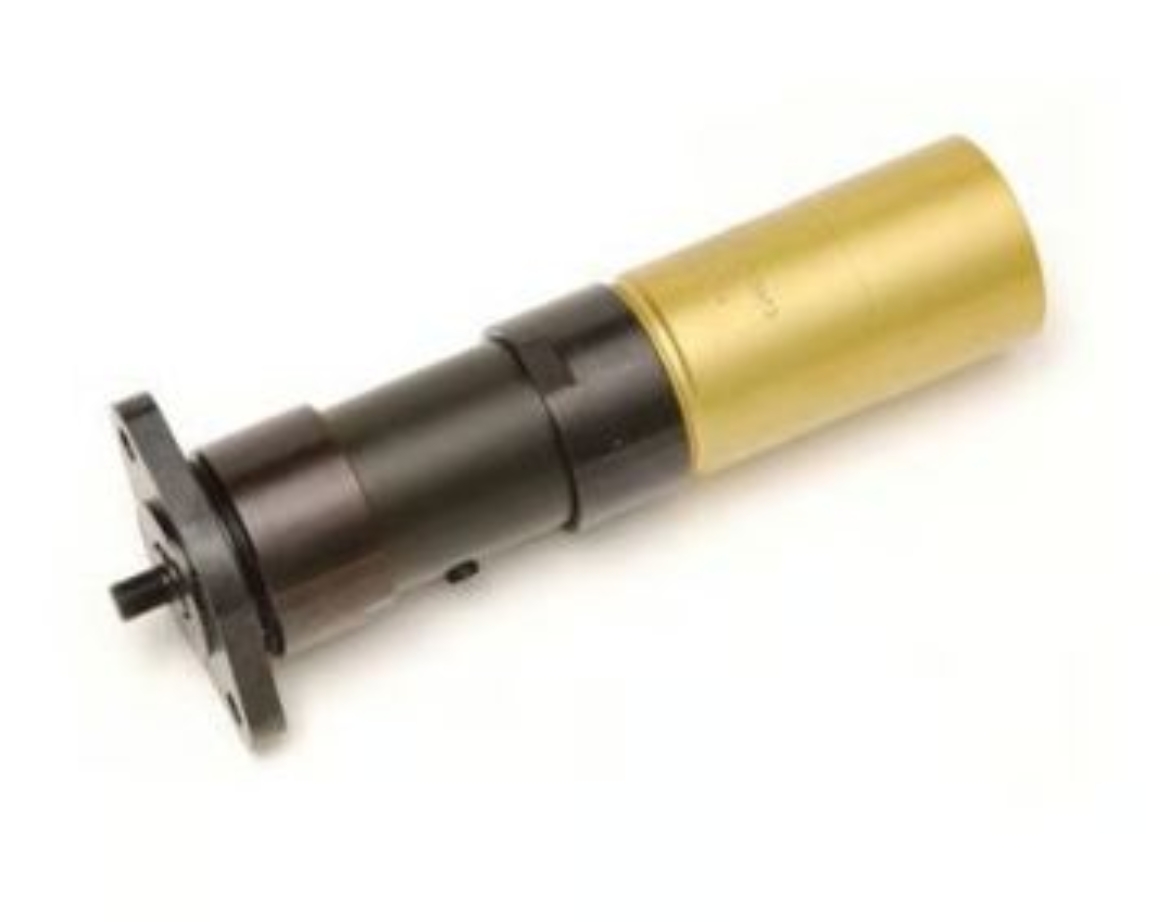

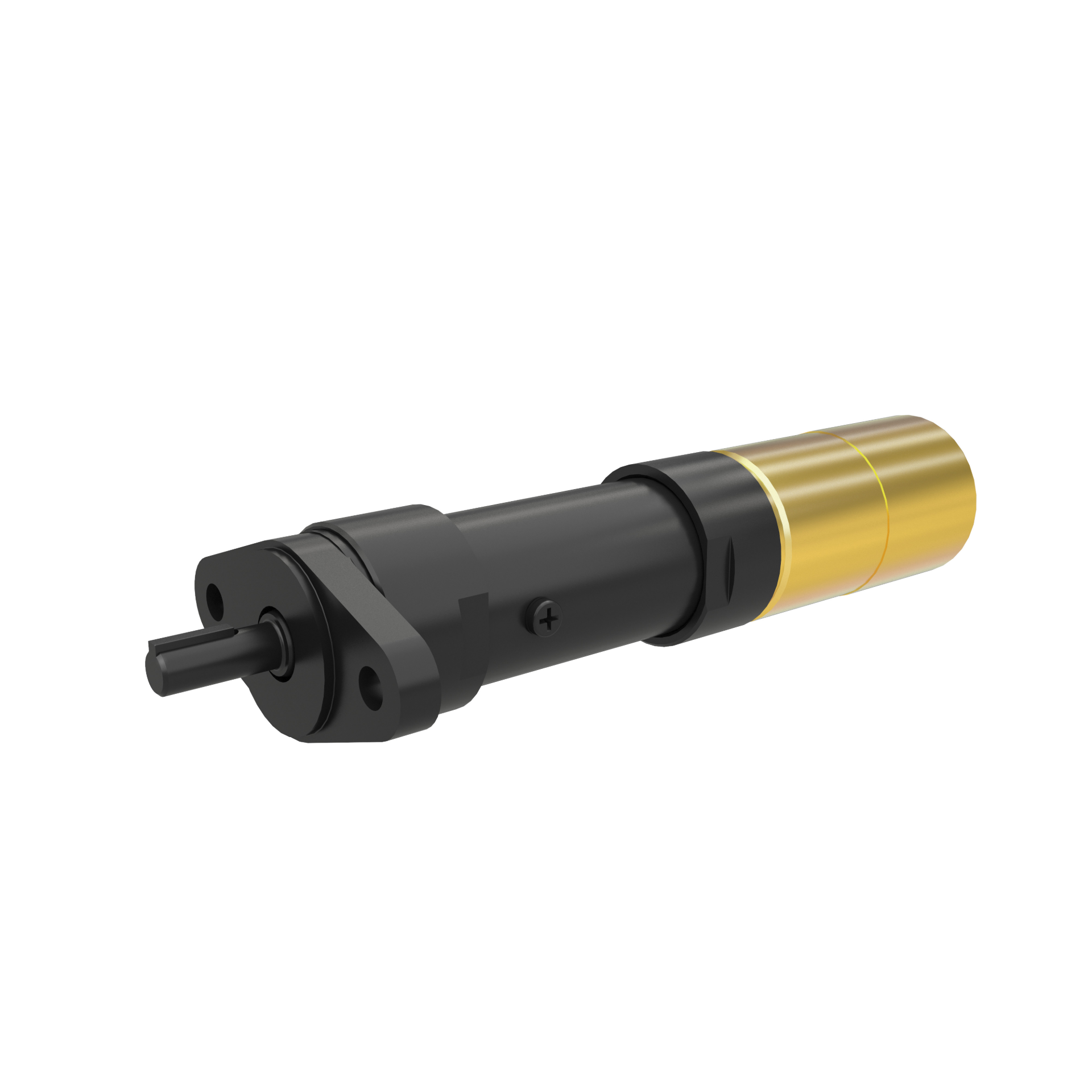

IR M004RVR167AR3
Inline Multi-Vane Air Motor, 3/8" Keyed Shaft, 85 RPM, 0.31 HP, 74.5 NM, Reversible
Description: The M004 Series has a durable inline planetary gearing system and robust vane motor design making it one of the most durable motors around.
Features And Benefits:
- Safety: Meets ATEX Standards
- Durable: Able to withstand harsh environments for a multitude of applications.
- Productive: Thanks to easy servicing, you never have to break for long to fix your equipment.
Product Application and Uses:
Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller
- Air Consumption at Max HP (scfm): 17.5
- Air Inlet: 1/4" NPT
- Air Pressure (psi): 90
- Drive Length (in): 1
- Drive Size (in): 3/8
- Drive Type: Round Keyed
- Exhaust Location: Rear
- Finish: Black Oxide and Anodize
- Gear Ratio: 167:1
- Gear Reduction: Triple
- Gear Train: Planetary
- Housing Material: Steel
- Keyaway Length (in): 0.625
- Max Free Speed (rpm): 85
- Max Pressure (bar): 6.2
- Max Torque (ft-lb): 55
- Max Torque (in-lb): 659
- Max Torque (nm): 74.5
- Motor: Rotary Vane
- Motor: In line
- Mounting Type: Flanged Mounting
- Number of Mounting Holes: 2
- Operating Temperature Range: 0F to 150F
- Power Source: Air Powered
- Product Length (in): 7.7
- Product Width (in): 1.76
- Product Height (in): 1.76
- Product Weight (lb): 2.69
- Rated Power (hp): 0.31
- Rated Power (kW): 0.23
- Reversible: Reversible
- Speed at Max Power (rpm): 42
- Standards/Certifications: ATEX
- Starting Torque (ft-lb): 41
- Starting Torque (nm): 56
