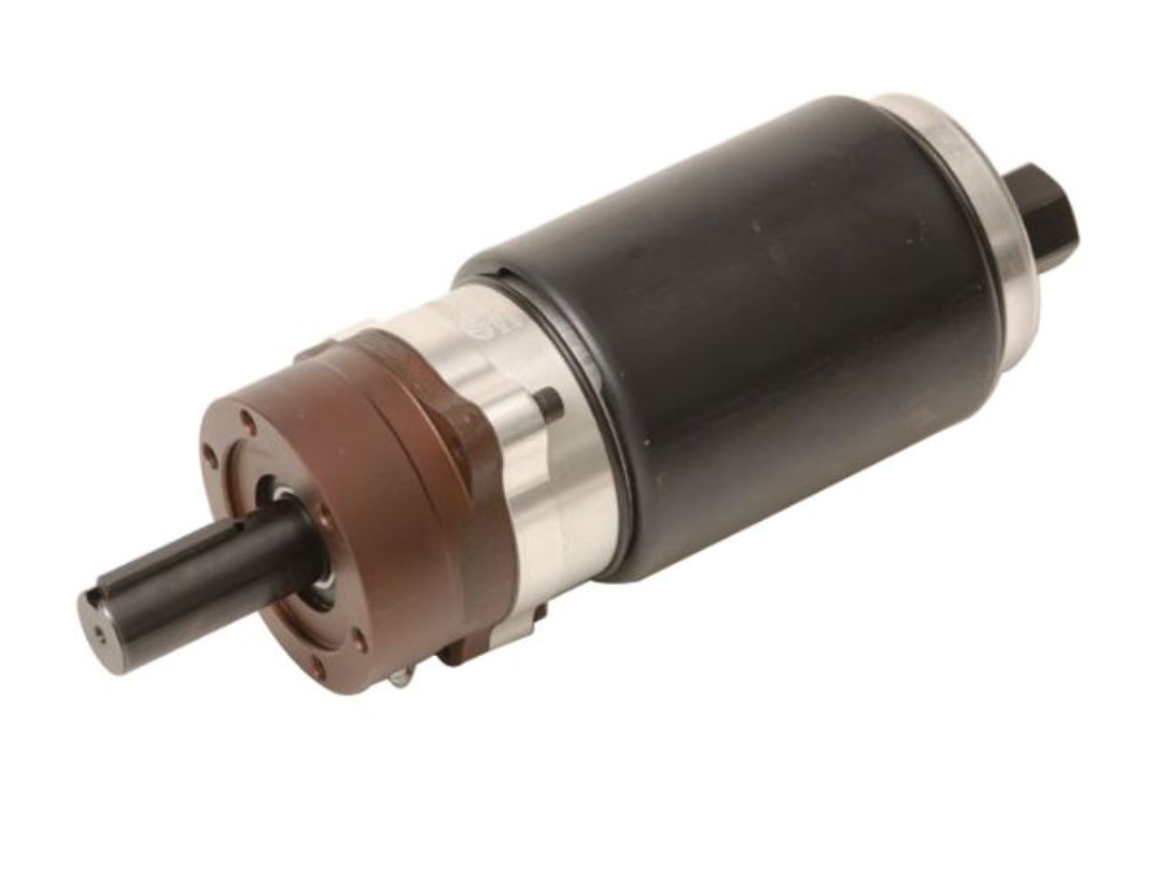

IR 3840S
Inline Multi-Vane Air Motor, 3/4" Keyed Shaft, 190 RPM, 1.35 HP, 156 NM, Reversible
With durable inline planetary gearing and a robust vane motor, the 3800 Series is one of the most durable motors on the market.
Features And Benefits
- Safety: Meets ATEX Standards
- Durable: The 3800 Series is designed to withstand harsh environments and keep on running.
- Ease of Service: Easily serviceable, the 3800 Series will enhance productivity by eliminating long repair times.
Product Application and Uses: Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller
Air Consumption at Max HP (scfm): 44
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Length (in): 2.1875
Drive Size (in): 3/4
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Ratio: 19.3:1
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Keyaway Length (in): 1.5
Max Free Speed (rpm): 190
Max Pressure (bar): 6.2
Max Torque (ft-lb): 115
Max Torque (in-lb): 1381
Max Torque (nm): 156
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Operating Temperature Range: 0F to 150F
Power Source: Air Powered
Product Length (in): 8.69
Product Width (in): 3.25
Product Height (in): 3.25
Product Weight (lb): 8.75
Rated Power (hp): 1.35
Rated Power (kW): 1.01
Reversible: Reversible
Speed at Max Power (rpm): 100
Standards/Certifications: ATEX
Starting Torque (ft-lb): 86
Starting Torque (nm): 116
Warranty: 1-year
