Air Motors

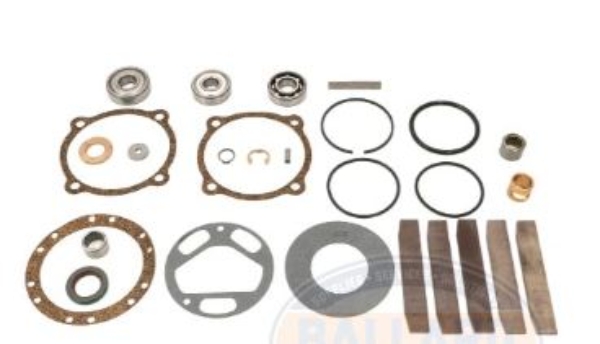

IR 150BM-TK2

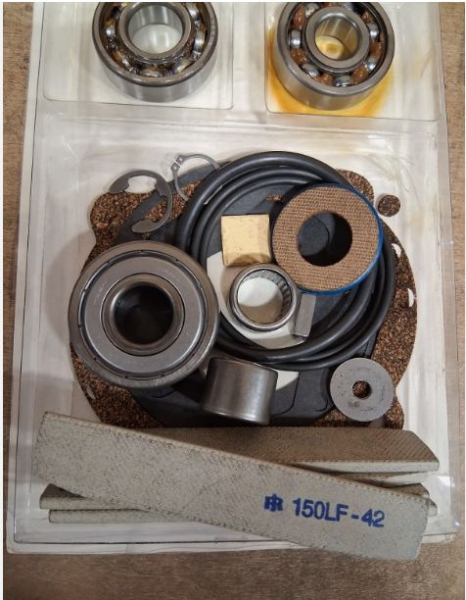

TUNE-UP KIT (150BM-TK1)

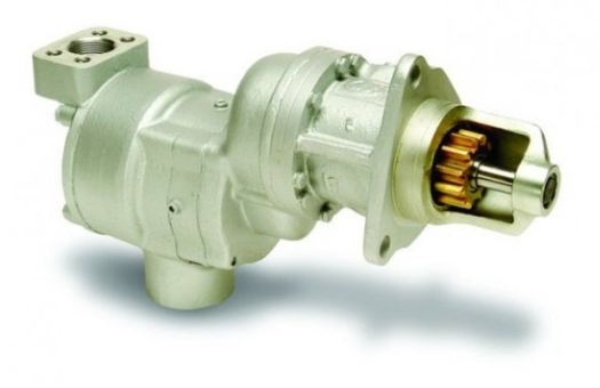

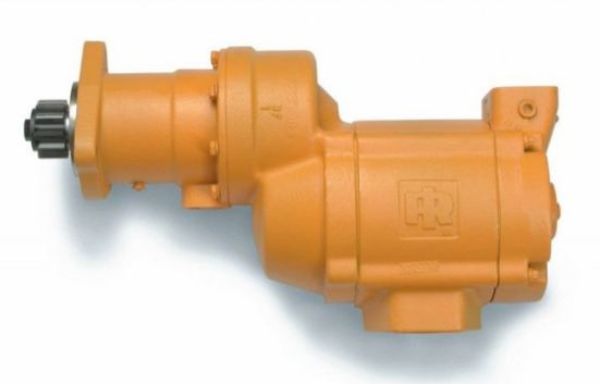

IR 150TMGF21RH6-02O

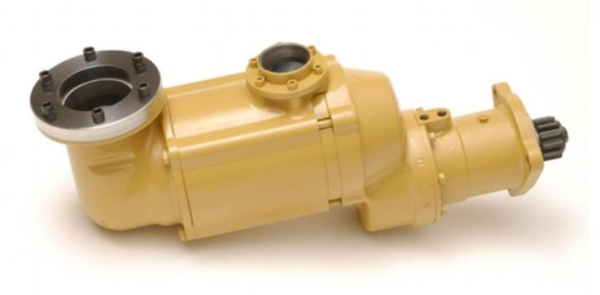

STARTER

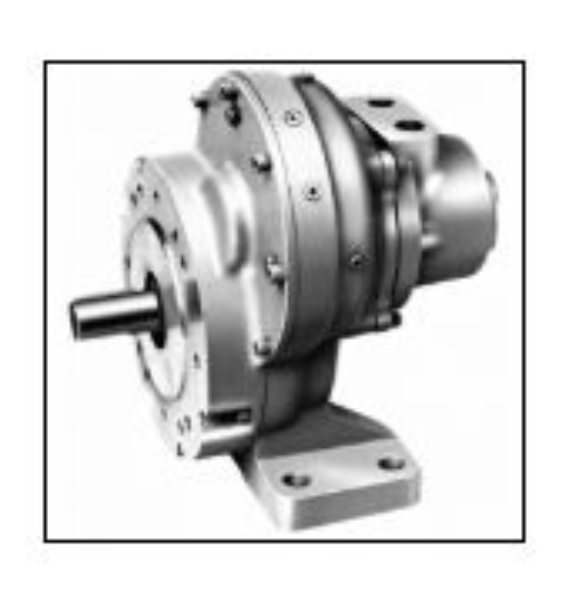

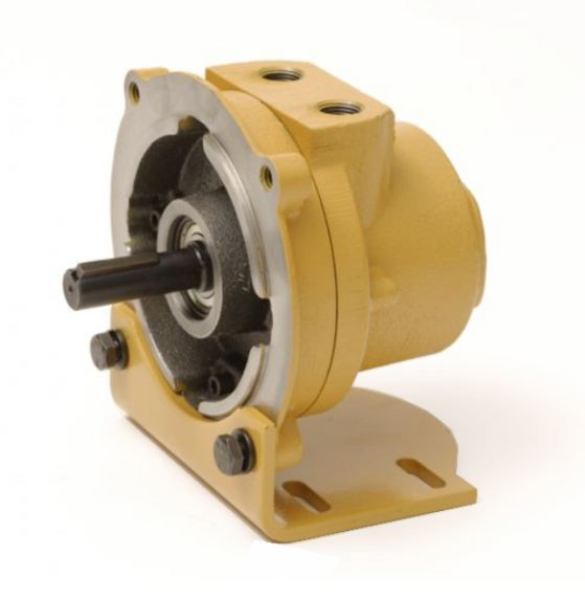

IR 34RA011

Spur Gear Air Motor, 1-1/2" Keyed Shaft, 490 RPM, 4.1 HP, 206 NM, Reversible

Air Consumption at Max HP (scfm): 183
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Single
Gear Train: Spur Gear
Housing Material: Steel Motor, Aluminum Gear Housing
Max Free Speed (rpm): 490
Max Pressure (bar): 6.2
Max Torque (ft-lb): 152
Max Torque (in-lb): 1823
Max Torque (nm): 206
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 43
Rated Power (hp): 4.1
Rated Power (kW): 3.06
Reversible: Reversible
Speed at Max Power (rpm): 255
Starting Torque (ft-lb): 98
Starting Torque (nm): 133
Warranty: 1-year

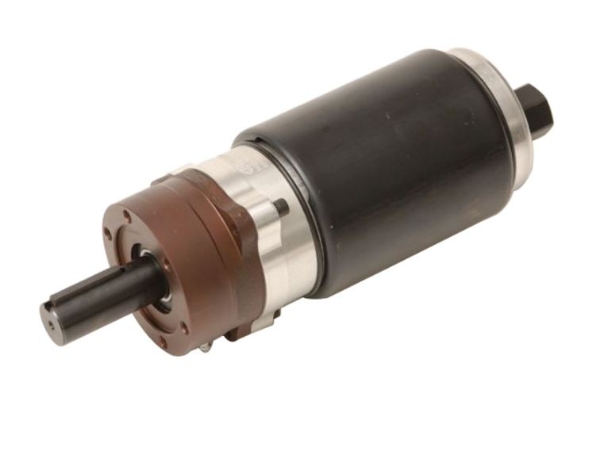

IR 3840S

Inline Multi-Vane Air Motor, 3/4" Keyed Shaft, 190 RPM, 1.35 HP, 156 NM, Reversible

With durable inline planetary gearing and a robust vane motor, the 3800 Series is one of the most durable motors on the market.

Features And Benefits

• Safety: Meets ATEX Standards
• Durable: The 3800 Series is designed to withstand harsh environments and keep on running.
• Ease of Service: Easily serviceable, the 3800 Series will enhance productivity by eliminating long repair times.

Product Application and Uses: Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller
Air Consumption at Max HP (scfm): 44
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Length (in): 2.1875
Drive Size (in): 3/4
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Ratio: 19.3:1
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Keyaway Length (in): 1.5
Max Free Speed (rpm): 190
Max Pressure (bar): 6.2
Max Torque (ft-lb): 115
Max Torque (in-lb): 1381
Max Torque (nm): 156
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Operating Temperature Range: 0F to 150F
Power Source: Air Powered
Product Length (in): 8.69
Product Width (in): 3.25
Product Height (in): 3.25
Product Weight (lb): 8.75
Rated Power (hp): 1.35
Rated Power (kW): 1.01
Reversible: Reversible
Speed at Max Power (rpm): 100
Standards/Certifications: ATEX
Starting Torque (ft-lb): 86
Starting Torque (nm): 116
Warranty: 1-year

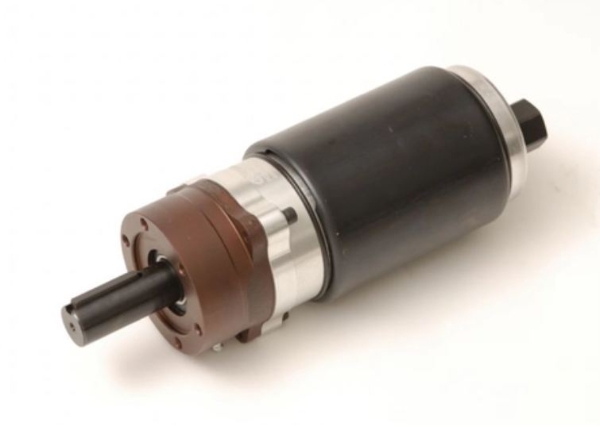

IR 3840U

Inline Multi-Vane Air Motor, 3/4" Keyed Shaft, 162 RPM, 1.35 HP, 181 NM, Reversible

With durable inline planetary gearing and a robust vane motor, the 3800 Series is one of the most durable motors on the market.

Features And Benefits

• Safety: Meets ATEX Standards
• Durable: The 3800 Series is designed to withstand harsh environments and keep on running.
• Ease of Service: Easily serviceable, the 3800 Series will enhance productivity by eliminating long repair times.

Product Application and Uses: Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller
Air Consumption at Max HP (scfm): 44
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Length (in): 2.1875
Drive Size (in): 3/4
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Ratio: 19.3:1
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Keyaway Length (in): 1.5
Max Free Speed (rpm): 162
Max Pressure (bar): 6.2
Max Torque (ft-lb): 133
Max Torque (in-lb): 1602
Max Torque (nm): 181
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Operating Temperature Range: 0F to 150F
Power Source: Air Powered
Product Length (in): 8.69
Product Width (in): 3.25
Product Height (in): 3.25
Product Weight (lb): 8.75
Rated Power (hp): 1.35
Rated Power (kW): 1.01
Reversible: Reversible
Speed at Max Power (rpm): 83
Standards/Certifications: ATEX
Starting Torque (ft-lb): 100
Starting Torque (nm): 135
Warranty: 1-year

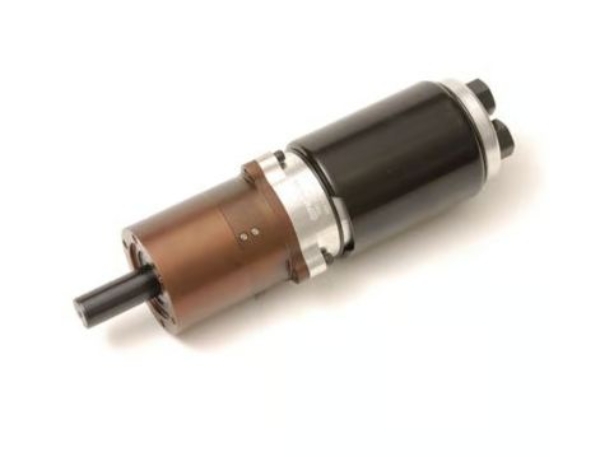

IR 4800U2

Inline Multi-Vane Air Motor, 1" Square Shaft, 185 RPM, 3.5 HP, 480 NM, Non-reversible

The 4800 Series has a durable inline planetary gearing system and robust vane motor design making it one of the most durable motors around.

Features And Benefits

• Safety: Meets ATEX Standards
• Durable: Able to withstand harsh environments, you never have to worry about the 4800 Series letting you down.
• Ease of Service: Without having to worry about repair time, you’ll be able to spend more time focused on the job.

Product Application and Uses: Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller
Air Consumption at Max HP (scfm): 95
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Length (in): 2.25
Drive Size (in): 1
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Ratio: 53.5:1
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 185
Max Pressure (bar): 6.2
Max Torque (ft-lb): 354
Max Torque (in-lb): 4248
Max Torque (nm): 480
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Operating Temperature Range: 0F to 150F
Power Source: Air Powered
Product Length (in): 11.38
Product Width (in): 4
Product Height (in): 4
Product Weight (lb): 19.75
Rated Power (hp): 3.5
Rated Power (kW): 2.61
Reversible: Non-reversible
Speed at Max Power (rpm): 97
Standards/Certifications: ATEX
Starting Torque (ft-lb): 265
Starting Torque (nm): 359
Warranty: 1-year

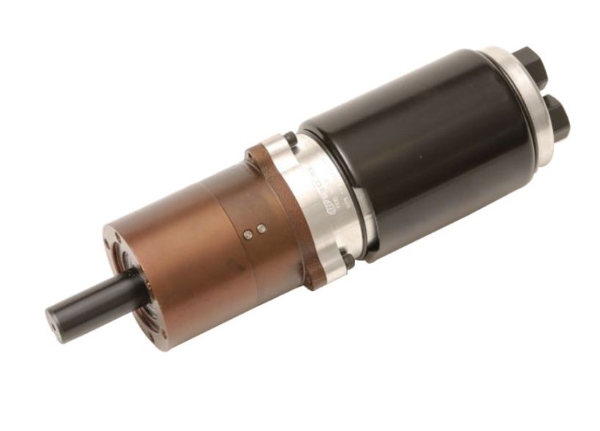

IR 4840K

Inline Multi-Vane Air Motor, 1" Keyed Shaft, 1429 RPM, 3.2 HP, 57 NM, Reversible

Features And Benefits

• Safety: Meets ATEX Standards
• Durable: Able to withstand harsh environments, you never have to worry about the 4800 Series letting you down.
• Ease of Service: Without having to worry about repair time, you’ll be able to spend more time focused on the job.

Product Application and Uses: Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller
Air Consumption at Max HP (scfm): 95
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Size (in): 1
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Reduction: Single
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 1429
Max Pressure (bar): 6.2
Max Torque (ft-lb): 42
Max Torque (in-lb): 504
Max Torque (nm): 57
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Power Source: Air Powered
Product Length (in): 11.38
Product Width (in): 4
Product Height (in): 4
Product Weight (lb): 15.25
Rated Power (hp): 3.2
Rated Power (kW): 2.39
Reversible: Reversible
Speed at Max Power (rpm): 711
Standards/Certifications: ATEX
Starting Torque (ft-lb): 32
Starting Torque (nm): 43.4
Warranty: 1-year

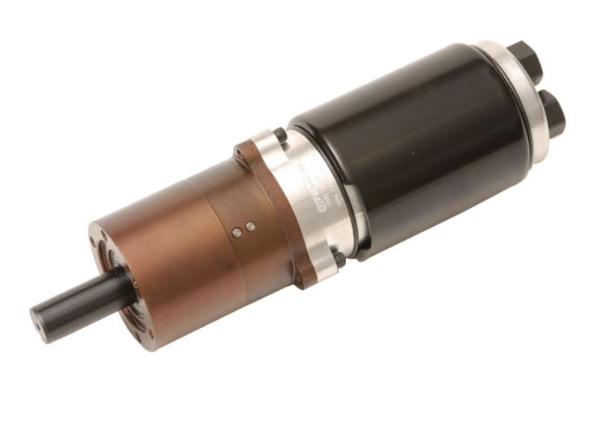

IR 4840M

Inline Multi-Vane Air Motor, 1" Keyed Shaft, 975 RPM, 3.2 HP, 85.4 NM, Reversible

The 4800 Series has a durable inline planetary gearing system and robust vane motor design making it one of the most durable motors around.

Features And Benefits

• Safety: Meets ATEX Standards
• Durable: Able to withstand harsh environments, you never have to worry about the 4800 Series letting you down.
• Ease of Service: Without having to worry about repair time, you’ll be able to spend more time focused on the job.

Product Application and Uses: Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller
Air Consumption at Max HP (scfm): 95
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Length (in): 2.25
Drive Size (in): 1
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Ratio: 35.6:1
Gear Reduction: Single
Gear Train: Planetary
Housing Material: Steel
Keyaway Length (in): 1.625
Max Free Speed (rpm): 975
Max Pressure (bar): 6.2
Max Torque (ft-lb): 63
Max Torque (in-lb): 756
Max Torque (nm): 85.4
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Operating Temperature Range: 0F to 150F
Power Source: Air Powered
Product Length (in): 11.38
Product Width (in): 4
Product Height (in): 4
Product Weight (lb): 15.25
Rated Power (hp): 3.2
Rated Power (kW): 2.39
Reversible: Reversible
Speed at Max Power (rpm): 485
Standards/Certifications: ATEX
Starting Torque (ft-lb): 47
Starting Torque (nm): 64
Warranty: 1-year

IR 4840P

Inline Multi-Vane Air Motor, 1" Keyed Shaft, 475 RPM, 3 HP, 170 NM, Reversible

The 4800 Series has a durable inline planetary gearing system and robust vane motor design making it one of the most durable motors around.

Features And Benefits

• Safety: Meets ATEX Standards
• Durable: Able to withstand harsh environments, you never have to worry about the 4800 Series letting you down.
• Ease of Service: Without having to worry about repair time, you’ll be able to spend more time focused on the job.

Product Application and Uses: Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller
Air Consumption at Max HP (scfm): 95
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Length (in): 2.25
Drive Size (in): 1
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Ratio: 35.6:1
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Keyaway Length (in): 1.625
Max Free Speed (rpm): 475
Max Pressure (bar): 6.2
Max Torque (ft-lb): 125
Max Torque (in-lb): 1505
Max Torque (nm): 170
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Operating Temperature Range: 0F to 150F
Power Source: Air Powered
Product Length (in): 11.38
Product Width (in): 4
Product Height (in): 4
Product Weight (lb): 20.13
Rated Power (hp): 3
Rated Power (kW): 2.24
Reversible: Reversible
Speed at Max Power (rpm): 228
Standards/Certifications: ATEX
Starting Torque (ft-lb): 93
Starting Torque (nm): 126
Warranty: 1-year

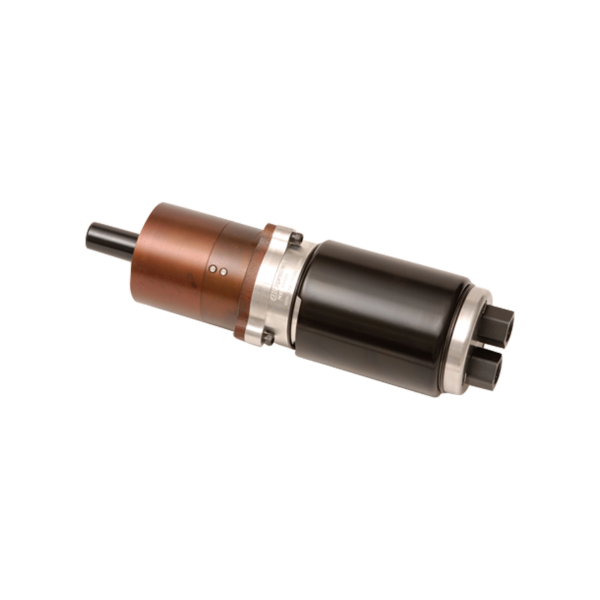

IR 4840S

Inline Multi-Vane Air Motor, 1" Keyed Shaft, 255 RPM, 3 HP, 292 NM, Reversible

The 4800 Series has a durable inline planetary gearing system and robust vane motor design making it one of the most durable motors around.

Features And Benefits

• Safety: Meets ATEX Standards
• Durable: Able to withstand harsh environments, you never have to worry about the 4800 Series letting you down.
• Ease of Service: Without having to worry about repair time, you’ll be able to spend more time focused on the job.

Product Application and Uses: Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller
Air Consumption at Max HP (scfm): 95
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Drive Length (in): 2.25
Drive Size (in): 1
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Ratio: 35.6:1
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Keyaway Length (in): 1.625
Max Free Speed (rpm): 255
Max Pressure (bar): 6.2
Max Torque (ft-lb): 215
Max Torque (in-lb): 2584
Max Torque (nm): 292
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Operating Temperature Range: 0F to 150F
Power Source: Air Powered
Product Length (in): 11.38
Product Width (in): 4
Product Height (in): 4
Product Weight (lb): 20.13
Rated Power (hp): 3
Rated Power (kW): 2.24
Reversible: Reversible
Speed at Max Power (rpm): 125
Standards/Certifications: ATEX
Starting Torque (ft-lb): 161
Starting Torque (nm): 218
Warranty: 1-year

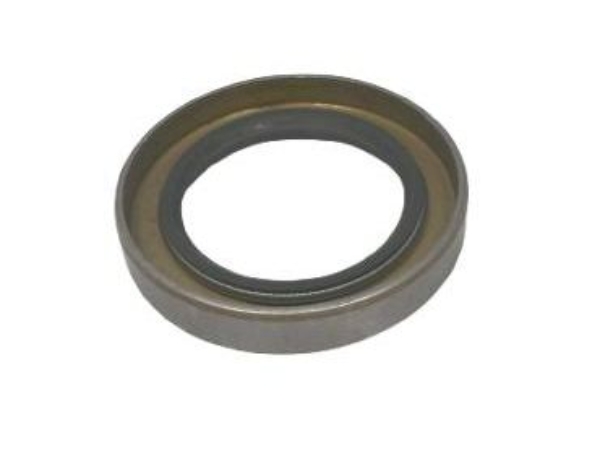

IR 48NB-759

SEAL

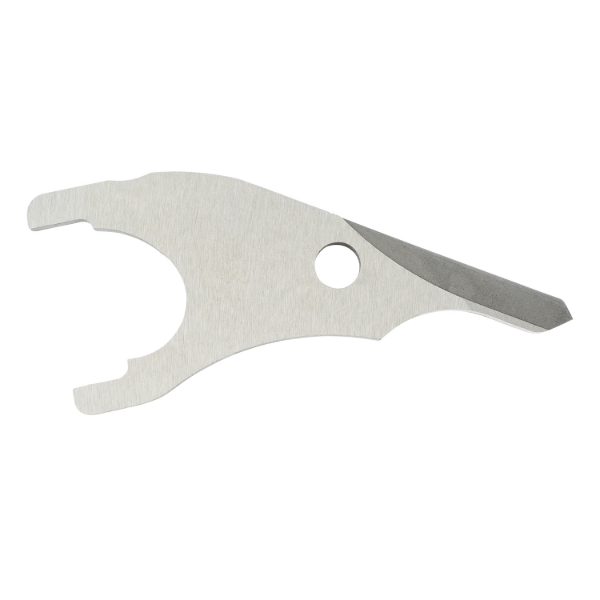

IR 7802S-6021

Shear Blades for Ingersoll Rand 7802SA Air Shears

Product Application and Uses: For use with Ingersoll Rand 7802SA Air Shears

For Use With

• 7802SA

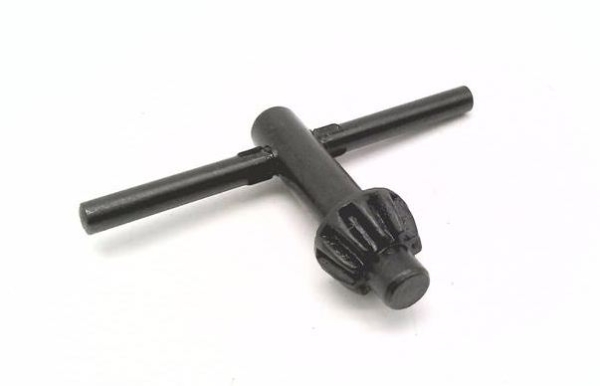

IR 7811-253

CHUCK KEY

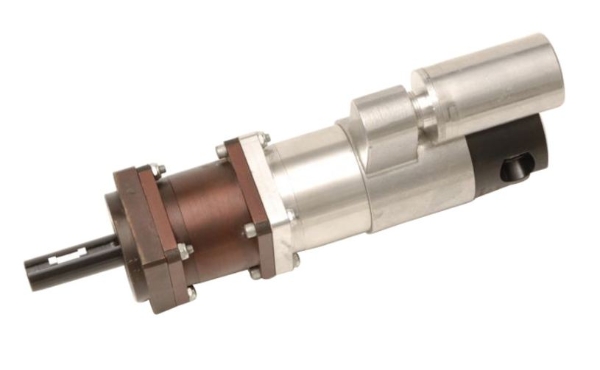

IR 8207-A

Inline Multi-Vane Air Motor, 7/8" Keyed Shaft, 500 RPM, 1.9 HP, 81.3 NM, Reversible

Air Consumption at Max HP (scfm): 93.5
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Drive Size (in): 7/8
Drive Type: Round Keyed
Exhaust Location: Exterior Muffler
Finish: Black Oxide
Gear Ratio: 28:1
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 60
Max Torque (in-lb): 720
Max Torque (nm): 81.3
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 4
Power Source: Air Powered
Product Weight (lb): 18.24
Rated Power (hp): 1.9
Rated Power (kW): 1.42
Reversible: Reversible
Sound Level dB(A): 95
Speed at Max Power (rpm): 250
Torque Output @ Max HP (ft-lb): 40
Torque Output @ Max HP (nm): 54.1
Warranty: 1-year

IR 92RA005

Spur Gear Air Motor, 1-1/2" Keyed Shaft, 1390 RPM, 8.15 HP, 102 NM, Reversible

Air Consumption at Max HP (scfm): 230
Air Inlet: 1" NPT
Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Single
Gear Train: Spur Gear
Housing Material: Aluminum
Max Free Speed (rpm): 1390
Max Pressure (bar): 6.2
Max Torque (ft-lb): 75
Max Torque (in-lb): 903
Max Torque (nm): 102
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 46
Rated Power (hp): 8.15
Rated Power (kW): 6.08
Reversible: Reversible
Speed at Max Power (rpm): 910
Starting Torque (ft-lb): 56
Starting Torque (nm): 75.9
Warranty: 1-year

IR 92RA014

Spur Gear Air Motor, 1-1/2" Keyed Shaft, 682 RPM, 8.15 HP, 282 NM, Reversible

Air Consumption at Max HP (scfm): 230
Air Inlet: 1" NPT
Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Single
Gear Train: Spur Gear
Housing Material: Aluminum
Max Free Speed (rpm): 682
Max Pressure (bar): 6.2
Max Torque (ft-lb): 208
Max Torque (in-lb): 2496
Max Torque (nm): 282
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 46
Rated Power (hp): 8.15
Rated Power (kW): 6.08
Reversible: Reversible
Speed at Max Power (rpm): 327
Starting Torque (ft-lb): 152
Starting Torque (nm): 206
Warranty: 1-year

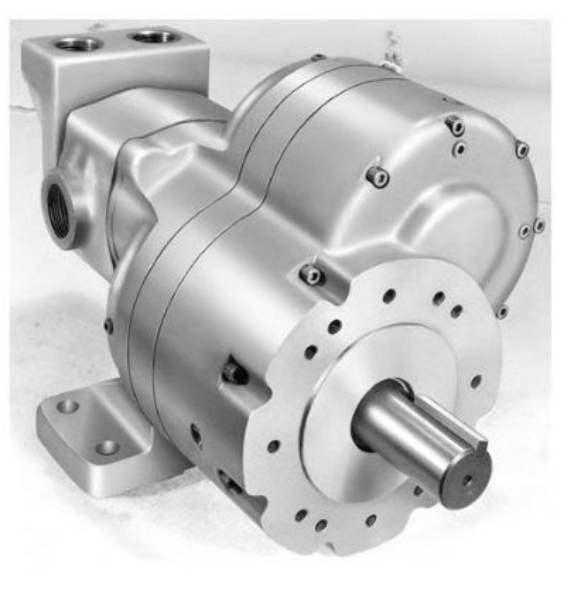

IR 92RA022

Spur Gear Air Motor, 1-1/2" Keyed Shaft, 435 RPM, 8.15 HP, 442 NM, Reversible

Air Consumption at Max HP (scfm): 230
Air Inlet: 1" NPT
Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Single
Gear Train: Spur Gear
Housing Material: Aluminum
Max Free Speed (rpm): 435
Max Pressure (bar): 6.2
Max Torque (ft-lb): 326
Max Torque (in-lb): 3912
Max Torque (nm): 442
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 46
Rated Power (hp): 8.15
Rated Power (kW): 6.08
Reversible: Reversible
Speed at Max Power (rpm): 209
Starting Torque (ft-lb): 235
Starting Torque (nm): 319
Warranty: 1-year

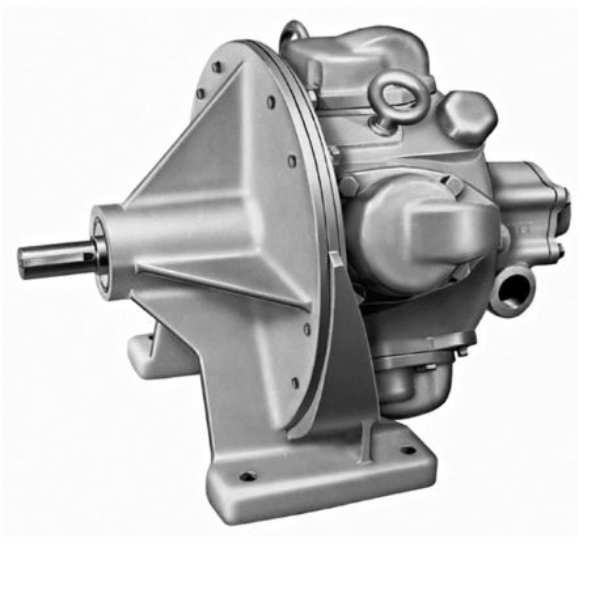

IR EE9G

Motor - Geared Radial P

IR M004-137

GEAR CASE

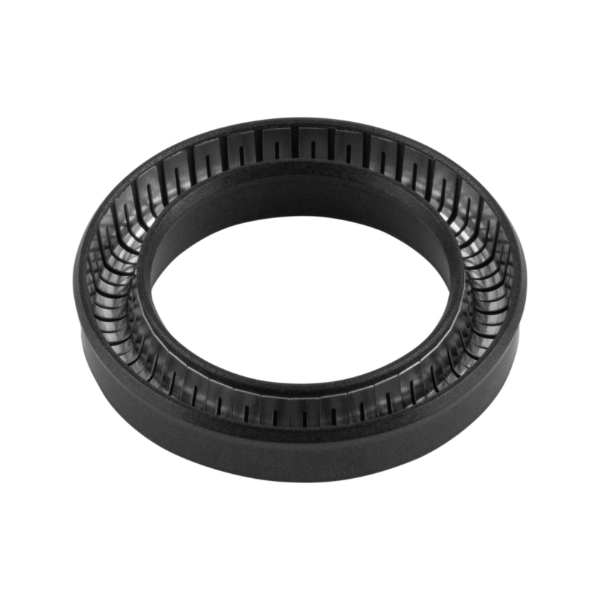

IR M004-271

Spindle Seal Service Part for Ingersoll Rand Power Tools

IR M004-510

SPINDLE BEARING

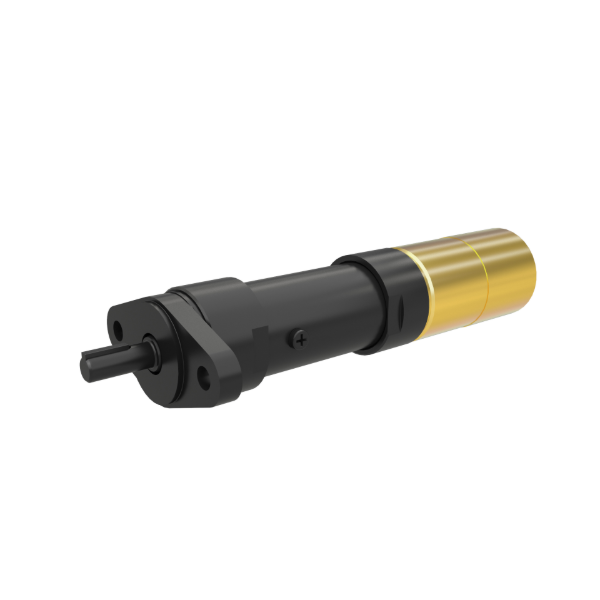

IR M004RVR167AR3

Inline Multi-Vane Air Motor, 3/8" Keyed Shaft, 85 RPM, 0.31 HP, 74.5 NM, Reversible

The M004 Series has a durable inline planetary gearing system and robust vane motor design making it one of the most durable motors around.

Features And Benefits

• Safety: Meets ATEX Standards
• Durable: Able to withstand harsh environments for a multitude of applications.
• Productive: Thanks to easy servicing, you never have to break for long to fix your equipment.

Product Application and Uses: Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller
Air Consumption at Max HP (scfm): 17.5
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Length (in): 1
Drive Size (in): 3/8
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide and Anodize
Gear Ratio: 167:1
Gear Reduction: Triple
Gear Train: Planetary
Housing Material: Steel
Keyaway Length (in): 0.625
Max Free Speed (rpm): 85
Max Pressure (bar): 6.2
Max Torque (ft-lb): 55
Max Torque (in-lb): 659
Max Torque (nm): 74.5
Motor: Rotary Vane
Motor: In line
Mounting Type: Flanged Mounting
Number of Mounting Holes: 2
Operating Temperature Range: 0F to 150F
Power Source: Air Powered
Product Length (in): 7.7
Product Width (in): 1.76
Product Height (in): 1.76
Product Weight (lb): 2.69
Rated Power (hp): 0.31
Rated Power (kW): 0.23
Reversible: Reversible
Speed at Max Power (rpm): 42
Standards/Certifications: ATEX
Starting Torque (ft-lb): 41
Starting Torque (nm): 56
Warranty: 1-year

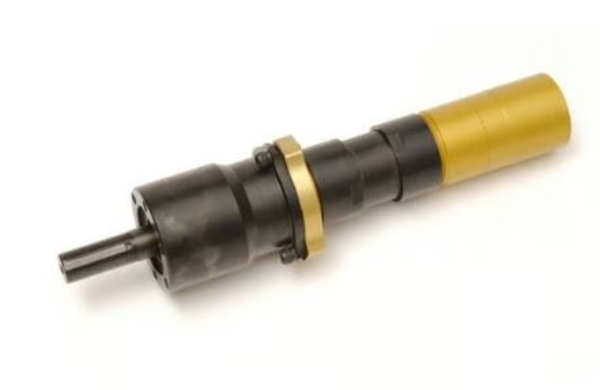

IR M007RHR027BS4

MOTOR

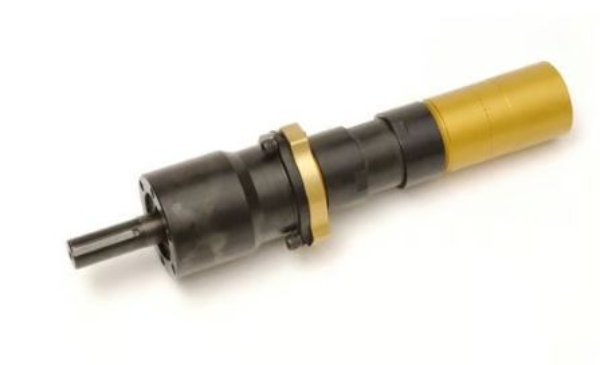

IR M007RHR188BR6

Inline Multi-Vane Air Motor, 3/4" Keyed Shaft, 103 RPM, 0.76 HP, 174 NM, Non-reversible

Features And Benefits

• Safety: Meets ATEX Standards

Air Consumption at Max HP (scfm): 36
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 3/4
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide and Anodize
Gear Ratio: 188:1
Gear Reduction: Quadruple
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 103
Max Pressure (bar): 6.2
Max Torque (ft-lb): 128
Max Torque (in-lb): 1540
Max Torque (nm): 174
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 6
Power Source: Air Powered
Product Weight (lb): 7.38
Rated Power (hp): 0.76
Rated Power (kW): 0.57
Reversible: Non-reversible
Speed at Max Power (rpm): 52
Standards/Certifications: ATEX
Starting Torque (ft-lb): 96
Starting Torque (nm): 130
Warranty: 1-year

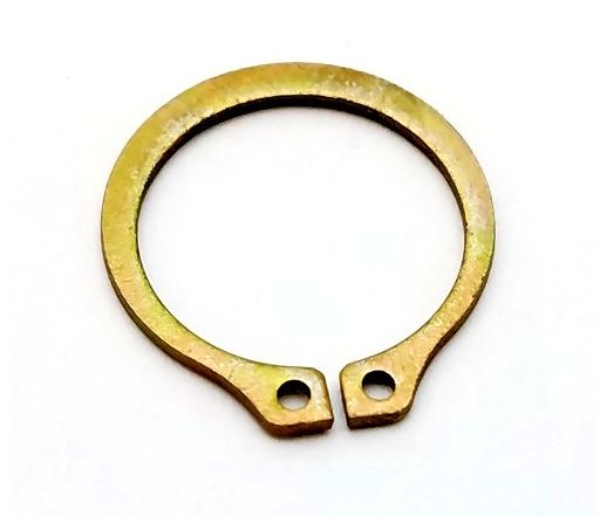

IR MVA008-218

RETAINER
