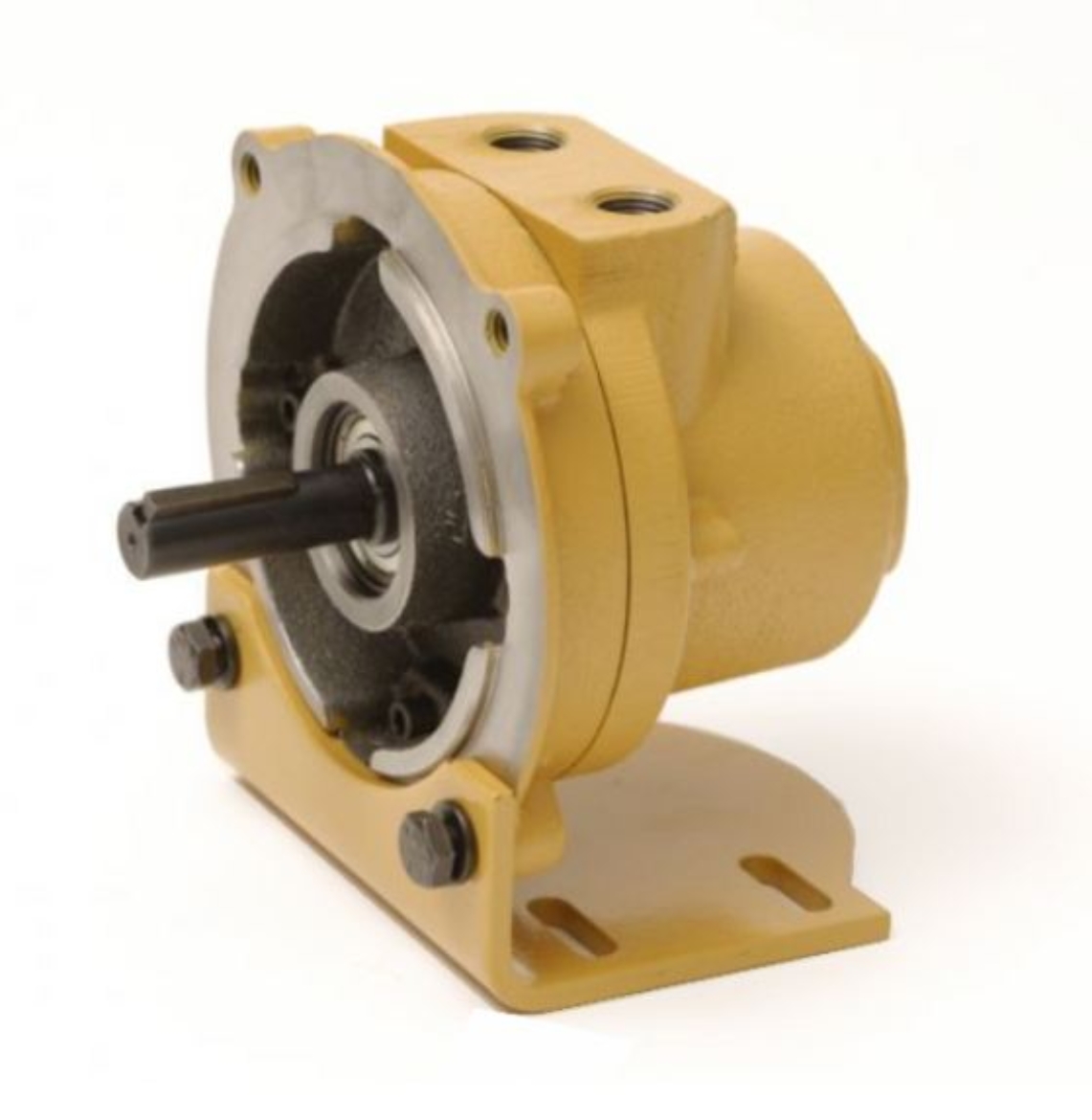

Motor -- Multi-Vane

IR MVA017A

Direct Drive Air Motor, 5/8" Keyed Shaft, 5450 RPM, 1.93 HP, 9.5 NM, Reversible

• Air Consumption at Max HP (scfm): 76
• Air Inlet: 3/8" NPT
• Air Pressure (psi): 90

• Drive Size (in): 5/8
• Drive Type: Round Keyed

• Exhaust Location: Side
• Finish: Paint
• Gear Ratio: 1:1
• Gear Reduction: Direct Drive
• Gear Train: Gearless

• Housing Material: Steel

• Max Free Speed (rpm): 5450
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 7.0
• Max Torque (in-lb): 84
• Max Torque (nm): 9.5
• Motor: Rotary Vane
• Motor: Direct Drive
• Mounting Type: Foot

• Number of Mounting Holes: 4
• Power Source: Air Powered

• Product Weight (lb): 12.5
• Rated Power (hp): 1.93
• Rated Power (kW): 1.44
• Reversible: Reversible

• Speed at Max Power (rpm): 2800
• Starting Torque (ft-lb): 4.5
• Starting Torque (nm): 6.1

• Warranty: 1-year
