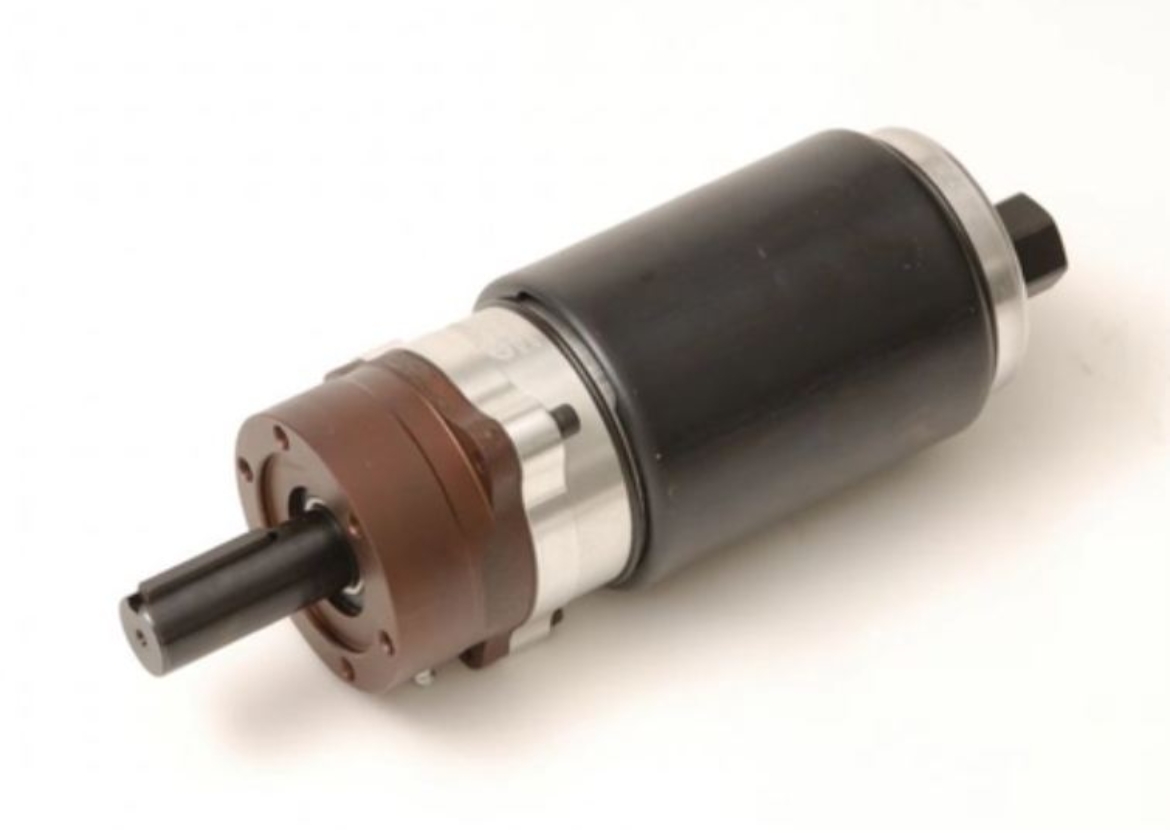

IR 3840U
Inline Multi-Vane Air Motor, 3/4" Keyed Shaft, 162 RPM, 1.35 HP, 181 NM, Reversible
Description: With durable inline planetary gearing and a robust vane motor, the 3800 Series is one of the most durable motors on the market.
Features And Benefits:
- Safety: Meets ATEX Standards
- Durable: The 3800 Series is designed to withstand harsh environments and keep on running.
- Ease of Service: Easily serviceable, the 3800 Series will enhance productivity by eliminating long repair times.
Product Application and Uses:
Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller
- Air Consumption at Max HP (scfm): 44
- Air Inlet: 1/2" NPT
- Air Pressure (psi): 90
- Drive Length (in): 2.1875
- Drive Size (in): 3/4
- Drive Type: Round Keyed
- Exhaust Location: Rear
- Finish: Black Oxide
- Gear Ratio: 19.3:1
- Gear Reduction: Double
- Gear Train: Planetary
- Housing Material: Steel
- Keyaway Length (in): 1.5
- Max Free Speed (rpm): 162
- Max Pressure (bar): 6.2
- Max Torque (ft-lb): 133
- Max Torque (in-lb): 1602
- Max Torque (nm): 181
- Motor: Rotary Vane
- Motor: In line
- Mounting Type: Face
- Number of Mounting Holes: 6
- Operating Temperature Range: 0F to 150F
- Power Source: Air Powered
- Product Length (in): 8.69
- Product Width (in): 3.25
- Product Height (in): 3.25
- Product Weight (lb): 8.75
- Rated Power (hp): 1.35
- Rated Power (kW): 1.01
- Reversible: Reversible
- Speed at Max Power (rpm): 83
- Standards/Certifications: ATEX
- Starting Torque (ft-lb): 100
- Starting Torque (nm): 135
