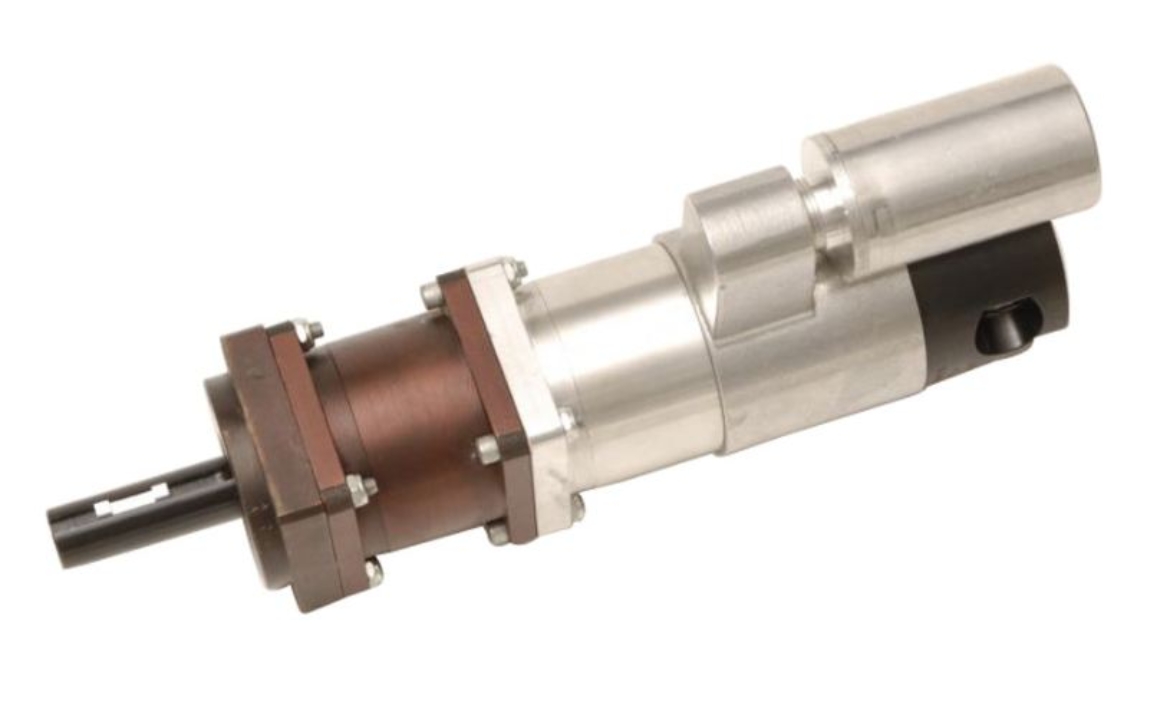

Power Motor

IR 8207-A

Inline Multi-Vane Air Motor, 7/8" Keyed Shaft, 500 RPM, 1.9 HP, 81.3 NM, Reversible

• Air Consumption at Max HP (scfm): 93.5
• Air Inlet: 3/8" NPT
• Air Pressure (psi): 90

• Drive Size (in): 7/8
• Drive Type: Round Keyed

• Exhaust Location: Exterior Muffler
• Finish: Black Oxide
• Gear Ratio: 28:1
• Gear Reduction: Double
• Gear Train: Planetary

• Housing Material: Steel

• Max Free Speed (rpm): 500
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 60
• Max Torque (in-lb): 720
• Max Torque (nm): 81.3
• Motor: Rotary Vane
• Motor: In line
• Mounting Type: Face

• Number of Mounting Holes: 4
• Power Source: Air Powered

• Product Weight (lb): 18.24
• Rated Power (hp): 1.9
• Rated Power (kW): 1.42
• Reversible: Reversible

• Sound Level dB(A): 95
• Speed at Max Power (rpm): 250

• Torque Output @ Max HP (ft-lb): 40
• Torque Output @ Max HP (nm): 54.1
• Warranty: 1-year
