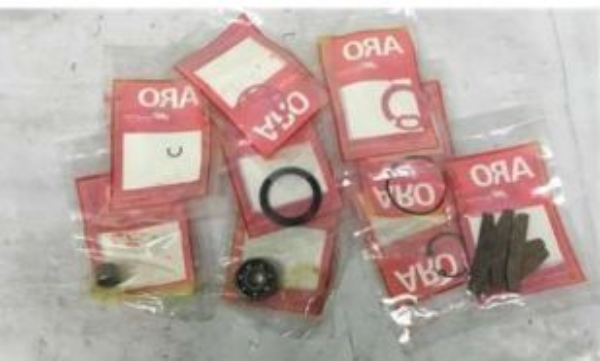

IR M007-TK1

TUNE UP KIT

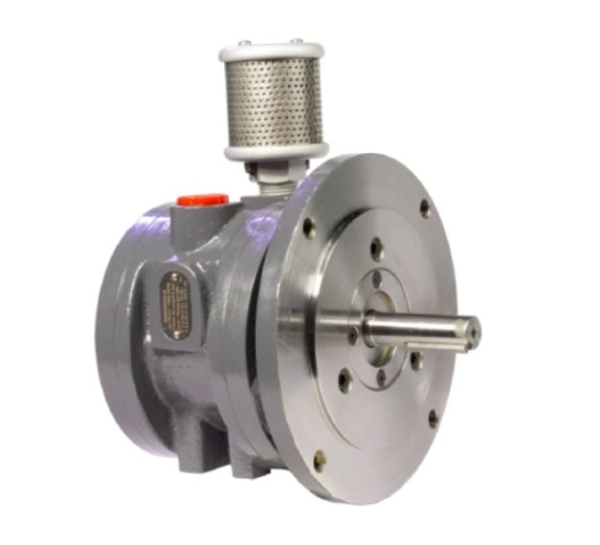

IR SM2AMAN

Air Motor

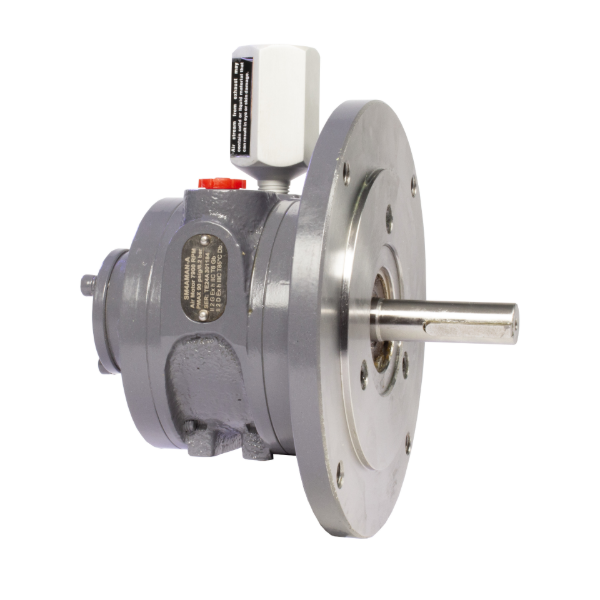

IR SM4AMAN-A

Lube-Free Multi-Vane Air Motor, 5/8 Round Keyed, 1.5HP, 2.6ft-lb, 7900 RPM, NEMA

The Ingersoll Rand® SM Series Lube Free Air Motors reduces the need for frequent maintenance and delivers maximum horsepower in a compact size, making them ideal for applications requiring portability and space efficiency. Tackle Harsh Environments with a self-regulating cooling system that maintains optimal temperatures for consistent performance and longevity. Easy Installation with multiple mounting options including Foot, Flange, Hub and NEMA for compatibility with a wide range of setups.

Features And Benefits

• Efficiency: Lube free airline operation provides clean, consistent performance that minimizes downtime – making maintenance quick and cost-effective.
• Performance: Get seamless control in dynamic environments with easy throttling and quick response times that ensure instant start and stop.
• Durability: Auto-stop mechanism protects the motor to deliver longevity and reliability under overload conditions.
• Safety: ATEX and CE certified for reliable performance in hazardous environments requiring intrinsically safe components.

Product Application and Uses: Paint Mixing, Conveyers, Pipe Cutting, Industrial Equipment, pre-lube and post-lube pumps
Air Consumption at Max HP (scfm): 67
Air Inlet: 1/2"-14 NPT
Air Pressure (psi): 90
Drive Length (in): 1.94
Drive Size (in): 5/8
Drive Type: Round Keyed
Finish: Black Oxide
Gear Ratio: 1:1
Gear Reduction: Direct Drive
Gear Train: Gearless
Housing Material: Steel
Keyaway Length (in): 1.31
Max Free Speed (rpm): 7900
Max Pressure (bar): 6.2
Max Torque (ft-lb): 4.1
Max Torque (in-lb): 50
Max Torque (nm): 5.6
Motor: Rotary Vane
Motor: In line
Motor: Direct Drive
Mounting Type: NEMA
Operating Temperature Range: 33.8F to 104F
Power Source: Air Powered
Product Length (in): 6.56
Product Width (in): 3.9
Product Height (in): 7
Product Weight (lb): 11.22
Rated Power (hp): 1.5
Rated Power (kW): 1.1
Reversible: Reversible
Standards/Certifications: ATEX and CE certified
Starting Torque (ft-lb): 2.6
Starting Torque (nm): 3.5
Warranty: 1-year

Supersedes

• SM4AMAN

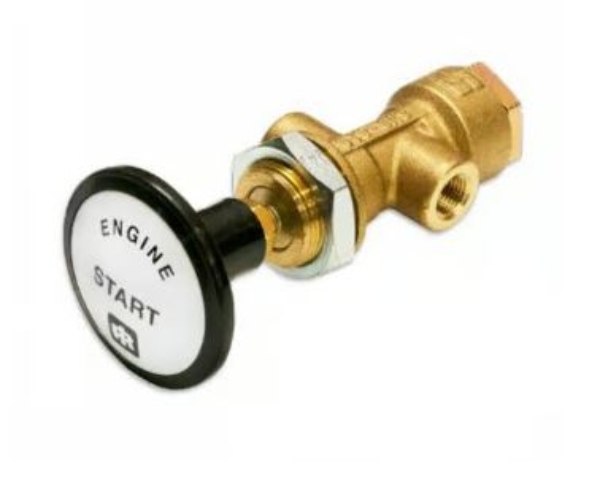

IR SMB-G618

MAN CONTROL VALVE - CHR

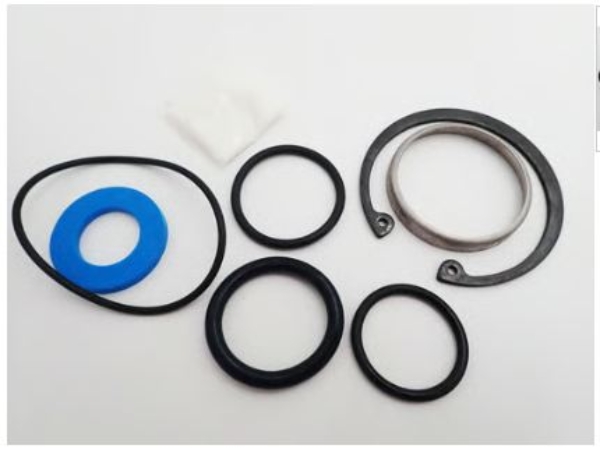

IR SRV150-TK3

TUNE-UP KIT

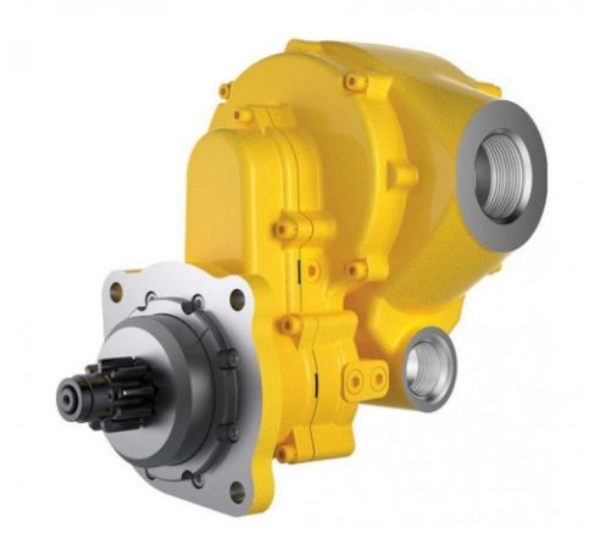

IR SS100P01R15-23

STARTER ASSEMBLY

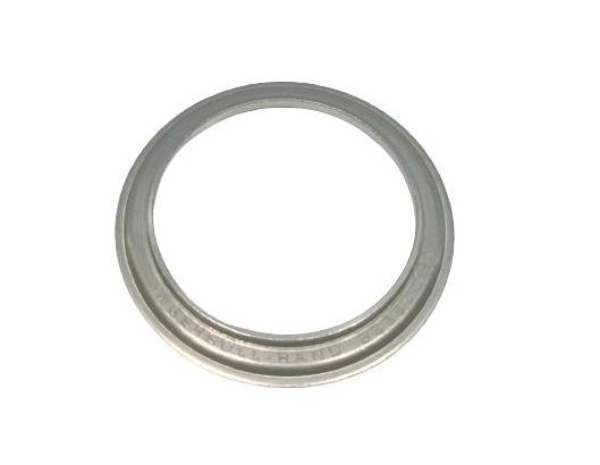

IR SS350-191

RETURN SPRING SEAT

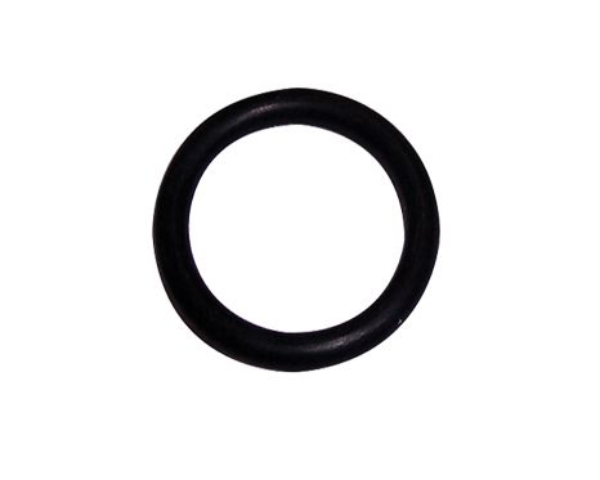

IR SS350-243

DRIVE HOUSING O-RING

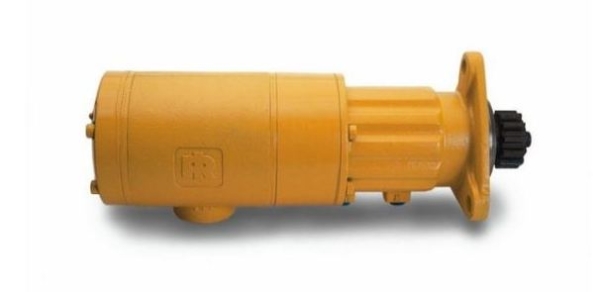

IR SS350GE03R29-02H

STARTER

DD PT-418

Air Motor / Adapter Assembly

DY 01197

Air Motor

EP CB336900SR

Air Motor Assembly, Replacement Kit
PA-Series

• Type: Service Kit

• SubTypes: Repair Part

EP XA1AMK

Air Motor, XA-Series

• Type: Service Kit

• SubTypes: Repair Part

GG 220106

Motor, Air, Quiet King

IR 7811-24

FRONT ROTOR BEARING

IR MVA008-103

SEAL

IR PARTS-388-SERIES

ST700-100B

IR R4801U-10

GEAR

IR SM2AMC-TK1

TUNE-UP KIT

IR TA-W9691-054

MOTOR AND SWITCH ASSEMBLY

RR 70897-02

Air Motor Shafts, Left Handed

AA 7543-B

Inline Multi-Vane Air Motor, 3/8" Keyed Shaft, 550 RPM, 0.25 HP, 10.6 NM, Reversible

• Air Consumption at Max HP (scfm): 20
• Air Inlet: 1/8" NPT
• Air Pressure (psi): 90

• Drive Size (in): 3/8
• Drive Type: Round Keyed

• Exhaust Location: Exterior Muffler
• Finish: Black Oxide
• Gear Ratio: 38.6:1
• Gear Reduction: Double
• Gear Train: Planetary

• Housing Material: Steel

• Max Free Speed (rpm): 550
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 7.8
• Max Torque (in-lb): 94
• Max Torque (nm): 10.6
• Motor: Rotary Vane
• Motor: In line
• Mounting Type: Foot Mount Optional

• Power Source: Air Powered

• Product Weight (lb): 1.82
• Rated Power (hp): 0.25
• Rated Power (kW): 0.19
• Reversible: Reversible

• Sound Level dB(A): 75
• Speed at Max Power (rpm): 300

• Torque Output @ Max HP (ft-lb): 4.4
• Torque Output @ Max HP (nm): 5.9
• Warranty: 1-year

• Parts: 37898
