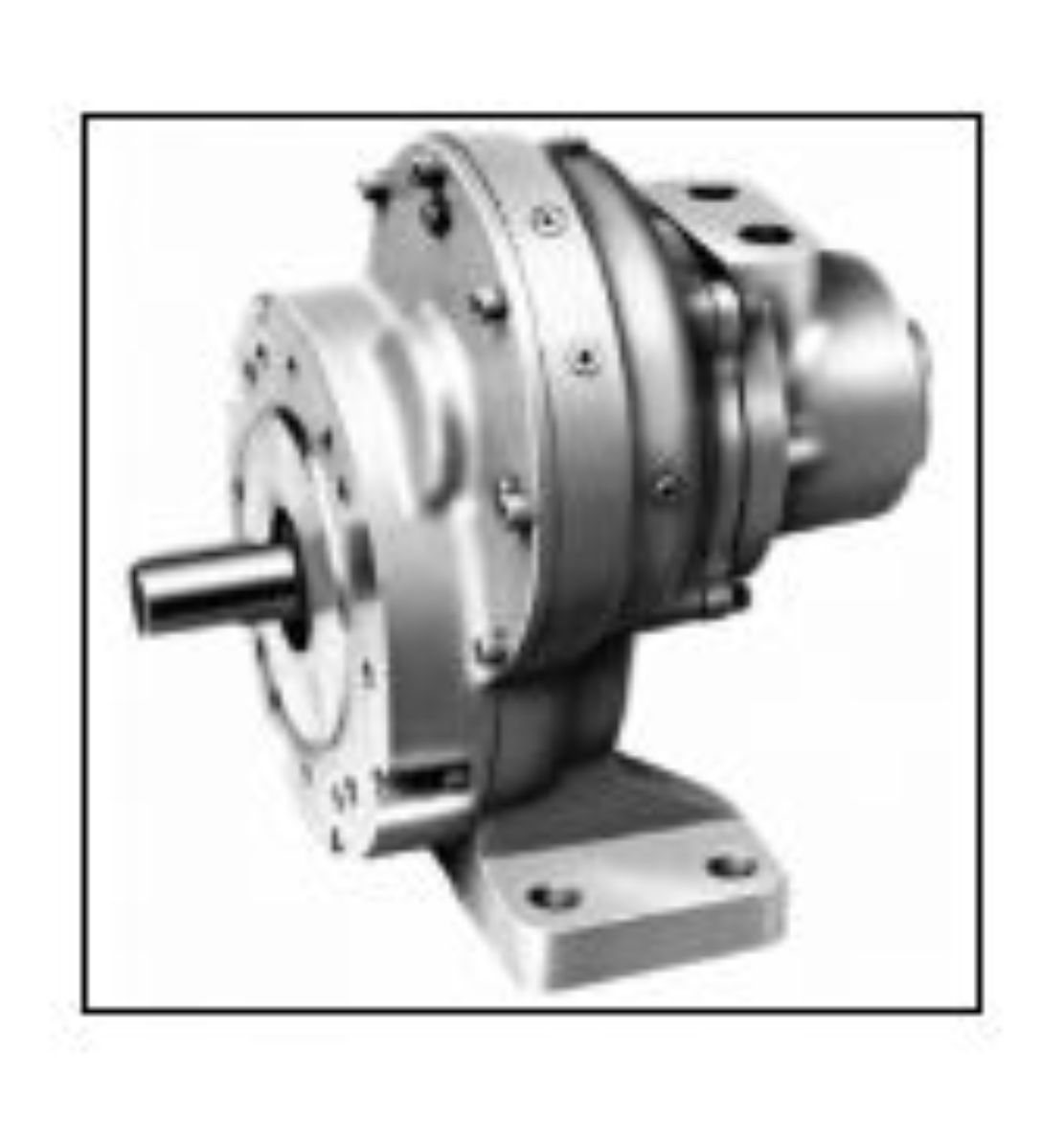

IR 34RA011
Spur Gear Air Motor, 1-1/2" Keyed Shaft, 490 RPM, 4.1 HP, 206 NM, Reversible
- Air Consumption at Max HP (scfm): 183
- Air Inlet: 1/2" NPT
- Air Pressure (psi): 90
- Drive Size (in): 1-1/2
- Drive Type: Round Keyed
- Exhaust Location: Side
- Finish: Paint, Yellow
- Gear Reduction: Single
- Gear Train: Spur Gear
- Housing Material: Steel Motor, Aluminum Gear Housing
- Max Free Speed (rpm): 490
- Max Pressure (bar): 6.2
- Max Torque (ft-lb): 152
- Max Torque (in-lb): 1823
- Max Torque (nm): 206
- Motor: Rotary Vane
- Motor: Spur Gear
- Mounting Type: Foot and Face
- Power Source: Air Powered
- Product Weight (lb): 43
- Rated Power (hp): 4.1
- Rated Power (kW): 3.06
- Reversible: Reversible
- Speed at Max Power (rpm): 255
- Starting Torque (ft-lb): 98
- Starting Torque (nm): 133
