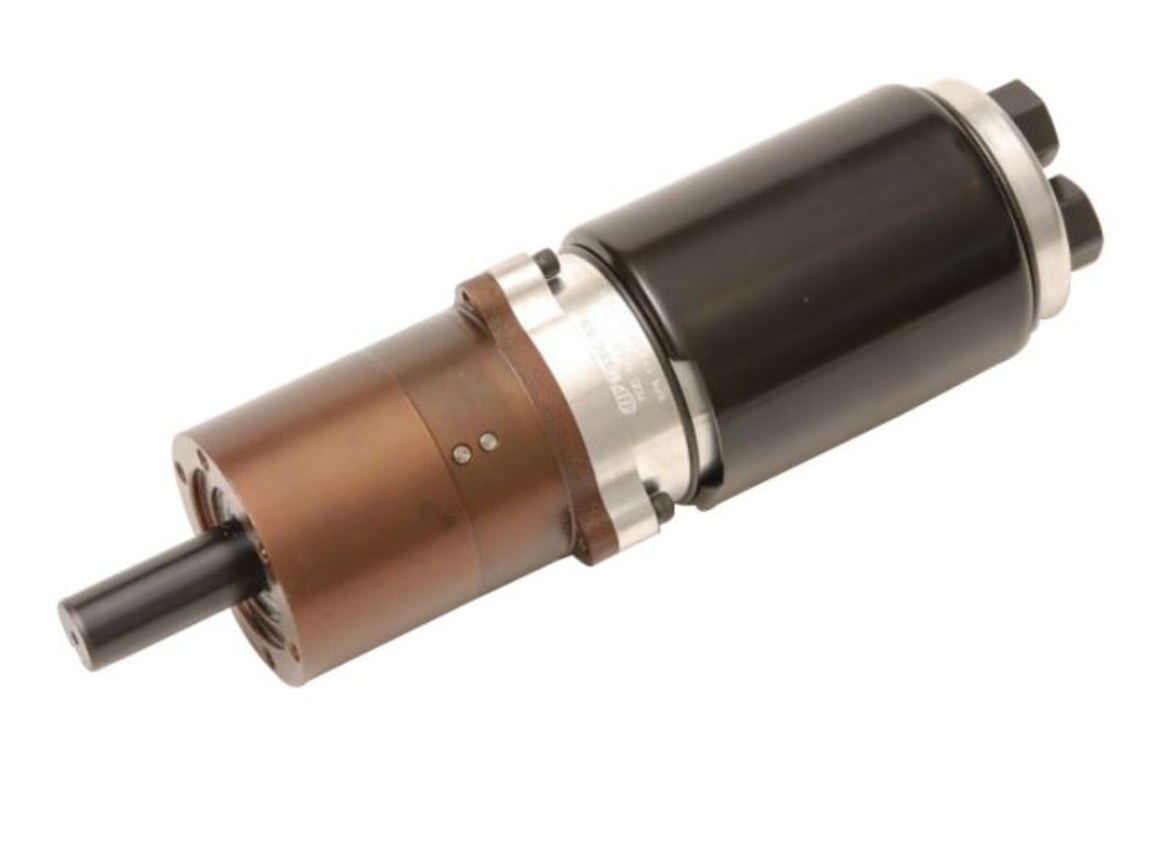

IR 4840M
Inline Multi-Vane Air Motor, 1" Keyed Shaft, 975 RPM, 3.2 HP, 85.4 NM, Reversible
Description: The 4800 Series has a durable inline planetary gearing system and robust vane motor design making it one of the most durable motors around.
Features And Benefits:
- Safety: Meets ATEX Standards
- Durable: Able to withstand harsh environments, you never have to worry about the 4800 Series letting you down.
- Ease of Service: Without having to worry about repair time, you'll be able to spend more time focused on the job.
Product Application and Uses:
Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller
- Air Consumption at Max HP (scfm): 95
- Air Inlet: 1/2" NPT
- Air Pressure (psi): 90
- Drive Length (in): 2.25
- Drive Size (in): 1
- Drive Type: Round Keyed
- Exhaust Location: Rear
- Finish: Black Oxide
- Gear Ratio: 35.6:1
- Gear Reduction: Single
- Gear Train: Planetary
- Housing Material: Steel
- Keyaway Length (in): 1.625
- Max Free Speed (rpm): 975
- Max Pressure (bar): 6.2
- Max Torque (ft-lb): 63
- Max Torque (in-lb): 756
- Max Torque (nm): 85.4
- Motor: Rotary Vane
- Motor: In line
- Mounting Type: Face
- Number of Mounting Holes: 6
- Operating Temperature Range: 0F to 150F
- Power Source: Air Powered
- Product Length (in): 11.38
- Product Width (in): 4
- Product Height (in): 4
- Product Weight (lb): 15.25
- Rated Power (hp): 3.2
- Rated Power (kW): 2.39
- Reversible: Reversible
- Speed at Max Power (rpm): 485
- Standards/Certifications: ATEX
- Starting Torque (ft-lb): 47
- Starting Torque (nm): 64
- Parts: 518-104
- Parts: R4901-102
