Air Motors

IR ST455R-A53

PC 207-10060

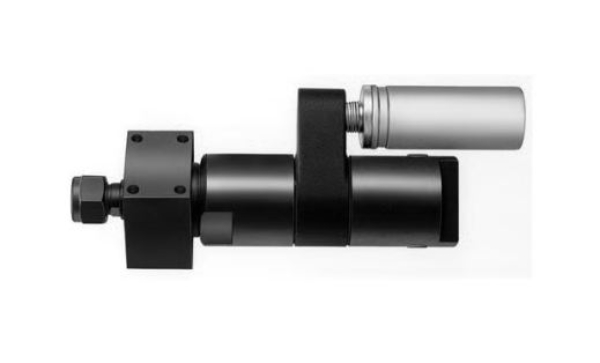

AA 7801-4B

AA 7802-2B

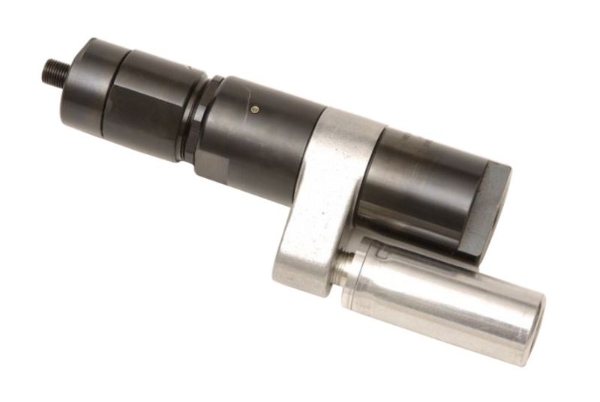

AA 7813-B

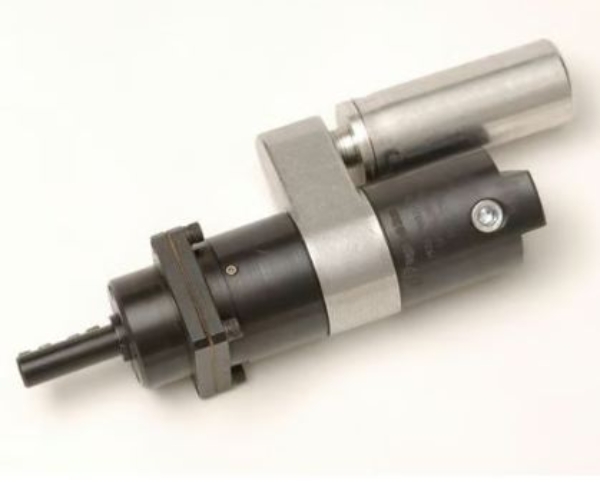

AA 8226-11A

AA 8228-10B

AA 8228-3B

DD PT-418

DY 01197

EP CB336900SR

• Type: Service Kit

• SubTypes: Repair Part

EP DA5816900SR

• Type: Service Kit

• Product Group: Pumps
• SubTypes: Motor Assembly

GG 220106

GS 2AM-NRV-90

GS 4AM-FRV-13H

GS 4AM-NRV-54A

GS 4AM-NRV-70C

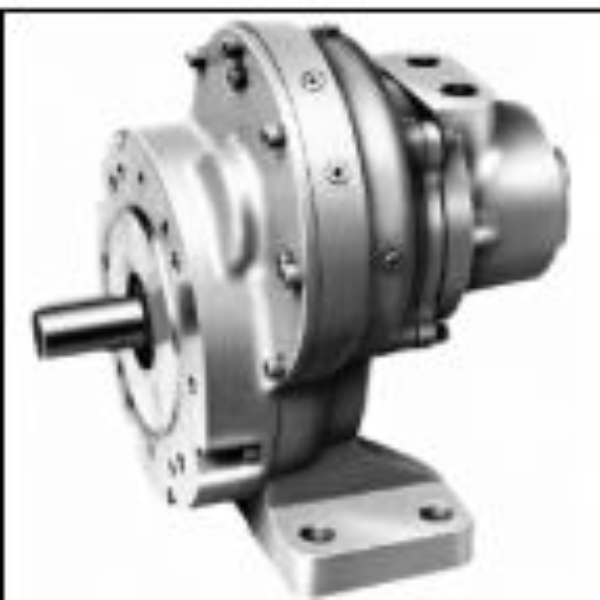

IR 34RB078

Spur Gear Air Motor, 1-1/2" Keyed Shaft, 69 RPM, 4 HP, 1370 NM, Reversible

• Air Consumption at Max HP (scfm): 180
• Air Inlet: 1/2" NPT
• Air Pressure (psi): 90

• Drive Size (in): 1-1/2
• Drive Type: Round Keyed

• Exhaust Location: Side
• Finish: Paint, Yellow
• Gear Reduction: Double
• Gear Train: Spur Gear

• Housing Material: Steel Motor, Aluminum Gear Housing

• Max Free Speed (rpm): 69
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 1010
• Max Torque (in-lb): 12126
• Max Torque (nm): 1370
• Motor: Rotary Vane
• Motor: Spur Gear
• Mounting Type: Foot and Face

• Power Source: Air Powered

• Product Weight (lb): 75
• Rated Power (hp): 4
• Rated Power (kW): 2.98
• Reversible: Reversible

• Speed at Max Power (rpm): 36
• Starting Torque (ft-lb): 606
• Starting Torque (nm): 822

• Warranty: 1-year

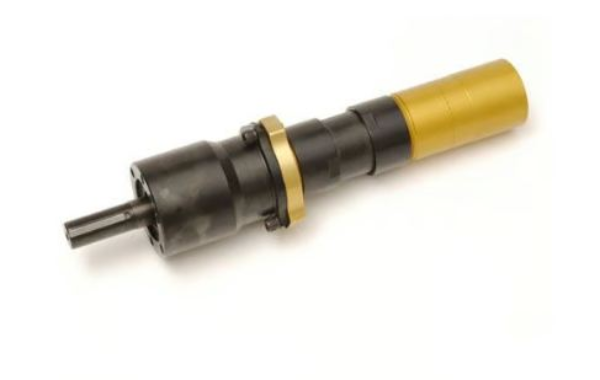

IR 3840M

Inline Multi-Vane Air Motor, 3/4" Keyed Shaft, 825 RPM, 1.40 HP, 47.7 NM, Reversible

Description: With durable inline planetary gearing and a robust vane motor, the 3800 Series is one of the most durable motors on the market.

Features And Benefits:

• Safety: Meets ATEX Standards
• Durable: The 3800 Series is designed to withstand harsh environments and keep on running.
• Ease of Service: Easily serviceable, the 3800 Series will enhance productivity by eliminating long repair times.

Product Application and Uses:

Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller

• Air Consumption at Max HP (scfm): 44
• Air Inlet: 1/2" NPT
• Air Pressure (psi): 90

• Drive Length (in): 2.1875
• Drive Size (in): 3/4
• Drive Type: Round Keyed

• Exhaust Location: Rear
• Finish: Black Oxide
• Gear Ratio: 19.3:1
• Gear Reduction: Single
• Gear Train: Planetary

• Housing Material: Steel
• Keyaway Length (in): 1.5

• Max Free Speed (rpm): 825
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 35
• Max Torque (in-lb): 422
• Max Torque (nm): 47.7
• Motor: Rotary Vane
• Motor: In line
• Mounting Type: Face

• Number of Mounting Holes: 6
• Operating Temperature Range: 0F to 150F
• Power Source: Air Powered
• Product Length (in): 8.69

• Product Width (in): 3.25
• Product Height (in): 3.25
• Product Weight (lb): 7.38
• Rated Power (hp): 1.40
• Rated Power (kW): 1.04
• Reversible: Reversible

• Speed at Max Power (rpm): 390
• Standards/Certifications: ATEX
• Starting Torque (ft-lb): 23
• Starting Torque (nm): 31.2

• Warranty: 1-year

• Parts: R3800-A123

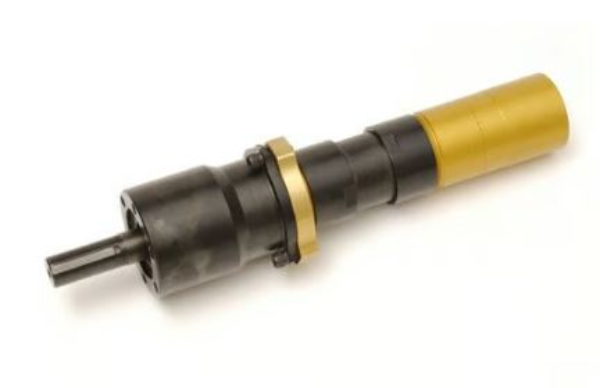

IR 4840U

Inline Multi-Vane Air Motor, 1" Keyed Shaft, 170 RPM, 3 HP, 407 NM, Reversible

Description: The 4800 Series has a durable inline planetary gearing system and robust vane motor design making it one of the most durable motors around.

Features And Benefits:

• Safety: Meets ATEX Standards
• Durable: Able to withstand harsh environments, you never have to worry about the 4800 Series letting you down.
• Ease of Service: Without having to worry about repair time, you'll be able to spend more time focused on the job.

Product Application and Uses:

Industrial Machinery, Insert tools, Conveyers, Index machines, Fastener/Insert tools, Automotive assembly fixtures, Meat processing, Aircraft Assembly, Pipe Cutting, Pipe Beveling, Tip Dressers, Strapping tools, Wood working machinery, Tapping/Drilling Machines, tandem trailer puller

• Air Consumption at Max HP (scfm): 95
• Air Inlet: 1/2" NPT
• Air Pressure (psi): 90

• Drive Length (in): 2.25
• Drive Size (in): 1
• Drive Type: Round Keyed

• Exhaust Location: Rear
• Finish: Black Oxide
• Gear Ratio: 53.5:1
• Gear Reduction: Double
• Gear Train: Planetary

• Housing Material: Steel
• Keyaway Length (in): 1.625

• Max Free Speed (rpm): 170
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 300
• Max Torque (in-lb): 3602
• Max Torque (nm): 407
• Motor: Rotary Vane
• Motor: In line
• Mounting Type: Face

• Number of Mounting Holes: 6
• Operating Temperature Range: 0F to 150F
• Power Source: Air Powered
• Product Length (in): 11.38

• Product Width (in): 4
• Product Height (in): 4
• Product Weight (lb): 20.13
• Rated Power (hp): 3
• Rated Power (kW): 2.24
• Reversible: Reversible

• Speed at Max Power (rpm): 83
• Standards/Certifications: ATEX
• Starting Torque (ft-lb): 225
• Starting Torque (nm): 305

• Warranty: 1-year

• Parts: 518-104
• Parts: R4901-102

IR 7811-24

IR 92R-98

IR B006PVR374-03-31P

IR M004RVR000AR3

Inline Multi-Vane Air Motor, 3/8" Keyed Shaft, 16000 RPM, 0.4 HP, 0.57 NM, Reversible

Features And Benefits:

• Safety: Meets ATEX Standards

• Air Consumption at Max HP (scfm): 19
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90

• Drive Size (in): 3/8
• Drive Type: Round Keyed

• Exhaust Location: Rear
• Finish: Black Oxide and Anodize
• Gear Ratio: 1:1
• Gear Reduction: Direct Drive
• Gear Train: Planetary

• Housing Material: Steel

• Max Free Speed (rpm): 16000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 0.4
• Max Torque (in-lb): 5.0
• Max Torque (nm): 0.57
• Motor: Rotary Vane
• Motor: In line
• Mounting Type: Flanged Mounting

• Number of Mounting Holes: 2
• Power Source: Air Powered

• Product Weight (lb): 2.06
• Rated Power (hp): 0.4
• Rated Power (kW): 0.3
• Reversible: Reversible

• Speed at Max Power (rpm): 8000
• Standards/Certifications: ATEX
• Starting Torque (ft-lb): 0.3
• Starting Torque (nm): 0.43

• Warranty: 1-year

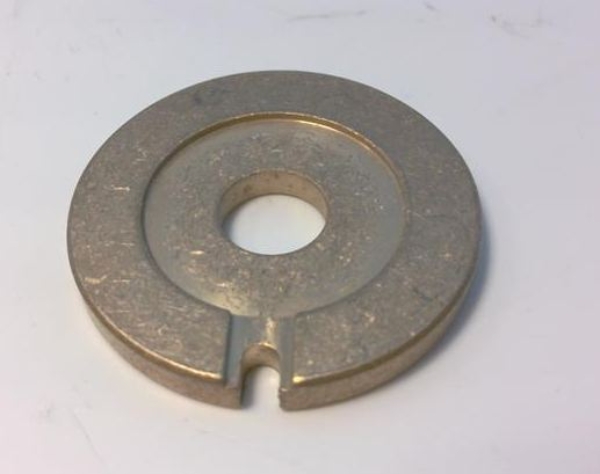

IR M007-11
